Summary of Contents for Illuminite Illumipod 18 IP Optic RGB

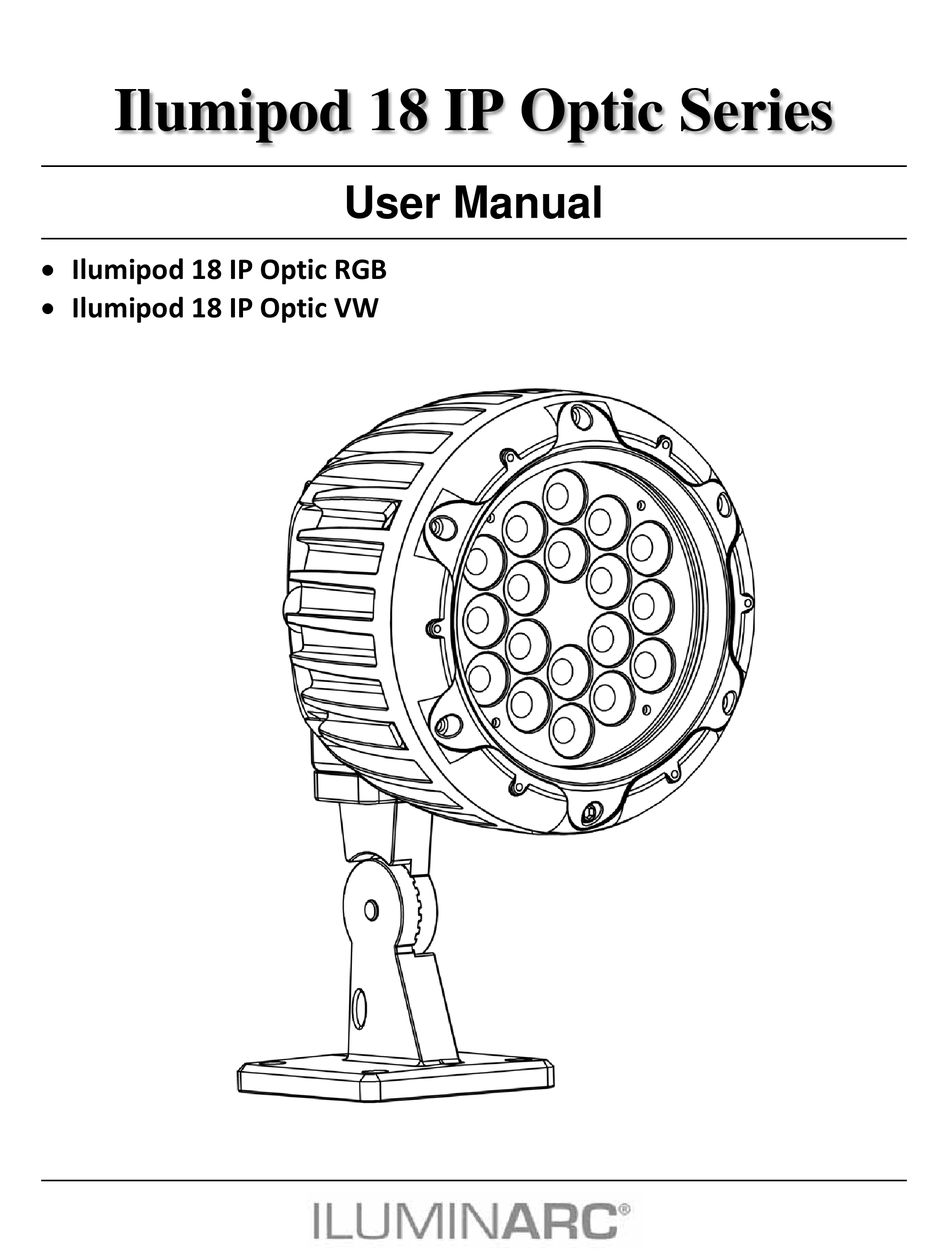

- Page 1 Ilumipod 18 IP Optic Series User Manual Ilumipod 18 IP Optic RGB Ilumipod 18 IP Optic VW...
- Page 2 Edition Notes Edition Notes The Ilumipod 18 IP Optic Series User Manual Rev. 08 covers the description, safety precautions, installation, programming, operation, and maintenance of all the Ilumipod 18 IP Optic Series. ® ILUMINARC released this edition of the Ilumipod 18 IP Optic Series User Manual Rev. 08 in August 2011.
-
Page 3: Table Of Contents
Table of Contents Table of Contents 1. Introduction ...................... 1 What Is in the Box ......................1 Unpacking Instructions ....................1 Text Conventions ......................1 Safety Notes ......................... 2 Personal Safety ........................2 Mounting and Installation ..................... 2 ... - Page 4 Table of Contents 5. Technical Information ................... 17 Product Maintenance ....................17 Product Repairs ......................17 Troubleshooting Guide ....................18 Photometrics ......................19 LED Disclaimer ......................22 LED Life ..........................22 LED Binning........................22 ...
-
Page 5: Introduction
Introduction 1. Introduction What Is in the Box This icon One Ilumipod 18 IP Optic product (RGB or VW) indicates useful, Warranty Card although non- critical information. Quick Reference Guide This icon Unpacking Instructions indicates important ® Immediately upon receiving a product from ILUMINARC , carefully unpack the carton. -
Page 6: Safety Notes
Introduction Safety Notes Please read all the following safety notes carefully because they include important information There are no on how to install, use, and maintain this product safely. user serviceable parts inside this Personal Safety product. Any reference to servicing it you may find ... -
Page 7: Product Description
Installation 2. Product Description The Ilumipod 18 IP Optic Series includes two products: Ilumipod 18 IP Optic RGB and Ilumipod 18 IP Optic VW. Common Features Other than their Remotely addressable DMX-512 LED wash light LED configuration IP67 ingress protection and programming features, these ... -
Page 8: Product Overview
Installation Product Overview Cable tie Gore Valve location Power In Mounting Bracket Front of Safety cable product attachment Bracket Adjustment Ilumipod 18 IP Optic Series User Manual Rev. 08... -
Page 9: Product Dimensions
Installation Product Dimensions Ilumipod 18 IP Optic Series User Manual Rev. 08... -
Page 10: Installation
Installation 3. Installation AC Power Always connect the Ilumipod 18 Input Voltage and Frequency IP Optic Series to a protected circuit with an The products in the Ilumipod 18 IP Optic Series have an auto-ranging power supply with an appropriate electrical input voltage range of 100~240 VAC, 50/60 Hz. -
Page 11: Power Distribution
Installation Power Distribution Connect the bare-ended power cable from the product to a power distribution box as indicated below. Always keep the power cables away from the signal cables by running them in different conduits and using separate distribution boxes. Make sure to use power and signal cables with the... -
Page 12: Controllers
Installation Controllers If you have not The products in the Ilumipod 18 IP Optic Series can operate with a standard DMX controller or configured the the Ilumicode controller. The sections below will show you how to connect these products to DMX starting the corresponding controllers. -
Page 13: Ilumicode
Installation Ilumicode The Ilumipod 18 IP uses the Ilumicode addresser for configuration purposes. The diagram To assign individual DMX below shows how to connect the Ilumicode to this product. addresses to Note that this connection will control multiple products at the same time, all having the each product, you must connect the same DMX address. -
Page 14: Mounting
Installation Mounting Before mounting this product, read and follow the safety recommendations indicated in the Safety Notes section (page 2 of this manual). Orientation Always mount this product in a safe position making sure there is adequate room around it for ventilation, configuration, and maintenance. -
Page 15: Operation
Technical Information 4. Operation Ilumicode The products in the Ilumipod 18 IP Optic Series use an external controller, the Ilumicode addresser, to change their configuration. Ilumicode Panel Description Button Function Exits from the current menu or function <MENU> Enables the currently displayed menu or sets the <ENTER>... -
Page 16: Rgb Functions Menu Map
Technical Information RGB Functions Menu Map When you scroll through the menu levels, you Main Level Programming Levels Description will see many of Sets the DMX starting address 001~512 them that do not correspond with this menu ARC 1 3-channel: RGB control map. -
Page 17: Programming
Technical Information Programming Make sure to press <ENTER> Carry out all the programming procedures indicated below from the control panel. Refer to the after selecting an Menu Map in pages 11 and 12 to learn how the menu options relate to each other. option. -
Page 18: Ilumicon Control
Technical Information ILUMICON Control (Only for 18 IP OPTIC RGB) Do not connect any other 1. Go to PERSON. controller to the 2. Select the REMOTE personality. product(s) when using the ILUMICON controller. Static Color (Only for 18 IP OPTIC RGB) 1. -
Page 19: Dmx Values
Technical Information DMX Values ARC 1 Channel Function Value Percent/Setting 000 255 0 ~ 100% 000 255 0 ~ 100% Green 000 255 0 ~ 100% Blue ARC 1 + D Channel Function Value Percent/Setting 000 255 0 ~ 100% Dimmer 000 ... -
Page 20: Vw + D
Technical Information Channel Function Value Percent/Setting 000 255 0 ~ 100% Warm White 000 255 0 ~ 100% Cool White VW + D Channel Function Value Percent/Setting 000 255 0 ~ 100% Dimmer 000 255 0 ~ 100% Warm White 000 ... -
Page 21: Technical Information
Technical Information 5. Technical Information Product Maintenance To maintain optimum performance and minimize wear, the user should clean the products frequently. Usage and environment are contributing factors in determining the cleaning frequency. As a rule, the user should clean the products at least twice a month. Dust build up reduces light output performance and can cause overheating. -
Page 22: Troubleshooting Guide
Technical Information Troubleshooting Guide Symptom Cause(s) Action(s) Dimmer fader set to “0” Increase the value of the dimmer channel All color faders set to “0” Increase the value of the color channels All colors in STATIC are set to “0” Increase the values of the colors Product does not light up Unit is being configured with Ilumicode... -
Page 23: Photometrics
Technical Information Photometrics Filename: Ilumipod 18IP Optic 15RGB- RGB_IESNA2002 Manufacturer: ILUMINARC Luminaire: ILUMIPOD 18IP OPTIC RGB 15 DEGREE Luminaire Cat: 11018001 Lamp: 6 RED, 6 GREEN , 6 BLUE Lamp Output: 1 lamp(s), rated Lumens/lamp: 690 Max Candela: 4,971.8 at Horizontal: 0, Vertical: 0 Input Wattage: 24.6 Luminous Opening:... - Page 24 Technical Information Filename: Ilumipod 18IP Optic 30RGB- RGB_IESNA2002 Manufacturer: ILUMINARC Luminaire: ILUMIPOD 18IP OPTIC RGB 30 DEGREE Luminaire Cat: 11018001 Lamp: 6 RED, 6 GREEN , 6 BLUE Lamp Output: 1 lamp(s), rated Lumens/lamp: 690 Max Candela: 4,971.8 at Horizontal: 0, Vertical: 0 Input Wattage: 24.6 Luminous Opening:...
- Page 25 Technical Information Filename: Ilumipod 18 IP Optic 30 VW 100% ALL Manufacturer: ILUMINARC Luminaire: Ilumipod 18 IP Optic 30 VW Lamp: 12 Warm White, 6 Cool White Lamp Output: 1 lamp(s), rated Lumens/lamp: 1380 Max Candela: 1,237.1 at Horizontal: 90, Vertical: 5 Input Wattage: 26.9 Luminous Opening:...
-
Page 26: Led Disclaimer
Technical Information LED Disclaimer LED Life ® ILUMINARC rates LED lifetime based on lumen depreciation of 70% of the original output, with data provided by the manufacturer of the LED. Data from the manufacturer of ® the LED are not independently verified or measured by ILUMINARC . -
Page 27: Returns Procedure
Technical Information Returns Procedure The user must send the merchandise prepaid, in the original box, and with its original packing ® and accessories. ILUMINARC will not issue call tags. ® Call ILUMINARC and request a Return Merchandise Authorization Number (RMA#) before shipping the product. -
Page 28: Technical Specifications
Technical Information Technical Specifications Ilumipod 18 IP Optic RGB Dimensions and Length Width Height Weight Weight 5.7 in (145 mm) 5.9 in (150 mm) 9.6 in (245 mm) 6 lbs (2.6 kg) Note: Dimensions in inches rounded to the nearest decimal digit. Power Supply Type Range Voltage Selection... -
Page 29: Ilumipod 18 Ip Optic Vw
Technical Information Ilumipod 18 IP Optic VW Length Width Height Weight Dimensions and Weight 5.7 in (145 mm) 5.9 in (150 mm) 9.6 in (245 mm) 6 lbs (2.6 kg) Note: Dimensions in inches rounded to the nearest decimal digit. Power Supply Type Range Voltage Selection... - Page 30 Technical Information ILUMINARC® 5200 NW 108th Avenue Sunrise, FL 33351 U.S.A. Tel.: (954) 923-3680 www.iluminarc.com Ilumipod 18 IP Optic Series User Manual Rev. 08 August 2011...
