Summary of Contents for SMART D-C5

Page 1 Installation and Operation Manual For TCP/IP Digital System...
Page 2 Remark Please follow the user manual for correct installation and testing, if there is any doubt please call our tech-supporting and customer center. Our company applies ourselves to reformation and innovation of our products. No extra informing for any change. The illustration shown here only used for reference, if there is any difference please take the actual product as standard product.
Page 3: Table Of Contents
CATALOG Product Picture ............1 Basic Functions............2 Technology Parameters ...........2 Package Content............2 Operations..............3 System Setting ............4 System Connection..........9 Installation ..............13 Care and Maintenance...........14...
Page 4: Product Picture

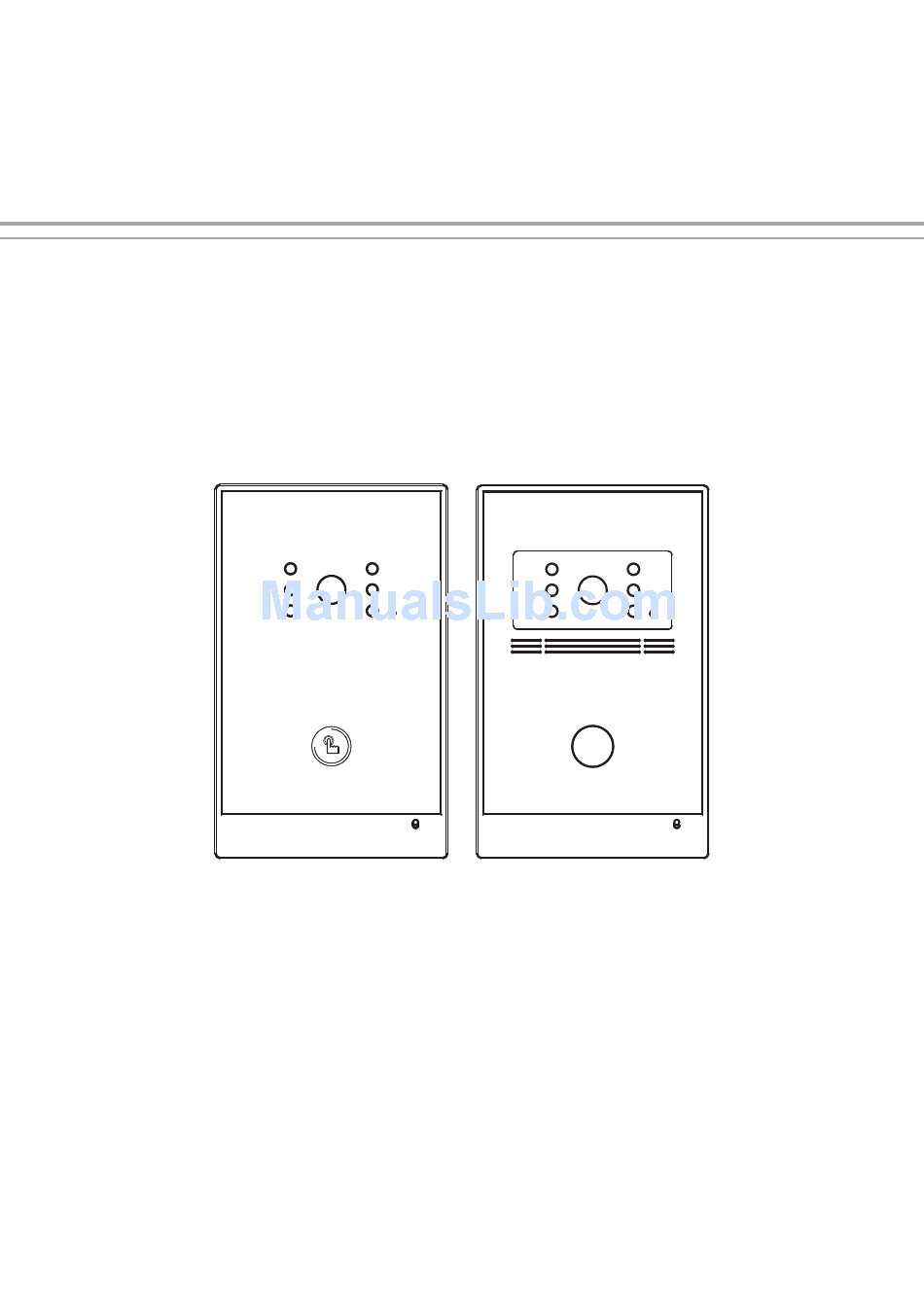

Picture Model:D-C5 (With glass surface) Speaker Infrared LEDs Light Sensor Camera Call Button Microphone Model:D-C5 (With metal surface ) Speaker Infrared LEDs Light Sensor Camera Call Button Microphone...
Page 5: Basic Functions
Basic Functions 1. Call indoor monitor or management center. 2. Video intercom with indoor monitor or management center. 3. Support SIP protocol to communicate with IP phone. Technology Parameter 1. Working voltage DC 12V/ POE optional 2. Rated power 5W Technology Parameter Standby power consumption: 2.5W .
Page 6: Operations
Operation Calling In standby mode, when the visitors press the call button, the corresponding indoor monitor will ring. When it is set as help station, press the call button, the management center will ring. IP address View Connect outdoor panel and PC in the network switch and make them in the same LAN.
Page 7: System Setting
System Setting Connect outdoor panel and PC in the network switch and make them in the same LAN. Input IP address of outdoor panel in the web browser of PC, then input the user name and password(the default user name is admin, the password is 123456) to enter into the following interface: 1.
Page 8 you need to set SIP server to support the communication. Press “Submit” button to confirm settings. 2. Device setting: Click “Device” icon on the interface to enter into the following interface: The settings of build and Unit No. should be the same as that of corresponding indoor monitor.
Page 9 Unlock timeout: After 1~9 seconds, the door lock is open. Unlock delay: The door lock is open for 0~9 seconds Unlock password: It is reserved. Elev refer: It is reserved. Admin Card: It is reserved. Press “Submit” button to confirm settings. 4.
Page 10 1.Call indoor monitor The indoor monitor can be bound with IP phone No.. When someone calls it, and there is no answer within 25 seconds, the calling will transfer to the IP phone automatically. Please refer to the following steps: Input room No.
Page 11 9. Logout Click “Logout” icon on the interface to enter into the following interface: Click “Submit” icon to logout the system.
Page 12: System Connection
System Connection Optional 1: If you use the same power supply for outdoor panel and lock, please find the system diagram as follows: Connect with electric lock: 485- 485+ V+ V+ CAT-5e Reserved 485 RVV4*0.5 data interface 1.+12V 2.GND Electric lock 4.CTRL 5.LOCK1 6.LOCK2...
Page 13 Connect with magnetic lock: 485- 485+ V+ V+ CAT-5e Reserved 485 RVV4*0.5 data interface +12V CTRL LOCK Magnetic lock Power(DC12V) -10-...
Page 14 Optional 2: If your lock needs a seperate power supply, please find the system diagram as follows: 485- 485+ V+ V+ CAT-5e Reserved 485 RVV4*0.5 data interface +12V +18V CTRL Lock Power LOCK1 Supply LOCK2 Power(DC12V) -11-...
Page 15 Power on Ethernet: Compatible with IEEE 802.3af, 48V PoE standard. CAT-5e +12V PoE Switch +18V CTRL Lock Power Supply LOCK1 LOCK2 Power(DC12V)(optional) -12-...
Page 16: Installation
Installation Hole Drain hole Build-in box Break through the cord hole on the bottom of the build-in box firstly for water draining. Please don’t cover the drain hold with the glass cement. -13-...
Page 17: Care And Maintenance
Care and Maintenance 1.Do not put the unit near the magnetic area such as television, video recorder etc. 2. Do not drop, knock or shake the unit. 3.Do not put the unit in hot areas. If the temperature is too high, it will shorten the using life of the unit.
