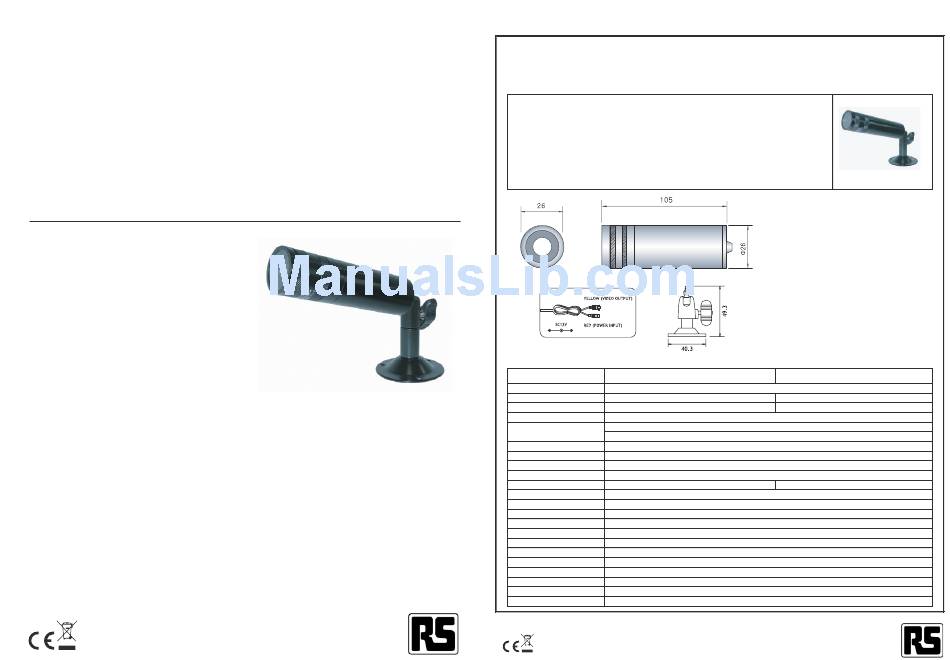

Sambo SCB119HQMV Instruction Manual

Instruction Manual

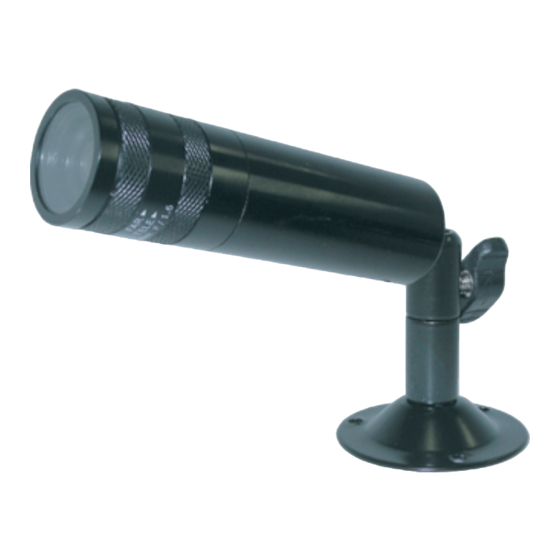

Digital Colour Bullet Camera
SCB119HQMV
RS Part No. 696-1207
DIGITAL COLOUR VARI-FOCAL BULLET CAMERA
CAUTION
• Do not open or strike this equipment. Sensitive electronics inside are vulnerable to excessive shock.
• Do not install the equipment near any naked flames or heat sources. Excessive heat could damage this unit.
• Do not cover cloth or to install this unit in poorly ventilated places. This may lead to overheating.
• Do not continue to operate if there appears to be fault.
If the unit ceases to function, contact qualified service personnel for help.
• Do not touch the power connection with wet hands. Risk of short circuit or electric shock.
• Do not damage the power cord or leave it under pressure. Risk of fire or shock circuit.
SPECIFICATION
Image Device
Picture Elements
Scanning System
Sync System
Horizontal Resolution
Video Output
S/N Ratio
Gamma Characteristic
Gain Control
White Balance
Electronic Shutter
LENS
Lens Option
Smear Effect
Minimum Illumination
Power Consumption
Operation Temperature
Storage Temperature
Weight
Housing
Dimension(mm)
Cable(option)
SCB119HQMV
1/3" COLOUR SONY SUPER HAD
HIGH RESOLUTION (26 )
B/W Mode : 600TV Line (True Day&Night)
Minimum Illumination : 0.2Lux(Day),0.03(Night) (F:1.2)
SCB119HQMV (NTSC) SCB119HQMV (PAL)
1/3" Colour SONY Super HAD CCD (1/3" Color SONY Exview CCD)
768(H) 494(V)
525 Lines, 60Field/sec 625 Lines, 50Field/sec
Internal Synchronization
560 TV Line
600TV Line (5~7Lux B/W Mode : True Day & Night)
1Vp-p 75 Composite
More Than 50dB (AGC Off)
0.45
0dB ~ 32dB Auto
1/60~1/100,000sec (Auto) 1/50~1/100,000sec (Auto)
Auto 2100 K ~ 9100 K Auto Push Lock (option : ATW)
Manual 4mm~9mm
Manual 9mm~22mm
0.005%
0.2Lux (Day) (f:1.2)
12V 10% DC, 140mA
10 ~ 50 , RH95% Max ℃
℃
20 ~ 60 , RH95% Max ℃
℃
Approx 125g
ALUMINUM
26 × 105
Φ
Standard 500mm BNC/DC Jack
RS Part No. 696-1207
FEATURE
Φ
High Resolution : 560TV Line
Auto White Balance
Automatic Gain Control
Power Source : DC12V ( 10%)
±
Manual Vari-Focal Lens Type
752(H) 582(V)
