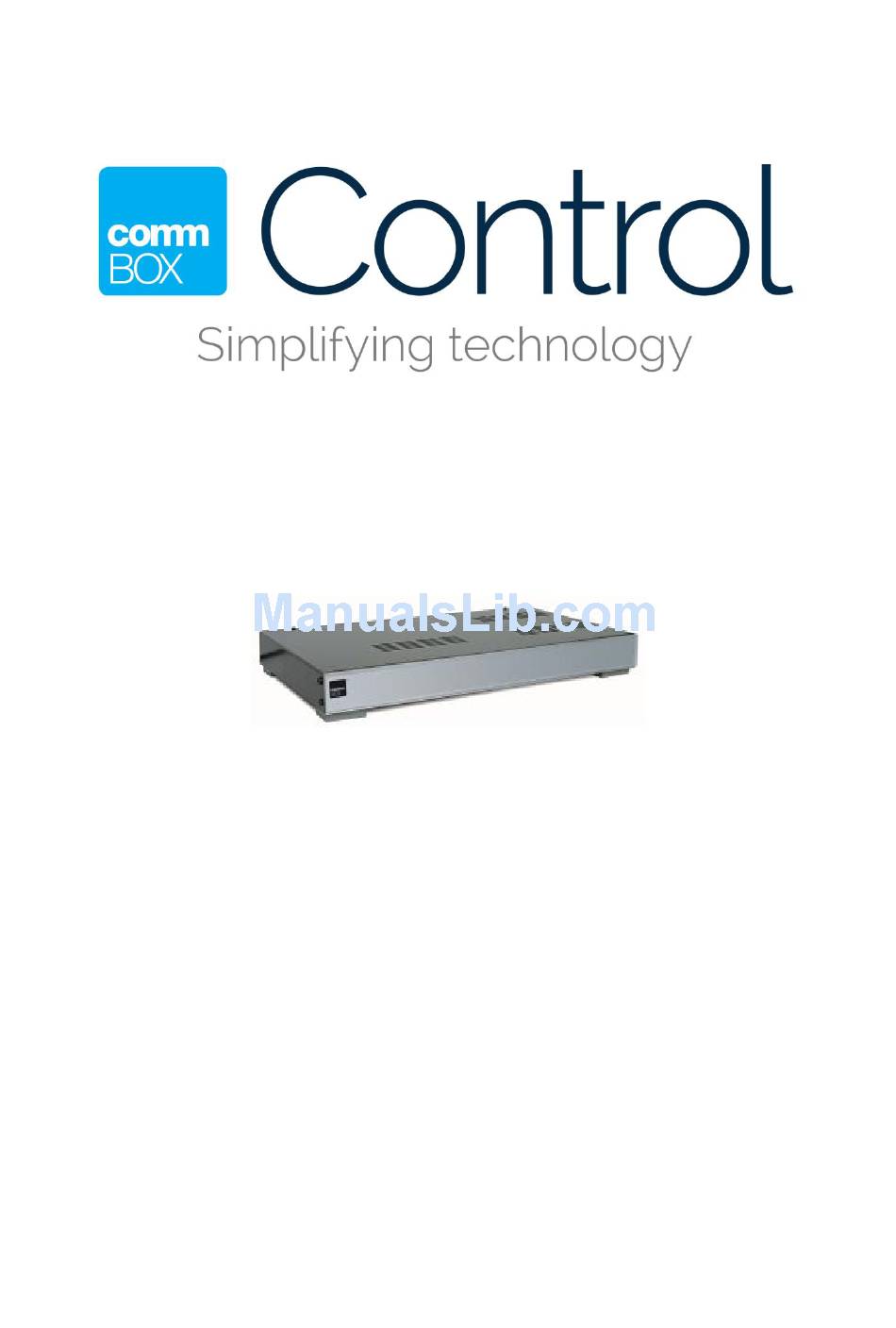

- Page 1 CommBox Micro Training, Installation, Application notes. COMM BOX PTY LTD | abn: 431 583 817 05 | Telephone +61 2 9938 4811 | Fax: +61 2 9905 6153 PO Box W105, Warringah Mall, NSW 2100 Australia | www.commbox.com.au AUSTRALIA, CHINA, MALAYSIA, SINGAPORE, KOREA, SOUTH AFRICA...
- Page 2 Introduction CommBox Micro was introduced to answer the need for a small, economical but still very capable Programmable Media Controller, particularly for use with Home Theatre and also for applications where there is no audio or video requirement. In fact, it can function in a similar way to PLCs if desired.
- Page 3 Peripheral Interface Unit. Panel receiver (Relays, Power switches etc.) CommBox Micro is simply a highly programmable controller that can respond to incoming messages and control virtually anything that is capable of being controlled Contact closure Switching † Analog Voltage 0-10...
- Page 4 How to connect a CommBox Micro. Screen Power Curtains Projectors Lights AirCon Dimmer Modular Switcher Power for programming only Peripheral Interface Unit Supply Relays, Digital outputs, 12-16v. Analogue outputs. Serial Port DB9 programming port can also be used to link up to 119 TCs and/or CommBox Micros using a ZVF0003 Coms Router.
- Page 5 How to program CommBox Micro Because the CommBox Micro lacks the full-size unit’s inbuilt audio and video facilities, any references to these in existing programs, templates and macros have to be changed. Fortunately, this is quite easy because you can use the Resource Usage dialog to find all the places where you need to make changes.
- Page 6 CommBox Micro application 01 Conference/Training room Control panel &/or IR Receiver Control panel &/or IR Receiver 12-18 VDC ZTP0004 Mini PIU ZTT0200 CommBo x Micro : : : : All ports are capable of IR or RS-232/485 : : : :...
- Page 7 CommBox Micro application 02 Home Theatre system AirCon Peripheral Interface Unit Choose from a large Multi CD player range of control panels Tuner Outside speakers Games Cable TV AV Surround Amplifier In-room speakers Cable TV COMM BOX PTY LTD | abn: 431 583 817 05 | Telephone +61 2 9938 4811 | Fax: +61 2 9905 6153 PO Box W105, Warringah Mall, NSW 2100 Australia | www.commbox.com.au...
- Page 8 How to connect two VCRs to provide continuous replay, or scheduled multiple replays over a 24 hour period, starting at a time set by an external timer switch. CommBox Micro is programmed so that VCR 1 is rewinding while VCR 2 is playing, and vice versa. VCR 1...
