Summary of Contents for ezdupe USATA900

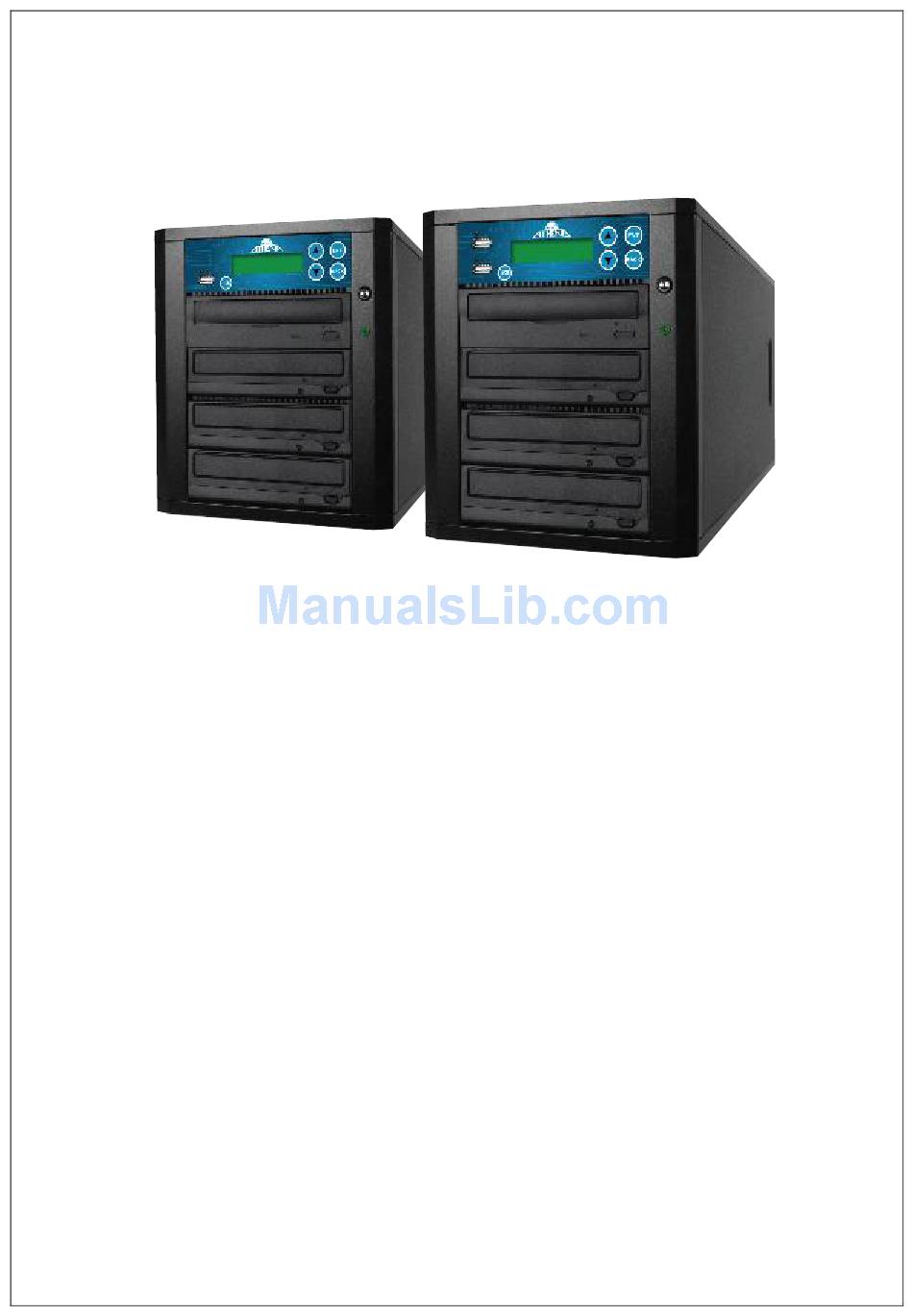

- Page 1 USATA 900 / USATA 1000 Blu-ray/DVD/CD Duplicator User’ s Manual...
-
Page 2: Table Of Contents
Copyright © 2015. All rights reserved TABLE OF CONTENT Introduction ..................5 Features ..................5 LCD Front Panel Overview .............. 5 Specifications ................. 7 Warning ..................8 III. Menu Copy ....................8 Disc to Disc ................8 USB to Disc ................9 USB to USB................ - Page 3 10.7 System Information ............. 15 10.8 Update BIOS ..............15 10.9 Copy Counter ..............16 10.9.1 Show Count ............... 16 10.9.2 Enable Counter ............16 10.9.3 Clear Counter ............16 11. Setup .................... 16 11.1 Start-up Menu ..............16 11.2 Auto Start ................
- Page 4 12. HDD Manager ................23 12.1 Select Image ..............23 12.2 Disc => Image ..............23 12.3 Image Information ............... 23 12.4 Rename Image ..............24 12.5 Delete Image ..............24 12.6 HDD Information ..............24 12.7 Format HDD ............... 24 12.8 HDD Setup .................
-
Page 5: Introduction
I. Introduction Thankyouforpurchasingthe PlusBlu-ray/DVD/CDDuplicator.This duplicatorisspecificallyengineeredtorunstand-alonewithout additionalcomputer. Withasimple four-buttoninterface and a USB shortcut button, theDUO/DUO Plus Duplicator provides a fast and reliable solution for CD, DVD andBlu-ray duplication up to 11 targets (10 targets for DUO Plus) from one single master disc or USB flash drive. - Page 6 DUO Plus ▼Button:Down, Forward:To navigate forward in the menu. ▲Button: Up, Backward: To navigate backward in the menu. ENT Button:Enter, OK: Execute the function. ESC Button:Escape, Cancel: Go back to the previous level in the menu. USBButton: A shortcut to copy from a USB flash drive to disc(s). Please follow the on-screen instructions to continue the process after pressing the One-Touch Button.
-
Page 7: Specifications
Specifications Model DUO / DUO PLUS Blu-ray/DVD/CD Duplicator DUO：up to 11 target Target DUO PLUS：up to 10 (USB port is excluded) Operation Standalone(NoPCorSoftwareis required) ROM, DVD-R, DVD-RW, DVD+R, Supported Format DVD+RW, CD-DA, CD ROM, CD-R, CD-RW, for Disc Multi-session Photo CDT, CD-I, Video CD, CD ROM XA, &... -
Page 8: Warning
II. Warning 1. The Green LED flashesduring the execution process of a task. After the task is done, the Green LED will stay solidif the process is successful, otherwise the Red LED will be on if the process is failed. 2. -
Page 9: Usb To Disc
1.2 USB to Disc This copy mode will copy the data from the master USB drive to alltargetdiscs in the Writer Drives.Only the available data will be copied.Most of the file system formats are supported,includingWindows FAT16, FAT32, exFAT, NTFS; Linuxext2, ext3, ext4; Mac HFS, HFS+. In order to allow a large capacity USB drive to be copied across multiple target discs, Disc Spanning technology is applied to the duplication. -
Page 10: Test
1. This function is only available on DUO PlusBlu-ray/DVD/CDDuplicator. 2. The original data content of target USB drive will be erased after the copy process. Please make sure the data can be erased before copy. [ Copy ] Data Will Be Erased! Copy: 1 2048M 3.USB To USB... -
Page 11: Verify
This command will perform the copy process, and immediately follow with a comparison between the master disc and the copied disc(s) automatically to ensure the copies are the exact duplicates of the master disc. This command is especially useful for BDs, DVDs, data CDs and video CDs. 4.Copy + Compare Copy x 3 2048M... -
Page 12: Set Burn Speed
7. Set Burn Speed This command allows to set the burn speed for various types of disc: CDs (data and VCDs), audio CDs, DVDs, dual-layer DVDs (DVD DL), and Blu-ray (BD-R SL, BD-R DL, BD-RE SL, and BD-RE DL). Selectable burn speeds: CD: 1, 2, 4, 8, 10, 12, 16, 20, 24, 32, 36, 40 (default), 44, 48, 50, 52, 56, MAX. -
Page 13: Close Disc
[ + ] tracksselected [ + ] C : D Length + E/12 Length 01:50 A：present track C：totalnumber of tracks selected B：total tracks D：list of tracksselected + E：the present track selected [ Track Edit ] [ + ] none [ + ] 1 : 1 1. -
Page 14: Utility
10. Utility 10.1 PreScan It will pre-scan the master disc and verify the integrity and quality of the master disc. Execute this function before the copy process starts, itwill ensure the master disc can be copied in the duplicator if the result is passed. [ Utility ] PreScan 512M... -
Page 15: Drive Information
[Utility ] [ 1 ] [ 2 ] 4Tracks 5. Disc Information FAT32 3523M Audio CD 114M Press ▲▼ to select the disc DDData 644MB DDData 644MB 10.6 Drive Information Checks the make, model, and firmware of the drive(s) that are built in and connected to the duplicator controller ports. -
Page 16: Copy Counter
10.9 Copy Counter It keeps track of the numbers of successful and failed copies made by the duplicator for CDs and DVDs. There are three options: Show Count (to display current copy counter), Enable Counter (to turn the counter on or off) and Clear Counter (to clear counter). -
Page 17: Auto Start
11.2 Auto Start It sets the amount of time before the duplicator automatically start the selected command, ranging from OFF (no auto start) to 120 seconds. [ Setup ] [ Auto Start ] 11.Setup 2. Auto Start Time : OFF Press ▲▼... -
Page 18: Reader Speed
Eject Targets Only: Duplicator will only eject target drive trays. Eject Source Only: Duplicator will only eject source drive trays. [ Setup ] [ Power on Eject ] 11.Setup 5. Power on Eject Eject All Discs Press ▲▼ to select option 11.6 Reader Speed Sets the reader speed for the duplicator to read the master disc(s). -
Page 19: Language
11.9 Language Selects the language for the display. Available languages are: English (default), Spanish, Portuguese, and Japanese. [ Setup ] [ Language ] 11.Setup 9. Language English Press ▲▼ to select language 11.10 Clear Setup Resets the duplicator back to factory default settings. [ Setup ] Clear Parameter To Default? Clear Parameter To Default? -
Page 20: Setup Password
duplicator system.If Disable is selected, no password will be set and the display will go back to the Setup sub-menu.If Enable is selected, a password must be entered using the following guidelines:use ▲▼ to select the character desired.There are total 6 characters (positions) for the password. To enable the password, set all 6 positions.For space, press “ENT”... -
Page 21: Copy Upc/Isrc
11.11.6 Copy UPC/ISRC Allows to copy the UPC/ISRC on the master disc to the target disc(s). [ Advance Setup ] [ Setup ] [ Copy UPC/ISRC ] 6. Copy UPC/ISRC 11. Advance Setup Disable Press ▲▼ to select setting 11.11.7 Copy CD+G Allowsto copy CD+G files on the master disc to the target disc(s). -
Page 22: Show Result Time
Optimization: Duplicator will automatically generate an optimized place and burn the break point. [ Advance Setup ] [ Setup ] [ L0 Break Point ] 10. L0 Break Point 11. Advance Setup By Source Press ▲▼ to select setting 11.11.11 Show Result Time Allowsto show the total result timeon display. -
Page 23: Hdd Manager
12. HDD Manager This command is for the management of the hard disk drive (HDD) installed in the duplicator. Note: This feature is only available on duplicators with a HDD installed. If there is no HDD present in the duplicator, this feature will NOT show in the menu of commands. -
Page 24: Rename Image
12.4 Rename Image Renames the image instead of using default file names (such as IMG_0001, IMG_0002, etc.). Up to 8 characters. [ HDD Manager ] [Rename Image ] [IMG_0001 ] 4. Rename Image 1.IMG_0001> 702M ==> I Press▲▼to change character, press ENT to select [IMG_0001 ] Rename Image is finished... -
Page 25: Hdd Setup
12.8 HDD Setup 12.8.1 Load and Copy There are three (3) options in this function: OFF, Synchronous, and Load First. OFF: Disables the load and copy function. No temporary image is loaded to the HDDduring the copy process. Load First: Completes loading of the image to the HDD then automatically starts the copy process from the image stored on the HDD to all target disc(s). -
Page 26: Ⅳ. Basic Troubleshooting
Ⅳ. Basic Troubleshooting Follow these simple steps for quick and proper troubleshooting. 1: Power does not turn on or unit receives no power. a. Check power cord and outlet to make sure power connections are secured. b. Check voltage switch on the back of the duplicator to make sure power supply is set for correct outlet rating. - Page 27 a. The duplicator may be busy. Buttons pressed while the duplicator is processing will not perform functions unless otherwise specified. b. Possible faulty button. Contact our technical support department for further information. 6: One of the drives does not open and/or LED does not light up a.
