Summary of Contents for Time Guard LED100PIRWH

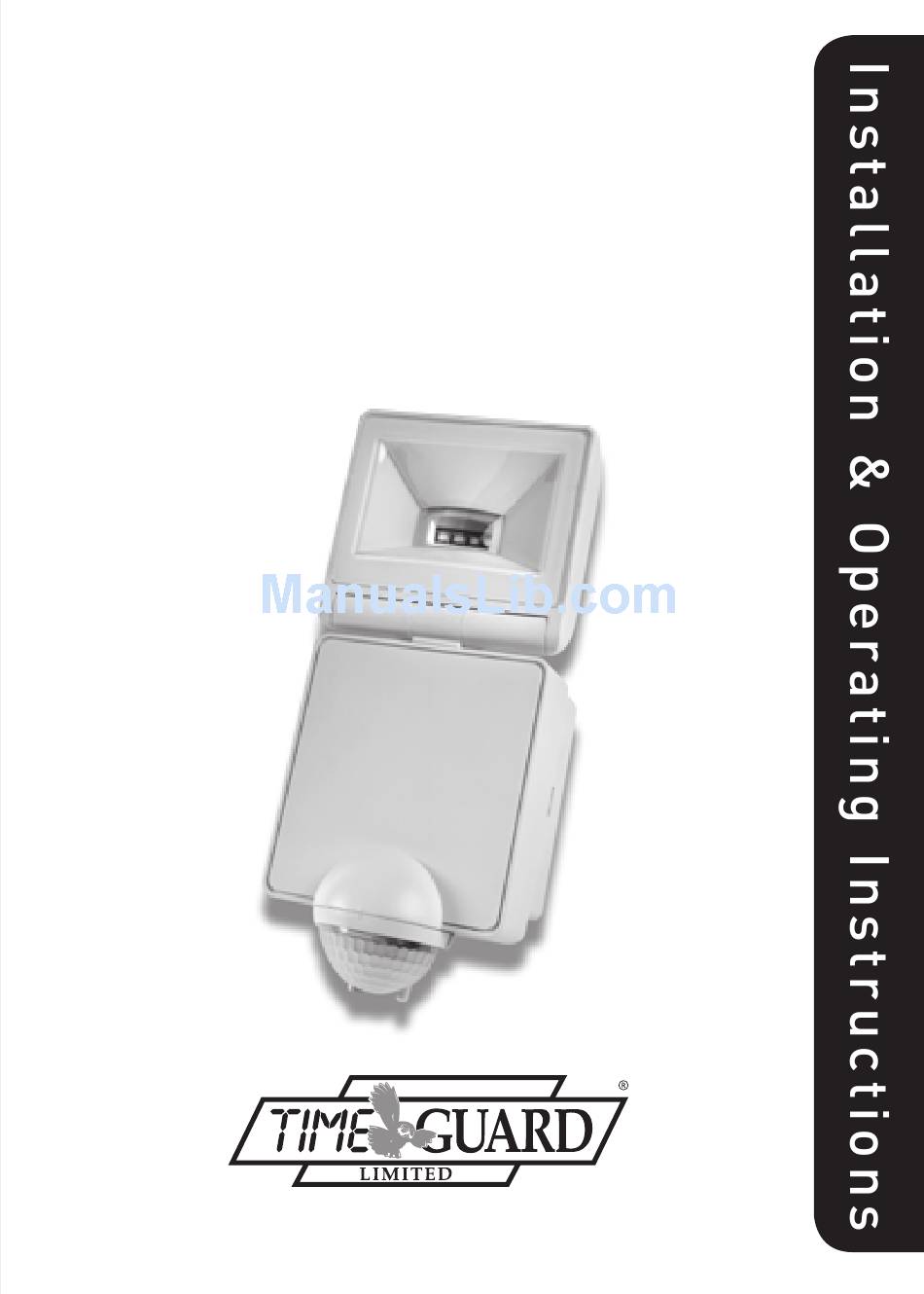

- Page 1 Single Spot 8W LED Lighting with Motion Detection Sensor Model: LED100PIRWH - White Model: LED100PIRB - Black...
- Page 2 1. Designated Use • LED100PIR is an outdoor motion detector for automatic LED lighting control. • Suitable for installation on walls. • Simple plug in wall plate for easy & safe connection. • Suitable for a wide range of locations: corridors, gardens, staircases, entrances, garages, outdoor parking areas etc.
- Page 3 3. Contents: Whats in the box? 4. Tools Required: Tools/equipment needed for installation.
-
Page 4: Product Dimensions
5. Product Dimensions: 22.00 81.00 75.00 182.80 80.00 47.50 61.50... -
Page 5: Installation Procedure
6. Installation Procedure: Switch off the power. Twist-open the wall plate. 240V Fix the wall plate to the wall. Ø5mm Mounting Screws x2 60mm Feed the wires through rubber Attach the device to the wall plate. gasket of the wall plate and attach to corresponding terminal. - Page 6 Installation Advise: As the detector responds to changes in temperature, avoid the following situation: • Pointing the detector towards objects with highly refl ective surfaces, such as mirrors etc. • Mounting the detector near heat sources, such as heating vents, air conditioning units, lights etc.
- Page 7 Walk Test and Adjustment The purpose of Walk Test is used to test and adjust the detection coverage of LED100PIR under auto mode. • Adjust the Time knob to “T”, then conduct a walk test as described in test procedure. Test procedure: •...
-
Page 8: Knob Settings
Knob Settings LED100PIR has two adjustment knobs: Time and Lux at the bottom of the detector head. • Adjust knobs carefully with hand. TIME knob setting • You can set the time knob from 5 sec to about 10 min, LED100PIR will turn On the lamp, for the time duration set after each detected movement. -
Page 9: Lens Masking
Lamp turns On Lamp turns On at day at night. & night. Setting Advise Lens masking The purpose of the lens mask is to mask out areas not desired for detection. Lens mask fi tting procedure: • Use a penknife or pliers to cut out lens mask segment, exposing area for detection. - Page 10 Lamp Adjustment The lamp can be tilted down 85 deg. and pan outwardly 40 deg. 85º 40º High Temperature The temperature of the lamp is very high during operating. You will get hurt, if you touch the heat sink. +40ºC -20ºC...
- Page 11 3 Year Guarantee In the unlikely event of this product becoming faulty due to defective material or manufacture within 3 years of the date of purchase, please return it to your supplier in the first year with proof of purchase and it will be replaced free first year with proof of purchase and it will be replaced free of charge.
- Page 12 HELPLINE 020 8450 0515 or email helpline @ timeguard.com For a product brochure please contact: Timeguard Limited. Victory Park, 400 Edgware Road, London NW2 6ND Sales Offi ce: 020 8452 1112 or email csc @ timeguard.com Designed in the U.K. 67-058-417...
