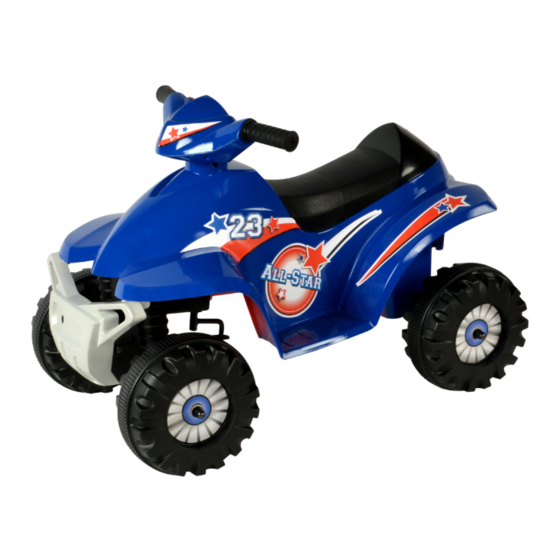

Avigo 6V Mini Quad

Owner's Manual and Assembly Instructions

Model #: AVQUAD-B-F

Read and understand the entire manual before assembly and operation. The vehicle must be

assembled by an adult who has read and understands the instructions.

Made in China.

Styles and colors may vary. Do not return to store. Visit us online at www.ariachild.com for

assistance and replacement parts.

Table of Contents

Need help?

Do you have a question about the AVQUAD-B-F and is the answer not in the manual?

Questions and answers

Summary of Contents for Avigo AVQUAD-B-F

Page 1 Avigo 6V Mini Quad Owner’s Manual and Assembly Instructions Model #: AVQUAD-B-F Read and understand the entire manual before assembly and operation. The vehicle must be assembled by an adult who has read and understands the instructions. Made in China.
Page 2 Introduction Thank you for purchasing the Mini Quad. We hope the rider enjoys it for miles to come. Please read this instruction guide carefully before assembling and operating the vehicle. Please contact Aria Child Customer Service with any questions. Hours: 9 AM - 5 PM (CST), Monday - Friday Web: www.ariachild.com Email: customerservice@ariachild.com 888-982-9309...
Page 3 IMPORTANT! YOU MUST CHARGE THE BATTERY FOR 24 HOURS BEFORE FIRST USE! Charge the battery after each use. Charge the battery at least once a month, even if the vehicle is not in use. DO NOT RETURN THIS ITEM TO THE STORE! Call Customer Service if you need assistance or replacement parts.
Page 4 This page is intentionally left blank.
Page 5: Table Of Contents
Table of Contents Safety ............6 Parts ............8 Charging Instructions ........9 Assemble the Wheels ........10 Attach the Handlebar ........11 Assemble the Front Bumper .....12 Attach the Seat ..........13 Operating Instructions .......14 Maintenance ..........15 General Care ..........16 Troubleshooting Guide ......17 FCC Information ........19 Service and Repairs ........20 Warranty ............21 Product Registration .........23...
Page 6: Safety
Safety WARNING: SAFETY RIDING RULES The user must follow all safety rules and guidelines, or serious injury or death may occur to the user. Always use common sense and safe practices when using the vehicle. The user must be at least 18 months old and weigh no more than 45 lbs. This product contains small parts that are for adult assembly only.
Page 7 Safety (Continued) WARNING: BATTERY SAFETY Battery posts, terminals and related accessories contain lead and lead compound (asic) chemicals known to the state of California to cause cancer, reproductive harm, and are toxic and corrosive. DO NOT open the battery. Contact exposure to battery leakage (lead acid) may cause serious injury. Immediately contact your doctor if exposure occurs.
Page 8: Parts
Parts 1. Battery 2. Charger 3. Quad Body 4. Wheels (4) 5. Hex Nuts (Installed on wheel axles) 6. Front Bumper 7. Handlebar 8. Seat 9. Screw Wrench 10. Hardware Bag...
Page 9: Charging Instructions
Charging Instructions YOU MUST CHARGE THE BATTERY FOR 24 HOURS BEFORE THE FIRST USE! ONLY AN ADULT SHOULD HANDLE THE BATTERY AND CHARGER. To Charge the Battery: 1. Ensure the quad is stopped and turned off. 2. Unlock and remove the seat. 3.
Page 10: Assemble The Wheels
Wheel Assembly Flat Washer Hex Nut Wheel Split Washer 1. Remove the hex nut, split washer and small, at washer from each axle. The large, at washer stays on the axle. 2. Slide the wheel (4) onto the axle. 3. Slide small, at washer onto the axle. 4.
Page 11: Attach The Handlebar
Attach the Handlebar 1. Remove the screw and nut from the handlebar assembly (7) before attaching. 2. Plug the handlebar connector (A) into the dashboard connector (B). 3. Slide the handle bar (7) onto the steering rod, and align the screw holes on the handlebar with the holes on the steering rod.
Page 12: Assemble The Front Bumper
Assemble the Front Bumper 1. Flip the quad onto its back 2. Slide the square hole on the back of the front bumper (6) onto the front post protruding from the quad 3. Align the three screw holes on the bumper with the three screw holes on the quad.
Page 13: Attach The Seat
Attach the Seat 1. Ensure the red battery connector is connected to the red engine connector before attaching the seat 2. Position the seat (8) over the battery compartment 3. Turn the lock at the end of the seat to the open position and align the lock with the lock hole on the back of the battery compartment 4.
Page 14: Operating Instructions
Operation Finger Switch The rider should be sitting comfortably on the quad Push the nger switch on the handlebar to go forward Release the button to stop the quad The quad drives 2 MPH in a forward movement only Use the handlebar to turn the quad to the left and the right...
Page 15: Maintenance
Maintenance Important Battery and Charger Information Only an adult who has read and understands the safety warnings may handle and operate the battery and battery charger. Keep away from children. Charge the battery for 24 hours before using the vehicle for the rst time.
Page 16: General Care
General Care Regularly inspect all vehicle parts to ensure they are in good working condition. Regularly inspect the charger, cord, plug, and other related parts for damage. Remove any damaged parts and immediately contact Customer Service for replacement parts. See Service and Repairs on Page 24 for more information.
Page 17: Troubleshooting Guide
Troubleshooting Guide Completely read through the manual and troubleshooting guide before contacting Customer Service. Problem Potential Cause Solution Vehicle does not run Battery is low Recharge the battery Thermal fuse tripped Reset fuse Snap pins are loose Tighten snap pins Loose wires or loose Ensure the battery connectors connectors...
Page 18 Problem Potential Cause Solution Vehicle needs a push to Loose wires or loose Ensure the battery connectors start connectors are securely attached. If wires are loose, contact Customer Service for repairs “Dead spot” on motor A “dead spot” means electricity is not being delivered to the terminal.
Page 19: Fcc Information
FCC Information This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
Page 20: Service And Repairs
Service and Repairs Do not return this vehicle to the store. If your product requires service, repairs or replacement parts, please visit us online at www.ariachild.com Or contact us at: 888-982-9309 Phone: 1- Email: customerservice@ariachild.com Web: www.ariachild.com Hours: 9 AM - 5 PM (CST), Monday - Friday For a list of available replacement parts, please visit www.ariachild.com.
Page 21: Warranty
Warranty Aria Child 6-Volt Limited Warranty One-year limited warranty from the date of purchase with proof of purchase from an Aria Child certi ed retailer. Six month limited warranty on the 6-Volt battery with proof of purchase from an Aria Child certi ed retailer. This one-year limited warranty covers the ride-on vehicle against defects in materials and workmanship to the original purchaser.
Page 22 This page is intentionally left blank.
Page 23: Product Registration
Product Registration Fill out the form below and mail it to: Aria Child, Inc. 680 N. Lake Shore Drive Suite 1214 Chicago, IL 60611 OR ll out the form online at www.ariachild.com We will use the information provided only for your warranty. We will not sell, rent or share your personal information.
