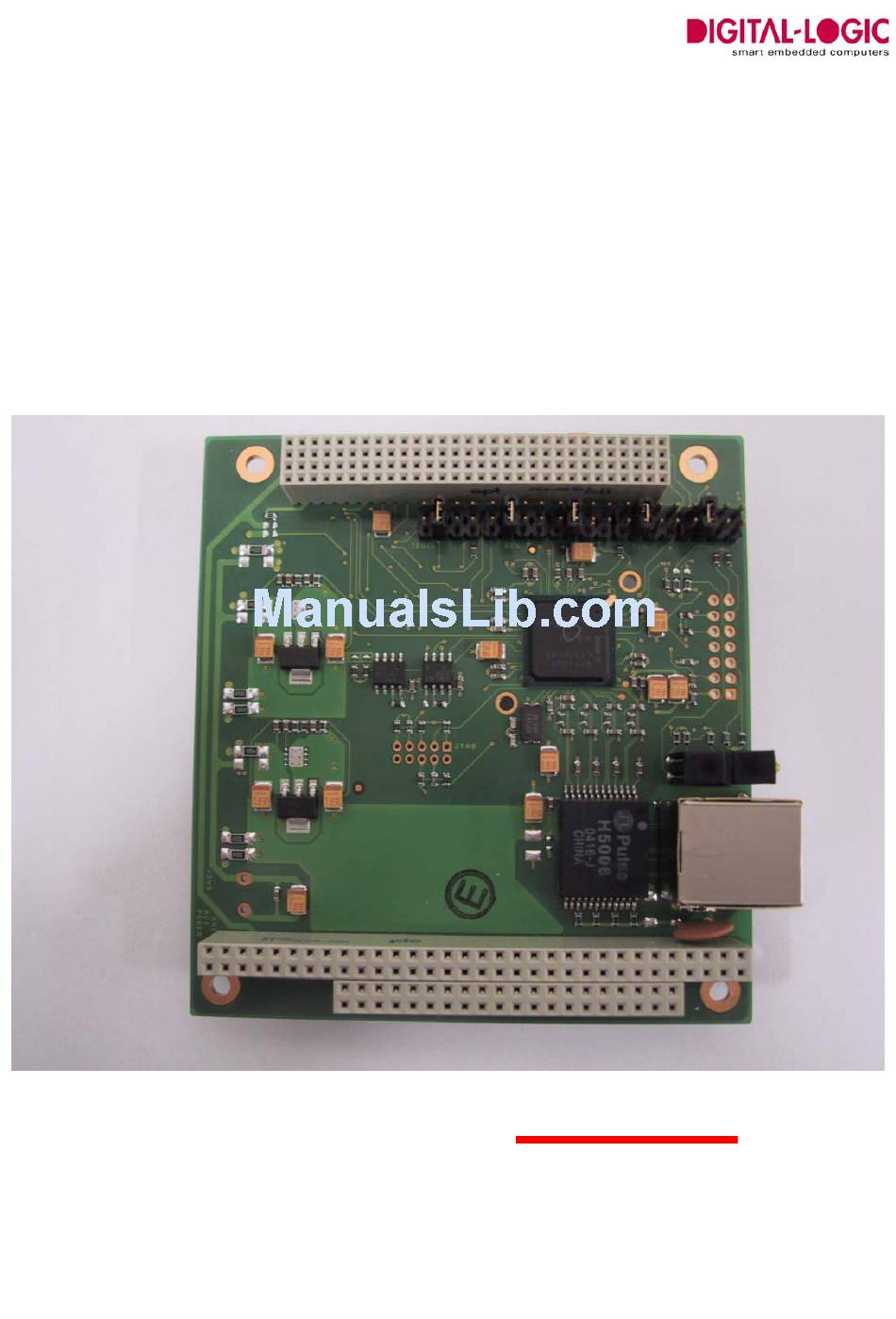

- Page 1 MSMGE104+ MICROSPACE PC/104-Plus Gigabyte Ethernetwork card User manual...
-
Page 2: Table Of Contents
Table of contents 1. Introduction 2. Important information Warning Waste disposal information Claim for warranty Juridical information Trade marks 3. Extent of delivery 4. Introduction and description PC/104+ pheriperal board Kommunikation I/O-Ports Power supply Dimensions 5. Operation elements Interfaces Display 8. -
Page 3: Introduction
Introduction The MSMGE104+ is a MICROSPACE Gigabyte Ethernet PC/104-Plus peripheral card. The PC/104+ compliant board extend a PC/104+ CPU board with a one gigabyte LAN (Local Area Network) connection. The board is produced with high quality, compo- nents with long term availability. Before delivery each device goes through a stress under hard conditions. -
Page 4: Important Information
Important information Claim for warranty The claim for warranty is valid for 2 years Warning from date of purchase (original receipt is needed as proof and therefore has to be Maintenance must primarily be carried out through stored). The internationaly valid factory war- qualified personnel. -
Page 5: Juridical Information
Intel and Microsoft. MICROSPACE-PC, SmartCore, are registered trade marks of DIGITAL-LOGIC AG. All rights reserved. Copying, adaption or translation of these documents is not allowed without previous written authorization of DIGITAL-LOGIC AG. -
Page 6: Extent Of Delivery
Extent of delivery Firstly the device has to be inspected for eventual damages through transport. For damages or de- fects which are not notified to the manufacturer within 2 weeks from date of purchase any claim for warranty will expire. The packaging includes: MSMGE104+ PC/104+ board Completeness has to be checked through the... -
Page 7: Introduction And Description
Introduction and description The MSMGE104+ is a 10/100/1000 Base-T Giga- byte network card PC/104+ pheriperal board The board is PC/104-Plus "Compliant" this refers to the PC/104-Plus Specification, including both me- chanical and electrical specifications. Exception the RJ45 connector is 13mm high. Kommunikation •... -
Page 8: Operation Elements
Operation elements Top view Interfaces PC/104+ PCI bus connector stacktrough 30 x 4 pin, 2mm spacing PC/104 ISA bus 16-bit stacktrough 32 x 2 and 20 x 2 pin, 2,54mm spacing RJ45 10/100/1000 Base-T connector Test connector, not assembled JTAG test port, not assembled 3.3 volt auxiliary power connector, not assem- bled Display... -
Page 9: Hardware Installation
Hardware installation Plug the PC/104+ CPU board to the MSMGE104+ board. Take care to properly The following parts are required for the operation of align the connector before insertion, do not the MSMGE104+ • force with power! PC/104 CPU board at least PC/104-Plus "Bus-compatible"... -
Page 10: Security Instructions And Warnings10
• Repairs as well as correcting mal- functions must only be carried out Security instructions and through skilled personnel of the warnings manufacturer. Reading of the user manual as well as the following security instructions are very important. • The MICROSPACE-PC is a highly complex electronical device which is constructed with special components. -
Page 11: 11. Service
The device has to be sent in original wrapping together with all the above information to the nearest service point. Technical questions, customer support, hotline: DIGITAL-LOGIC AG www.microspacepc.com Tel.: ++41 32 681 58 55 Fax.:++41 32 681 58 01 060*( XVHU PDQXDO YHUVLRQ 3U&...
