Summary of Contents for CAMBRIDGE Fully Assembled Outdoor Grill Island

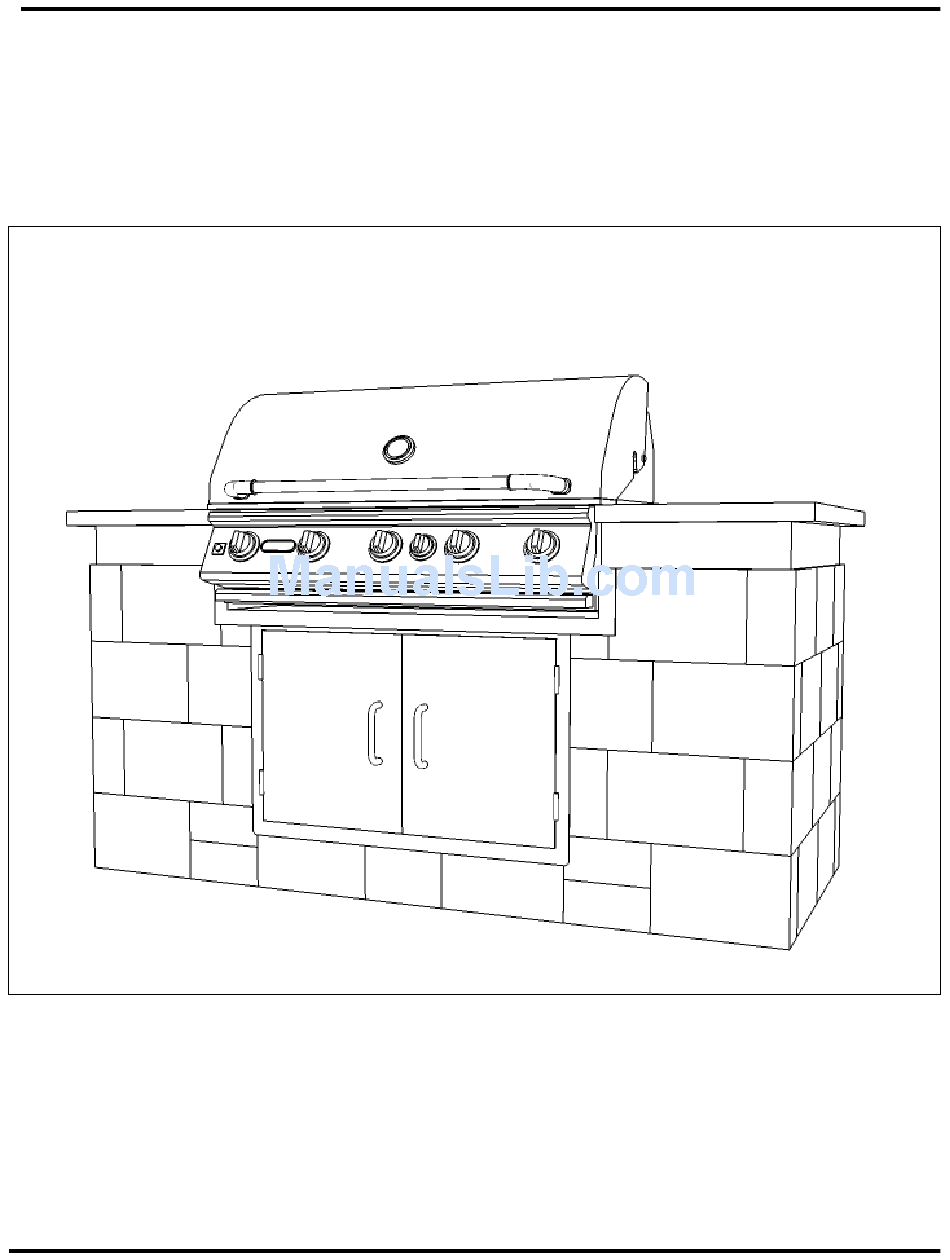

  • Page 1 Cambridge Fully Assembled Outdoor Grill Island Instruction Manual Cambridge montado completamente Isla parrilla al aire libre Manual de instruc- ciones...
  • Page 2: Guía De Referencia

    Cambridge Fully Assembled Outdoor Grill Island Layer Reference Guide: Guía de Referencia: > > Finished Grade Foundation Layer 4” Concrete slab (4000 psi) 6”Compacted 3/4” stone...
  • Page 3 Tools Required for Grill Module Installation: Material Required: ¾” clean stone (approx. 1/2 ton) Concrete (approx. 5 - 80 lb bags) Cambridge concrete adhesive approx. Safety Goggles 3 (29 oz.) or 8 (10.3 oz.) tubes Ear Protection (4 pcs) 2” x 4” x 8’ lumber Dust Mask 2 ½”...
  • Page 4 Cambridge Fully Assembled Outdoor Grill Island Herramientas Necesarias Para la Instalacion de la Material Necesario: Parrilla del Modulo: ¾” piedra limpia (aprox. 1/2 tonelada) Concreto (aprox. 5-80lbs bolsas ) Cambridge concretas adhesivo aprox. 3 (29 oz) o 8 (10.3 oz) tubos Anteojos de seguridad (4 piezas) de 2”...
  • Page 5 Cambridge Fully Assembled Outdoor Grill Island Concrete Base: Call 811 for information on underground utility marking. The Grill Module base is 32” deep by 72” long along the longest dimensions of the back side. (Follow diagram for all dimensions when making the base).
  • Page 6 Cambridge Fully Assembled Outdoor Grill Island Concrete Pad Detail: Electrical conduit as per local code / Conducto eléctrico según código local 72” 32” 56” 10” 6” 6” Rebar: Place 3” below surface of concrete / Rebar: Lugar 3” abajo superficie del concreto 4”...
  • Page 7: Included In This Kit

    Cambridge Fully Assembled Outdoor Grill Island Included In This Kit: & & &...
  • Page 8 Cambridge Fully Assembled Outdoor Grill Island & & & Paso 1: Step1: Cuidadosamente levante la unidad parrilla con una Carefully lift the grill unit with a capable ma- máquina y colocar centrado en la plataforma de base chine and place centered on the cured concrete concreta curada.
  • Page 9 Cambridge Fully Assembled Outdoor Grill Island Fully Assembled Grill Granite Countertop Installation: 1. Once the grill unit has been set it is time to install the counter tops. There are 3 pieces in the kit. 2. Uncrate the granite and set the slabs carefully on top of the grill module wall block base. Use retain- ing wall adhesive to glue the counter tops down to the base.
  • Page 10 Cambridge Fully Assembled Outdoor Grill Island & Paso 2: Step 2: Saca el granito y cuidadosamente instalar las 3 pie- Uncrate the granite and carefully install the 3 zas arriba de la unidad parrilla. Asegúrese de hacer pieces on top of the grill unit. Be sure to do a un relleno seco antes de pegar el granito abajo.
  • Page 11 Cambridge Fully Assembled Outdoor Grill Island Granite Detail:...
  • Page 12 Cambridge Fully Assembled Outdoor Grill Island & Paso 3: Step 3: Cuidadosamente levante la parrilla y colocar en la Carefully lift the grill and place in the opening in apertura en el granito. the granite. Asegúrese de colocar correctamente las manijas de Be sure to correctly attach the handles on the las puertas.
  • Page 13 Cambridge Fully Assembled Outdoor Grill Island & Paso 4: Relleno piedra Step 4: Filler Stone El último paso es aplique adhesivo concreta e insta- The last step is to apply concrete adhesive, and lar los bloques de relleno en los bolsillos de la hor- install the filler blocks in the fork pockets.
  • Page 14 Outdoor Grill Island Cambridge Appliance Installation: Instalación de la aplicación de Cambridge: 38” Brahma Grill: Take grill out of box. Using 2 people, carefully lift the unit and place it in the 38 ¼” opening on the granite countertop. Un-tie cord for grill lights and plug transformer into 120v GFI out- let.
  • Page 15 Cambridge Fully Assembled Outdoor Grill Island Stainless Steel Double Door : Slide doors up and out of the hinges. Fit the door frame in opening of wall block under the grill. Once the door is centered, mark holes through the door frame onto the wall block with a permanent marker.
