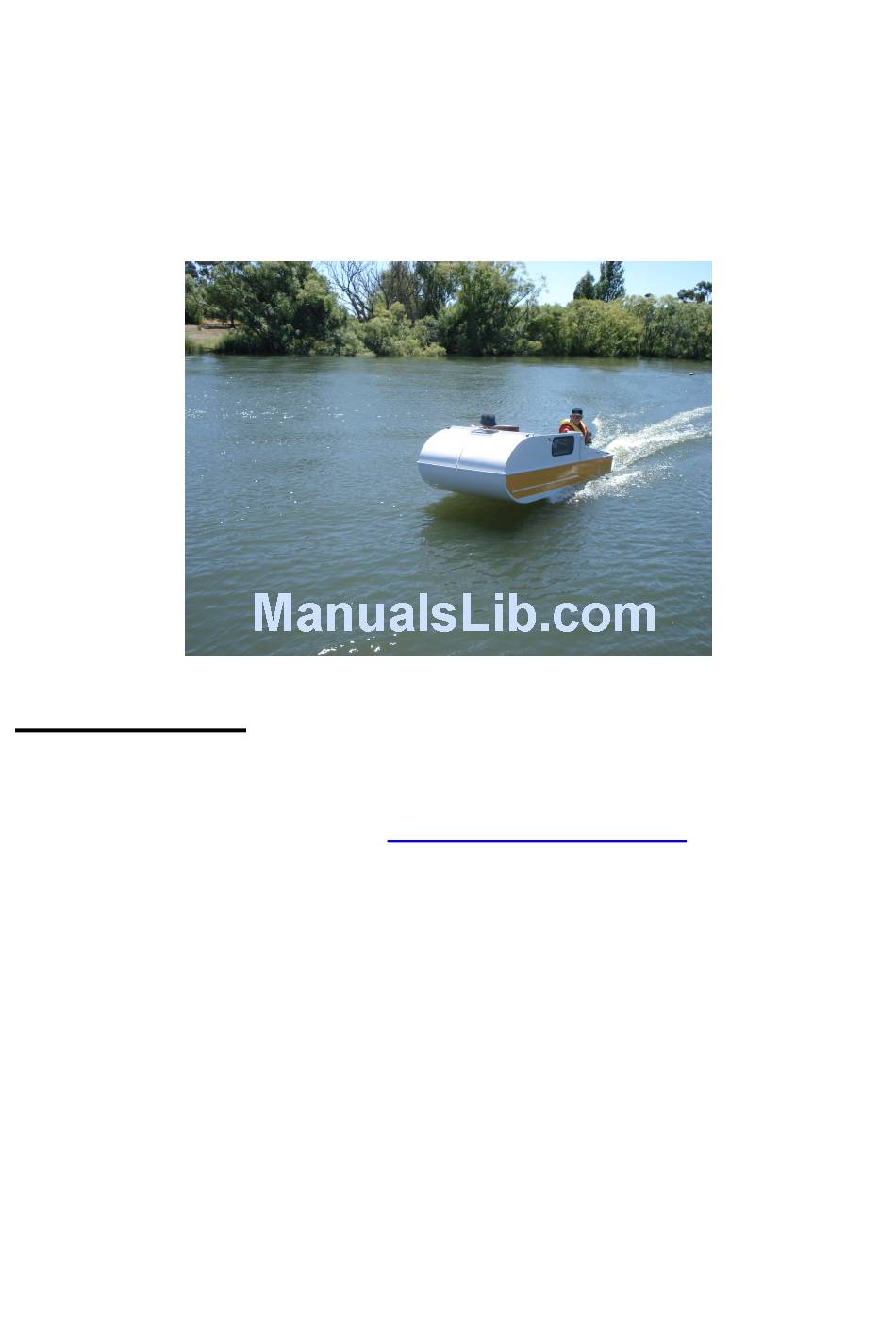

Mini Camper Cruiser
USER MANUAL

Specifications;

• A unique and practical teardrop style camper that unfolds into a 12 foot boat.
• Built from MCC plans featured at
www.portableboatplans.com
of Arizona, USA.
• Flat bottom for shallow draft, light weight and portability.
• As boat 3,740 mm long, As camper 2,210 mm long x 1200 mm wide
• Empty weight 98 kg
• Maximum Outboard = 4 horsepower
• Maximum persons = 4
• Maximum capacity = 340 kg (750 lbs)
• Sheltered waters use only.
• Carry safety equipment as required by state marine safety authority.
• Always wear life jackets.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mini Camper Cruiser and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Portable Boat Plans Mini Camper Cruiser

  • Page 1: Specifications

    Mini Camper Cruiser USER MANUAL Specifications; • A unique and practical teardrop style camper that unfolds into a 12 foot boat. • Built from MCC plans featured at www.portableboatplans.com of Arizona, USA. • Flat bottom for shallow draft, light weight and portability.
  • Page 2 User Instructions To Unfold; • Remove door by lifting up off pins. • Unlatch top section side clamps. • Lift aft section up till it is vertical at the point of balance. • Carefully reposition yourself, whilst still holding aft section vertical, and then carefully lower the aft section down to level.
  • Page 3 • Slide out of trailer into water. • Fit removable seats to suit. An even and level trim is best. To Close up; • Guide floating boat carefully and straight into trailer. Standing in trailer and lifting bow slightly into the trailer is needed. A bow rope attached to trailer and through boat bow fitting is useful to pull up into final position.
  • Page 4 To remove from garage cradle; • Find an area that is flat and firm with adequate headroom. • Chock cradle so it does not roll forward. • Remove door, unfold sections and bolt together. • Place timber and soft covering on ground directly under the transom. •...
  • Page 5 Rowing; • Possible as auxiliary propulsion for short distance. • Fit removable seat in position just behind bulkhead of aft module. Have passengers sit forward. • Use at least 7 foot long oars. Repairs; • Construction is marine plywood, all bonded with “International” Epiglass HT 9000 epoxy resin.
