Owner's Guide

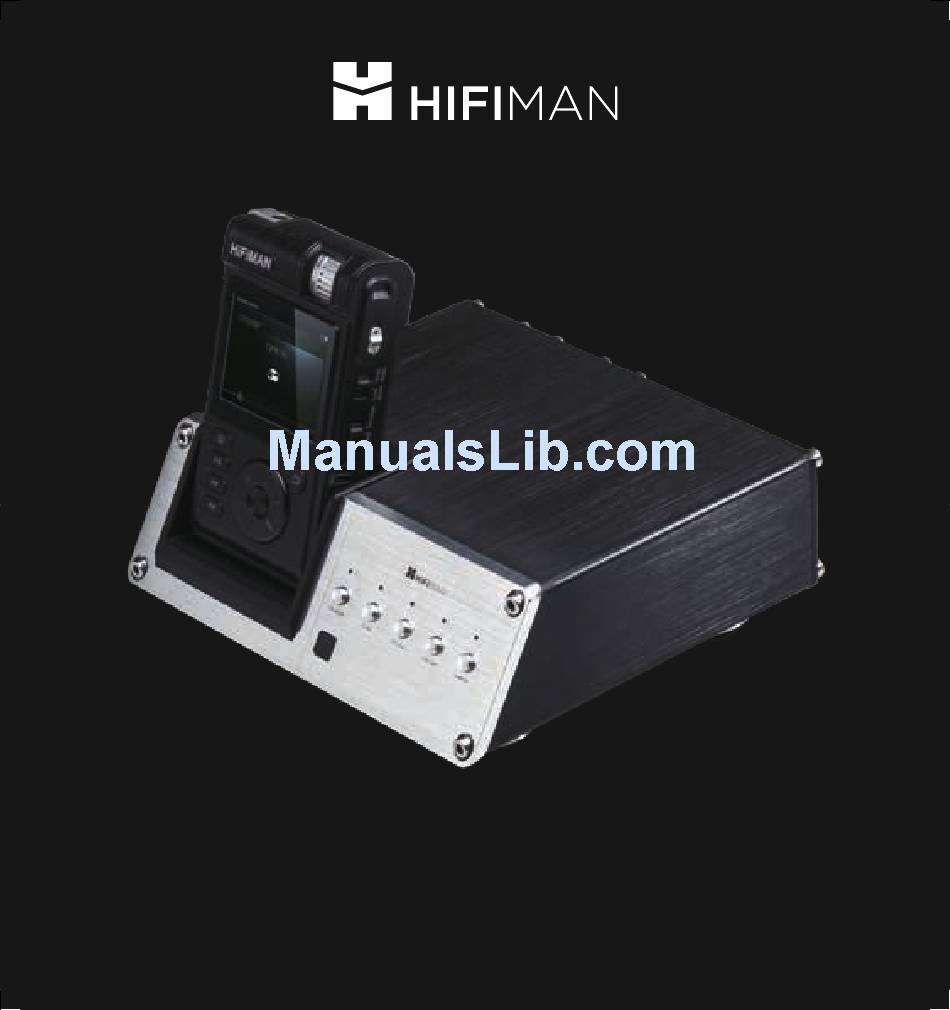

DOCK-1for HIFIMAN Portable Players

©HIFIMAN EN V0.6

Table of Contents

Need help?

Do you have a question about the DOCK-1 and is the answer not in the manual?

Questions and answers

Summary of Contents for HiFiMAN DOCK-1

Page 2 Customer Service: 201-HIFIMAN (443-4626) customerservice@hi man.com www.hi man.com...
Page 3: Table Of Contents
Coax Input Mode Rear Panel Optical Input Mode Remote Control and Buttons USB DAC Mode Instructions Battery Charger 3. Other Information Notes Appendix Remote Control Battery Replacement Fuse Check and Replacement Product Safety Product Support Disposal and Recycling DOCK-1 Owner’s Guide...
Page 4 Before connecting, please make sure your local power supply voltage matches the voltage of the supporting transformer. If not, please remove the supporting leg on the upper left corner of the bottom panel with a screwdriver. Then switch the selector. (Only for professionals) 115V 230V ② ① ③ DOCK-1 Owner’s Guide...
Page 5: Packing List
Contents Basics Operation Other Information DOCK-1 for HIFIMAN Portable Players Packing List Dock x1 Remote Control x1 Power Cable x1 Driver CD x1 Manual x1 USB Cable x1 DOCK-1 Owner’s Guide...
Page 6: I/O Interface And Buttons
Coax Input: Press to play via coax input Optical Input: Press to play via optical input USB DAC: Press to use the USB DAC function Bu er Circuit Switch: Press to enable/disable the hardware bu er circuit DOCK-1 Owner’s Guide...
Page 7: Rear Panel
Previous: Press to play the previous song under player mode Enter /Play/Pause: Press to enter the selected item in base view or list view Press to play/pause in the player view Nex t : Press to play the next song under player mode DOCK-1 Owner’s Guide...
Page 8: I/O Mode
In this mode, the player is disabled and it shows coax input in use. The player operation buttons on the remote control are also disabled. You can play songs by connecting to the coax input device. The dock can support line out only. DOCK-1 Owner’s Guide...
Page 9: Optical Input Mode
You can play songs on your PC. A driver is needed. It is accessible in the supplied CD or can be downloaded on our website: hi man.com. The dock can support line out only. DOCK-1 Owner’s Guide...
Page 10: Instructions
Coax Output Optical Output Input Player √ √ √ Coax Input √ × × Optical Input √ × × USB DAC √ × × Instructions 1.Connect the dock to your input/output devices. ① Power ampliﬁer ④ ② ③ DOCK-1 Owner’s Guide...
Page 11 Contents Basics Operation Other Information 2.Connect the power cable to the dock and power it on. ③ ① ② 3.Power on the player and insert it in the dock after the main menu shows. DOCK-1 Owner’s Guide...
Page 12: Battery Charger
4.You can change the working mode of the dock as needed by pressing the buttons on the dock or the remote control. Battery Charger When the battery charger is connected to the dock, the player can be charged. DOCK-1 Owner’s Guide...
Page 13: Notes
5. If the dock can’t start normally after connecting to the power, the fuse might be melted caused by current overload. Please check the status of the fuse. If it is melted, you need to replace it. See the Appendix for fuse check and replacement instructions. DOCK-1 Owner’s Guide...
Page 14: Appendix
3. Replace the battery on the back cover of the circuit board. The model of the battery is CR2032 3V lithium-ion button battery; 4. Fix the circuit board and the four screws. Then install the back cover and the other four screws. ③ ① ② ④ DOCK-1 Owner’s Guide...
Page 15: Fuse Check And Replacement
3. Use a small slotted screwdriver to remove the fuse under the power socket and check if the fuse is burnt. In this situation, you need replace the fuse of the same model; 4. The fuse is ceramic tube fuse (time-lag)of the speci cations: 0.125A/250V, 5*20 mm. DOCK-1 Owner’s Guide...
Page 16: Product Safety
Any attempt to remove, repair or modify the dock without permission is forbidden and will void the warranty. Product Support Please visit us at http://www.hi man.com/AboutUs/Warranty/ for warranty service and support. Thank you for your purchase of a HIFIMAN product. DOCK-1 Owner’s Guide...
Page 17: Disposal And Recycling
The separate collection and recycling of your product at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. DOCK-1 Owner’s Guide...
