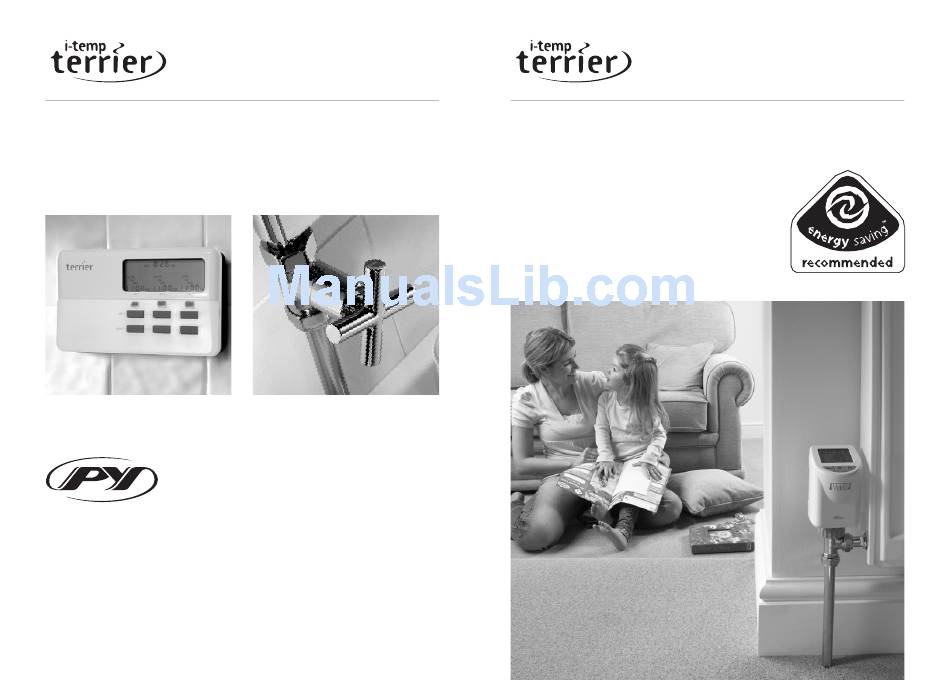

terrier i-temp is just a part of the Terrier range of
home heating products from Pegler Yorkshire.
www.pegleryorkshire.co.uk
Pegler Yorkshire
Pegler Yorkshire Limited
St. Catherine's Avenue, Doncaster,
South Yorkshire, DN4 8DF
Tel: 0844 243 4400
www.saveonheatingbills.co.uk
Handbook
Getting the best out of your
terrier i-temp
The terrier i-temp has many
additional functions that will help
you get the best from the product
and, in turn, increase the potential
for greater comfort and savings.
Advertisement
Table of Contents
Related Manuals for Pegler Yorkshire terrier i-temp
Summary of Contents for Pegler Yorkshire terrier i-temp
- Page 1 Handbook terrier i-temp is just a part of the Terrier range of Getting the best out of your home heating products from Pegler Yorkshire. terrier i-temp www.pegleryorkshire.co.uk The terrier i-temp has many additional functions that will help you get the best from the product and, in turn, increase the potential for greater comfort and savings.
-
Page 2: Table Of Contents
Contents What does it do? The terrier i-temp is a programmable radiator control What does it do? (PRC) that gives you time and temperature control of How does it work? 4-12 each individual radiator and is designed as an upgrade... -
Page 3: How Does It Work
How does it work? 9.00am The terrier i-temp is a simple add-on to PROGRAMMER 6.00am One Zone setting your heating system – you don’t need to change the way your master programmer works as this will continue to control the overall heating times for the whole house. - Page 4 With the you only heat rooms when you’re using them! terrier i-temp terrier i-temp Before After 06.00-09.00 06.00-09.00 Heat on Heat on Heat low Heat low terrier i-temp terrier i-temp Before After 16.00-19.00 16.00-19.00 Heat on Heat on...
- Page 5 Before After 19.00-22.30 19.00-22.30 Heat on Heat on Heat low Heat low...
- Page 6 The vertical axis represents room temperature in ºC, and the horizontal axis represents a 24 hour clock. The period that terrier i-temp is programmed to turn the room’s radiator ‘on’ is shown in darker grey, with the energy saved shown in light grey.
-
Page 7: Keys And Functions
PRC i35 Keys and functions HORIZONTAL HEAD Menu key Used to open the configuration menu. The Menu Key can also be used to go one step back within a menu. A sub-menu can be opened by using the OK Key. - Page 8 Keys and functions Keys and functions Function Comment Functions Thumb wheel Temperature/ Time/Date Short Mode Confirmation Switch Configuration menu keystroke switch: between (<3 seconds) comfort/ Thumb wheel to Heating pause, In the lowered the right (over valve is completely Manu mode Manu temp: Auto...
-
Page 9: Operating Modes
Select from programmes Holiday mode/Timed override One day (Mo, Tu, We, Th, Fr, Sa, Su) The terrier i-temp can be set to maintain a specific Weekdays (Mo – Fr) temperature. This temperature will be maintained up Weekend (Sa – Su) to a user defined date and time. -
Page 10: Programming
Programming At least 2 programmes will be available as a preset. The programme displays the start and end time of the first period Bedroom (bEd) – default / cannot be changed Eg. 00:00 06:00 Sitting Room (Sit) / cannot be changed Customise Programme (CUS) / this point You can change the end time (6:00) allows you to customise the preset programme... -
Page 11: Simple Optional Settings
Holiday/Timed override The terrier i-temp uses the concept of a comfort and If you want a fixed temperature to be maintained for set-back temperature. These temperatures are pre- a set period of time, for example while you are on... -
Page 12: Automatic Settings
Automatic settings press “OK” to confirm. The display will flash to Automatic time adjustment ( confirm your settings. The terrier i-temp will automatically adjust itself when time settings change between British Summer Heating break (summer) Time and Greenwich Mean Time. -
Page 13: Advance Setting Options
To compensate for this, you can set a temperature offset of ±3.5°C. If, for example, to your choice. terrier i-temp is set to 20°C and a temperature of Restore factory settings 18°C is measured elsewhere in the room, an offset of -2.0°C should be configured. -
Page 14: Error Codes
Radio functionality – learning device Error code Problem Remedy Battery power Replace terrier i-temp is ‘future-ready’ with the ability to too low batteries integrate with accessories such as window sensors or remote controls, and can be programmed from a Valve Actuator... -
Page 15: Changing The Batteries
Changing the batteries Abbreviations Remove the battery compartment cover. Programming of week schedule Insert 2 new AA/LR6/Mignon batteries into the Bedroom programme side battery compartments, ensuring they are the right way round. Sitting room programme Reattach the battery compartment cover. New alkaline batteries have a life of approximately two years. -
Page 16: Display Symbols
Abbreviations Display symbols Child-proof lock °C Temperatures are displayed with °C Valve closed Comfort temperature Heating pause Moon Set-back temperature Displayed during programming of Manu Manual mode week schedule Auto Programmed week schedule Temperature offset Suitcase Holiday/Party function Reset – factory settings Window During ventilation Learning –... -
Page 17: Technical Information
Technical information Fixed values Defaults Technical properties Temperature range: Comfort Supply voltage: 5–29.5°C temperature: 21°C Max. current consumption: 100 mA Temperature Set-back Batteries: 2x LR6 batteries resolution: 0.5°C temperature: 17°C (Mignon/AA) Frost temperature: 5°C Ventilation Battery life: Approx. 2 years temperature: 12°C Time range: 00:00–23:59 Display:... -
Page 18: Conversion List
Conversion list Branding Branding Adaptor Branding Branding Adaptor Grahams Altech Not required Pegler Yorkshire Terrier Not required Grasslin Tower TRV REV Not required Pegler Yorkshire Mistral Not required Honeywell Rad plan Not required Pegler Yorkshire Belmont 4 Not required Honeywell... -
Page 19: Installation - Using Adaptors
Installation – using adaptors An example of installation Remove the valve head by Use the small bolt and Place the i-temp head using adaptor AD1. unscrewing the fixing ring. nut to secure the adaptor onto the valve body. to the body. Select the appropriate Turn the fixing screw by adaptor for the... -
Page 20: General Information
General information What is a thermostatic radiator valve (TRV)? Valve installation We recommend that a competent installer is used TRVs sense the air temperature around them and regulate the flow of water through the radiator which to install valve bodies. they are fitted to.
