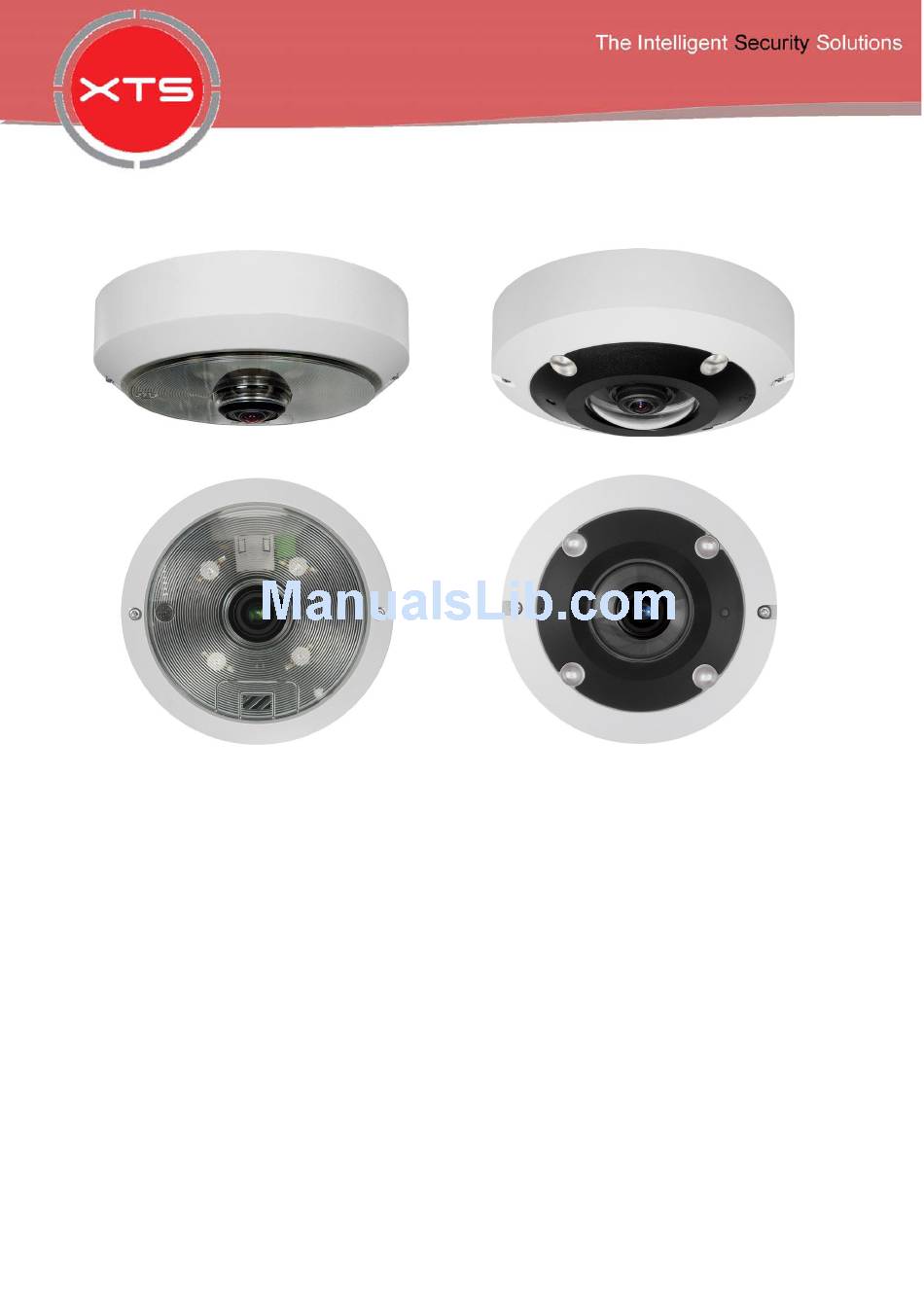

- Page 1 PAN6MP/PAN6MP-X Ultra High Definition Multiple Streams Mini Fisheye IP Camera User’s Manual www.xtscorp.com...
-
Page 2: Table Of Contents
Table of Contents Overview ..........................2 Features ........................2 Package Contents ....................... 3 Dimensions ........................5 Connectors (Indoor Only)..................... 7 Function Cables (Outdoor Only) .................. 8 Camera Cabling ........................9 Power Connection ....................... 9 Ethernet Cable Connection ..................9 Waterproof Cable Connector (Outdoor Only) ............. 10 System Requirements ...................... -
Page 3: Overview
Overview The PAN6MP/PAN6MP-X Multiple Streams Ultra High Definition Mini Fisheye IP Camera is a high resolution surveillance solution features 360° wide coverage without blind spots. Mini fisheye camera supports resolution up to 6 Megapixels streaming at 30 fps which allows the videos to be viewed smoothly. -
Page 4: Package Contents
Package Contents Please check the package contains the following items listed below. Indoor Ultra High Definition Plastic Anchor Multiple Streams Mini Self-Tapping Screw (x3) (x3) Fisheye IP Camera Security Torx Power Terminal Quick Guide Block (x1) NOTE: The supplied self-tapping screws are for soft substance / material installation such as wood. - Page 5 Outdoor Ultra High Definition Plastic Anchor Multiple Streams Mini Self-Tapping Screw (x3) (x3) Fisheye IP Camera Security Torx Power Terminal Quick Guide Block (x1) NOTE: The supplied self-tapping screws are for soft substance / material installation such as wood. For other installation environment such as cement wall, it is required to pre-drill and use plastic anchors before fastening the supplied self-tapping screws on the wall.
-
Page 6: Dimensions
Dimensions The dimensions of the camera are shown below. Indoor... - Page 7 Outdoor...
-
Page 8: Connectors (Indoor Only)
Connectors (Indoor Only) Please loosen the security screws and open the cover to reach the connectors. The diagram below shows the connectors of the camera. Definition for each connector is given as follows. Connector Definition Remarks DC 12V Power DC 12V Power connection Reserved RJ-45... -
Page 9: Function Cables (Outdoor Only)
Function Cables (Outdoor Only) Connector Definition Remarks Pink Audio In Audio I/O Two-way audio transmission Green Audio Out AC 24V – Black DC 12V – Power (DC 12V / AC 24V) Power connection (2-Pin Terminal Block) AC 24V + DC 12V + Alarm In –... -
Page 10: Camera Cabling
Camera Cabling Please follow the instructions below to complete the cable connections. Power Connection For power connection, please refer to section Connectors (Indoor Only) for the indoor models, and see section All in One Cable (Outdoor Only) for the outdoor models. -
Page 11: Waterproof Cable Connector (Outdoor Only)
Waterproof Cable Connector (Outdoor Only) Follow the instruction below to waterproof the connectors of different types of cables. The supported cables are as shown below. All-in-One Cable IP66 RJ-45 Cable All-in-One Cable Follow the steps below to waterproof the connectors of the All-in-One cable. Step 1: Connect required... - Page 12 IP66 RJ-45 Cable For IP66 RJ-45 cable, please use an RJ-45 IP66 plug for connection to prevent water damage. Follow the steps below for cable connection. Step 1: Take out the supplied connector from the RJ-45 IP66 plug. Loosen the thread-lock sealing nut on the plug.
-
Page 13: System Requirements
System Requirements To perform the IP camera via web browser, please ensure the PC is in good network connection, and meet system requirements as described below. Items System Requirement Minimum : ® 1. Intel Core™ i5-2430M @ 2.4 GHz 2. 4 GB RAM Personal Computer Recommended: ®... -
Page 14: Access Camera
Access Camera For initial access to the IP camera, users can search the camera through the installer program: DeviceSearch.exe, which can be found in “DeviceSearch” folder in the supplied CD. Accessing the Camera by Device Search Software Step 1: Double click on the program Device Search.exe. Step 2: After its window appears, click on the <Device Search>... - Page 15 Step 8: A prompt window requesting for default username and password will appear. Enter the default username and password shown below to login to the camera. Login ID Password root pass NOTE: ID and password are case sensitive. NOTE: It is strongly advised that administrator’s password be altered for the security concerns.
- Page 16 Once the Viewer is successfully installed, the Home page of the IP camera will be shown as the figure below.
- Page 17 NOTE: For more details about the function buttons on the Home page, please refer to the Ultra High Definition Multiple Streams IP Camera Menu Tree in the supplied CD.
-
Page 18: Setup Video Resolution
Setup Video Resolution Users can setup video resolution on Video Format page of the user-friendly browser-based configuration interface. Video Format can be found under this path: Streaming> Video Format. The default video resolution of 5M and 6M models are shown as below. The default resolution varies with different Fisheye Dewarping types, Front End Camera Dewarping and Back End Software Dewarping. -
Page 19: Configuration Files Export / Import
Configuration Files Export / Import To export / import configuration files, users can access the Maintenance page on the user-friendly browser-based configuration interface. The Maintenance setting can be found under this path: System> Maintenance. Users can export configuration files to a specified location and retrieve data by uploading an existing configuration file to the camera. -
Page 20: Tech Support Information
Tech Support Information This chapter will introduce how to delete previously-installed Viewer in the PC and how to setup the Internet security. Delete the Existing Viewer For users who have installed the Viewer in the PC previously, please remove the existing Viewer from the PC before accessing to the IP camera. Deleting the Viewer In the Windows <Start Menu>, activate <Control Panel>, and then double click on <Add or Remove Programs>. -
Page 21: Setup Internet Security
Setup Internet Security If ActiveX control installation is blocked, please either set Internet security level to default or change ActiveX controls and plug-ins settings. Internet Security Level: Default Step 1: Start the Internet Explorer (IE). Step 2: Click on the <Tools> tab on the menu bar and select <Internet Options>.
