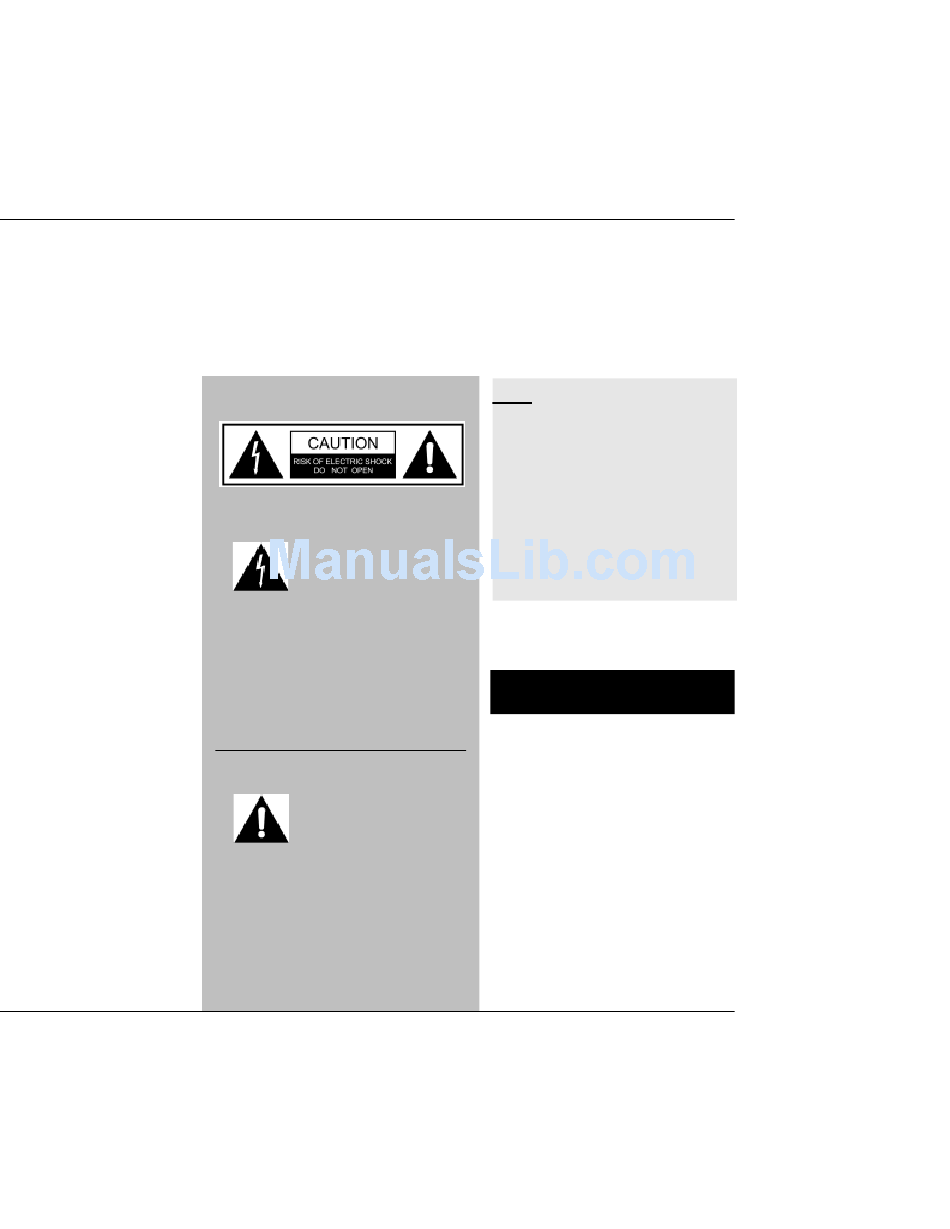

The lightning flash with ar
rowhead symbol, within
an equilateral triangle, is
intended to alert the user to the pres-
ence of uninsulated "dangerous volt-
age" within the product's enclosure
that may be of sufficient magnitude to
constitute a risk to persons.
The exclamation point,
within an equilateral
triangle, is intended to
alert the user to the presence of im-
portant operating and maintenance
(servicing) instructions in the literature
accompanying the appliance.
USER'S MANUAL
WARNING/CAUTION
FCC
This device complies with Part15 of
the FCC Rules. Operation is subject
to the following two condition: (1)this
d e v i c e m a y n o t c a u s e h a r m f u l
interference,and (2) this device must
accept any interference received,in-
cluding interference that may cause
undesired operation.
NOTICE
Please be aware that new software may
change the functionality of the STB.
The photo and the function explanation
involved in this specification is for
reference only. If there is any mistake,
please refer to the entity.
Any changes or modifications not
expressly approved by the party
responsible for compliance could void
the user's authority to operate the
equipment.
DTV Converter Box
1
Advertisement
Table of Contents
Summary of Contents for Ovislink OV-N9900T
- Page 1 USER’S MANUAL WARNING/CAUTION This device complies with Part15 of the FCC Rules. Operation is subject to the following two condition: (1)this d e v i c e m a y n o t c a u s e h a r m f u l interference,and (2) this device must accept any interference received,in- The lightning flash with ar...
-
Page 2: Safety Instructions
USER’S MANUAL SAFETY INSTRUCTIONS Please read these safety instructions through carefully, before operating the receiver. Please observe all warnings and instructions on the equipment and contained in these operating instructions. Be sure to read this I n s t a l l t h e u n i t user’s manual before... -
Page 3: Table Of Contents
USER’S MANUAL Table of Contents 2.2 Aspect Ratio SAFETY INSTRUCTIONS 2.3 Language 2.4 Audio Language GENERAL INFORMATION 2.5 Caption Select 1. Main Features 2.6 DCC Setup 2. Unpacking 2.7 Sleep Mode 3. LOCK 3.1 Lock System OVERVIEW OF THE EQUIPMENT 3.2 Set Password 1. -
Page 4: General Information
USER’S MANUAL GENERAL INFORMATION Incorporating the highly integrated Multi-language OSD (English, single chip, the receiver is a cost- French, Spanish) effective and high performance digi- tal ATSC converter box. The receiver Multi-language audio supported provides FTA (Free-To-Air) channels with user-friendly OSD (On Screen Multi-language Subtitle output Display) supported... -
Page 5: Overview Of The Equipment
USER’S MANUAL OVERVIEW OF THE EQUIPMENT 1. Front Panel press this button, move to the previous channel Remote Control Sensor press this button, move to the next channel press this button, the receiver will between operation and standby modes DTV Converter Box... -
Page 6: Rear Panel
USER’S MANUAL 2. Rear Panel Right audio VIDEO Main power switch Left audio UHF RF output to TV set’s antenna in Connect to terrestrial antenna DTV Converter Box... -
Page 7: Remote Control Unit
USER’S MANUAL 3. Remote Control Unit Function Function MUTE Signal Strength Page+ Numeric Key Page- Reserved for future use GUIDE Sleep Mode INFO AUDIO Flash Back MENU RATIO ARROW EXIT VOL+ VOL- CH+/Page+ DASH(-) CH-/Page- STANDBY DTV Converter Box... -
Page 8: Installation Of Stb
USER’S MANUAL 4. Installation of STB This section explains the installation of the STB. If you need any assistance for specific equipment connection, please contact your local dealer. 4.1 Connect the RCA Support to TV 4.2 Connect the RF Support to TV DTV Converter Box... -
Page 9: First Steps
USER’S MANUAL FIRST STEPS Connect the receiver to power source by inserting the receiver’s plug in the power socket, and turn on the main power switch on the real panel. the receiver starts up in Standby mode,and the current time will be shown on the display . -
Page 10: On Screen Menus Selection
USER’S MANUAL ON SCREEN MENUS SELECTION 1. Main Menu Pressing the MENU key will display the Main Menu. This menu provides three options. CHANNEL Channel searching: search the desired channels for play. OPTION set up the receiver’s parameter of the video &... -
Page 11: Channel
USER’S MANUAL 2. Channel 1.1 Channel Scan From here, press OK key to scan the channels. During the searching process, OK key is used to cancel the whole process. Channel Scan 1 CHANNEL Channel scan 1: Auto-searching can search through all of the exsited channels. -
Page 12: Channel Add
USER’S MANUAL 1.2 Channel Addition key or OK key to lead you to the channel add. Channel additon: Channel addition has the same function as auto-searching in increasing the channels. New channels will be reserved after addition. 1.3 Channel Edit Press OK to delete or add the selected channel. -
Page 13: Manual Scan
USER’S MANUAL 1.4 Manual Scan In this mode, only one RF channel can be searched. You can use the function to scan the desired channels. Press keys to select the RF-channel number. Manual scan, users can add channels according to the related frequency index. 1.5 Output Channel DTV Converter Box... -
Page 14: Clock
USER’S MANUAL 2. OPTION 2.1 Clock Current Time: Displays the current time. Time Zone: Select proper option according to the time zone you have been. Setup to select user’s local time zone. 2.2 Aspect Ratio This option allows you to select the aspect ratio of the video output. Setup the proportion of the display (Main screen). -
Page 15: Language
USER’S MANUAL 2.3 Language Select the desired language for main menu. Options available:English,Spanish,French. 2.4 Audio Language This option allows you to select your first and second choice of the audio language. Select the language of audio frequency if multi-language options are availabel. 2.5 Caption Select Select the desired option for caption. -
Page 16: Dcc Setup
USER’S MANUAL 2.6 DCC Setup 2.7 Sleep Mode Sets the time after which the receiver switches itself off. Select the time interval,and set up auto-turnoff when no operation being taken for a long periods. DTV Converter Box... -
Page 17: Lock
USER’S MANUAL 3. LOCK 3.1 Lock System Select On or Off. If On is selected, a password is needed before you entering the menu. Parental lock, used to open/close the the menu. 3.2 Set Password Enter a new password at the “New” item. Enter the new password again to confirm. -
Page 18: Block Channel
USER’S MANUAL 3.3 Block Channel Select the channels which you tend to lock, then press OK to confirm. 3.4 TV Rating-Children This function can help to prevent children from watching illegal channels. Age: TV-Y, TV-Y7 and Blocking Off. Fantasy Violence: Select TV-Y7 or Blocking Off. Fantasy Violence DTV Converter Box... -
Page 19: Tv Rating-General
USER’S MANUAL 3.5 TV Rating-General Age: TV-G, TV-PG, TV-14, TV-MA and Blocking Off. Dialogue: TV-PG, TV-14, TV-MA and Blocking Off. Language: TV-PG, TV-14, TV-MA and Blocking Off. Sex: TV-PG, TV-14, TV-MA and Blocking Off. Violence: TV-PG, TV-14, TV-MA and Blocking Off. DTV Converter Box... -
Page 20: Movie Rating
USER’S MANUAL 3.6 Movie Rating G:General audiences. PG: Parental guidance suggested. PG-13: Parents strongly cautioned. R: Restricted. NC-17: No one 17 and under admitted. x:Adult only 3.7 Downloadable RRT(Region Rating Table) DTV Converter Box... -
Page 21: Technical Specification
USER’S MANUAL TECHNICAL SPECIFICATION Input frequency 54 ～ 864MHz Bandwidth Input level -84 ～ 0dBm Input impedance 75Ω Signal Input: IEC Female(RF IN),IEC Male(RF OUT) TROUBLE SHOOTING Note : If you cannot solve the problem by referring to the above trouble shooting, please contact your re-seller.
