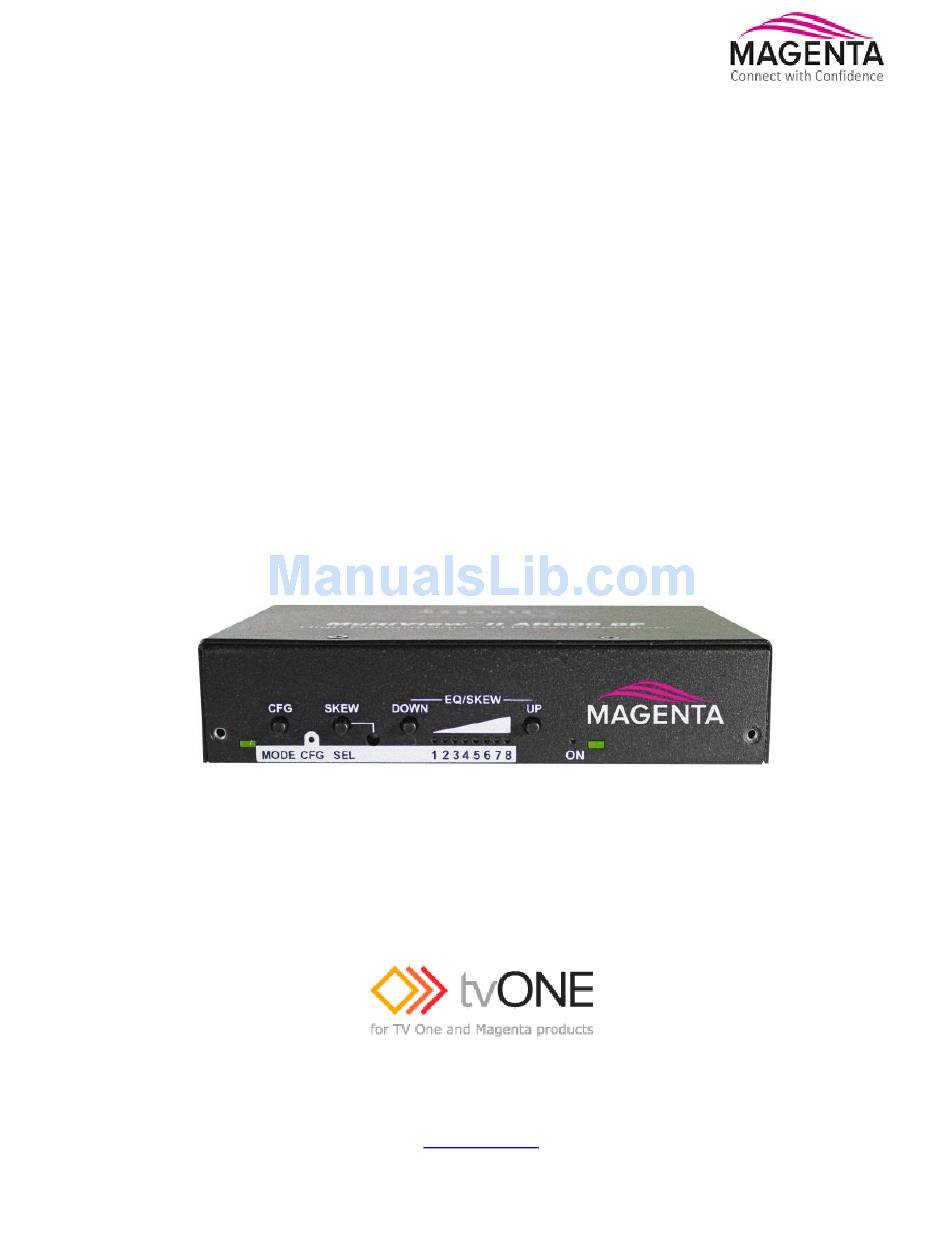

- Page 1 MultiView II AK600DP AK1200DP Receiver Installation and User Guide Version 1.00 2791 Circleport Drive, Erlanger, KY 41018, USA. Americas: 859-282-7303 EMEA: +44 (0) 1843 873322 Email: tech.usa@tvone.com www.tvone.com PDF-UG-MVII-AK...
- Page 2 Manual Copyright Notice This document and the Magenta Research products to which it relates, and the copyright in each, is the intellectual property of tvONE, ©2014. Neither the document nor the products may be reproduced by any means, in whole or in part, without the express prior written permission of tvONE.
- Page 3 Error! No text of specified style in document. Precautions Safety Instructions ● English This symbol calls attention to important information. This symbol alerts the user of important maintenance (or servicing) and operating information. This symbol alerts the user to the presence of un-insulated dangerous voltages or other conditions in, or around, the product enclosure.
-
Page 4: Table Of Contents
Error! No text of specified style in document. Table of Contents Page Chapter 1 About this Manual ........................1 Chapter 2 Product Overview ........................2 Front Panel Interfaces ..................... 2 Rear Panel Interfaces ..................... 3 Chapter 3 Specifications ..........................4 General Specifications .................... -
Page 5: Chapter 1 About This Manual
About this Manual Chapter 1 About this Manual This manual describes the Magenta MultiView™ II AK600DP and AK1200DP receivers, and contains the following information: Product overview (Chapter 2) Product specifications (Chapter 3) Installation and configuration instructions (Chapter 4) ... -
Page 6: Chapter 2 Product Overview
Product Overview Chapter 2 Product Overview The MVII-AK600(1200)DP is a video receiver that is compatible with the entire MultiView™ family of products. It extends an analog video signal over standard CAT cable (CAT5, 5x, 6, 7 etc). There are user-configurable settings for video, audio, and serial options which can be controlled from the front panel. -
Page 7: Rear Panel Interfaces
Product Overview Rear Panel Interfaces The rear panel of the MVII-AK600(1200)DP has the following ports: DB9 serial port (optional, on SAP Auxiliary model only) signals DC power Video output UTP (link) UTP (link) input port to display input port output port Figure 2: MVII-AK600(1200)DP Rear Panel Interfaces MultiView™... -
Page 8: Chapter 3 Specifications
Specifications Chapter 3 Specifications This section describes the following specifications: General specifications Category cable compatibility General Specifications The following table lists the general specifications of the MVII-AK600(1200)DP. Table 2: MVII-AK600(1200)DP General Specifications Item Description Cable Required Category 5, 5e, or 6 cable. Shielded or unshielded twisted pair. Low-skew. Compliance CE;... -
Page 9: Twisted-Pair Cable Compatibility
Specifications Twisted-Pair Cable Compatibility MultiView products are compatible with Cat5/5e/6 data cabling, as well as “minimized skew” CAT5/5e cabling (also referred to as “low-skew”) manufactured specifically for video applications. Follow these tips to ensure proper usage of your Category cabling: ... -
Page 10: Chapter 4 Installation
Depending on the specific installation requirements, some common tools (screwdrivers, nut-drivers) and related hardware (mounting screws) might be required. These are not provided with Magenta products. The following items might be necessary, which are available from Magenta Research: Audio cable: Phoenix 4-pin to RCA. -
Page 11: Installation Procedure
Installation Installation Procedure Ensure that all connectors are clean and free of contaminants prior to making the connections. Appropriate connector locking hardware (screws/latches) should be used to prevent cables from disconnecting or causing intermittent operation. All units must be the same type for 4 -pair supported features to function correctly. - Page 12 Installation To install the MVII-AK600(1200)DP receiver: Connect the VGA OUT connector to the display. Connect any audio and/or serial cables to the (AUX I/O) and (IOIO) connectors, depending on the specific model of receiver you are installing. Please refer to the –S/A, –SAP option descriptions for more information.
-
Page 13: Adjustments
Installation Adjustments This section describes how to make the following adjustments: Cable distance (EQ) compensation Skew compensation 4.4.1 Cable Distance (EQ) Compensation Settings When the MVII-AK600(1200)DP is operating in normal mode (CFG indicator is off), it is possible to quickly adjust the EQ. -
Page 14: Skew Compensation Settings
Installation 4.4.2 Skew Compensation Settings If the AkuComp-II skew module is installed, it is possible to quickly adjust the RGB values when the MVII- AK600(1200)DP is operating in normal mode. The EQ/SKEW indicators 1-8 will change accordingly to show (in “bargraph”... -
Page 15: Configuration Settings
Installation Configuration Settings There are a number of configurable operating parameters, and the factory-default settings should work for most applications. However, some applications might require slight configuration changes. This section describes how to configure the following settings: Config-1 mode, LEDs 1-2: Sync-mode settings ... -
Page 16: Sync-Mode Settings (Led1-2)
Installation 4.5.2 Sync-mode Settings (LED1-2) The receiver is factory-configured for auto-detecting the proper sync-mode (RepliSync-I normal/stretched). This mode is generally compatible with all existing MultiView transmitter and receiver products that support RepliSync (if they are also using their default settings). However, some video sources may require a custom sync-mode setting (especially at 1080p and 1920x1200 video resolutions). -
Page 17: Th Pair Settings (Led4-6)
Installation 4.5.3 Pair Settings (LED4-6) The receiver provides several options for using the 4 -pair signals (pairs 1-3 are generally used for video). The factory-default setting (-S/A) supports summed L+R analog audio on the 4 -pair. Note that the connected MultiView transmitter and any daisy-chained receivers must be configured with a matching 4 -pair operating mode. -
Page 18: Vsync Polarity Settings (Led7)
Installation 4.5.4 Vsync Polarity Settings (LED7) The receiver provides settings for Vsync polarity: (+) or (-). The factory default setting is (+) Vsync polarity, or “ON” for configuration LED 7. Perform the following procedure while the receiver is in the normal operating state (CFG indicator is off): Press and hold the CFG button until the CFG indictor is ON. -
Page 19: Clamp-Mode Settings (Cfg2: Led1-2)
Installation 4.5.6 Clamp-mode Settings (CFG2: LED1-2) The receiver allows you to select the video clamp-mode. Perform the following procedure while the receiver is in the normal operating state (CFG indicator is off): Press and hold the CFG button until the CFG indictor is ON. Release the CFG button. LEDs 1-8 will show the current value for all Mode-1 configuration settings as bright/off. -
Page 20: Th Pair Termination Settings (Cfg2: Led3)
Installation 4.5.7 Pair Termination Settings (CFG2: LED3) pair termination: ON or OFF. This setting has an effect only for “-S/A” and The AK600 provides settings for 4 S/PDIF operating modes. -pair setting if an option board is installed – since this setting is ignored. Note: It is not possible to access the 4 ... -
Page 21: Chapter 5 Troubleshooting
Troubleshooting Chapter 5 Troubleshooting In most cases, nearly every issue with the MultiView™ video system can be resolved by checking the Category cable termination and making sure that it’s pinned to the TIA/EIA 568B wiring specification. However, there may be other problems that cause the system to not perform as it’s designed. The following table lists the most common installation errors and their solutions. - Page 22 Troubleshooting Problem Solution Are the serial devices connected properly? Are the serial parameters correct Serial communication for source/destination devices? doesn’t work Are the serial cables terminated correctly? Is a null-modem cable required at correctly the TX or RX end? ...
-
Page 23: Chapter 6 Connector Pinouts
Connector Pinouts Chapter 6 Connector Pinouts VGA Output Connector Pinout The video output port connector is a standard HD-15 female connector (three-row, 15-pin). Figure 7: HD-15 Female Connector Table 7: HD-15 Pin Usage RGBHV RGBs RGsB Composite S-Video (Y/C) (YPrPb) Red + Red + Red +... - Page 24 Connector Pinouts Auxiliary I/O (AUX-I/O) Connector Pinout Pin #1 Pin #4 Figure 8: 4-pin Phoenix Connector Pinout Table 8: Auxiliary I/O (4-pin Phoenix) Pin Usage (S/A) (S/A) (S/A) (SAP) PIN# Simplex SPDIF Audio Audio Serial Audio Left Left Signal + (SIG1) Channel Channel...
- Page 25 Connector Pinouts Serial port (IOIO) Connector Pinout If the receiver is a “-SAP” version, then the serial interface will be provided on the “IOIO” connector. This is a DB9-M type serial connector, configured to look like a standard 9-pin “DTE” serial port. Therefore, in most applications a straight through serial cable or adapter-plug (DB9-Female-to-Male) is used to connect an external serial device (for example, a display’s serial control port) to the receiver.
- Page 26 Connector Pinouts RJ45 (MultiView Link) Wiring Standard Figure 10: T568B Category Cable Wiring Standard Table 10: T568B wiring for RJ-45 plug PIN # COLOR PAIR White / Orange Stripe Pins on plug Orange Solid face (socket is reversed) White / Green Stripe Blue Solid White / Blue Stripe Green Solid...
-
Page 27: Dc Power Connector
Connector Pinouts DC Power Connector tvONE provides ready-to-use power supplies for MultiView™ II products. However, if there is a reason a substitute power supply must be used, then the following information is important for maintaining product reliability and performance: Magenta AC/DC Power supply output rating: Regulated +5VDC @ 2.6Amps. -
Page 28: Appendix A Skew Module Installation
Skew Module Installation Appendix A Skew Module Installation The AK600(1200)DP receivers have an optional skew compensation module that can be installed or removed. To install the Skew Module: Figure 14: AK-600DP receiver, cover removed. Disconnect external DC power and remove the top cover. In the center area of the PCB there should be 3 jumpers installed on J16, pins 1-2, 4-5 and 7-8. -
Page 29: Appendix B (Sap) Option Module Settings
(SAP) Option Module Settings Appendix B (SAP) Option Module Settings The SAP option module allows a bi-directional session to be established between a SAP-equipped transmitter (XRTx-SAP), and a specific SAP-equipped receiver even in a multiple-receiver daisy chain installation. The SAP transmitter devices (XRTx-SAP for example) do not have address DIP-switches. The factory-default address of the transmitter is “0”. -
Page 30: Appendix C Pollable Serial Mode Address Chart
Pollable Serial Mode Address Chart Appendix C Pollable Serial Mode Address Chart ADDR Switch Settings ADDR Switch Settings ADDR Switch Settings ADDR Switch Settings MultiView™ II AK600DP/AK1200DP Installation and User Guide... - Page 31 Pollable Serial Mode Address Chart SAP Addressing chart, cont’d: ADDR Switch Settings ADDR Switch Settings ADDR Switch Settings ADDR Switch Settings MultiView™ II AK600DP/AK1200DP Installation and User Guide...
-
Page 32: Appendix D Mounting Kits
Mounting Kits Appendix D Mounting Kits The following table shows several kits available for mounting the MultiView™ II AK600(1200)DP receiver. Table 11: AK600(1200)DP Mounting Kits Mounting Kit # Description 2211054-01 Rigid-mount bracket. This mounts a single device to a surface (wall/desk/etc.). - Page 33 Mounting Kits Note: When installing AK600(1200)DP receivers in an area susceptible to elevated operating temperatures (near the maximum specified operating temperature), it is important to give careful consideration to maintaining adequate air flow. Within a rack assembly, cable bundles and other equipment in the same rack can impede proper cooling.
-
Page 34: Appendix E System Design Drawings
System Design Drawings Appendix E System Design Drawings The following drawings are available from tvONE as an aid in system design and configuration. You may download them from the tvONE website http://www.tvone.com. There is no charge for obtaining these drawings. Table 12: MultiView™... - Page 35 Error! No text of specified style in document. Index About this manual, 1 Installation, 6 Adjustments, 9 Option Module Configuration, 6 EQ setting, 9 prerequisites, 6 Skew setting, 10 procedure, 7 Auxiliary I/O connector, 20 Mounting kits, 28 Configuration, 11 Option module settings -pair mode settings, 13 SAP option module, 25...
