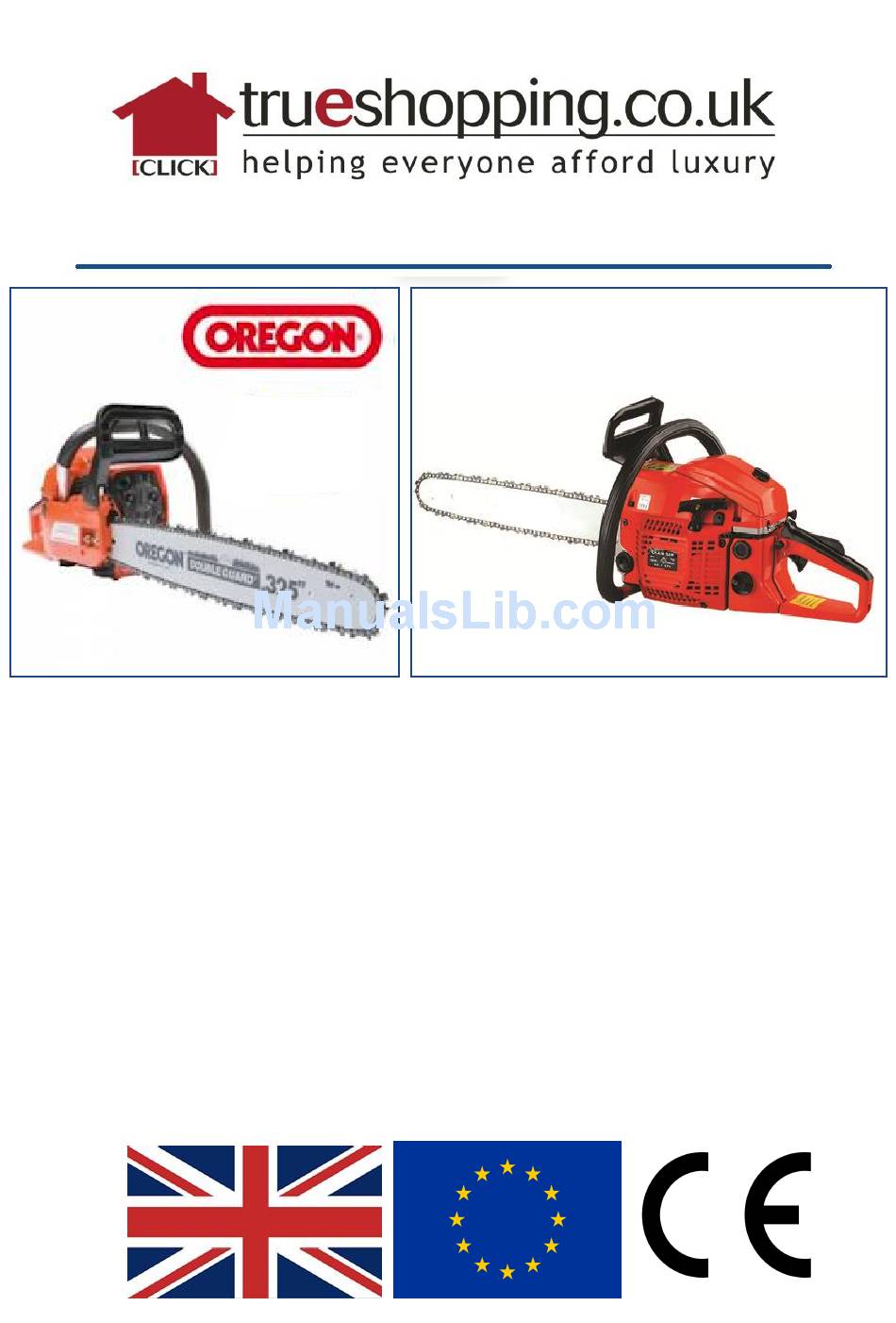

Page 1: Instruction Manual
Offering a wide selection of products at competitive prices JW3800, JW4500, JW5200, JW5800 HY3800, HY4500 , HY5200,HY5800 SLYD38, SL-YD45, SL-YD5200B,SL-YD58 Instruction Manual... - Page 2 Trueshopping Models JW3800 Petrol Chainsaw 38cc JW4500 Petrol Chainsaw 49cc JW5200 Petrol Chainsaw 52cc JW5800 Petrol Chainsaw 58cc HY3800 Petrol Chainsaw with oregon chain 38cc HY4500 Petrol Chainsaw with oregon chain 49cc HY5200 Petrol Chainsaw with oregon chain 52cc HY5800 Petrol Chainsaw with oregon chain 58cc SLYD38 Petrol Chainsaw with authentic oregon bar, chain &...
-
Page 3: Table Of Contents
Trueshopping Before putting the machine into operation, read this instruction manual thoroughly. Contents What Is In The Box ............... 9 Your Chain saw ................10 Putting It Together..............11 Close Ups of Adding the Chain ..........20 Safety Precautions ..............25 Protecting You ............... - Page 4 Trueshopping Operating The Machine ............. 46 Kickback Safety Precautions ............51 Chain Saw Operation ..............53 Felling A Tree ................54 1) Examine the Tree and Surroundings ......... 54 2) Plan at Least Two Escape Routes ........55 3) Make the Cuts ..............56 Limbing a Tree ................
- Page 5 Trueshopping Saw Chain ................68 Trouble Shooting ............... 69 Specifications ................71 Chainsaw Technical Specifications -38c ........ 72 Chainsaw Technical Specifications -45cc ......73 Chainsaw Technical Specifications -52cc/58cc ....74 Declaration of Conformity ............77 www.TrueShopping.co.uk Page: 5 of 77...
- Page 6 Trueshopping Table of Figures Figure 1 What Is In The Box ............9 Figure 2 Your Chain saw .............. 10 Figure 3 The parts you need............11 Figure 4 The Chain Spike ............. 12 Figure 5 Fitting The Chain Spike ..........13 Figure 6 The Guide Bar In Position ..........
- Page 7 Trueshopping Figure 26 Chain Now Tightened ..........23 Figure 27 Fuel Mixture Graphic ..........34 Figure 28 Petrol Cap Clearly Marked ......... 34 Figure 29 Chain Oil Cap .............. 35 Figure 30 Chain Oil Flow ............35 Figure 31 Idling Speed Adjustment ........... 36 Figure 32 Parts of the Chain saw ..........
- Page 8 Trueshopping This product is in accordance with the relevant EC Directives www.TrueShopping.co.uk Page: 8 of 77...
-
Page 9: What Is In The Box
Trueshopping What Is In The Box Main power unit Guide and cover Saw chain Tool kit Fuel bottle Front guard Figure 1 What Is In The Box www.TrueShopping.co.uk Page: 9 of 77... -
Page 10: Your Chain Saw

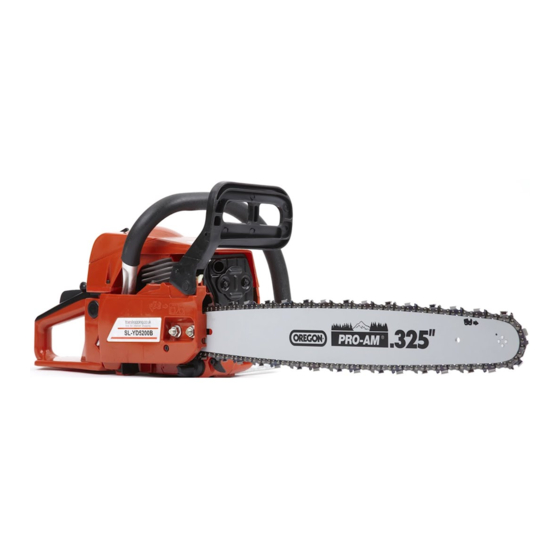

Trueshopping Your Chain saw Figure 2 Your Chain saw 1. Front guard and chain brake 2. Starter knob 3. Air cleaner 4. Choke lever 5. Throttle interlock 6. Right handle 7. Throttle lever 8. Engine switch 9. Fuel tank 10.Oil tank 11. -
Page 11: Putting It Together
Trueshopping Putting It Together The saw chain has very sharp edges. Use thick protective gloves for safety. Open the box and install the front guard and the saw chain on the power unit as follows: Figure 3 The parts you need. -
Page 12: Figure 4 The Chain Spike
Trueshopping What you need is: The main unit. The guide bar. The saw chain. The front guard. The chain spike. Figure 4 The Chain Spike Fit the chain spike first. www.TrueShopping.co.uk Page: 12 of 77... -
Page 13: Figure 5 Fitting The Chain Spike
Trueshopping Figure 5 Fitting The Chain Spike Fit the chain spike with the appropriate tool as shown. Figure 6 The Guide Bar In Position Take the cover off of the guide bar and the saw chain Take the cover off of the guide bar out of its box. -
Page 14: Figure 7 Run Chain Along Guide Bar
Trueshopping Figure 7 Run Chain Along Guide Bar Attach the chain loosely around the guide bar. Figure 8 Direction Of The Chain Fit Close up of chain, note the direction it should be fitted. The engine is to the left of image, tip to the right of image. -
Page 15: Figure 9 Close Up Of Chain Fitted
Trueshopping Figure 9 Close Up Of Chain Fitted Close up of chain loosely fitted at the tip of the guide bar. Figure 10 Pull Chain Hand Tight Pull the bar “hand tight” in preparation of lining up the cover. -
Page 16: Figure 11 Attach Front Guard
Trueshopping Figure 11 Attach Front Guard Attach the front guard to the two standing screws. Using the appropriate tools from your kit, attach the supplied bolts to the top of the screws and ensure that there is a finger tight fit. -
Page 17: Figure 13 Fasten The Tension Screw
Trueshopping Cover the break assembly Figure 13 Fasten the tension screw Fasten the tension screw. 45cc and 52/58 cc Machine Figure 14 Close up of Tension Screw www.TrueShopping.co.uk Page: 17 of 77... -
Page 18: Figure 15 Fasten Two Nuts
Trueshopping Figure 15 Fasten Two Nuts Fasten two nuts one by one. Figure 16 The Chain Fitted NOTE For the 38cc Machine www.TrueShopping.co.uk Page: 18 of 77... -
Page 19: Figure 17 The Tension Screw Is On The Machine
Trueshopping Figure 17 The Tension Screw is on the Machine Figure 18 Screw in the Hole The screw must be in the hole for the 38cc machine. www.TrueShopping.co.uk Page: 19 of 77... -
Page 20: Close Ups Of Adding The Chain
Trueshopping Close Ups of Adding the Chain Figure 19 The Chain Bar Lug Close up of the lug on the cover that needs to be lined up with the guide bar hole. 45cc and 52/58 cc 38 cc Figure 20 Guide Bar Lug Screw The screw on the front of the cover that adjusts the lug. -
Page 21: Figure 21 Guide Bar Hole
Trueshopping Figure 21 Guide Bar Hole The hole on the guide bar that the lug needs to be lined up with. Figure 22 Attaching The Cover Close up showing attaching the cover after adjustment of lug. www.TrueShopping.co.uk Page: 21 of 77... -
Page 22: Figure 23 Slack In The Chain
Trueshopping Figure 23 Slack in the Chain Close up showing the slack in the chain that you must have before tightening the nuts. Figure 24 Hand Tightening the Nuts Tightening the two nuts with the appropriate tool until they are “hand tight”. Do not fully tighten the nuts as yet. -
Page 23: Figure 25 Tightening The Chain
Trueshopping Figure 25 Tightening the Chain Now adjust the screw which pushes the guide bar forward to tighten the chain. Figure 26 Chain Now Tightened Close up of suitably tightened chain, just enough slack to pinch. CARE: The chain may cause injury. Be careful how you handle it. -
Page 24: Www.trueshopping.co.uk
Trueshopping used to the chain saw. This skill will come with use, it might take some adjustment to get the perfect amount of slack in the chain. Check the chain for smooth rotation and proper tension while moving it by hand. If necessary, readjust with the chain cover loose. -
Page 25: Safety Precautions
Trueshopping Safety Precautions Before starting the machine please read this owner’s manual carefully to understand how to operate this unit properly. Keep the manual handy. The first time user should have practical instructions from ain experienced person, in using a chain saw and the protective equipment. -
Page 26: Www.trueshopping.co.uk
Trueshopping If you believe that there is a possibility that your judgment might be impaired or that you might not be able to operate the machine properly and in a safe manner then DO NOT USE THE SAW. You should never use the product when under the influence of alcohol, when suffering from exhaustion or lack of sleep or when tired. -
Page 27: Www.trueshopping.co.uk
Trueshopping Shut off the power aw when carrying it from one tree to the next and always carry the saw with the guide bar pointing to the rear, or spike the bar to the front if you are going downhill. -
Page 28: Www.trueshopping.co.uk
Trueshopping When using the product, you should wear proper clothing and protective equipment as follows. Helmet. Protective goggles or face protector. Thick work gloves. Non-slip-sole work boots. Ear protectors. Never use the product when wearing trousers with loose turn ups. -
Page 29: Protecting Others
Trueshopping Protecting Others Always be sure to include this manual when selling, lending or otherwise transferring the ownership of this product. Never allow children or anyone unable to fully understand the directions given in this manual to use this product. -
Page 30: Protecting The Machine
Trueshopping Protecting The Machine Always carry the chain saw in its case, particularly when carrying it in your car or van. A flying chain saw is a dangerous item to have in the case of an accident. Always keep the chain guard on the chain when carrying the chain saw around. -
Page 31: Www.trueshopping.co.uk
Trueshopping When refilling the tank always turn off the engine first and take a careful look around to make sure that there are no sparks or open flames anywhere nearby before refuelling. If any fuel spillage occurs during refuelling, use a dry rag to wipe up spills before turning the engine back on again. -
Page 32: Before Using The Machine
Trueshopping Before Using The Machine Before proceeding to your job, read the safety section of this manual. Always follow the safety regulations. Inspect the machine for worn, loose, or damaged parts. Never operate the machine that is damaged, improperly adjusted, or is no completely and securely assembled. -
Page 33: Fuel Mix And Fuelling
Trueshopping Fuel Mix and Fuelling Mix a regular grade petrol (leaded or unleaded, alcohol-free) and a quality-proven motor oil for air cooled 2 cycle engines. Keep open flames away from the area where fuel is handled or stored. Mix and store fuel only in an approved petrol container. -
Page 34: Fuelling The Chain Saw
Trueshopping Fuelling The Chain saw Note the fuel mix is clearly marked on the chain engine. Gasoline is called petrol in much of Europe. Figure 27 Fuel Mixture Graphic NOTE: The chain saw should be filled with the engine tipped on its side. -
Page 35: Figure 29 Chain Oil Cap
Trueshopping The chain oil cap, should be filled before you first use the chain saw and then topped required. Figure 29 Chain Oil Cap Close up showing under the engine is a screw to adjust the flow of chain oil. It is located below the mould shown here. -
Page 36: Figure 31 Idling Speed Adjustment
Trueshopping Close up showing the speed adjustment screw. These holes on the side adjust the idling speed of the engine, these may need adjusting dependant temperature. Colder engines need higher idling speed for Figure 31 Idling Speed Adjustment example. NOTE: If the engine stalls... -
Page 37: Starting The Chain Saw
Trueshopping Starting The Chain Saw Figure 32 Parts of the Chain saw 1. Ensure that you have the correct fuel mixture. 2. Make sure the chain brake (the black lever ① in diagram) is fully pushed forwards into the lock position. -
Page 38: Close Ups Of Activities
Trueshopping 6. Push in the throttle interlock lever on top of the handle (⑪ in diagram) and engage the locking button the side of this. This engages the throttle at a slow speed to aid starting the engine as can be seen in the following instructions. -
Page 39: Figure 34 Half Throttle At Different Angle
Trueshopping Figure 34 Half Throttle at Different Angle Close up showing a different angle engaging half throttle mode. Figure 35 Half Throttle Set Close up showing the throttle at half mode with the button depressed www.TrueShopping.co.uk Page: 39 of 77... -
Page 40: Figure 36 Engine Control
Trueshopping Figure 36 Engine Control Switching on the engine control. Figure 37 The Choke Lever Pulling out the choke lever. www.TrueShopping.co.uk Page: 40 of 77... -
Page 41: Figure 38 The Primer
Trueshopping Figure 38 The Primer Please squeeze primer bulb 8 -10 times Figure 39 The Brake Lever Close up of ensuring the chain brake is in the forwards/locked position. www.TrueShopping.co.uk Page: 41 of 77... -
Page 42: Figure 40 Incorrect Brake Lever
Trueshopping Figure 40 Incorrect Brake Lever Close up of chain brake not in lock position - the incorrect position. www.TrueShopping.co.uk Page: 42 of 77... -
Page 43: Starting The Chainsaw Safely
Trueshopping Starting The Chainsaw Safely Never start your chain saw using the drop method where you drop the saw with one hand while pulling the starting cord with the other hand. This is highly dangerous! 1. Lay the chain saw onto the ground and then position yourself with your right boot in the throttle handle area (⑪... -
Page 44: Figure 41 Hand Position
Trueshopping Note: Sometimes you have to leave the choke on until the engine warms up, mastering the position of the choke lever is an art on all our petrol tools and you get used to the sound of the engine with more usage of the saw. When the throttle is first applied the “half throttle”... -
Page 45: Figure 43 Returning Choke
Trueshopping Figure 44 Returning The Power Cord Figure 45 Pulling The Power Cord Figure 43 Returning Choke www.TrueShopping.co.uk Page: 45 of 77... -
Page 46: Operating The Machine
Trueshopping Operating The Machine It is recommended to first practice sawing easy logs. This also helps you get accustomed to your unit. Removal of the safety devices, inadequate maintenance, or incorrect replacement of the bar or chain may increase the risk of serious personal injury. -
Page 47: Www.trueshopping.co.uk
Trueshopping It is extremely important that the chain brake is checked for proper operation before each use and that the chain is sharp in order to maintain the kickback safety level of this saw. Never start cutting until you have a clear work area, secure footing and a planned retreat path from the falling tree. -
Page 48: Www.trueshopping.co.uk
Trueshopping Cut at the correct engine speeds for the size and position of the sapling, branch or tree. Do not overreach or cut above shoulder height. It is not necessary to force the saw into to the cut, Apply only light pressure while running the engine at full throttle. -
Page 49: Www.trueshopping.co.uk
Trueshopping Use extreme caution when cutting small size brush and saplings because slender material may catch the saw chain and be whipped towards you or pull you off balance. When cutting a limb that is under tension, be alert for spring back so that you will not be struck when the tension in the wood fibbers is released. -
Page 50: Www.trueshopping.co.uk
Trueshopping Someone should be with you in case of an accident when you are using the chain saw, particularly if you are in a remote area. Have the telephone number and address of the nearest emergency unit, and always carry a first-aid kit when you work in the woods. -
Page 51: Kickback Safety Precautions
Trueshopping Kickback Safety Precautions Be aware that the chain saw may kickback if it gets stuck in the limb or branch you are cutting. See the next section for more information. With a basic understanding of kickback you can reduce or eliminate the element of surprise. -
Page 52: Www.trueshopping.co.uk
Trueshopping Keep a good grip on the saw with both hands, the right hand on the rear handle, and the left hand on the front handle, when the engine is running. Use a firm grip with thumbs and fingers encircling the chain saw handles. A firm grip will help you reduce kickback and maintain control of the saw. -
Page 53: Chain Saw Operation
Trueshopping Chain Saw Operation When using a chain saw to cut firewood, trim trees or harvest large timber, you need to perform three basic operations: felling, limbing and bucking. Felling involves cutting a standing tree and dropping it in the place you want it. -
Page 54: Felling A Tree
Trueshopping Felling A Tree Felling a tree can cause problems sometimes. You always want to ensure that you know exactly where the tree is going to land. Here is the 3 step plan. 1) Examine the Tree and Surroundings Look for any rot in the tree, where the branches are placed and how tall the tree is. -
Page 55: Plan At Least Two Escape Routes
Trueshopping Ensure that there are no other trees in the area that you expect your tree to fall. This may cause the felled tree to become lodged in the other tree, or worse still, bounce off the tree and cause injury or damage. -
Page 56: Make The Cuts
Trueshopping 3) Make the Cuts Clear the area around the base of the tree from all brush, tree limbs and other obstructions. If the tree is less than ¼m then make the cut through the trunk. If the tree is larger then make two cuts – the undercut and the back cut. -
Page 57: Www.trueshopping.co.uk
Trueshopping 1,2 Undercut: is a V shaped notch on the side of the tree on the side that is in the direction of felling. The first cut (2) of the V is made parallel to the ground and then the other slanting cut (1) is made. -
Page 58: Figure 47 Felling The Tree
Trueshopping Figure 47 Felling The Tree The angled hinge means that the tree will start to fall on the narrow section of the hinge while the wood at the thicker section of the hinge is still intact. The tree is therefore pulled toward the thick section. -
Page 59: Figure 49 Cutting Area
Trueshopping Figure 49 Cutting Area www.TrueShopping.co.uk Page: 59 of 77... -
Page 60: Limbing A Tree
Trueshopping Limbing a Tree Never limb a tree when the limb is above shoulder height as this may cause you to lose control of the chain saw. Examine the Tree Evaluate a fallen tree to ensure that it is not lodged in another tree and not fallen completely to the ground. -
Page 61: Cutting The Limbs
Trueshopping Cutting the Limbs Stand firmly on the ground in a balanced position that gives freedom movement. Ensure that you will not slip. Start at the bottom of the tree and work your way to the top, removing branches on the opposite of the tree. -
Page 62: Bucking A Tree
Trueshopping Bucking a Tree This is the process of cutting a tree into usable lengths and can be done as you are limbing the tree. If the tree is laying on the ground, ensure that you do not get your saw blade caught in the earth or on any other debris that may be present. -
Page 63: Maintenance
Trueshopping Maintenance Always be sure to turn off the engine before performing any maintenance or checking procedures. Leave all maintenance other than mentioned in this manual to your servicing dealer. The metallic parts reach high temperatures immediately after stopping the engine. -
Page 64: Chain Oil
Trueshopping Chain Oil Use motor oil SAE#10W-30 all year round or SAE #30-#40 in summer and SAE #20 in winter. Do not use wasted or regenerated oil that can cause damage to the oil pump. Changing Oil Supply Be sure to refill the oil tank every time when refuelling the unit. -
Page 65: Adjusting Carburettor
Trueshopping Adjusting Carburettor The carburettor on your unit has been factory adjusted but may require fine turning due to change in operating conditions. Before adjusting the carburettor, make sure that provided are clean air/fuel filters and fresh, properly mixed fuel. -
Page 66: Carburettor Antifreeze Mode
Trueshopping Carburettor Antifreeze Mode Operating the chain saw in temperatures of 0-5°at times of high humidity may result in ice forming within the carburettor, and this in turn may cause the output power of the engine to be reduced or for the engine to fail to operate smoothly. -
Page 67: Air Filter
Trueshopping mode when temperature has risen and returned to normal may result in the engine failing to start properly or in the engine failing to operate at its normal speed. For this reason you should ALWAYS be sure to return the unit to normal operating mode if there is NO danger of icing occurring. -
Page 68: Saw Chain
Trueshopping Saw Chain It is very important for smooth and safe operation to keep the cutters sharp. Always wear gloves when doing this. Your cutters need to be sharpened when: Sawdust becomes powder-like. You need extra force to saw in. -
Page 69: Trouble Shooting
Trueshopping Trouble Shooting Check Solution Starting Failure Check fuel for water or Replace fuel. substandard mixture. Check for flooded engine. Remove and dry the spark plug. The start engine again without the choke. Check for spark. Remove and dry the spark plug. -
Page 70: Www.trueshopping.co.uk
Trueshopping Oil Does Not Come Out Check oil quality. Replace. Check passage and ports Unclog. for clogging. Problems Requiring Spare Parts Go to our site http://www.Trueshopping.co.uk and search for chainsaw accessories or the appropriate part you require. Problems adjusting guide The tension screw maybe bent. -
Page 71: Specifications
Trueshopping Specifications Models: JW3800 Petrol Chainsaw 38cc JW4500 Petrol Chainsaw 49cc JW5200 Petrol Chainsaw 52cc JW5800 Petrol Chainsaw 58cc HY3800 Petrol Chainsaw with oregon chain 38cc HY4500 Petrol Chainsaw with oregon chain 49cc HY5200 Petrol Chainsaw with oregon chain 52cc HY5800 Petrol Chainsaw with oregon chain 58cc SLYD38 Petrol Chainsaw with authentic oregon bar, chain &... -
Page 72: Chainsaw Technical Specifications -38C
Volume of Fuel Tank 310ml Volume of Oil Tank 210ml Cutting length(mm) 370mm Max. engine speed 9000 (min-1) Engine Displacement 37.2cc Max. Power 1.25KW Max Idle Speed(min-1) 3400 JW3800 Model HY3800 SLYD38 Petrol-oil-mixture 25:1 Sound Power Level 113db www.TrueShopping.co.uk Page: 72 of 77... -
Page 73: Chainsaw Technical Specifications -45Cc
Trueshopping Chainsaw Technical Specifications -49cc Air-cooled, Two-stroke, petrol Engine type engine Dry weight (without guide bar, chain and with empty 4.90KGS tank) Volume of Fuel Tank 550ml Volume of Oil Tank 260ml Cutting length(mm) 440mm Max. engine speed 9000 (min-1) Engine Displacement 49.3cc... -
Page 74: Chainsaw Technical Specifications -52Cc/58Cc
Trueshopping 52cc/58cc Chainsaw Technical Specifications - Air-cooled, Two-stroke, petrol Engine type engine Dry weight (without guide bar, chain and with empty 4.90KGS tank) Volume of Fuel Tank 550ml Volume of Oil Tank 260ml Cutting length(mm) 480mm Max. engine speed 9000... -
Page 75: Www.trueshopping.co.uk
Trueshopping Models: SLYD38 Petrol Chainsaw with authentic oregon bar, chain SL -YD45 Petrol Chainsaw with authentic oregon bar, chain SL-YD5200B Petrol Chainsaw with authentic oregon bar, chain SL-YD58 Petrol Chainsaw with authentic oregon bar, chain SLYD38 SL-YD5200B Model SL-YD58 SL-YD45... -
Page 76: Www.trueshopping.co.uk
Trueshopping Maximum speed with cutting 11,000/min attachment Tank Volume 550ml Oil Volume 260ml Anti vibrating Teeth 7T×8.255mm sprocket chain brake clutch Automatic chain oiling weight without chain and 5.2kg Sound pressure 98.9 dB(A) level LPA Sound power level 108.9dB(A) Unsicherheit K 2.5dB(A) -
Page 77: Declaration Of Conformity
Trueshopping www.TrueShopping.co.uk Page: 77 of 77...
