Linear Access AP-4 Installation Instructions

TM
®
AP-4

Wireless Access

Control Receiver

Installation Instructions

(760) 438-7000 • FAX (760) 438-7043
USA & Canada (800) 421-1587 & (800) 392-0123
Toll Free FAX (800) 468-1340
www.linearcorp.com
SAFETY WARNING
MOVING DOOR OR GATE CAN CAUSE SERIOUS INJURY OR DEATH
THIS UNIT CAUSES OPERATION OF A DOOR OR GATE MOTOR.
STAY CLEAR OF MOVING PARTS IF THIS UNIT IS MOUNTED
INSIDE THE DOOR OR GATE OPERATOR!
STAY CLEAR OF THE DOOR/GATE OR DISCONNECT THE ACCESS
RELAY WIRES WHEN PROGRAMMING OR SERVICING THIS UNIT!
ELECTRICAL CONNECTIONS
EARTH GROUND
GROUND STAKE, COLD
WATER PIPE OR UNIFIED
EARTH GROUND
AP-4
TERMINALS
EARTH GND
OPEN REQUEST
N.C.
ACCESS
K1 COM
RELAY
N.O.
N.C
OBSTACLE
K2 COM
RELAY
N.O.
AC2
AC1
ACCESS RELAY AND
OBSTACLE RELAY TERMINALS
CONNECT TO THE NORMALLY OPEN
OR NORMALLY CLOSED RELAY
TERMINALS AS REQUIRED BY
THE ACCESS DEVICE
POWER INPUT
LOW VOLTAGE PLUG-IN
TRANSFORMER OR POWER
FROM ACCESS DEVICE
The AP-4 is designed for a broad range of access control applications. Its wireless design and
small size make it easily adaptable for a variety of access control requirements. Typically, the AP-4
is used to control a door strike, barrier gate, automatic gate or automatic door operator.
The AP-4 contains a high-gain UHF receiver which uses an external antenna to pick up signals
from up to 250 feet away. Up to 480 Linear MegaCode
edge transmitter can be programmed into the AP-4's memory. The AP-4 will retain its memory,
even without power.
Two dry contact relay outputs are provided. One relay is the ACCESS RELAY (K1), which triggers
for two seconds each time a programmed transmitter is activated. This relay output connects
to the pushbutton or radio input of the access device. The second relay is the OBSTACLE
RELAY (K2), which triggers for two seconds when an obstacle signal is sent from a Model MGT
safety edge transmitter. This relay output connects to the obstacle input of the access device. An
OPEN REQUEST input terminal is supplied for hardwired activation of the access device with an
external pushbutton or keyswitch.
The AP-4 can be powered from 12-24 Volts AC or DC. The Form C relay outputs can switch up to
1 Amp each. An EARTH GROUND terminal is provided as an optional connection for maximum
lightning and static protection.
Three utility functions can be displayed by pressing the pound (#) key then the digits 1-3. The
utility functions display the status of the obstacle transmitter (#1), the total number of transmitters
programmed (#2), and the total number of transmitter ID blocks programmed (#3).
DISPLAYS LAST 3 DIGITS OF THE TRANSMITTERS ID
NUMBER DURING OPERATION AND PROGRAMMING.
ALSO DISPLAYS MGT SUPERVISION STATUS AND
SYSTEM UTILITY INFORMATION.
PROGRAM BUTTON
PUSH FOR 3 SECONDS TO ENTER
PROGRAM MODE. PRESS MOMENTARILY
TO EXIT PROGRAM MODE.
CANCEL BUTTON
CLEARS THE KEYPAD AND DISPLAY
IN CASE OF AN INCORRECT PROGRAMMING
ENTRY. ALSO CLEARS ANY SUPERVISORY
TROUBLE CODES FROM AN MGT
OBSTACLE TRANSMITTER.
OPEN BUTTON
PUSH TO ACTIVATE THE
ACCESS RELAY.
NOTE: THE EARTH GROUND
CONNECTION IS OPTIONAL,
MOUNT THE RECEIVER
BUT RECOMMENDED
USING THE TWO
SCREWS PROVIDED
OPEN REQUEST PUSHBUTTON
OPTIONAL CONNECTION
PROVIDES A HARDWIRED
METHOD TO ACTIVATE
THE ACCESS DEVICE
PUSHBUTTON
OR RADIO
TERMINALS
ACCESS DEVICE
OBSTACLE
TERMINALS
DC -
12-24
VOLTS
CLOSE THE CASE AND
AC/DC
DC +
SECURE IT USING THE
TWO SCREWS PROVIDED
INTRODUCTION
®
transmitters and one Model MGT safety

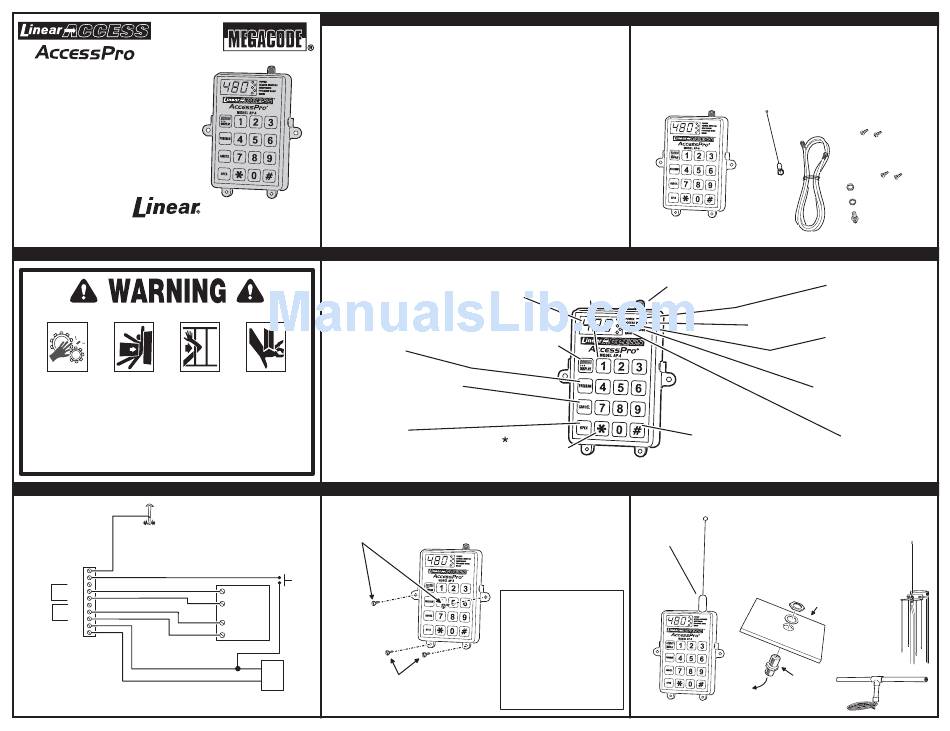

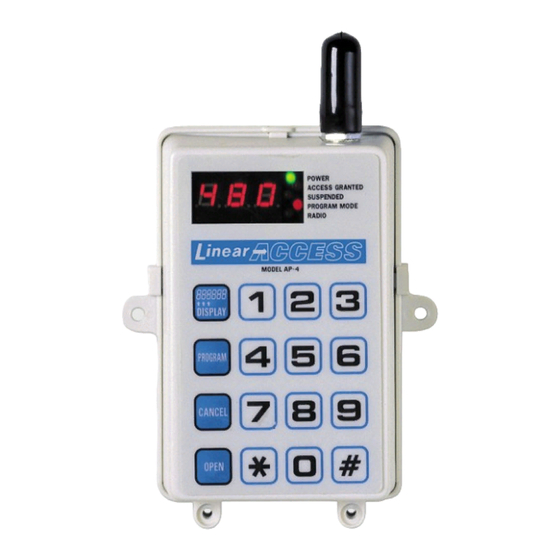

AP-4 FEATURES
DIGITAL DISPLAY NUMERIC KEYPAD
FOR ENTERING TRANSMITTER
ID NUMBERS, PROGRAMMING,
AND UTILITY FUNCTION NUMBERS.
DISPLAY BUTTON
SHIFTS THE DISPLAY TO SHOW
THE LEFT THREE DIGITS OF THE
6-DIGIT TRANSMITTER ID NUMBER
DURING OPERATION OR
PROGRAMMING.
STAR ( ) KEY
DISPLAYS THE ID NUMBER OF THE LAST
TRANSMITTER ACTIVATED. (USE THE
DISPLAY BUTTON TO VIEW THE LEFT
THREE DIGITS OF THE ID NUMBER.)
RECEIVER INSTALLATION
NOTES:
1. MOUNT RECEIVER IN AN AREA
PROTECTED FROM THE ELEMENTS
2. IF USING THE LOCAL WHIP
ANTENNA, THE HIGHER THE
RECEIVER IS MOUNTED, THE
BETTER THE RADIO RANGE WILL BE
3. OPTIONALLY, MOUNT THE
RECEIVER IN A METAL CABINET
AND USE AN EXTERNAL ANTENNA
The AP-4 can fully supervise the MGT safety edge transmitter. The system monitors the
MGT transmitter for hourly status reports, tamper signals, and low battery signals. A beep will
sound every 5 seconds if a fault occurs and the trouble source can be displayed by pressing
pound-one (#1). A transmitter must be activated twice to trigger the ACCESS RELAY if a
supervisory trouble condition exists on the MGT transmitter (unless the MGT has been
suspended). To clear the supervisory trouble after servicing, press the CANCEL button.
WHIP
ANTENNA
3-FOOT
ANTENNA
CABLE
MODEL AP-4 RECEIVER
ANTENNA CONNECTOR
FOR DIRECT CONNECTION TO THE LOCAL
WHIP ANTENNA OR, WITH A COAX CABLE,
TO A REMOTE ANTENNA.
ACCESS GRANTED INDICATOR
LIGHTS WHEN THE ACCESS
RELAY IS ENERGIZED.
POUND (#) KEY
PRESS # THEN 1-3 FOR UTILITY FUNCTIONS:
#-1 DISPLAYS THE MGT SUPERVISORY STATUS.
#-2 DISPLAYS NUMBER OF PROGRAMMED TRANSMITTERS.
#-3 DISPLAYS NUMBER OF PROGRAMMED TRANSMITTER ID BLOCKS.
ANTENNA INSTALLATION
LOCAL WHIP ANTENNA
REMOTE WHIP ANTENNA
ATTACH THE LOCAL
MOUNT THE F-81 CONNECTOR
WHIP ANTENNA
ON THE SURFACE USING
DIRECTLY TO
THE LOCKWASHER AND NUT
THE RECEIVER
CONNECT TO THE RECEIVER
WITH THE COAX CABLE AND
SCREW THE WHIP ANTENNA
TO THE F-81 CONNECTOR
F-81
CONNECTOR
COAX TO
RECEIVER
MOUNTING
SCREWS
CASE
SCREWS
F-81 CONNECTOR
NUT AND
LOCKWASHER
POWER INDICATOR
LIGHTS WHEN AC OR DC POWER
IS APPLIED TO THE UNIT.
SUSPENDED INDICATOR
LIGHTS WHEN A SIGNAL IS RECEIVED
FROM A TRANSMITTER THAT HAS BEEN
SUSPENDED FROM USE, AND WHEN
SUSPENDING A TRANSMITTER.
PROGRAM MODE INDICATOR
LIGHTS WHEN THE UNIT IS
IN PROGRAM MODE.
RADIO INDICATOR
LIGHTS WHEN A RADIO
SIGNAL ON THE RECEIVER'S
FREQUENCY IS DETECTED.
REMOTE FIXED ANTENNA
USE THE OPTIONAL EXA-1000
OR EXA-2000 ANTENNA MOUNTED
AS HIGH AS POSSIBLE FOR
THE BEST RADIO RANGE
CONNECT TO THE
RECEIVER WITH AN
RG-59 COAX CABLE
ATTACH WHIP
ANTENNA TO
THIS SIDE
EXA-1000
ANTENNA
EXA-2000
DIRECTIONAL
ANTENNA
