Summary of Contents for Cleveland Steel Tool Handy-Mag II

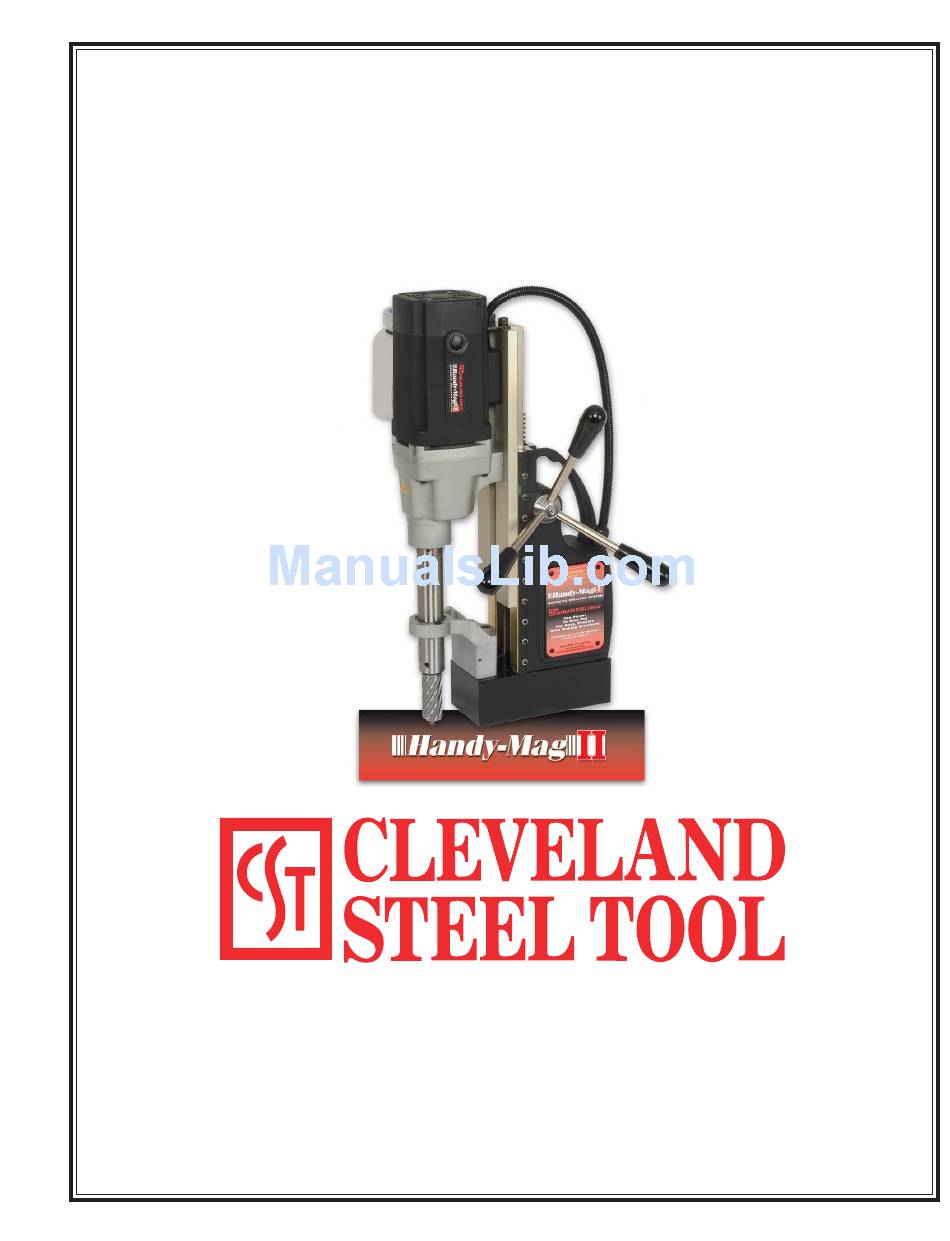

- Page 1 Handy-Mag 474 E. 105th Street Cleveland, OH 44108-1378 (216) 681-7400 • Fax (216) 681-7009 www.clevelandsteeltool.com • sales@clevelandsteeltool.com 800-446-4402...
-
Page 2: Table Of Contents
Handy-Mag II Table of Contents Warranty ........................ 1 Safety Precautions ....................2 General Information ....................3 Specifications ......................3 Grounding Instructions/Extension Cords ............... 4 Getting Started ...................... 5 Before the Cut ....................... 6 Gear Selection ....................... 6 Changing the Arbor to Optional Drill Chuck ............6 Making the Cut ...................... -
Page 3: Warranty
Co. be liable for loss or damage resulting directly or indirectly from the use of merchandise or from any other cause. The Cleveland Steel Tool Co. is not liable for any costs incurred on such goods or consequential damages. No officer, employee or agent of the Cleveland Steel Tool Co. -
Page 4: Safety Precautions
4. All maintenance and repair work should be performed by a person familiar with the machine. 5. Do not use Handy-Mag II drilling machines on surfaces or materials being welded. Doing so can damage the machine’s electrical components. 6. Disconnect the power from the machine before performing any maintenance or repair work. -
Page 5: General Information
Handy-Mag II General Information The Cleveland Steel Tool Handy-Mag II is a compact magnetic base drilling system that features: • A capacity up to 2-1/16" diameter through 3" material • Drilling stacked material requires a special STACKED GEOMETRY cutter. • Positive slug ejection system •... -
Page 6: Grounding Instructions/Extension Cords
Have it repaired before using. If the plug will not fit the outlet, have a proper outlet installed by a qualified electrician. The Handy-Mag II must be plugged into an appropriate outlet, properly installed and grounded in accordance with all codes and ordinances. -
Page 7: Getting Started
Attach 3 crank handles (ME5071) to the crank spindle (ME5072). Attach the coolant tube (ME5046) to the coolant tank (ME5098). Attach the coolant tank to the Handy-Mag II to the top of the slide with screw provided. Attach open end of the coolant tube to the coolant con- nector (ME5010). -
Page 8: Before The Cut
5092). 4. Fill coolant tank with a water soluble coolant. 5. Place Handy-Mag II machine on work piece with pilot pin over the center of the hole to be drilled. CAUTION: Always use safety chain. Failure to do so could result in personal ... -
Page 9: Making The Cut
Handy-Mag II drilling machine or cutter. After the Cut 1. After the Handy-Mag II cutter has finished the cut, the “slug” or uncut center portion of material will be expelled when motor is returned to the full up position. -
Page 10: Maintenance
Handy-Mag II Maintenance Keep tool and electrical cord clean. In case of electrical or mechanical malfunction, immediately turn off tool and disconnect power supply. 1. Adjusting motor slide tension: The motor slide assembly may become loose and require adjustment after the machine has been in service. -
Page 11: Troubleshooting
Handy-Mag II Troubleshooting 1. Magnetic base is not holding securely: • Material being drilled must be a minimum of 3/8" thick for proper magnetic adhesion. • Surface of material should be free of chips, debris, rust and mill scale. •... -
Page 12: Parts List
Handy-Mag II Parts List Item Description Part No. Qty Req. Set Screw M5x6 MEX5001 1.05 Arbor Shaft- MEX5002 82.45 Complete (inc 104-110) Water Seal MEX5003 6.60 Spring MEX5004 6.60 Main Drive Spindle MEX5005 51.65 Woodruff Key M5x5x16 MEX5006 2.15 Oil Seal 22x32x7 MEX5007 2.15... - Page 13 Handy-Mag II Parts List Item Description Part No. Qty Req. Brush Holder MEX5040 14.03 Carbon Brush MEX5041 21.95 Brush Cap MEX5042 2.15 Motor Tail Cover MEX5043 20.74 Screw M5x45 MEX5044 2.15 Coolant Tap MEX5045 9.85 Coolant Tube MEX5046 3.14 Motor Switch 110V MEX5047 53.85...
- Page 14 Handy-Mag II Parts List Item Description Part No. Qty Req. Power Supply Cord MEX5079 10.62 Conduit Gland MEX5080 5.12 Hex Bolt M8x20 MEX5081 2.15 Gear Rack MEX5082 47.25 Slide Plate MEX5083 58.25 Screw M5x15 MEX5084 1.05 Coolant Tank Bracket MEX5085 7.10...
