Summary of Contents for FSHS PuROMax

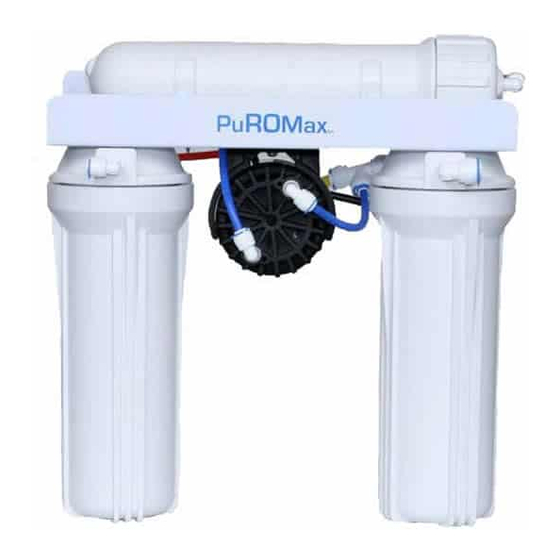

- Page 1 PuROMax Reverse Osmosis FSHS Inc. 23380 Janice Ave #5 Port Charlotte, FL 33980...
- Page 2 System location Your PuROMax R/O system may be installed under a sink, in a basement or other location, depending on available space. Do not install unit where temperatures fall below freezing. Do not install the drain saddle valve near a garbage disposal;...
- Page 3 Site reparation Installing dealers may want to speak with customers in advance and ask them to clean under the sink to save time. If a basement installation is advisable, check area to determine if extra fittings or hosing are required. Upon arrival, it is a good idea to check the condition of all plumbing for potential leaks and advice customer so there will be no misunderstandings in the event leaks occur.
- Page 4 Recommended tools: Center punch Variable speed drill High speed drill bits Greenlee chassis punch 7/8" (or 9/16" for non air gap faucets) Protective gloves & eye protectors Procedures: A. Center punch small indent for hole. B. Drill the required pilot hole. C.
- Page 5 Prior to proceeding it is important to inspect the condition of drain pipes to make sure they are not thin and frail. Drain saddle valves are designed to be installed on standard 1-1/2" OD drain pipe. Install drain saddle valve above (and before) the trap and on the vertical or horizontal tailpiece.
- Page 6 9. Final tubing connections With all components in place, complete final tubing connections using these guidelines: Tubing should follow contour of the cabinets. Cut tubing to desired length using square cuts and proper cutting devise. Make no sharp bends. Keep tubing from the RO unit to the tank and faucet as short as practical for good flow. Under sink installations following installation diagram and the following procedures: 1.
- Page 7 Your PuROMax RO system contains filters and membranes which must be replaced periodically for proper operation. (Please see page 1 for general change out recommendations.) Note: Change-out procedures may be amended depending on source water conditions. To change filters and membranes follow these procedures: 1.
- Page 8 1/4" from the end of the tubing using these fittings. Conventional fittings If PuROMax Quick Connect fittings are not used, it is essential to install inserts at the ends of all tube connections when conventional fittings are used.
- Page 9 PuRO 3 Stage Permeate Pump R/O 3/8 Parts list available upon request...
- Page 10 PuRO 4 Stage R/O ¼...
- Page 11 PuRO 5 Stage R/O ¼...
- Page 12 PuRO 4 Stage R/O 3/8...
- Page 13 PuRO 5 Stage R/O 3/8 Number Part Number Discription Quanity Number Part Number Discription Quanity SF5-10 10 inch Sed. Filter 5 mic WDF103B Long Reach Chrome Faucet FH4200W White Filter Housing 1/4 ports PR-CV1364 Quick Connect 3/8 Tank Ball Valve PR-ME0404 Quick Connect 1/4 Elbow Aqua-4...
-
Page 14: Limited Warranty
To resolve any warranty problems, you must first contact your local dealer; they in turn will contact the factory. Upon proof of purchase, FSHS, Inc., will repair or replace, at the factory, the defective part or unit, and return it to your local dealer.
