- Page 1 BlueKeeper ™ Wireless Audio Gateway User Guide JK Audio...
-
Page 2: Getting Assistance
Or, check out our FAQ section for answers to common questions. Limited Warranty The BlueKeeper is covered by a 2 year warranty to be free from defective work- manship and materials. To obtain service, contact JK Audio by phone or email for return authorization. -
Page 3: Table Of Contents
Contents Contents Overview Getting to know your BlueKeeper 2 Controls & Indicators 4 Inputs & Outputs Getting Connected Bluetooth Wireless Technology FAQs Technical Information Contents... - Page 4 Wireless HD Calls. To take advantage of this extended bandwidth, both phones on the call must support HD Voice, and both phones must be on the same carrier, in coverage areas that support HD Voice. 7 kHz BlueKeeper™ Wireless Audio Gateway...
-
Page 5: Overview
BlueKeeper also pairs to Bluetooth equipped sound cards and music players in full bandwidth stereo A2DP mode. BlueKeeper allows you to send mic and line level signals into your wireless phone while maintaining excellent separation between your voice and the caller. -
Page 6: Getting To Know Your Bluekeeper

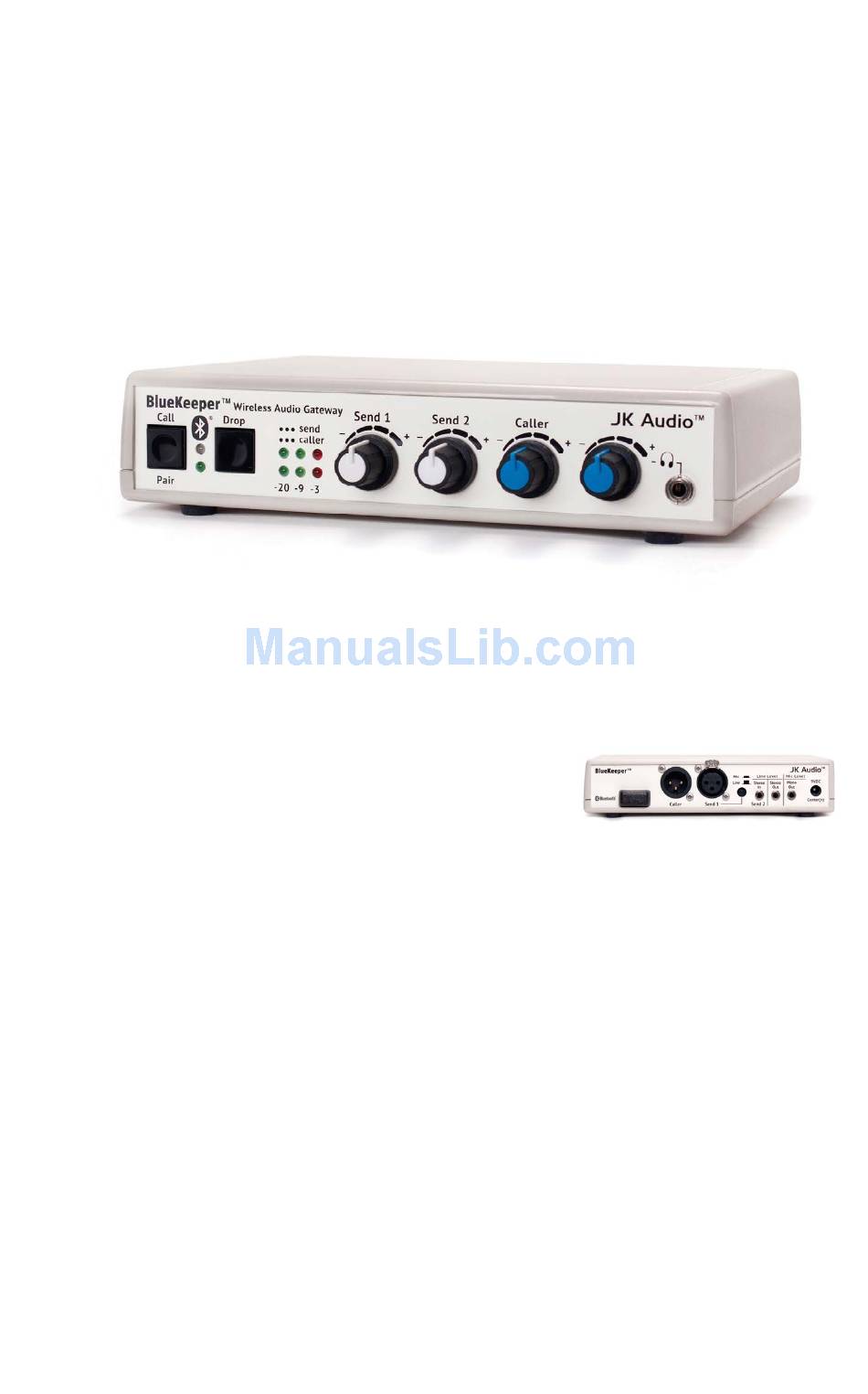

Getting to Know Your BlueKeeper Controls & Indicators Call Button Press this button to answer an incoming call or to connect your call through the hybrid or redial the last number. Drop Button Press this button to drop (hang up) a call. -
Page 7: Power Led
The <Send 1> volume control will set the level of any audio connected to the <Send 1> XLR jack on the back of the BlueKeeper. The <Send 2> control will set the level of the <Send 2> mini jack on the back of the BlueKeeper. -
Page 8: Inputs & Outputs
Getting to Know Your BlueKeeper Inputs & Outputs Bluetooth Antenna Do not obstruct. Caller Output Male balanced XLR output contains only the caller’s voice. Send 1 Input Female balanced XLR input for signals going out to the cell phone. Mic or line level input. -
Page 9: Power Jack
Getting to Know Your BlueKeeper Inputs & Outputs Cont’d Stereo Output 3.5 mm <Stereo Out> mini jack contains both Send and Caller audio channels with levels determined by the <Send 1> and <Send 2> level controls and the <Caller> level control. Left channel contains your local Send audio and right channel contains the Caller’s audio from the cell... -
Page 10: Getting Connected
Connect the supplied DC power supply to the back of the BlueKeeper and then to an AC power outlet. Your BlueKeeper is now ready to take calls. You can establish a connection to your mobile device with Bluetooth Wireless Technology (see pages 8-9) and place or receive a call. - Page 11 Left and Right outputs. Pan all the microphones, etc. to the Left output and pan the Caller to the Right output. Then connect only the <Left> output to the BlueKeeper <Send 1>. Or, you may use an external Mix-Minus box that will create this signal for you.
-
Page 12: Bluetooth Wireless Technology
In Pairing Mode, any Bluetooth wireless technlogy enabled device within range can pair with your BlueKeeper. To put the unit in Pairing Mode, press the <Pair> button for 3 seconds while the unit is on. The blue LED will flash rapidly at a rate of 100ms off, 100ms on. - Page 13 Bluetooth wireless technology enabled devices within range that might also be in Pairing Mode. 1. Connect BlueKeeper to power, then hold the <Pair> button for 3 full seconds. After you release the <Pair> button, the blue LED should flash rapidly if BlueKeeper is in Pairing Mode.
-
Page 14: Faqs
3. Why is there a Send 2 mini-jack on the back of my BlueKeeper? This is a second line level input to the BlueKeeper. Here you can connect another device, such as a MP3 player or computer, to add audio to the conversation. - Page 15 Bluetooth to the BlueKeeper. 8. Can I pair my BlueKeeper to two cell phones and send my audio to two locations simultaneously? No, a BlueKeeper can only be paired to one mobile device with Bluetooth Wireless Technology at a time.
-
Page 16: Technical Information
Hands-Free (HD Voice) = full duplex voice, 50 Hz– 7 kHz A2DP = 30 Hz– 17 kHz, master to slave Misc. Isolation: 1500 VAC Power: 120-240 VAC Power Supply Size: 7” x 6” x 1.6” (18 x 15 x 4.2 cm) Weight: 2.2 lbs. (1kg) BlueKeeper™ Wireless Audio Gateway... - Page 17 Technical Information Block Diagram Block Diagram...
- Page 18 Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his/her own expense. Changes or modifications not expressly approved by JK Audio can void the user’s authority to operate the equipment. BlueKeeper™ Wireless Audio Gateway...
-
Page 19: Declaration Of Conformity
JK Audio, Inc. Manufacturer’s 1311 E 6 Street Sandwich, Illinois 60548 USA Address: Declares that the product: Product Name: BlueKeeper Wireless Audio Gateway Model Numbers: BlueKeeper Conforms to the following Product Specifications: Safety: CAN/CSA-C22.2 No. 60950-01-03 UL Standard 60950-01 1st edition ESD: EN 61000-3-2, 3-3, 4-3, 4-4, 4-5, 4-6, 4-11 EN 301 489-17 V1.2.1... - Page 20 Toll Free: 1.800.jkaudio Fax: 815.786.8502 www.jkaudio.com © 2015 JK Audio, Inc. All rights reserved. The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by JK Audio, Inc. is under license.
