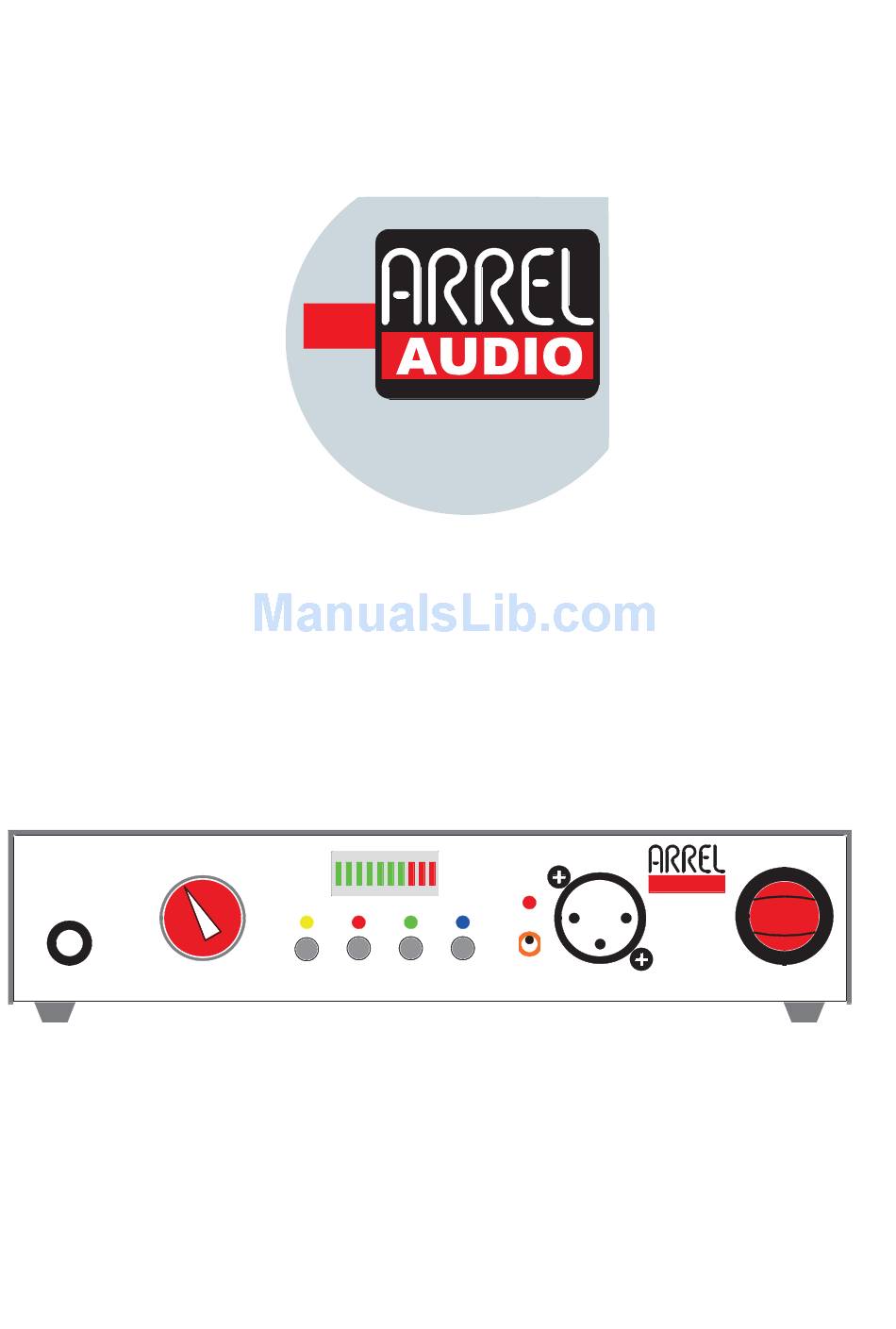

- Page 1 REAL Innovation R-601 Guitar/Bass Splitter GUITAR/BASS SPLITTER AUDIO -18 -12 R - 601 48 V INPUT GAIN INPUT POWER User Manual Issue 0.1...
-
Page 2: Safety Instructions
[Information on Disposal in other Countries outside the European Union] This symbol is only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal. R-601 User Manual, Issue 0.1 Page 2... -
Page 3: Arrel Audio Contacts
Web: www.arrel-audio.com Support: http://www.arrel-audio.com/support ARREL Audio is continuously working to the improvement of its systems and related documentation. In any case, we reserve the right to change the specifications without notice but in the respect to the current legislation. Disclaimer: The information contained in this manual has been carefully checked and we believed is accurate at the time of publication. -
Page 4: Table Of Contents
ARREL Audio Contacts ......................3 TABLE OF CONTENTS ....................... 4 INTRODUCTION ......................... 5 Housing ..........................5 R-601 Front Panel Controls and Operations ................ 6 Power switch ........................6 Input Source selection ...................... 6 Phantom-Power switch ..................... 6 Gain Control knob ......................7 Level Indicator ........................ -
Page 5: Introduction
Italy. Housing The R-601 is contained in a half rack metal box. No specific air conditioning is required for the racks, provided that there is a free flow of air through the rack from front to back and the temperature is maintained in the operating range. -
Page 6: R-601 Front Panel Controls And Operations
ARREL Audio R-601 Front Panel Controls and Operations POWER SWITCH Turn on the R-601 by activating the illuminated power switch (red light on). To turn off the unit activate the switch in the opposite direction (red LED off) (Fig. 1). GUITAR/BASS... -
Page 7: Gain Control Knob
OUTPUT OUTPUT REMOTE GROUND Fig. 2 R-601 Back Panel REMOTE CONNECTOR The footswitch is connected by a ten poles connector (1 common, 4 closed contacts) connector on the back panel (Fig. 2). To increase the reliability all the electrical contacts and wires are duplicated. - Page 8 ARREL Audio Fig. 3 Remote control R-601 User Manual, Issue 0.1 Page 8...
-
Page 9: Appendix A: Connections
1 Wire + Shield Mono Jack Mono Jack REMOTE Output 1 R - 601 Output 2 Remote Output 3 Control Output 4 Ground 10 Pole 10 Wire Telephone Jack FIG. 4 R-601 Connections R-601 User Manual, Issue 0.1 Page 9... -
Page 10: Appendix B: Front Panel
ARREL Audio APPENDIX B: Front Panel FIG. 5 R-601 Front Panel R-601 User Manual, Issue 0.1 Page 10... -
Page 11: Appendix C: Back Panel
ARREL Audio APPENDIX C: Back Panel Fig. 6 R-601 Back Panel R-601 User Manual, Issue 0.1 Page 11... -
Page 12: Technical Specifications
IEC C13 16 A connector, AC mains cord with IEC Schuko 16A Construction Half rack metal box Dimensions W 200 mm / 7.87”, H 40 mm / 1.57”, D 140 mm / 5.51” Weight 1.5 kg R-601 User Manual, Issue 0.1 Page 12...
