Uplink 5300 Install & User's Manual

Hide thumbs

FOR SALES, PRODUCT

INFORMATION &

TECHNICAL SUPPORT

Uplink

3330 Cumberland Blvd.

Suite 700

Atlanta, GA 30339

1-(888) 9-UPLINK, 1-(888)-987-5465

Fax 1-(888)-542-9105

sales@uplink.com

www.uplink.com

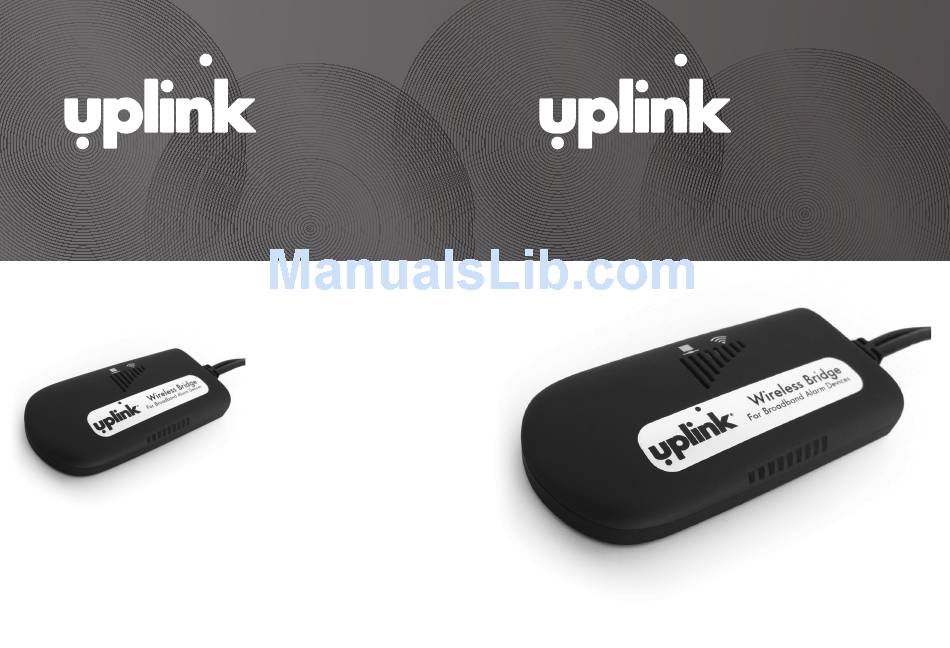

WiFi BRIDGE

PRODUCT ID # 2033325300XX00

5300

INSTALLATION &

USER'S GUIDE

Table of Contents

Need help?

Do you have a question about the 5300 and is the answer not in the manual?

Questions and answers

Summary of Contents for Uplink 5300

Page 1 ® ® 5300 WiFi BRIDGE FOR SALES, PRODUCT INFORMATION & TECHNICAL SUPPORT Uplink 3330 Cumberland Blvd. Suite 700 Atlanta, GA 30339 1-(888) 9-UPLINK, 1-(888)-987-5465 Fax 1-(888)-542-9105 sales@uplink.com www.uplink.com INSTALLATION & USER’S GUIDE PRODUCT ID # 2033325300XX00...
Page 2 SetUp ......................5 SetUpWizard ..................6-13 © 2013 Uplink Security, LLC. All rights reserved. Uplink is a trademark of Uplink Security, LLC. No part of this publication may be reproduced or used in any form without permission in writing from Uplink. This includes electronic or mechanical means, such as photocopying, recording, or information storage and retrieval systems.
Page 3 Camera and other IT products with Ethernet. RJ45 port can access wireless and power cable, Uplink 5300 uses the original power supply of network easily. Two kinds of application topology of Uplink 5300 are shown as IP Camera or some other IT products’ power supply which has below.
Page 4 SETUP RUNNING THE SETUP WIZARD Please set this Uplink 5200 before using it, you can connect it to PC and run the Please put into the CD-ROM, the systerm will automatically eject the disk and VAP11G_Setup.exe in the CD. The Physical guide page, please refer to the right picture and click the corresponding label.
Page 5 ® 5300 WiFi BRIDGE RUNNING THE SETUP WIZARD RUNNING THE SETUP WIZARD If it’s shown the right picture, please click Yes to install After the installation is complete, please double click the desktop icon , the right WINPCAP program. picture shows it is searching the product MAC.
Page 6 ® 5300 WiFi BRIDGE RUNNING THE SETUP WIZARD RUNNING THE SETUP WIZARD The right picture shows the product has searched the WiFi network, please choose the correct WiFi Network. Click Next to proceed, or click Back to return to the previous screen.
Page 7 WiFi BRIDGE RUNNING THE SETUP WIZARD RUNNING THE SETUP WIZARD The New settings will be shown. Uplink 5300 will attempt to connect the wireless network with the new settings. Click Next to save your new settings. Make sure the Bridge’s Wireless LED is solidly lit or flashing. This indicates that the Bridge has connected to the wireless network.
Page 8 Exit to exit the installation Wizard. To make sure Uplink 5300 is working, cut off all other internet connection to the PC (only reserve the connection between the PC and Uplink 5300). If you setup Uplink 5300...
