Summary of Contents for Lyngdorf Audio Millenium ADC Analog/Digital Converter

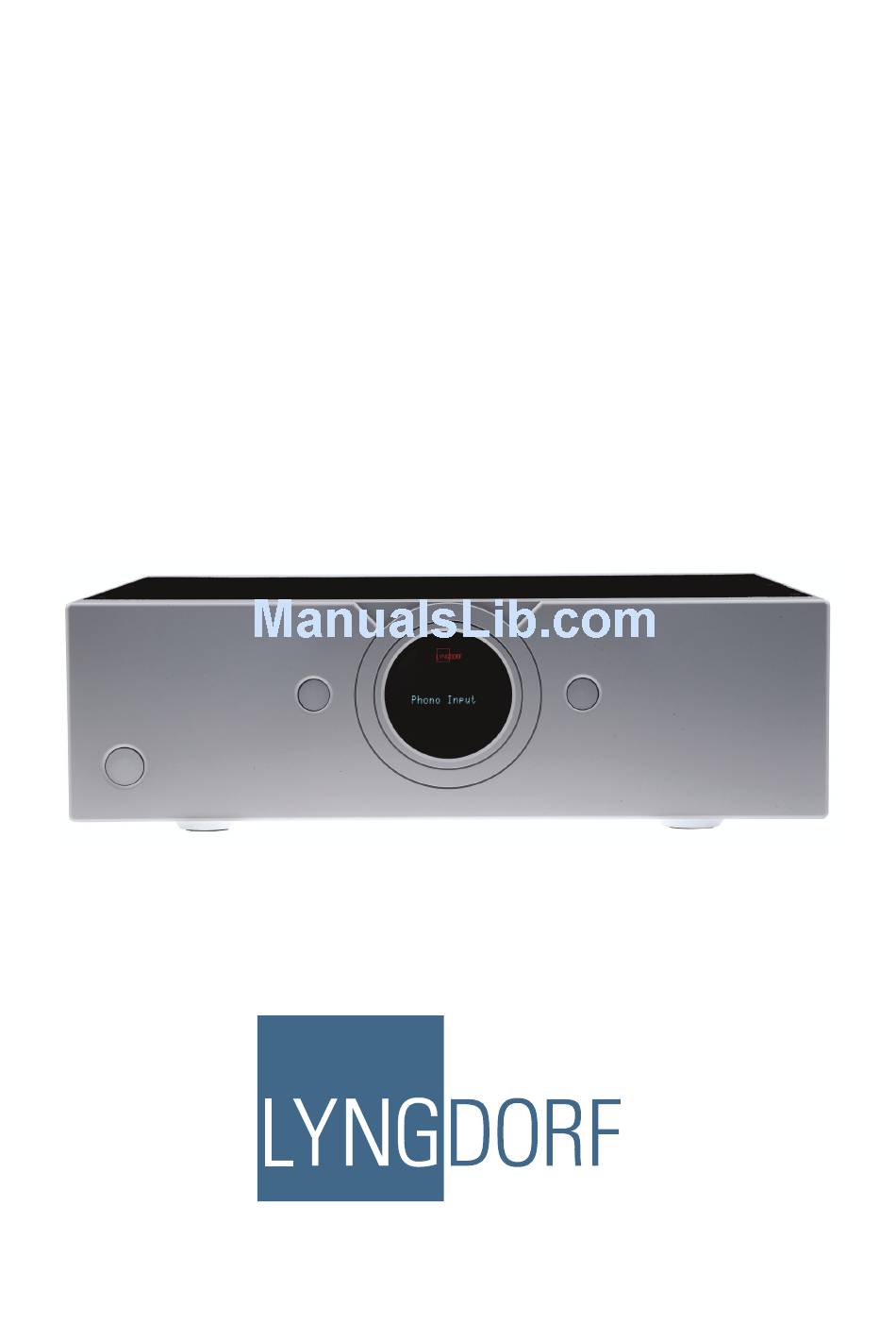

- Page 1 Owner´s manual Millenium ADC Analog/Digital Converter...
-
Page 3: Table Of Contents
Table of Contents Unpacking the Millennium ADC Operating Voltage Serial Number Registration Introduction Accessories Front Panel Rear Panel Remote Control Placement Millennium Link Connection Menu Tree Menu Operation Common Menus - Digital Sample Rate - Communication Address - Communication Speed - Display Timeout - Remote Control - Factory Reset... -
Page 4: Unpacking The Millennium Adc
Carefully remove the unit and accessory kit from the carton, visually check for shipping damage. Contact both the shipper and your Lyngdorf Audio dealer immediately if the unit bears any sign of damage from mishandling. All Lyngdorf Audio equipment is carefully inspected before leaving our factory. -
Page 5: Introduction
24 bit converters per channel, the Millennium ADC sets new performance standards for analog to digital conversion. The optional Lyngdorf Audio Phono Stage is a plug-in module for the Millennium ADC that allows a gramophone to be connected directly to the Millennium ADC. -
Page 6: Accessories
Accessories You should fi nd the following accessories included: Mains cord digital info analog menu TUNER channel volume ENTER random repeat Remote control Millennium Link cable RS-232 cable for fi rmware (5 pin XLR) upgrade from a PC... -
Page 7: Front Panel
Front Panel Figure 1: Millennium ADC front panel. The buttons/controls on the front panel of the TDAI 2200 can all be operated either with direct presses or by operating the corresponding keys on the supplied remote control. All the keys on the front panel [except the Mains switch (1)] are duplicated on the remote control as well. -
Page 8: Rear Panel
Unbalanced analog input RCA connectors. Balanced analog input XLR connectors. Unbalanced digital output RCA connector. 10. Balanced digital output XLR connector. 11. Optical digital output Toslink connector. 12. Lyngdorf Audio Millennium Link XLR 5 pin connector. 13. Mains input IEC 320 connector. -
Page 9: Remote Control
No function. Sets the remote for operation of the Millennium ADC as well as a Lyngdorf Millennium MK III/IV Amplifi er. No function. Sets the remote for operation of a Lyngdorf CD Player. 10. Tuner No function. 11. Channel -/+ Toggles down/up between inputs. -
Page 10: Placement
Connect the two using one of the digital outputs: • Unbalanced digital output RCA connector (SPDIF) • Balanced digital output XLR connector (AES) Update your MkI/II to a MkIII version • Please contact your local Lyngdorf Audio dealer for further information. -
Page 11: Menu Tree
Menu Tree Common Menus Main Menu ADC Input Related Input Related Menus Menus Dig. Samplerate Comm. Address Comm. Speed Display Timeout Remote Control Factory Reset Phono Input Menus Main Menu ADC Common Menus High Pass Filter De-emphasis Select Cartridge Setup Cartr. : 1 Polarity Exit Main Menu Phono Cartridge: 1... -
Page 12: Menu Operation
Menu Operation In the following the general menu operation is described with Display Timeout menu (used as an exam- ple only). The menus available depend on the selected input. All settings outside the common menus apply to the selected input only. Please refer to the menu tree. When The Millennium ADC is switched on select the menu by pressing and holding the right control but- ton until the menu appears or press Menu on the remote control. -
Page 13: Common Menus
The Comm. Address setting signals the Millennium ADC’s identity to the PC interface. Addresses 0-99 can be used. When choosing an address it must differ from the address of other Lyngdorf Audio product – e.g. the Millennium amplifi er is ‘1’ and the Millennium ADC is ‘2’. -
Page 14: Phono Input Menus
Phono Input Menus High Pass Filter The high pass fi lter can be chosen to fi lter away rumble and/or acoustic feedback. Available settings are 10, 15 or 20 Hz. This is referred to as the F2 point in fi g. 4. De-emphasis Records made before 1955 were recorded with different emphasis curves, requiring different de-empha- sis during playback. -
Page 15: Setup Cartr.: 1
Setup Cartr.: 1 Load Preset If you use one of the pre-loaded cartridges you can load this directly which then automatically sets up the ADC to this cartridge (gain, capacitance, impedance and DSP cartridge fi lter). If you have a different cartridge, you need to make these settings manually. - Page 16 Input sensitivity versus cartridge output specifi cation The output voltage of cartridges are generally specifi ed at a stylus velocity of 5 cm/sec. High performance turntable/tone arm/cartridge combinations can track up to 50-75 cm/sec resulting in an output of 10 to 15 times the output voltage specifi...
-
Page 17: Cartr. Balance
Cartr. Balance The Cartridge Balance adjustment enables you to compensate for differences between left and right channel. The balance is adjusted by decreasing the left or right channel between 0 - 3dB. Cartr. Capacit. The cartridge capacitance can be set to 100 or 430pF. Pls. -
Page 18: Analog Input 1- 4 Menus
Analog Input 1- 4 Menus Input Gain The Input Gain enables you to match levels from different sources as well as obtaining full scale output on your amplifi er. The Input Gain can be adjusted up to +18dB in 0.1 dB steps. Please refer to the output level specifi... -
Page 19: Technical Specifi Cations
Technical Specifi cations Analog inputs Parameter Balanced input connectors Balanced input CMRR Unbalanced input connectors Input impedance Input sensitivity L/R crosstalk, 20 Hz-20 KHz Frequency linearity L/R, 20 -20k Frequency response (-3dB) THD+N Ratio, A wgt (0dbFS) S/N Ratio:THD +N, A wgt (- 60dBFS) Phono input Parameter... -
Page 20: Digital Outputs
Digital outputs Parameter Balanced output connector Balanced output impedance Balanced output voltage Balanced output jitter Unbalanced output connector Unbalanced output impedance Unbalanced output voltage Unbalanced output jitter Optical output connector Optical output jitter Output sample rate Output protocol Mains Parameter Mains input connector Mains voltage range Mains voltage range... -
Page 21: Cleaning And Maintenance
For latest version of control software, newest version of this document and ‘Questions and Answers’, please check the ‘Support’ section on the Lyngdorf Audio website. If you have any problems with or questions regarding your Lyngdorf Audio product, please contact your nearest Lyngdorf Audio representative or:... - Page 24 www.lyngdorf.com...
