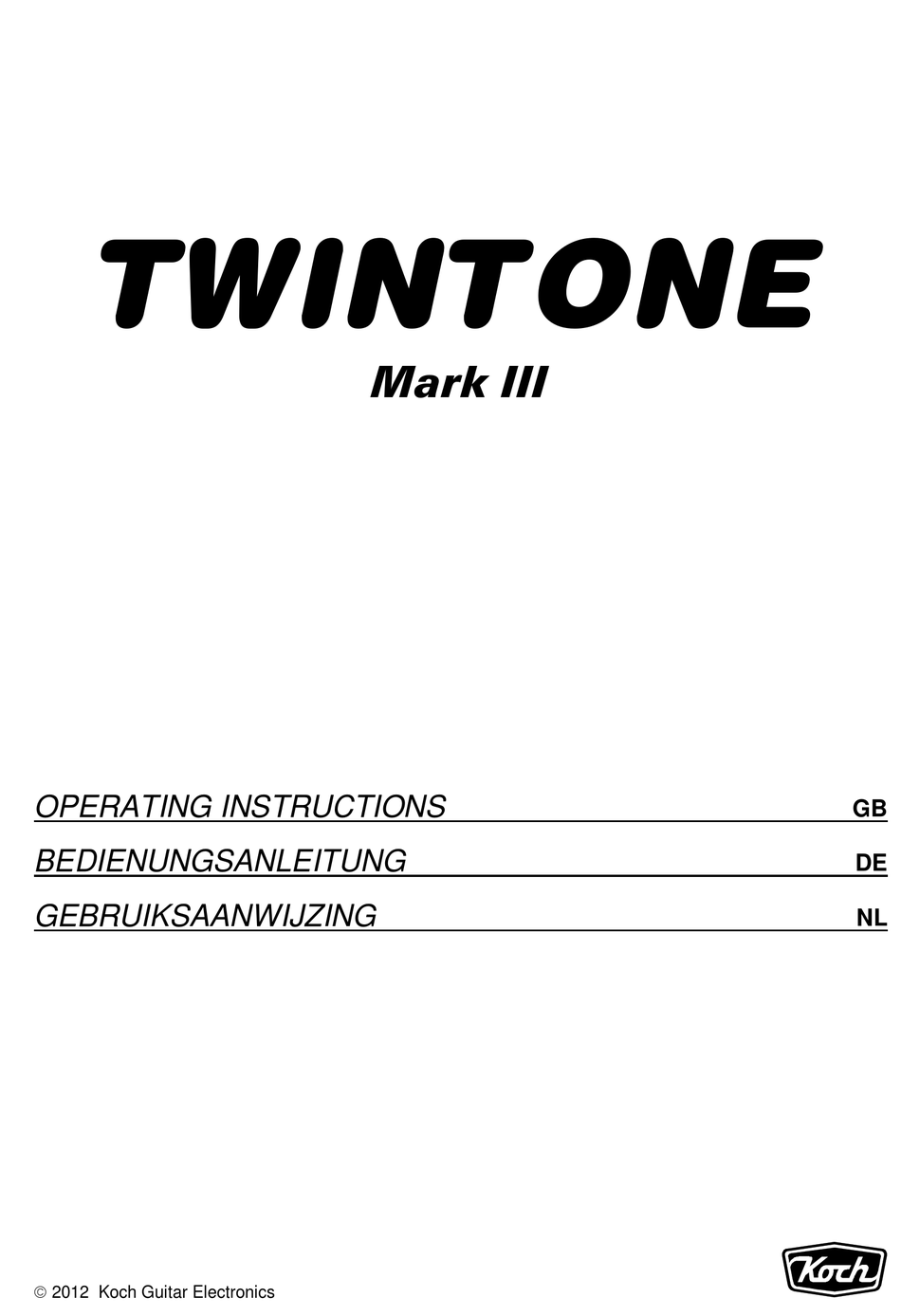

- Page 1 TWINTONE Mark III OPERATING INSTRUCTIONS BEDIENUNGSANLEITUNG GEBRUIKSAANWIJZING 2012 Koch Guitar Electronics...
-
Page 2: Ec Declaration Of Conformity
EC DECLARATION OF CONFORMITY We, Koch Guitar Electronics, Neonweg 27, 3812 RG Amersfoort, The Netherlands, declare under our sole responsibility that the product: TWINTONE-III Guitar Amplifier to which this declaration relates is in conformity with the following harmonized standards: * EN 50081-1 (1991) Electromagnetic compatibility. Generic emission standard. -
Page 3: Front Panel
Electronic design: Dolf Koch Output transformer: Vanderveen design Power Fuse: 100/120V - T3.15A Reverb Serial Output Power 50 Watts Styling: Marijn van der Maat 220/240V - T1.6A Made by: KOCH GUITAR ELECTRONICS Channels Speaker Outputs REC/PA (FX Mix) Parallel Amersfoort, The Netherlands... -

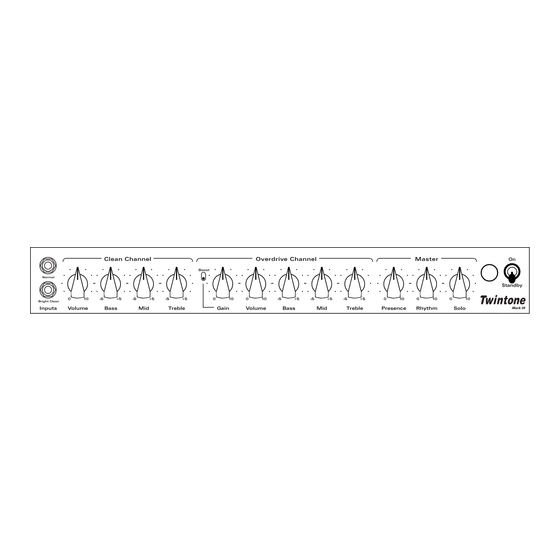

Page 4: Front Panel Functions
E N G L I S H Thank you for choosing the TWINTONE-III from KOCH. You now own a "state-of-the-art" all-tube guitar amplifier of the highest quality. The TWINTONE-III has been designed and built by people who - from their own experience as musicians - take guitar sound and quality very seriously. -
Page 5: Replacing Tubes
This fuse also must be replaced with the same type and value [11] REC/PA OUTPUT: ThIs jack provides a mono output from the in order to avoid damage to the amp and to prevent voiding the power amp and includes Reverb and External Effects signals. The warranty. - Page 6 D E U T S C H Vielen Dank dafür, dass Sie sich für den TWINTONE-III von KOCH entschieden haben. Sie besitzen nun einen „State of the Art“ Röhrenverstärker von höchster Qualität. Der TWINTONE-III wurde von Leuten entwickelt und gebaut, die - aus ihrer Praxis als Musiker - Gitarrensound und Qualität sehr ernst nehmen.
- Page 7 Falls diese Arbeit nicht korrekt erfolgt drohen Gefahren für die [11] RECORDING OUTPUT: Hier liegt ein frequenzkorrigiertes Gesundheit des Benutzers und für das verwendete Equipment! (Simulation eines Gitarrenlautsprecher) Monosignal des Verstärkers an. Hall und - falls benutzt - externe Effekte werden ebenfalls ACHTUNG: Vorgenannte Arbeiten und Austausch von übertragen.
- Page 8 N E D E R L A N D S Bedankt dat je je keus op de TWINTONE-III van KOCH hebt laten vallen. Je bent nu de eigenaar van een "state-of-the-art" buizen gitaarversterker van de allerhoogste kwaliteit. De TWINTONE-III werd ontwikkeld en gebouwd door mensen die - vanuit hun eigen praktijkervaring als muzikant - gitaargeluid en kwaliteit heel serieus nemen.
- Page 9 WAARSCHUWING: Het veranderen van het voltage of het VERVANGEN VAN DE BUIZEN vervangen van een zekering dient alleen te geschieden als het netsnoer uit het stopkontakt is getrokken. SAFETY FIRST: TREK EERST DE STEKKER UIT HET STOPKONTAKT EN LAAT DE HETE BUIZEN AFKOELEN. [3] HT FUSE: Deze zekering dient ter beveiliging van de voeding in ...
-
Page 10: Sample Settings
SAMPLE SETTINGS Cl e a n Clean (normal) O D / O D+ Overdrive (normal) Clean Channel Overdrive Channel Master Boost Normal Standby Twintone Bright Clean Volume Bass Treble Gain Volume Bass Treble Presence Rhythm Solo Inputs Mark III Cl e a n Country O D / O D+ Rock... - Page 11 MEMO Clean Channel Overdrive Channel Master Boost Normal Standby Twintone Bright Clean Volume Bass Treble Gain Volume Bass Treble Presence Rhythm Solo Inputs Mark III Clean Channel Overdrive Channel Master Boost Normal Standby Twintone Bright Clean Inputs Volume Bass Treble Gain Volume Bass...
-
Page 12: Connection Diagram
Output transformer: Vanderveen design Power Fuse: 100/120V - T3.15A Reverb Serial Output Power 50 Watts Styling: Marijn van der Maat 220/240V - T1.6A Made by: KOCH GUITAR ELECTRONICS REC/PA Channels Speaker Outputs (FX Mix) Parallel Amersfoort, The Netherlands L (mono) -
Page 13: Block Diagram
