A-45 Quick Setup Guide

www.advidia.com

Table of Contents

Need help?

Do you have a question about the A-45 and is the answer not in the manual?

Questions and answers

Summary of Contents for Advida A-45

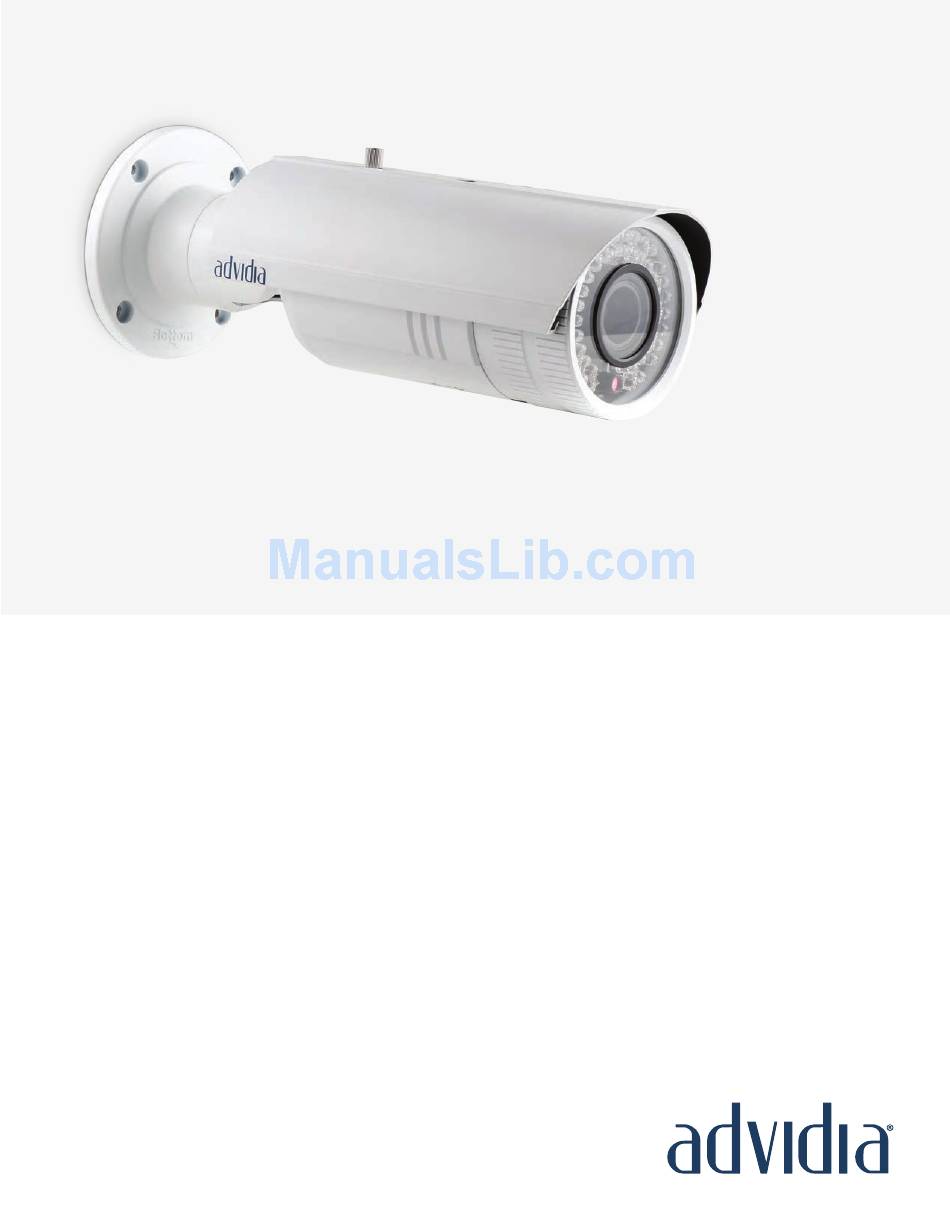

Page 1 A-45 Quick Setup Guide www.advidia.com...
Page 2: Table Of Contents
A-45 Bullet Camera Table of Contents A. Physical Camera Description ....................3 B. Installation ..........................5 C. Search and Modify IP ......................8 D. Preview via Web Browser ......................11 E. Web Interface Configuration ....................14 Channel Parameters > DisplaySetting ..................14 Channel Parameters > Video Settings ..................15 Channel Parameters >...
Page 3: Physical Camera Description
A-45 Bullet Camera A. Physical Camera Description Note: There are two types of these cameras’ interface as shown in figure 1.1 and figure 1.2. Please choose the right figure as your camera’s reference. Serial NO. Description 10M/100M self-adaptive Ethernet interface...
Page 4 A-45 Bullet Camera Figure 1.3 Page 4...
Page 5: Installation
A-45 Bullet Camera B. Installation √ Please check if all the items on the package list have been included with your camera. √ Read the following contents carefully before the installation. √ Make sure that all the related equipment is power-off during the installation.
Page 6 A-45 Bullet Camera Step 2: Use screws to fix the mounting bracket with camera main body to wire hidden box as shown in Figure 2.2. Step 3: Adjust the camera to the desired monitoring location and finally tighten the nuts on bracket to fix the camera.
Page 7 A-45 Bullet Camera Step 4: Twist-off front cover from the camera, and then adjust the lens as shown in Figure 2.4 and Figure 2.5. Figure 2.4 Figure 2.5 Adjust lens Step 5: fix the lens and front cover as shown in Figure 2.6.
Page 8: Search And Modify Ip
A-45 Bullet Camera C. Search and Modify IP SADP (Search Active Devices Protocol) software can automatically search the IP address of network cameras in the same local area network (LAN) with connection diagram as following: Page 8...
Page 9 A-45 Bullet Camera The operation of searching and modifying IP address is described as following: 1. Install the SADP software, and then run the “sadpdlg.exe”. 2. Search IP address Page 9...
Page 10 A-45 Bullet Camera 3. Modify IP address. Page 10...
Page 11: Preview Via Web Browser
A-45 Bullet Camera D. Preview via Web Browser Note: The default IP of network cameras is ‘192.0.0.64’ with ‘admin’ as the administrator, ‘12345’ as the password, and ‘8000’ as the default port. For monitoring camera images, a computer running the Microsoft Windows Operating System and Internet Explorer (Version 6.0 or later) are required.
Page 12 A-45 Bullet Camera 1. Open the IE browser, set the security level to [Medium] in [Tools/InternetOptions/Security/Custom Level…] 2. Input the IP address of the camera and press [Enter], and then click the dialog box that pops up. Page 12...
Page 13 A-45 Bullet Camera 3. Click [Run] to install the ActiveX control. 4. Input “Username” (Default: admin), “Password” (Default: 12345) and “Port” (Default: 8000) of the camera, then click [Login] 5. View the image Page 13...
Page 14: Web Interface Configuration
A-45 Bullet Camera E. Web Interface Configuration Channel Parameters > Display Setting According to different requirements, enable the display of Date&Time and Week by clicking the checkbox. Different date formats can be selected. There are two Time format: 24 hour and 12 hour.
Page 15: Channel Parameters > Video Settings
A-45 Bullet Camera Channel Parameters > Video Settings Parameter Description Channel Name Input the channel name for your need Encode Parameters Main stream or Sub stream optional Stream Type Video & Audio or Video optional Resolution Select the resolution for your need...
Page 16: Channel Parameters > Motion Detection Setting
A-45 Bullet Camera Video Encode Type | Select the video encode type for your need Channel Parameters > Motion Detection Setting Select the checkbox of Enable motion detection to enable this function. Zone Settings: Click Start draw button to draw motion detection zone by clicking and dragging the mouse in the live video image.
Page 17: Channel Parameters > Front Para Config
A-45 Bullet Camera Channel Parameters > Front Para Config In this page, user can adjust the parameters like brightness, contrast, saturation, sharpness, etc. Shutter: User can set the shutter time according to the different camera models. IrisMode: There are two modes: IrisFirst and manual optional.
Page 18: Network Parameters > Ntp Setting
A-45 Bullet Camera Network Parameters > NTP Setting Click the checkbox of Enable NTP to enable this function. Input the Server Address and Port of NTP. If the public network is applied, please input the NTP Server Address with provision of time sync service, e.g., 210.72.145.44.
Page 19: Alarm Parameters > Alarm Input Setting
A-45 Bullet Camera Alarm Parameters > Alarm Input Setting Set the type of Relay Status to NC or NO. Note: Please reboot the network camera to validate the modified parameters. The Linkage can be selected to E-mail link, Trigger alarm output or Trigger recording.
Page 20: User Management
A-45 Bullet Camera User Management When the current login user is admin, it is allowed to create other users. Up to 15 users can be created. Add User Click Add to enter the settings interface as shown here. Input the user name, password, IP address, MAC address, and then select user type.
Page 21: Adding Camera To Monitor Station
A-45 Bullet Camera F. Adding Camera to Monitor Station Using Auto discovery, enter the default credentials described above and click Start. Using Manual add on, choose to add a camera and select the following from the dropdown: Page 21...
