Summary of Contents for Integrated Technical Vision DLK640Plus

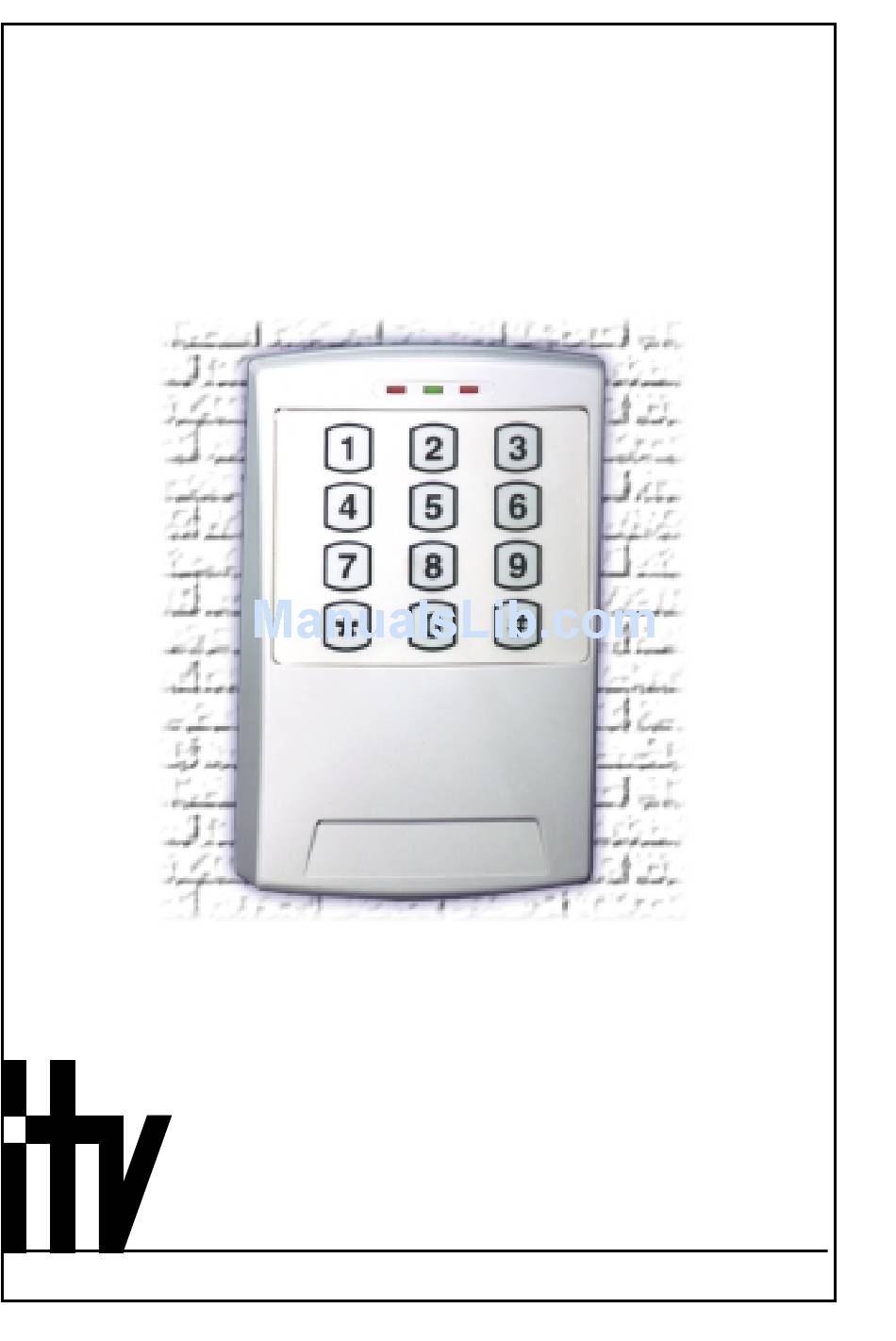

Page 1 Stand-alone access control panel ® DLK640Plus s t a n d - a l o n e a c c e s s c o n t r o l p a n e l...
Page 2 Integrated Technical Vision Ltd http://www.itvsystems/com/ua...
Page 3 Integrated Technical Vision Ltd. Technical support for all products of Integrated Technical Vision Ltd can be ob- tained at working time by the phones: +380 (0) 44 248 65 88...
Page 4: Table Of Contents
User code review ..................20 [*] button programming mode ............... 21 APPENDIX 1 ................22 Access Control System ................22 High Degree Security Access Control System ..........24 APPENDIX 2 ................28 Limited Warranty ..............31 Integrated Technical Vision Ltd http://www.itvsystems/com/ua...
Page 5 Preface Preface DLK640Plus standalone access control panel is intended for access control sys- tem creation and/or use in intruder alarm systems. The panel provides one or two execution units control by means of code entry. DLK640Plus is characterized by presence of nonvolatile memory, two relays, alarm output, one engineer code, one chief code and 29 users' codes.
Page 6: Features
60 mA @ 24V – Voltage ripple 500mV@12V Mechanical – Weight 200 grams – Dimensions 156 x 105 x 20 mm Environmental – Temperature 0 … +55 C° – Relative humidity 80% at 25 C° (without condensate) Integrated Technical Vision Ltd http://www.itvsystems/com/ua...
Page 7: Operation
NC1 NO1 CM2 NC2 NO2 б) 1 - LED1, 2 - LED2, 3 - LED3, 4 - built-in keypad, 5 - blank end cover, 6 - control unit PCB, 7 - keypad PCB, 8 - front cover http://www.itvsystems.com.ua Integrated Technical Vision...
Page 8 Terminals layout on the main board is shown on Figure 2 below Keypad PCB Keyboard Connector X2 +12V RTE DC I/O ALMCM1 NC1 NO1CM2NC2NO2 Panel baseplate Alarm output Locking devices Door sensor RTE button +12 V power Integrated Technical Vision Ltd http://www.itvsystems/com/ua...
Page 9: Mounting
Mounting DLK-640Plus stand-alone access control unit is to be mounted indoors at 85% relative humidity. DLK640Plus mounting description: – Release the screw in the bottom of the cover pos a) on Figure 3 – Slightly pull the bottom side of the cover (pos b) on Figure 3) and take it down –...
Page 10: Request - To - Exit (Rte) Button
Lock 1 tacts. If you want to save con- tacts from damage, protect them with diode, connected in reverse to the current supply voltage of the coil. Integrated Technical Vision Ltd http://www.itvsystems/com/ua...
Page 11 LED 2. You can cancel entereded digits succession with [*] button pressing in case of mistake. If no key is pressed during 40 seconds, all previously entered digits arre discarded and the unit switches into main mode. http://www.itvsystems.com.ua Integrated Technical Vision...
Page 12: Duress Code
There are three LEDs on the front panel of DLK-640Plus stand-alone access con- trol unit. Their functioning is described below: Main mode LED 1 (red) indicates panel operation mode LED 2 (Bi-colour, Red and Green): Red - indicates I/O output status, Green - indicates Relay 1 status Integrated Technical Vision Ltd http://www.itvsystems/com/ua...
Page 13 Lockout Mode If invalid code is entered for three times, the unit locks out for programmed time. Lockout time can be programmed from 1 to 255 seconds. Programming this value to 0 disables lockout mode. http://www.itvsystems.com.ua Integrated Technical Vision...
Page 14: Control Panel Operation
10 sec Lockout time 40 sec Engineer code 1234 Master code 5678 User code #2 [A][A][A][A] Code drives Relay1 Relay time 3 sec Door time 15 sec Access level Default Relay 1 time 3 sec Integrated Technical Vision Ltd http://www.itvsystems/com/ua...
Page 15: Default Times
"Engineer" programming mode now. After resetting to factory defaults all user codes will be deleted! 4. Take off jumper J1 with power on. Program desired settings. http://www.itvsystems.com.ua Integrated Technical Vision...
Page 16 The "default" value of relay time is used if you need to set equal time for many user codes. If you are using "default" time, changing of these values causes changes of time for all user codes, relevant to them. Integrated Technical Vision Ltd http://www.itvsystems/com/ua...
Page 17 If an error occurred - several short beeps would be heard. By default new code has the following settings: Code drives Relay 1 Relay Time - 255 (default Relay times) Door Time - 255 (default door time) http://www.itvsystems.com.ua Integrated Technical Vision...
Page 18 Enter [1] [1] [#]. Unit displays value of alarm output time with buzzer and LED 2. Press [#] to exit alarm output time setting. Press [*] [new Alarm Time value] [#] to enter new value. Integrated Technical Vision Ltd http://www.itvsystems/com/ua...
Page 19 To set new Default Door Time value to 5 seconds press [1] [5] [#] in Engineer Example programming mode. Unit displays current value of Default Door Time with buzzer and LED 2. Press [*] [0] [5] [#]. Press [#] to exit Engineer programming mode. http://www.itvsystems.com.ua Integrated Technical Vision...
Page 20: User Code Settings' Editing
To change code press key [0], three short beeps will sound. Enter [1] [9] [7] [5] [#] - one log beep sounds. If the same user code or duress code exists, error signal sounds. Press [#]. Long sound is emitted and the unit returns to main mode. Integrated Technical Vision Ltd http://www.itvsystems/com/ua...
Page 21: [*] Button Programming Mode
Enter new user code - [4] [3] [2] [1] [#], long beep sounds. If the same user code or duress code exists, error signal sounds and unit quits the code programming. Confirm by entering [4] [3] [2] [1] [#], long beep sounds and the panel switches to the main mode. http://www.itvsystems.com.ua Integrated Technical Vision...
Page 22: Access Control System
NC terminal. You can use Relay 2 terminals for additional devices engaging. The input can be used for 24 hours if door time for all codes is set to ‘0’. Integrated Technical Vision Ltd http://www.itvsystems/com/ua...
Page 23 3333, access level 4 (valid, day mode, cannot be changed by user), relay 2 control, door time- 30 sec. User code #4 4444, access level 2 (valid, 24-hour, can be changed by user), relay 2 control, door time - 30 sec. http://www.itvsystems.com.ua Integrated Technical Vision...
Page 24: High Degree Security Access Control System
+12V power supply RTE button Presence of two people is demanded for access to the premises, as two different codes control Relay1 and Relay2. But high priority user code can have permission for individual door opening. Integrated Technical Vision Ltd http://www.itvsystems/com/ua...
Page 25 5555, access level 2 (valid, 24-hour, can be changed by user), both relay control, door time - 30sec. A door can be opened after code #5 or code #3+#4 entry in the above given exam- ple. http://www.itvsystems.com.ua Integrated Technical Vision...
Page 26 APPENDIX 1 Panel Use in Security systems DLK640Plus allows automatic setting/unsetting of security system by means of user code entry. Example: Codes with Relay 1 control permission are responsible for setting/unset- ting of the system, and codes with Relay 2 control are responsible for access to the premises.
Page 27 If you want to unset the system change day mode to night using code #4 and enter user code #5. Code #3 or RTE button (code #2) can open a door only in day mode. http://www.itvsystems.com.ua Integrated Technical Vision...
Page 28 01 relay 2 control 00- master code change[#] [new code] [#] [new code] [#] main mode 02 relay 1 control vacant code 03 relay control 01 - code enrollment[#] [new code] [#] number inquiry 04 relay actuation 02 - code parameter [code number][#] time editing [#]...
Page 29 Access levels e r y e r y e r y e r y № № № № № t i x i t t v i t i t t t l u t l u http://www.itvsystems.com.ua Integrated Technical Vision...
Page 30 - - - - - - - - - i t c i t c i t c Integrated Technical Vision Ltd http://www.itvsystems/com/ua...
Page 31: Limited Warranty
In no event shall Integrated Technical Vision Ltd be liable for any direct, indirect or consequential damages. Loss of anticipated profits, loss of time or any other loss- es incurred by the buyer in connection with the purchase, installation or operation or failure of this product.
