Summary of Contents for Blauhaus HD1080

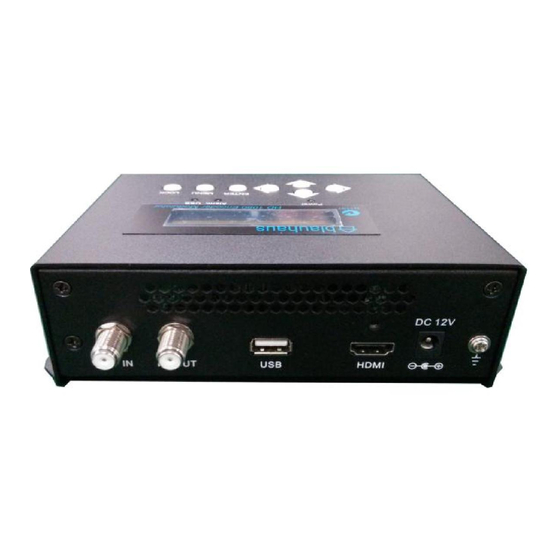

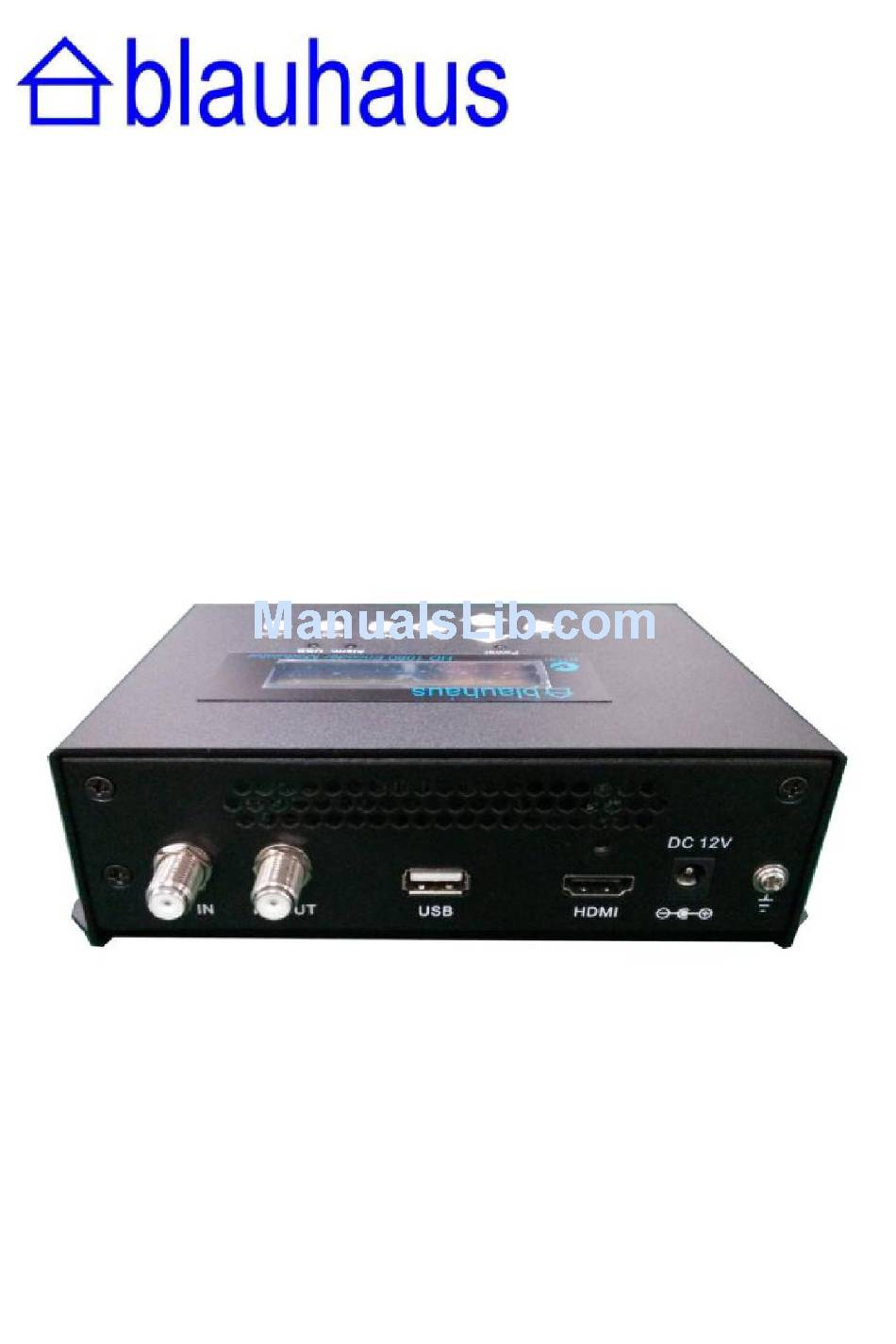

- Page 1 HD1080 Encoder & Modulator --- Home Use User Manual...
-
Page 2: Table Of Contents
Thank you for buying this encoder modulator. Please read this manual carefully to install, use and maintain the encoder modulator in the best conditions of performance. Keep this manual for future reference. Directory CHAPTER 1 Product Introductions ................3 General Description ....................3 Working Principle .................... -
Page 3: Chapter 1 Product Introductions
CHAPTER 1 Product Introductions General Description HD 1080 home encoder & modulator is consumer electronics which allow audio/video signal input in TV distributions with applications in home entertainment, surveillance control, hotel Digital Signage, shops etc. It is an all-in-one device integrating MPEG-4 AVC/H.264 encoding and modulating to convert audio/video signals into DVB-T RF out. -
Page 4: Technical Specifications
Technical Specifications HDMI Encoding Section Encoding H.264 MP@L 3.0/3.1/4.0 Interface HDMI*1 Input Output 480i@59.94/60FPS 480p@30FPS 576i@50FPS 576p@25FPS Video 720p@50/59.94/60FPS 720p@50/59.94/60FPS Resolution 1080i@50FPS 1080p@25FPS 1080i@59.94/60FPS 1080p@30FPS 1080p@59.94/60FPS 1080p@30FPS Aspect Ratio 16:9, 4:3 Bit rate 1.000~18.000 Mbps Encoding MPEGI layer 2, MPEG-2 AAC Audio Sample rate 48KHz... -
Page 5: Chapter 2 Safety Instruction And Installations
System Management LCD + control buttons Language English LCN Insertion Upgrade General Power supply DC 12V Dimensions 183*110*50mm Weight < 1kg CHAPTER 2 Safety Instruction and Installations Safety Instructions WARNING: Hot plug is not allowed since it may cause system halted. To prevent fire or electrical shock, do not expose the device to rain or moisture. - Page 6 RISK of damage to the unit Mechanically handling the unit may result in damage. Do not connect the unit to the power supply before or during assembly. Connect the unit as below instructed. NO HOT PLUG AND CONNECT THE CABLE AS FOLLOWING STEPS. ount and tighten the screws and plugs to secure the unit to the wall.
-
Page 7: Typical Applications
increase the capacity. The maximum capacity of a series of N units is incorporated signals. To cascade 2 or more units, connect the output preceding unit to the TV input (loop-through) of the next unit (see right illustration). Typical Applications... -
Page 9: Chapter 3 Operations And Management
CHAPTER 3 Operations and Management The device is controlled and managed through the key board and LCD display. LCD Display – It presents the selected menu and the parameter settings. The backlight in the display is on when the power is applied. LED –... - Page 11 1) DVB-T: modulating standard; XX.XXX MHz: the current output frequency; 1080i: video resolution of signal source; X.XX Mbps: the current encoding bit rate 2) Alarm Status: For example, if the signals lose, it will give alarm and display error type under this menu.
- Page 12 16) Save Config: Yes/No-to save/give up the adjustment of setting. 17) Load Saved CFG: Yes/No-to load/ not to load the saved configuration. 18) Factory Reset: Yes/No-choose/not choose the factory’s default configuration. 19) LCD Time out: A time limit that LCD will light off. Choose among 5s, 10s, 45s, 60s, 90s and 120s (seconds).
-
Page 13: Chapter 4 How To Upgrade
CHAPTER 4 How to Upgrade HD 1080 encoder modulator is embedded with USB Port for upgrading. The supported file format is IMG. USB Port for Upgrade Upgrade steps: Insert USB device→Upgrade automatically(It will need 10-20 seconds to upgrade. After upgrade, the device will reboot automatically.) →Remove USB device→ Power off→Power on. -
Page 14: Appendix
Appendix Australia Air Channels Australia Air Channels Frequency Frequency Start Center Start Center 599.5 606.5 48.5 613.5 59.5 620.5 66.5 627.5 88.5 634.5 97.5 641.5 104.5 648.5 140.5 655.5 177.5 662.5 184.5 669.5 191.5 676.5 198.5 683.5 205.5 690.5 212.5 697.5 219.5 704.5... - Page 15 6MHz Bandwidth 7MHz Bandwidth 8MHz Bandwidth Modulation Guard Interval Guard Interval Guard Interval Constellation 1/16 1/32 1/16 1/32 1/16 1/32 The weak ability of error-correcting and anti-interference in this area 6.03 6.03 5.80 6.45 6.83 7.03 6.64 7.37 7.81 8.04 QPSK 6.22 6.58...
