LumiSource LS-LOLLIPOP Assembly Instructions

Lollipop lamp

Advertisement

Lollipop Lamp
Part # LS-LOLLIPOP

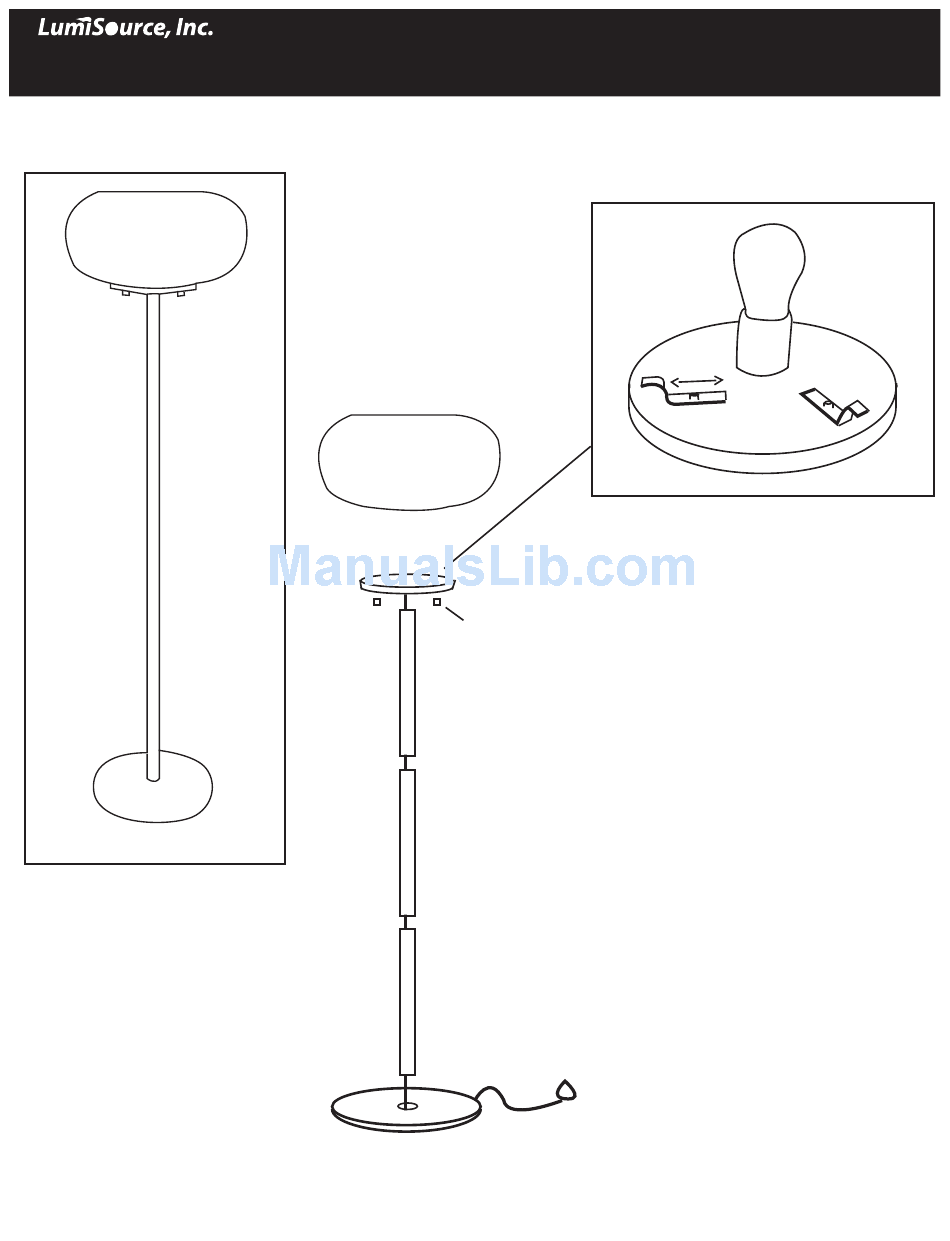

1. Insert pole A into base. Screw to secure.
2. Screw poles A, B, and C together.
Plate
You may need to gently pull the cord
through from the base. Be careful not
D
to damage the cord when pulling
through-(pull straight from opening).
C
3. Screw plate into pole C. You will need to
carefully pull the cord through the base in
order to complete this step.
4. Insert a light bulb.
B

To Secure the Shade:

5. Loosen the 3 Caps (D) under the plate.
Do not completely remove the caps.
6. Slide the 3 brackets (E) toward the bulb.
A
7. Carefully set the glass shade inside the
plate's groove. Do not force the glass if
your brackets are not in the correct position.
Base
8. Slide the 3 brackets (E) all the way to
outside, and secure the 3 caps (D).
Assembly Instructions
Instrucciones De Asamblea
Instructions d'Assemblée
January 2009
E
