Promate Panorama-10 User Manual

Universal compact multimedia android dlp projector
Hide thumbs

Advertisement

Quick Links

Download this manual
Panorama- 1 0

Advertisement

loading
Need help?

Need help?

Do you have a question about the Panorama-10 and is the answer not in the manual?

Questions and answers

Related Manuals for Promate Panorama-10

Summary of Contents for Promate Panorama-10

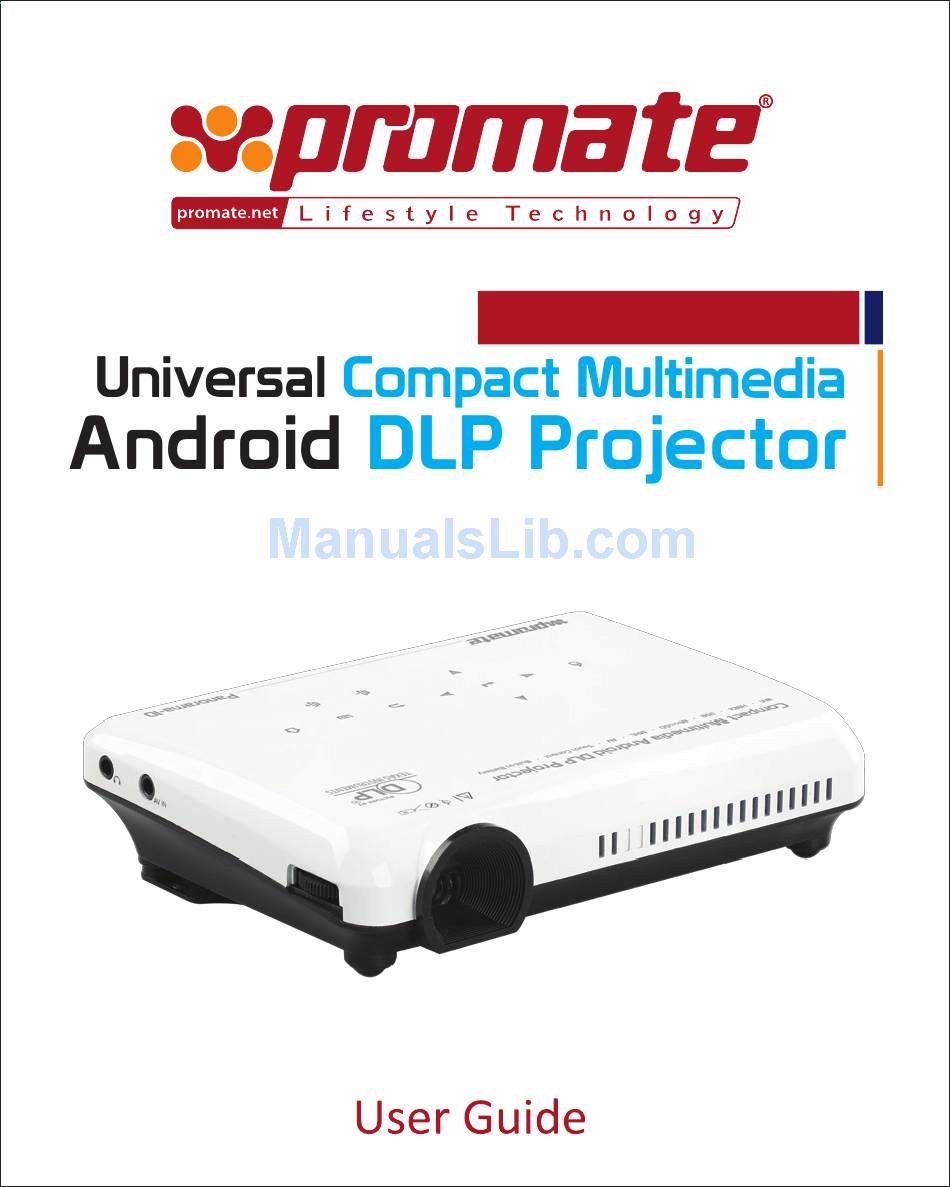

  • Page 1 Panorama- 1 0...
  • Page 2 Now, project images and other content from any HDMI Compatible device and also Smartphones supporting Mobile High Definition Link (MHL). Panorama-10 also has inserts for Micro-SD and TF Cards along with superior Wi-Fi and Infrared Connectivity. Handling your presentations will become easier with its Compact Remote Control.

  • Page 3: Speci Cation

    English Speci cation • Imaging Technology: DLP • Brightness: 100 Lumens • Projection Size: 14”~170” • Projection Distance: 0.5m~5m • Resolution: 854 x 480 • Contrast Ratio: 800:1 • Operating System: Android Jelly Bean 4.1.2 • Rechargeable Lithium Battery Capacity: 4200mAh •...
  • Page 4 English Precautions Please read all safety instructions and warnings thoroughly before using this product. Improper use of this product may result in damage to this or attached products. • Do not disassemble the device or attempt to x it. • Kindly use the included power adapter to charge the product. •...
  • Page 5 English Appearance & Interface Description: 1. Mouse Mode Button 2. Direction Buttons: Move Cursor Up Move Cursor Left Move Cursor Down Move Cursor Right 3. Enter Key 4. Volume - 5. Volume + 6. Back Button 7. Menu/Settings Button 8. Home Button...
  • Page 6 English Left View Right View Right View 9 10 1. Earphone Jack 2. AV Input Port 3. Focus Slider 4. SD/TF Card Slot 5. Power On/O Switch 6. IR Receiving Sensor 7. USB In Ports 8. HDMI Input Port 9. Reset Button 10.
  • Page 7 English 1. Power Button 10. Mute Button 2. Menu Button 11. Volume + 3. Home Button 12. Volume – 4. Back Button 13. Play/ Pause Button 5. Enter Key 14. Mouse Mode Button 6. Left Cursor Button 15. Stop Button 7.
  • Page 8 1. Charge Panorama-10 using the power adaptor provided. 2. Orange LED turns ON during charging and turns Green once the device is fully charged. 3. When Panorama-10 is low on power a low battery pop up will appear on the screen. Powering on/o Panorama-10 1.

  • Page 9: Connecting To External Devices

    English Main Menu Usage Instruction SOURCE MEDIA BROWSER Channel for connecting Access video, music, photo Surf the Internet HDMI, MHL, AV and text files from USB drive, Micro SD/TF card NAVIGATION SETTING Access pre-stored frequently Set the relevant visited web pages Access all apps parameters for the unit Connecting to external devices...
  • Page 10 Micro SD • Connecting HDMI compatible devices 1. Connect your PC or any other HDMI compatible device to Panorama-10 by connecting one end of the HDMI cable to the output port of the source HDMI device and the other end to the HDMI input on Panorama-10.
  • Page 11 • Connecting MHL compatible devices 1. Connect your Smartphone or any other MHL compatible device to Panorama-10 by connecting one end of the MHL cable to the MHL port of the source MHL device and the other end to the MHL input port on Panorama-10.
  • Page 12 English Main Menu Introduction: Once you turn Panorama-10, you will come across the below mentioned function. Follow the below mentioned description in order to understand Panorama-10’s functionality. • Source (Connecting HDMI/MHL/AV) Use the Direction Buttons to select the “Source” to enter the channel selection.
  • Page 13 English • Navigation Use the Direction Buttons to select “Navigation” to access pre-stored frequently visited web pages. • Media Use the Direction Buttons to enter “Media” to select your desired videos, music, photos, text saved in the inserted USB, Micro SD/TF Card.
  • Page 14 English The Steps to navigate through the Media mode are: • Please select your desired Micro SD/TF Card or USB when connecting with Micro SD/TF card or USB. • Click the Menu/Settings Button to bring out the side menu. Use the Direction Buttons to select music, videos, and photos.
  • Page 15 Step 3: Download the APK to PC Step 4: Save the APK in a Micro SD Card. Step 5: Insert the Micro SD card into Panorama-10 to install the APK. However, when connecting Micro SD/TF Card or USB drive, please follow the...
  • Page 16 English However, when connecting Micro SD/TF Card or USB drive, please follow the below show steps to select the memory. External Storage BROWSER • Browser Use the Direction Button to select “Browser” to access the internet.
  • Page 17 English Accessing Internet through Wi-Fi Connection • Wi-Fi Settings o Click “Settings” on the main menu to enter the settings page. o Click Wi-Fi, the screen prompts “Connecting…”, then ( ) indication shows that Wi-Fi is on. ADSL SETTING Wi-Fi Connected More...
