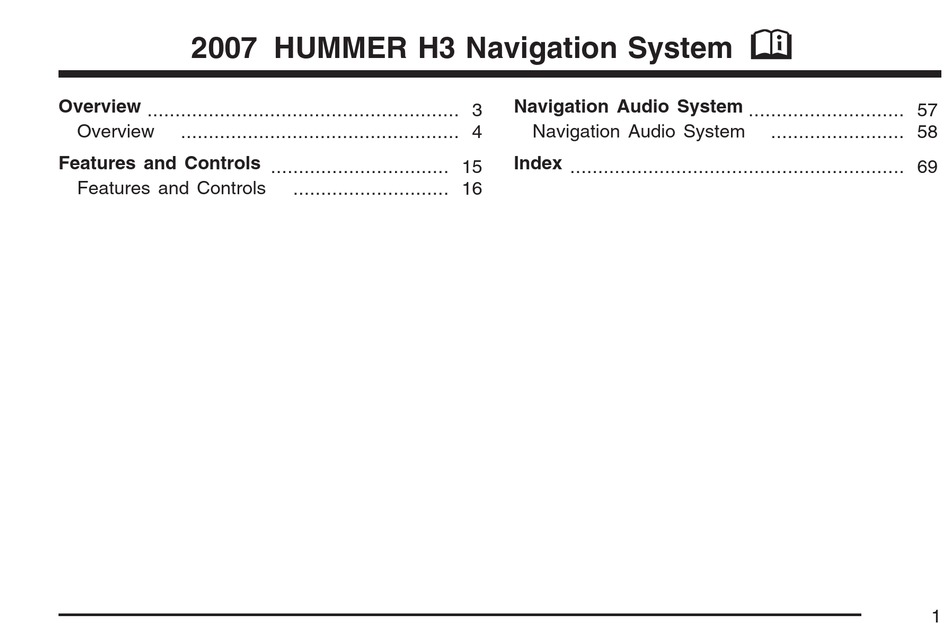

2007 HUMMER H3 Navigation System
Overview ........................................................ 3
Overview
.................................................. 4
Features and Controls ................................ 15
Features and Controls
............................ 16
Navigation Audio System ............................ 57
Navigation Audio System
Index ............................................................ 69
M
........................ 58
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H3 2007 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hummer H3 2007

Summary of Contents for Hummer H3 2007

  • Page 1 2007 HUMMER H3 Navigation System Overview ............3 Navigation Audio System ......57 Overview ..........4 Navigation Audio System ......58 Features and Controls ........ 15 Index ............69 Features and Controls ......16...

  • Page 2: Canadian Owners

    Canadian Owners GENERAL MOTORS, GM, the GM Emblem, HUMMER, and the name HUMMER are registered For Canadian owners that would like to obtain a trademarks; and H3 is a trademark of General French language manual, see “Canadian Owners” Motors Corporation.
  • Page 3 Section 1 Overview Overview ............4 Navigation System Overview ......4 Getting Started ..........6 Cleaning the Video Screen ......13...
  • Page 4 Overview Navigation System Overview...
  • Page 5 M. CONFIG (Configure) Key. See “Hard Keys” (Tilt Open/CD Eject) Key. See “Hard Keys” under Using the Navigation System on page 16. under Using the Navigation System on page 16. (Tuning) Knob. See “Finding a Station” B. Directional Indicator. See Symbols on page 22. under Navigation Audio System on page 58.

  • Page 6: Getting Started

    Getting Started • Set up your audio by presetting your favorite stations, setting the tone, and adjusting the Before you begin to operate the navigation speakers. Then, when driving conditions system, read this manual thoroughly to become permit, you can tune to your favorite stations familiar with it and to understand how the using the presets and steering wheel system works.
  • Page 7 CAUTION: (Continued) CAUTION: Keep your eyes and mind on the road This system provides you with a far greater and avoid looking too long or too often access to audio stations and song listings. at the moving map on the navigation Giving extended attention to entertainment screen.

  • Page 8: Setting Radio Station Presets

    Setting Radio Station Presets To set preset radio stations, do the following: 1. Press the power/volume knob to turn the system on. 2. Press the BAND hard key to access the band menu and select the desired band (AM, FM1, FM2, XM1, or XM2 (if equipped).

  • Page 9: Loading A Dvd Map Disc

    Entering an Address, Point of Interest, The time is now set. Touch the Manual Adjust screen button if you need to further adjust the time. Home, and Preset Destinations The radio will use the GPS satellite to set the Before entering an Address, Point of Interest, time.
  • Page 10 Entering an Address For example, the street name N. Royal Oak Rd. should be entered as royal oak. You can set a destination by entering an address. Use the backspace ( ) screen button if To enter an address, do the following: an incorrect character has been entered.
  • Page 11 Entering a Point of Interest (POI) • The system will list the POIs in alphabetical order or, if there are multiple POIs with the To set a destination by entering a Point of same name, the system will list the POIs Interest (POI), do the following: in order of distance from your location.
  • Page 12 Setting Home Destination Setting Preset Destinations 1. If a DVD map disc is not currently loaded, 1. If a DVD map disc is not currently loaded, see “Loading a DVD Map Disc” earlier in see “Loading a DVD Map Disc” earlier in this section.

  • Page 13: Using Your Home Or Preset Destinations

    Using Your Home or Preset 6. Touch the Route screen button. Destinations 7. Touch the Start screen button. 8. Once you begin driving, or if you are These destinations are available for selection already driving, you will hear an audio while driving.
  • Page 14 NOTES...

  • Page 15: Table Of Contents

    Section 2 Features and Controls Features and Controls ........16 Global Positioning System (GPS) ....53 Using the Navigation System ....... 16 Vehicle Positioning ........54 Maps ............20 Problems with Route Guidance ....55 Symbols ............22 If the System Needs Service ....... 55 Navigation Menu .........

  • Page 16: Features And Controls

    Features and Controls Hard Keys The following hard keys are located to the left of Using the Navigation System the navigation screen: (Power/Volume Knob): Press the This section includes the basic information to operate the navigation system. power/volume knob to turn the audio and navigation system on and off.
  • Page 17 If a route has been planned, press this key to (CD): Press the CD key to play a CD. The display the map screen and the following CD screen will display. See CD Player on page 66. information: (Audio): Press the audio key to access the •...

  • Page 18: Alpha-Numeric Keypad

    Alpha-Numeric Keypad To make name selections easier, the system will only allow you to select a character which can Letters of the alphabet, symbols, punctuation, follow the last one entered. For example, if a Z is and numbers will display on the navigation screen entered, a T will not be available to select.
  • Page 19 (Navigation Menu): Touch this screen button to display the main navigation menu. See Navigation Menu on page 23 for more information. (Zoom In): Touch this screen button to get a closer look at a smaller section of the route you are traveling.

  • Page 20: Maps

    Maps Notice: Pressing directly on the navigation screen may cause damage. Repairs would not This section includes basic information about be covered by your warranty. Do not press the map database. directly on the navigation screen. The maps are stored on a DVD-ROM. The 4.

  • Page 21: Ejecting The Dvd Map Disc

    Ejecting the DVD Map Disc Map Adjustments and Scales When the DVD map disc is not loaded, you will The system allows you to adjust the scale of view not be able to use the navigation portion of on the map. The map will scroll automatically the system.

  • Page 22: Symbols

    Symbols The waypoint symbol will display on the map The following symbols are the most common that after a waypoint has appear on a map screen. been added to the route. Your vehicle is shown as this symbol. It indicates the current position and vehicle The waypoint symbol will be numbered from one orientation of your...

  • Page 23: Navigation Menu

    Navigation Menu While in North Up mode, North will always be at the top of the map screen regardless of which direction the vehicle is traveling. Touch this screen (Navigation Menu): Touch the navigation button to switch between North Up and Heading menu screen button at the bottom of the map Up modes.

  • Page 24: Suspend Guidance

    You will be able to choose from the following items on the main navigation menu: Suspend Guidance (Suspend Guidance): Select this screen button from the Nav Menu to suspend guidance to all current and programmed destinations, but the current route will be retained in memory. You will no longer receive voice prompts for navigation.

  • Page 25: Voice Volume

    Voice Volume (3D view): This feature gives maps a 3-dimensional view, and will remain in the (Voice Volume): Select this screen button to Heading Up position. adjust the volume of the voice guidance prompts (Arrow): This feature continually displays that provide various messages as you approach directional turn guidance for your next maneuver.

  • Page 26: Edit Route

    Edit Route To adjust the volume of the voice prompts, do the following: (Edit Route): Select this screen button to 1. Touch the Voice Volume screen button. recalculate a route based on your preferences. 2. Touch the plus (+) or minus (−) sign screen buttons to increase or decrease the volume.
  • Page 27 Route Preference: This screen allows you to Reorder: When waypoints have been added, select your road preferences by setting which select this screen button to change the order types of roads you want to use or avoid. of the waypoints and the final destination on the route.

  • Page 28: Route Preview

    Route Preview Delete: Press this button to delete the current destination. (Route Preview): Select this screen button Set Preferred Road: This feature allows you to once route guidance has begun to display the add, modify, or delete road preference settings. map screen with the route highlighted.
  • Page 29 Edit: Touch the Edit screen button to select a To return to previewing the route to the final POI as the next destination you would like destination, do the following: to preview. 1. Touch the Edit screen button. To preview a POI’s destination instead of the final 2.

  • Page 30: Navigation Setup

    From this menu, several options may be selected, (View current location): Touch this screen adjusted, or turned on and off. Touch the up or button to go to each point on the route, including down arrow screen buttons to the left of the menu the vehicle’s current position.
  • Page 31 Enter Speed Change?: This feature allows Exit Information: This feature will display you to adjust estimated speeds for Freeway, map icons which can be selected to display Main street, or Residential driving. These speed the next exit’s information, including Point of values are used to calculate estimated travel Interest (POI) facilities such as gas stations, time.
  • Page 32 Calibrate System?: This feature will calibrate wheel speed to assist in the calculation of vehicle position. This feature also allows you to manually reposition the vehicle symbol on the map. You may need to calibrate the system following a tire change, rotation, or if your vehicle has been relocated a great distance.
  • Page 33 Preset Dest (Destination): Five preset Once your entry is complete, touch the Register destinations, as well as one for home, may be Point screen button to store this point as registered or edited. The five preset destinations home. Each time you touch the home symbol and home are the only destination selections from the bottom of the Destination screen, available from the Destination menu while...

  • Page 34: Destination

    Destination Before selecting a destination, review the search area map on the right side of the menu to The Destination menu gives several ways to plan make sure your destination is located in the a route by entering destination points. highlighted region.

  • Page 35: Preset Destinations

    Preset Destinations Delete Dest (Destination): Touch the Delete Dest screen button on the Destination menu. The preset destination entry method allows you Touch the screen button next to the destination to select destinations that were registered as to delete. Select Yes to confirm. presets 1 through 5.
  • Page 36 Address Use the same city name that you would use when mailing a letter. The system will search for an The Address destination entry method allows you entry exactly as you have entered it. If you did not to input an address by providing the system include a space between words where necessary, with a city name, street name, and house number.
  • Page 37 Touch the List screen button to view name choices and select the desired street name, or touch the Back screen button to continue to spell the street name, further reducing the number of available items. The box at the end of the Street entry field will contain the number of street names available in the current generated list.

  • Page 38: Point Of Interest (Poi)

    Point of Interest (POI) Search for a POI by using a combination of the following three methods: The Point of Interest (POI) destination entry • Type in a POI by name using the alpha-numeric method allows you to choose a destination from keypad.
  • Page 39 If an arrow appears to the right or left of the item name, the complete name is too long for the display. Touch the right or left arrow screen buttons to scroll to the end or beginning of the name. The POI for Restaurant is broken down into several categories.

  • Page 40: Previous Destination

    Previous Destination Emergency The Previous Destination entry method allows you The Emergency destination entry method allows to select a destination by selecting from the list you to select a destination by selecting from a list of of previously entered destinations. emergency facilities.

  • Page 41: Previous Start Point

    Previous Start Point The Map destination entry method displays the The Previous start point destination entry method last location on the map, and the road preference. allows you to select the last start point as a destination. Select the destination and the map Scroll across and touch the map at the location screen will display with the location on the you would like to set as your destination.

  • Page 42: Phone Number

    Phone Number Intersection The Phone Number destination entry method The Intersection destination entry method allows allows you to search for a point of interest (POI) you to select a destination by inputting the destination by entering the POI phone number. intersecting roads.

  • Page 43: Freeway Entrance/Exit

    Freeway Entrance/Exit If you did not include a space between words where necessary, the system may not be able The Freeway Entrance/Exit destination entry to find the desired location. This will bring up a method allows you to select a destination list of streets with that name.

  • Page 44: Destination Preview Menu

    Destination Preview Menu Add Waypoint: Touch this screen button to add the current destination to your current trip. The Add Waypoint screen will display. Touch the Add screen button that corresponds with where you would like to add the current destination. Up to five waypoints can be added.

  • Page 45: Route Overview Menu

    Once you have entered your destination by touching the Enter Destination screen button, you can do one of the following: • Press the NAV hard key to begin route guidance. • Start driving to begin route guidance. • Touch the Route screen button on the map screen displaying the new destination to make further changes.

  • Page 46: Navigation Options

    Navigation Options After selecting one of the three routes, the road Nav Options Menu shown with a Set Destination distance and estimated travel time will display. The Fastest route means you will be routed Once a destination is selected and you begin along main roads and highways, but does not your route, touch the Nav Options screen button necessarily mean it is the shortest route.
  • Page 47 After selecting POI Selection, the POI Selection To view a list of local POIs, touch the Local POI screen will appear and display the different List screen button. The Local POI List screen POI categories. You can select up to five different will list the closest POIs from the categories POI categories by touching the categories on you have selected.
  • Page 48 Suspend/Resume Guidance: This option allows Right Screen: If a split-screen is currently you to suspend or resume active route guidance displayed, this option allows you to adjust options for all current and programmed destinations. for the right screen. See “Suspend Guidance” under Navigation Menu Change Route: This option allows you to change on page 23 for more information.

  • Page 49: Colors On The Screen

    Add Waypoint: This option allows you to add the map destination to your current destinations. Register Point: This option allows you register a marked point or memory point. See “Memory Points” under Navigation Menu on page 23 for more information. Colors on the Screen When a route has been planned, it will be highlighted on the screen in blue.

  • Page 50: Configure Menu

    Configure Menu Contrast/Brightness/Mode The Configure menu allows you to set up and Contrast: Touch the plus (+) or minus (–) adjust such things as screen color, appearance, sign screen buttons to increase or decrease and language of the display for the navigation the contrast of the screen.

  • Page 51: Vehicle Chime

    Vehicle Chime To change the language, the map DVD must be inserted. Then, do the following: Notice: The chime signals related to seat belts, 1. Touch the Language screen button. parking brake, and other functions of your A caution will display. vehicle operate through the navigation/radio 2.
  • Page 52 Clock 12Hr/24Hr: This feature allows you to choose whether the time is displayed in standard or military time. Touch the 12Hr screen button for standard time or the 24Hr screen button for military time. Auto GPS Update: With this feature on, the navigation system time will be set to match the current GPS time.

  • Page 53: Display Off

    Display Off This system may not be available/or interference may occur if the following happens: To turn the navigation screen off, touch the • Signal obstructions caused by tall buildings, Disp Off screen button on the Configure menu. large trucks, tunnels, To turn the screen back on, press any hard key •...

  • Page 54: Vehicle Positioning

    Vehicle Positioning • The vehicle is entering and/or exiting a parking lot, garage or a lot with a roof. At times, the position of the vehicle on the map • The GPS signal is not received. may be inaccurate due to one or more of the •...

  • Page 55: Problems With Route Guidance

    Problems with Route Guidance • The route prohibits the entry of a vehicle due to a regulation by time or season or Inappropriate route guidance may occur under any other regulation which may be given. one or more of the following conditions: •...

  • Page 56: Ordering Map Dvds

    Ordering Map DVDs If you have any questions about the operation of the navigation system or the update process, You will receive two free DVD map disc updates call the GM Nav Disc Center or go to the center’s with the purchase of your new vehicle. Updates website.
  • Page 57 Section 3 Navigation Audio System Navigation Audio System ......58 CD Player ........... 66...
  • Page 58 Navigation Audio System Your vehicle has a feature called Retained Accessory Power (RAP). With RAP, the audio system will continue to play even after the Notice: Before adding any sound equipment ignition is turned off. See “Retained Accessory to your vehicle, such as an audio system, CD Power (RAP)”...

  • Page 59: Setting Preset Stations

    Setting Preset Stations To scan stations, press and hold the SEEK up or down arrow for two seconds until you hear Up to 30 stations, six AM, six FM1, six FM2, a beep. The radio will go to a station, play for six XM1, and six XM2, if equipped, can be a few seconds, then go on to the next station.

  • Page 60: Band Menu

    Band Menu If the radio is on while the navigation system is in use, a smaller band menu will appear, located If the radio is on while the navigation system is on the left side of the map screen. This audio not in use, this band menu will display the current screen will display the current audio information, audio information, as well as list the presets for...

  • Page 61: Audio Menu

    Audio Menu Speed Compensated Volume (SCV): With SCV, the audio system will adjust automatically to (Audio): Press this hard key to display the make up for road and wind noise as you drive, Audio menu. Several adjustment options are by increasing the volume as vehicle speed available from this menu.

  • Page 62: Xm™ Satellite Radio Service

    If you were at the CD screen before setting an Touch the Info screen button on the band menu EQ and you press the CD hard key, you will to receive information the selected radio station is be returned to the CD screen, and the EQ will currently broadcasting.

  • Page 63: Xm™ Options

    XM™ Options Touch the XM Options screen button to access the XM Options menu. This menu allows you to seek or scan for stations based on their category. Touch the On screen button next to XM Info Timeout to hide XM™ information after a certain amount of time has passed.
  • Page 64 XM™ Radio Messages Radio Display Message Condition Action Required XL (Explicit Language XL on the radio display, These channels, or any others, can be blocked at a Channels) after the channel name, customer’s request, by calling 1-800-852-XMXM (9696). indicates content with explicit language.
  • Page 65 XM™ Radio Messages (cont’d) Radio Display Message Condition Action Required No CAT Info Category Name No category information is available at this time on this not available channel. The system is working properly. Not Found No channel available There are no channels available for the selected category. for the chosen category The system is working properly.

  • Page 66: Cd Player

    CD Player If the surface of the CD is soiled, see “Care of Your CDs” in the Index of your vehicle’s owner Insert a CD partway into the CD slot, label manual. side up. The system will pull it in. If there is no apparent damage, try a known There will be a 12 to 15 second delay while the good CD.
  • Page 67 Repeat: Touch this screen button to repeat the track that is currently playing. Touch it again to turn off repeat play. (Forward): Touch this screen button to advance quickly within a track. As the CD advances, elapsed time will display to help you find the correct passage.

  • Page 68: Cd Messages

    CD Messages SEEK : Press the SEEK up arrow to advance to the next track, or the down arrow CD ERROR: If this message appears on the to return to the previous track. If more than screen, the CD is not being read by the system. two seconds of the song has played, pressing The CD could be dirty, scratched, wet, or the SEEK down arrow will return you to the...
  • Page 69 Cleaning the Video Screen ......13 Clock ............52 Address ............36 Colors on the Screen ........49 Alpha-Numeric Keypad ........18 Contrast/Brightness/Mode ......50 Audio Menu ..........61 Audio System ..........58 Database Coverage Explanations ....56 Destination ............ 34 Band Menu ...........
  • Page 70 Finding a Station ........... 58 Language ............51 Freeway Entrance/Exit ........43 Loading a DVD Map Disc ....... 9 Getting Started, Navigation ......6 Map .............. 41 Global Positioning System (GPS) ....53 Map Adjustments and Scales ......21 Map Appearance ........... 24 Maps ............
  • Page 71 Navigation Phone Number ..........42 Getting Started ..........6 Playing the Radio .......... 58 Menu ............23 Point of Interest (POI) ........38 System Overview ......... 4 Preset Destinations ........35 Using the System ........16 Previous Destination ........40 Navigation Options ........
  • Page 72 Setting Preset Stations ........59 Vehicle Chime ..........51 Setting Radio Station Presets ......8 Vehicle Positioning ........54 Setting the Time ..........8 Video Screen, Cleaning ......... 13 Suspend Guidance ........24 Voice Volume ..........25 Symbols ............22 System Needs Service, If ......

Table of Contents
