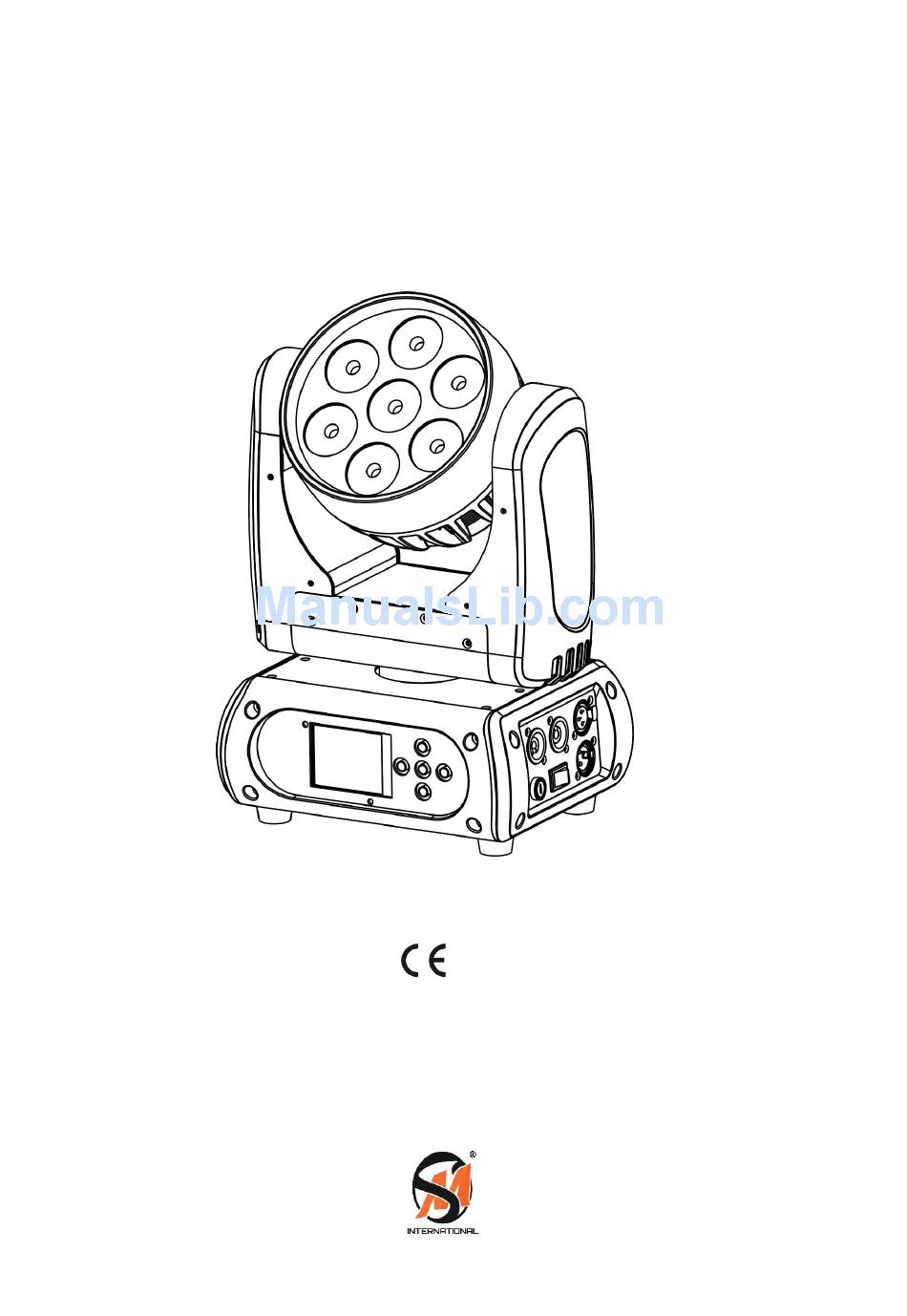

- Page 1 LED BEAM HEAD USERS GUIDE B-BYRON...
-
Page 2: Product Introduction
1. Product Introduction: 1.1 Before unpack the fixture, pls make sure that the packing is in good condition, following items will be found in the box: -The fixture -This users guide -3m DMX cable -1.5m power cable with powercon -Omega bracket for hanging installation -Safety chain 1.2 Specification Source... -
Page 3: Safety And Maintenance Information
Heat pipe for cooling Display 2.4inch super nice LCD display with friendly English/ Chinese/French/Spanish menu Auto lock Flip Back-up communicating IC 1.3 Description of the Device 1. Project lens 2. Head 3. Arm 4. Base 5. - Page 4 The disposal of the device after lifecycle could damage the environment, need to take it to special company for recycling or return to authorized dealer. The products referred to in this manual conform to the European Community Directives and are therefore marked with CE logo.
-
Page 5: Installation
Cable loosen Check the cable connect to OP001 LED off Temperature protection Check the temperature from menu Fan not working Check the fan speed info from menu Faulty LED Replace new LED Dimmer and strobe set at 0 Set dimmer and strobe channel at 255 Faulty power supply Replace new power supply Device not response to DMX... -
Page 6: Control Menu
Step one: Installation the clamp onto the omega bracket; Step two: Install the clamp and bracket on the bottom of panel, fasten the quick-locks; Step three: Install the whole device onto appropriate truss and fasten the clamps, tight the safety rope with the truss or other fixing point at a suitable position that drop down distance not exceed 20 cm. - Page 7 Reset Reset all Pan&Tilt Reset Pan&Tilt Others Reset Others Movment Pan Reverse① ON/OFF Pan Reverse Tilt Reverse① ON/OFF Tilt Reverse Pan Degree① 630/540 Choose Pan Degree Encoders① ON/OFF Encoder wheel on/off Pan/Tilt Mode① Stand/Smooth Choose pan/tilt mode UI Set Mic Sens. ③ 0~99%,60% Sensitivity of Mic No Signal①...
- Page 8 =xxx --Secne Time-- time DMX Input Modify manually scene time Input scene from exterior controller Scenes Record ScXX=>ScXX Auto Input scenes 5. DMX connection and DMX protocol 5.1 DMX addressing: 5.1.1 The device is controlled by universal DMX 512 protocol, DMX address is the start channel used to receive instructions from the external controller.
- Page 9 Channel name function Ba1 Ba2 Pan Coarse Pan fine Pan Fine Tilt Tilt Coarse Tilt fine Tilt Fine Movement fastest to Slowest Speed Normal Movement Movement With Blackout Function Normal Shutter Functions Pulse-effect Forward Shutter Pulse-effect Reverse Function Random Strobe Normal Shutter Functions Close Strobe Rate (slow to fast)
- Page 10 Forward Spin Reverse Spin Continuous Color Bounce CTC Function Colour Temperature Correction 2000K->2700K White 3200K White 4200K White 5600K White 8000K Forward Spin Rainbow Effect (Slow->Fast) Reverse Spin Rainbow Effect (Slow->Fast) Continuous&Color Bounce Virtual 12 7 Color1 Black Green Blue White Red=0, Green->up,Blue=full,White=0 Red=0, Green=full,Blue->down,White=0...
-
Page 11: Unique Features
White fine White fine control Normal Reset All Pan&Tilt Reset Display Off 14 22 13 Control Display On Hibernation 6. Unique Features 6.1 RDM, stand for “Remote Device Management”, with this function, users can realize remote control of the device, such as remotely changing DMX address, reverse pan/tilt setting, check a lot of useful information such as temperature, power consumption, fan speed. -
Page 12: Technical Specification
9. Technical specification Power supply 100-240 V AC, 50/60 Hz ~ Power consumption 105W 7pcs OSRAM 15W 4in1 leds DMX channels 14/22/13/15 modes Beam angle 7° Luminous flux 2500lumen, 15000lux@2.5m Fuse T 2 A, 250 V Device dimensions 244x179x322mm Net Weight...
