LumiSource FIREFLY LSH-FIREFLY FL Assembly Instructions

Assembly Instructions
Firefly Floor Lamp
Instrucciones De Asamblea
Instructions d'Assemblée
Part # LSH-FIREFLY FL June 2007

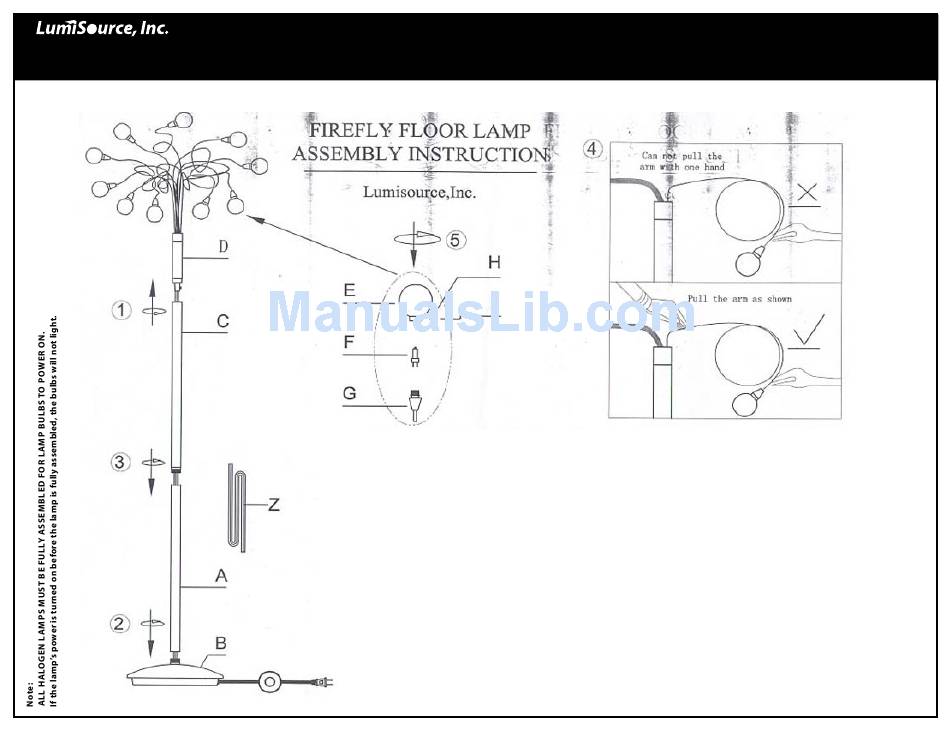

1. Screw together tube (C) and tube (D), making sure to pull the wires attached to tube (D) all the way
through tube (C).
2. Screw tube (A) into base (B), making sure to pull the wires attached to base (B) all the way through the
top of tube (A). CAUTION: pole wires can not be pulled into base (B). Do not pull power cord extending
from base (B)!
3. Bring tube (C) and tube (A) very close together. Pull off excess wire and fold it as in drawing (Z), then
insert wire into tube (A). Screw tube (C) into tube (A).
4. Adjust each arm of the lamp to the desired position.
5. Carefully insert light bulb (F) into socket (G). Place glass sconce (E) over light bulb, then, screw tightly
onto socket (G). Use hex wrench (I) to tighten hex screw (H).
Bulb requirement: 12V 10Watt maximum • This lamp is not a toy. Please keep out of reach of children.
