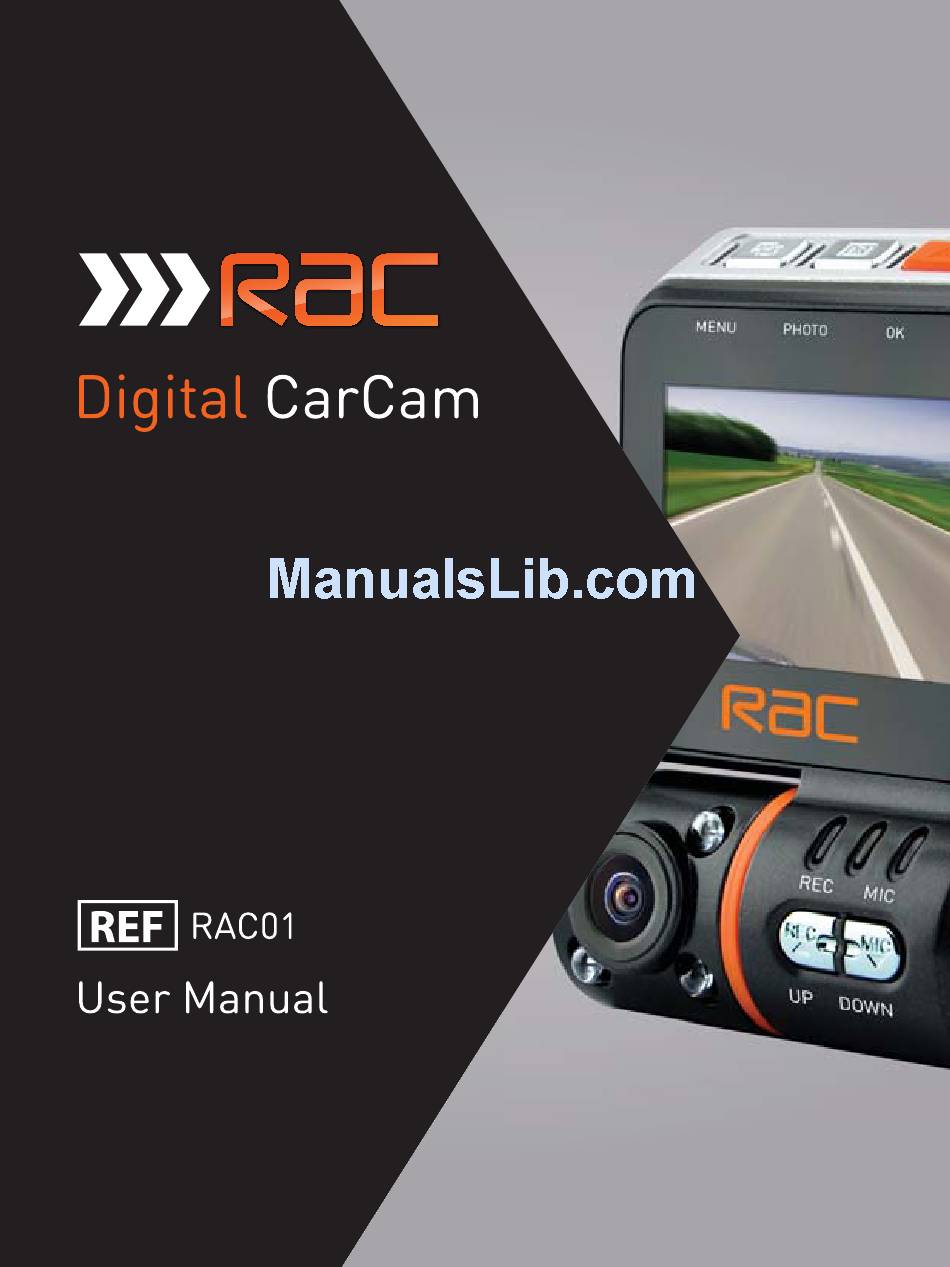

Rac RAC01 User Manual

Digital carcam

Hide thumbs

Table Of Contents

Table of Contents

Need help?

Do you have a question about the RAC01 and is the answer not in the manual?

Questions and answers

Summary of Contents for Rac RAC01

Page 2: Identification Of Controls
Introduction Thank you for choosing the RAC01 Digital CarCam. Please read these instructions carefully before use. Unpacking Unpack the contents of the box and ensure the following components are present. RAC01 Digital CarCam Mounting Bracket Cigar Lighter Power Adaptor USB Cable...
Page 3: Preparing For Use
Preparing for Use IMPORTANT: To get the best quality recordings when using this CarCam, always ensure your windscreen is clean from dirt, smudges and fingerprints on both the inside and outside of the windscreen. Such dirt and smudges can and will affect the quality of the video recorded.
Page 4: Setting The Time And Date
3. If necessary, loosen the mounting bracket collar and adjust the CarCam to obtain the optimum viewing angle. Tighten the collar to fix the CarCam securely. 4. The CarCam will continue to record for 10 seconds after the ignition is switched off or when the adaptor is removed from the cigar lighter socket.
Page 5 Charging the CarCam The CarCam has a built in Lithium Ion battery that can be charged while in use in the car, or outside the car using the supplied USB cable. The battery will take approximately 90 minutes to charge. 1.
Page 6: On Screen Display
On Screen Display 1. CarCam Mode 4. Recording resolution 7. MIC Mute 2. Time and Date 5. Battery indicator 8. Night lights On 3. Clip length 6. File duration 9. Charging indicator Using the CarCam Menu System There are two menus in the CarCam. To enter the Video menu, press the Menu button once.
Page 7: Video Menu Options
Video Menu Options Resolution: This option allows you to set the recording resolution. Higher resolutions give the best picture quality but also create the largest file size. Default setting is 720p. File Duration: This option sets the video clip length. When recording continuous video, the CarCam saves the data in small manageable files.
Page 8: Setup Menu Options
Setup Menu Options Date / Time: This option allows you to set the correct date and time. Auto Power Off: This option allows you to set the auto power off time. Auto power off is disabled when the CarCam is recording. When not recording however, the device can be set to auto power off if no buttons are pressed for either 3, 5 or 10 minutes.
Page 9: Playing Back Recorded Video
Playing Back Recorded Video Video recorded on the storage card can be reviewed in several ways. 1. The card can be removed from the CarCam and using a card reader, be reviewed on a PC or other device using a default media player. 2.
Page 10: Reset Button
Taking Photos with the CarCam The CarCam can be used as a Digital Camera to take still photos. Enter the Photo mode by pressing the Photo button. Once in Photo mode, you can take still photos by simply pressing the Photo button. These still photos will be recorded on the memory card along with any video files.
Page 11 It is your responsibility to make sure that you use your RAC CarCam in a safe and responsible manner. Do not access functions or change settings whilst you are driving, and the location and positioning of your RAC CarCam should not interfere with the driver’s field of vision.
Page 12: Warranty
Warranty This RAC CarCam is warranted to be free from defects in materials or workmanship from one year from the date of purchase. Within this period, ProofCam will repair or replace any part or parts that fail provided that such failure is not deemed to be as a result of misuse or damage caused.
