Summary of Contents for Technolight SRL-6078S LED PAR

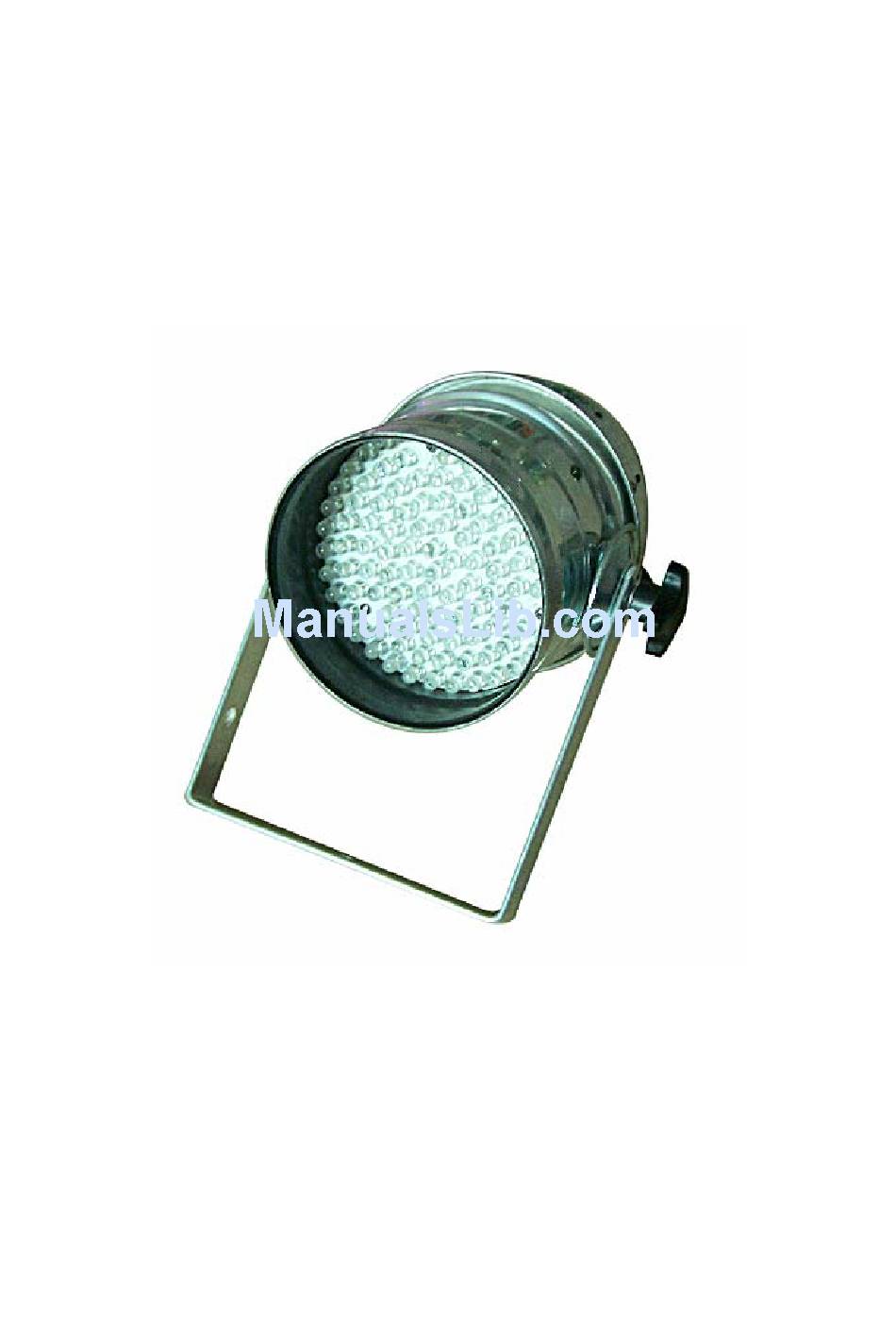

- Page 1 SRL-6078S LED PAR USER MANUAL...
-
Page 2: Table Of Contents
TABLE OF CONTENT Introduction---------------------------------------------------------------3 Feature---------------------------------------------------------------------------------------------3 Mode------------------------------------------------------------------------------------------------3 Configuration--------------------------------------------------------------------------------------3 Safety instruction--------------------------------------------------------3 Operation-------------------------------------------------------------4 Explanation for Dipswitch----------------------------------------------------------------------4 Function--------------------------------------------------------------------------------------------5 Function Explanation- -----------------------------------------------------------------5 Sound Active--------------------------------------------------------------------5 Master/Slave--------------------------------------------------------------------5 DMX mode----------------------------------------------------------------------5 Example for DMX setting----------------------------------------------------6 Program Selection Chart----------------------------------------------------6 Speed Selection Chart-------------------------------------------------------6 DMX Channel Function------------------------------------------------------7 DMX Connection--------------------------------------------------------------7 3-Pin Connection--------------------------------------------------------------7 Maintenance and Cleansing-----------------------------------------8 Troubleshooting---------------------------------------------------------------------------------8 Cleansing-----------------------------------------------------------------------------------------8 Specification--------------------------------------------------------9... -
Page 3: Introduction
Introduction Thank you for purchasing SRL-6078S LED PAR. This product is featured with balanced mix of RGB LED, and operated via DMX, AUTO, Sound Active and Master/Slave. It will provide you splendid vision enjoyment. Features ＊ Adjust the color temperature to the best by mixing the RGB LED ＊... -
Page 4: Operation
Operation Instruction Back Panel 1. Explanation for Dipswitch a. Dipswitch: #1, #2, #3,#4, #5, #6, #7, #8, #9, #10 b. ON=1, OFF=0 c. The switch does not function, that is ON/OFF does not matter = X d. As the above figure, #1 =ON =1, the rest #2, #3,#4, #5, #6, #7, #8, #9, #10 =OFF=0... -
Page 5: Function
2. Function DMX Setting: Set Switch #1~#9 to “1” (ON) or DMX Function “0”(OFF) to your need. For the detail, please refer to DMX Setting Chart. Master/Slave Switch#4~#6 Switch #1~#3 correspond for Auto for correspond for the the Speed. Fade Program Selection. -
Page 6: Example For Dmx Setting
d. Example for DMX Address Setting 128 256 ON ON 1. Switch #1 value=0, #2 value =2, #3 value =4,#4 value =0, #5 value =0, #6 value =0, #7 value =0, #8 value =0, #9 value =0 2. The Address Value = 0+2+4+0+0+0+0+0+0=6 3. -
Page 7: Dmx Channel Function
g. DMX Channel Function CHANNEL VALUE FUNCTION Channel1 0~255 Set to 0~255 to your need Red LED Brightness is 0%~100% of the total brightness. Channel2 0~255 Set to 0~255 to your need Green LED Brightness is 0%~100% of the total brightness. -
Page 8: Maintenance And Cleansing
Maintenance and Cleansing a. Troubleshooting Trouble Cause Remedy Check the mains power switch No power supply and the cables. Disconnect power Fixtures do not replace the fuse with the same respond. specification. If the fuse is Fuse burned burned again, problem should be cause by the circuit. -
Page 9: Specification
Specification Voltage Input: AC120V/240V Fuse: 2A/125V 1A/250V Power:13W Light Source: Red, 50Pieces, size ф10, power 0.044W Green, 39 pieces, sizeф10, power0.064W Blue, 27pieces, sizeф10, power0.064W Dimming:0~100% DMX Channel: 5 DMX Channels RGB mixed balance: 255 levels Size: L260 x W260 x H320 Weight: 2.5KG... -
Page 10: Attachment (Dmx Address Chart)
DMX Address Quick Reference Chart Dip Switch Position DMX DIP SWITCH SET #9 0=OFF 1=ON X=OFF or ON #1 #2 #4 #5 32 64 128 160 192 224 256 288 320 352 384 416 448 480 33 65 129 161 193 225 257 289 321 353 385 417 449 481 34 66 130 162 194 226 258 290 322 354 386 418 450 482 35 67...
