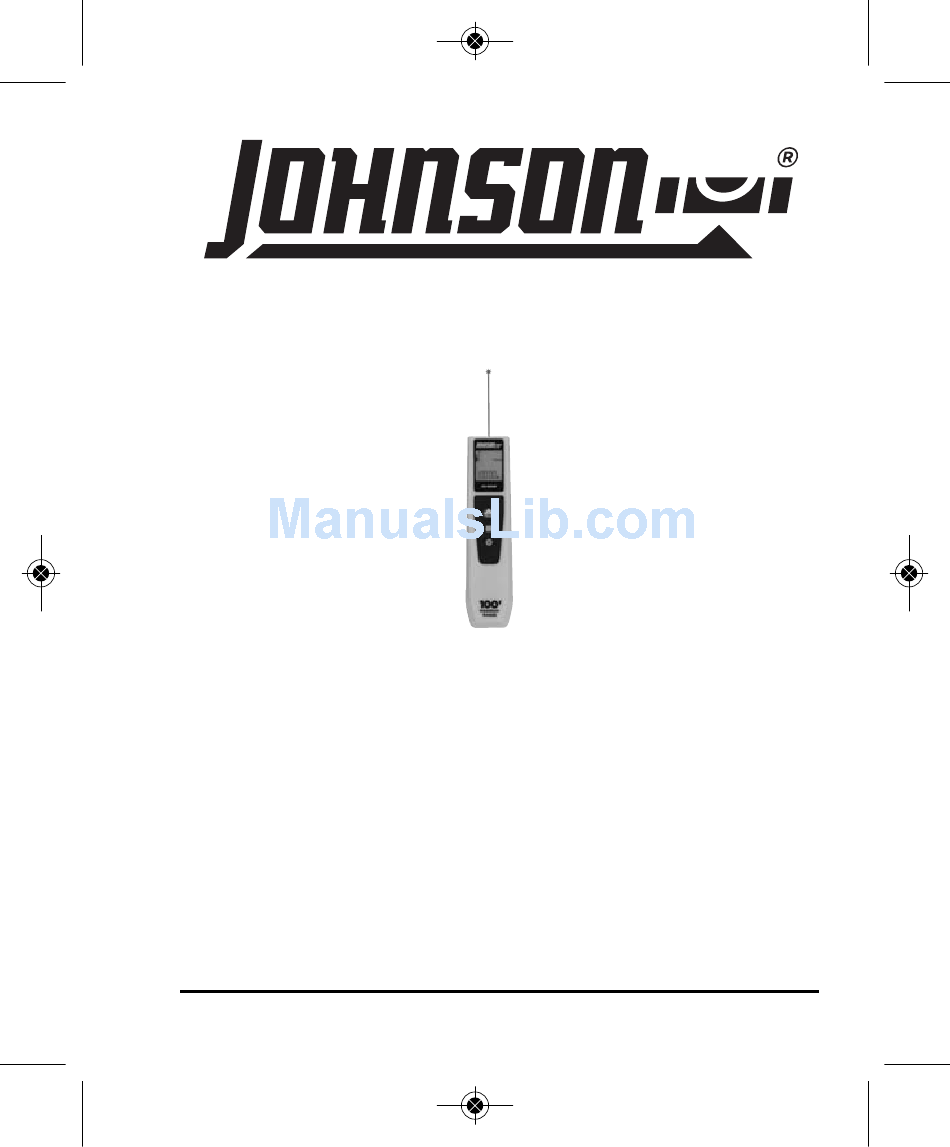

7349H-English_Manuals 9/6/13 1:55 PM Page 1
Laser Distance Measure
Model No. 40-6006
Instruction Manual
Congratulations on your choice of this Laser Distance Measure. We
suggest you read this instruction manual thoroughly before using the
instrument. Save this instruction manual for future use.
This is a Class II laser tool and is manufactured to comply with CRF 21,
parts 1040.10 and 1040.11 as well as international safety rule IEC 285.
The laser also complies with EMC Test according to EN61000-6-3;
2001+A11:2004, EN 6100-6-1:2011, EN 6100-4-2, EN 61000-4-3, EN
60825, FCC Test according to PART 15.
©2013 Johnson Level & Tool - Rev. 1
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for Johnson Level & Tool 40-6006
- Page 1 7349H-English_Manuals 9/6/13 1:55 PM Page 1 Laser Distance Measure Model No. 40-6006 Instruction Manual Congratulations on your choice of this Laser Distance Measure. We suggest you read this instruction manual thoroughly before using the instrument. Save this instruction manual for future use.
-
Page 2: Table Of Contents
8.Product Warranty..pg. 18 Components ..pg. 4-6 9.Product Registration . . pg. 19 1. Kit Contents Description for Model 40-6006 Qty. Laser Distance Measure “AAA” Alkaline Batteries Instruction Manual with Warranty Card... -
Page 3: Location/Content Of Warning Labels
7349H-English_Manuals 9/6/13 1:55 PM Page 3 ATTENTION IMPORTANT • Read all instructions prior to operating this laser tool. Do not remove any labels from tool. • Do not stare directly at the laser beam. • Do not project the laser beam directly into the eyes of others. •... -
Page 4: Location Of Parts/Components
7349H-English_Manuals 9/6/13 1:55 PM Page 4 4. Location of Part/Components 1. LCD Display 4. Clear/Power Off Button 2. Power On/Measure/ 5. Warning Label Continuous Measure Button 6. Battery Cover 3. Function Button 7. Laser Emitting Window 8. Receiver Window Subtract Area Volume Indirect/Pythagoras... - Page 5 7349H-English_Manuals 9/6/13 1:55 PM Page 5 LCD Display 1. Active Laser Indicator 6. Indirect/Pythagoras Measuring 2. Measurement Reference Position 7. Area/Volume Measuring 3. Sub-Screen 8. Single/Continuous Measuring 4. Main Screen 9. Unit of Measure 5. Battery Status ©2013 Johnson Level & Tool - Rev. 1...
- Page 6 7349H-English_Manuals 9/6/13 1:55 PM Page 6 Measuring Reference Range Range is specified between a minimum 2-inches to a maximum of 100-feet with an accuracy of 1/16". Target Surfaces Measuring errors may occur when aiming at surfaces composed of colorless liquids (e.g. water), glass, Styrofoam or similar semi- permeable surfaces.
-
Page 7: Start Up - Battery Installation
7349H-English_Manuals 9/6/13 1:55 PM Page 7 5. Start Up - Battery Installation 1. Remove battery compartment cover. 2. Insert 2-“AAA” batteries observing correct polarity. 3. Close battery compartment cover. 4. Battery status will be shown in start up screen. Battery has 100% power Battery has about 60% power Battery has about 25% power Battery has 5% power and a new... -
Page 8: Using The Product
Measurement Reference Position There are two reference positions for the 40-6006 1. Front 2. Rear To enter the reference position settings: 1. Enter menu settings as described above. - Page 9 7349H-English_Manuals 9/6/13 1:55 PM Page 9 3. Press the button to switch from the front of the unit to the rear of the unit. 4. To exit, press the button to begin operations Single Distance Measuring 1. Press the measure button to turn on the unit. 2.
- Page 10 7349H-English_Manuals 9/6/13 1:55 PM Page 10 Continuous Measuring 1. After the unit is powered on, hold the button in for 2 seconds, the LCD display will change from single ( ) to continuous ) display. 2. This mode will take continuous measurements as you move closer or farther away from the target.
- Page 11 7349H-English_Manuals 9/6/13 1:55 PM Page 11 Subtracting Measurements 1. To subtract additional measurements after taking the first measurement, press the function button twice. 2. The first measurement will move to the sub-screen and the laser beam will be on. The subtract sign (–) by the main screen will be flashing.
- Page 12 7349H-English_Manuals 9/6/13 1:55 PM Page 12 Area Measurement (Square 1. With unit turned on, hold down the button until the area symbol ) is displayed. 2. Press the button once to measure the width. The bottom area symbol line will be flashing. 3.
- Page 13 7349H-English_Manuals 9/6/13 1:55 PM Page 13 Indirect (Pythagorean Theorem) 1 With the unit turned on, hold the button until the indirect symbol, triangle icon ( ) is displayed. 2. The calculation is based on Pythagorean Theorem a 3. Follow the order of the flashing lines. Note: For accurate measurements the instrument’s position must be held constant.
- Page 14 7349H-English_Manuals 9/6/13 1:55 PM Page 14 Indoor & Outdoor Measurements This model is designed to take measurements indoors and outdoors under normal settings. The measuring surfaces and ambient light are critical factors to the quality of measurement (indoors and outdoors). Outdoor measurement capability may be limited due to sunlight/UV ray interference.
- Page 15 7349H-English_Manuals 9/6/13 1:55 PM Page 15 Measurement Errors Error messages will appear if the unit’s receiver is not getting a sufficient laser return signal. Common surfaces that could cause an error reading: - Water or other fluids - Translucent to clear surfaces like glass or acrylic - Porous or dark surfaces may require longer reading times or cause an error reading - Moving surfaces or objects such as curtains...
- Page 16 7349H-English_Manuals 9/6/13 1:55 PM Page 16 Tips from the Pro’s Take more than one measurement in critical situations where accuracy needs to be greater than an estimation measurement. Take three to four measurements from the same position to compare consistency of each reading.
-
Page 17: Technical Specifications
7349H-English_Manuals 9/6/13 1:55 PM Page 17 7. Technical Specifications Measure Range* 2" - 100’ Accuracy* ± 1/16" Measure Speed* 0.5 seconds Laser Type 660nm, ± 10nm, Class II, 1mW Power Supply 2 - “AAA” Alkaline Batteries (included) Battery Life Up to 10,000 measurements Dimensions 4.33"... -
Page 18: Product Warranty
7349H-English_Manuals 9/6/13 1:55 PM Page 18 8. Product Warranty Johnson Level & Tool offers a two year limited warranty on our laser distance measure products. You can obtain a copy of the limited warranty for a Johnson Level & Tool product by contacting Johnson Level &... -
Page 19: Product Registration
7349H-English_Manuals 9/6/13 1:55 PM Page 19 9. Product Registration Enclosed with this instruction manual you will find a warranty registration card to be completed for your product. You will need to locate the serial number for your product that is located inside the battery compartment door. - Page 20 7349H-English_Manuals 9/6/13 1:55 PM Page 20 ©2013 Johnson Level & Tool - Rev. 1...
