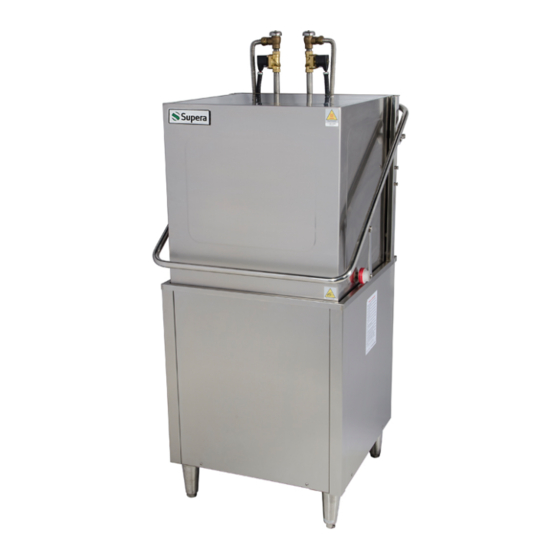

SSUD18-1

DISHWASHER

INSTRUCTION MANUAL

This manual contains important information regarding your Supera® unit. Please read this manual thoroughly prior to equipment set-up, operation and mainte-

nance. Failure to comply with regular maintenance guidelines outlined in this manual may void the warranty.

Table of Contents

Need help?

Do you have a question about the SSUD18-1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Supera SSUD18-1

Page 1 DISHWASHER INSTRUCTION MANUAL This manual contains important information regarding your Supera® unit. Please read this manual thoroughly prior to equipment set-up, operation and mainte- nance. Failure to comply with regular maintenance guidelines outlined in this manual may void the warranty.
Page 2: Important Safety Instructions
Wear chemically impervious gloves and apron while cleaning and moving this unit. • If there are defects in the ignition of the gas booster, call a Supera Service representative immediately. Be sure to also close the gas valve and check for gas leakage.
Page 3 PREVENT ELECTRICAL LEAKAGE AND SHOCK Make sure to ground the wire to electrode to avoid electrical accidents. Grounding – All exposed dead-metal parts are connected to the grounding lead of the power supply cord or the equipment grounding terminal. October 2014 V.1.0 ©SUPERA...
Page 5 SPECFICIATIONS Model: SSUD18-1 Operating Specification (Hot Water Sanitation Specification) Wash Temp: Minimum 165°F Rinse Temp: Minimum 180°F Wash Cycle: 60S (60~160, 8 Step) Rinse Cycle: 10S (6~13, 8 Step) Wash Tank: 10.6 Gallons Rinse Tank: 7.1 Gallons Water Inlet: ½” (15A) Drain Connection: 1-1/2”...
Page 6: Installation Instructions
The unit comes with adjustable feet, which can be turned using a pair of channel locks or by hard if the unit can be raised safely. Ensure that the unit is level from side to side and from front to back before making any connections. October 2014 ©SUPERA V.1.0...
Page 7: Plumbing Connections
WARNING: Electrical and grounding connections must comply with the applicable portions of the National Electrical Code and/or other local electrical codes. WARNING: Disconnect the electrical power to the machine (both dishwasher and booster if applicable) and follow lockout/tagout procedures. October 2014 ©SUPERA V.1.0...
Page 8 If the rotation is incorrect, DISCONNECT ELECTRICAL POWER SUPPLY and interchange any two of the incoming power supply leads. Reconnect the power supply and verify correct rotation. OPERATING INSTRUCTIONS Available to hook on left or right hand of dishwasher October 2014 V.1.0 ©SUPERA...
Page 9 4. Change next step by pressing MODE button 5. Press READY when setting is finished EX) Wash time 50sec to 60sec/rinse time 8sec to 9sec 1. Power ON 2. Press MODE (wash time shows 50 sec) 3. Press UP (50 sec, flickering) October 2014 ©SUPERA V.1.0...
Page 10: Operation
ON: to supply rinse aid to tank while rinsing OPERATION 1. Place drain pipe and strainer in the right place Turn on the main switch 3. Controller Check the flickering light after pushing the ready button  October 2014 V.1.0 ©SUPERA...
Page 11: Maintenance
Clean off the strainer d. Cleanse and flush inside of the dishwasher and remove a remaining soil with soft cloth or brush e. Replace all removed parts and leave the machine door open for drying October 2014 V.1.0 ©SUPERA...
Page 12: Troubleshooting
Use the dishwasher at the proper Low temperature of rinse water temperature Debris on nozzle of rinse arm Remove debris Food or debris on the filter of wash Weak wash blade or drip Remove debris pump October 2014 V.1.0 ©SUPERA...
Page 13: Electric Wiring
ELECTRIC WIRING...
Page 14: Limited Warranty
LABOR COVERAGE FOR COMPONENT FAILURE OR OTHER THE WARRANTY PACKET PROVIDED WITH THE UNIT. ALTERATION, NEGLECT, ABUSE, MISUSE, ACCIDENT, DAMAGE DURING TRANSIT OR INSTALLATION, FIRE, FOOD, ACTS OF GOD. SUPERA, LLC is not responsible for the repair or replacement of any parts that SUPERA, LLC determines have been subjected after the date of manufacture to alteration, neglect, abuse, misuse, accident, damage during transit or installation, fire, flood, or act of GOD.
Page 15 Supera Customer Care Toll-Free Service Line: 1-866-953-3288 For additional product and warranty information, please visit our website at: www.SuperaCo.com...
