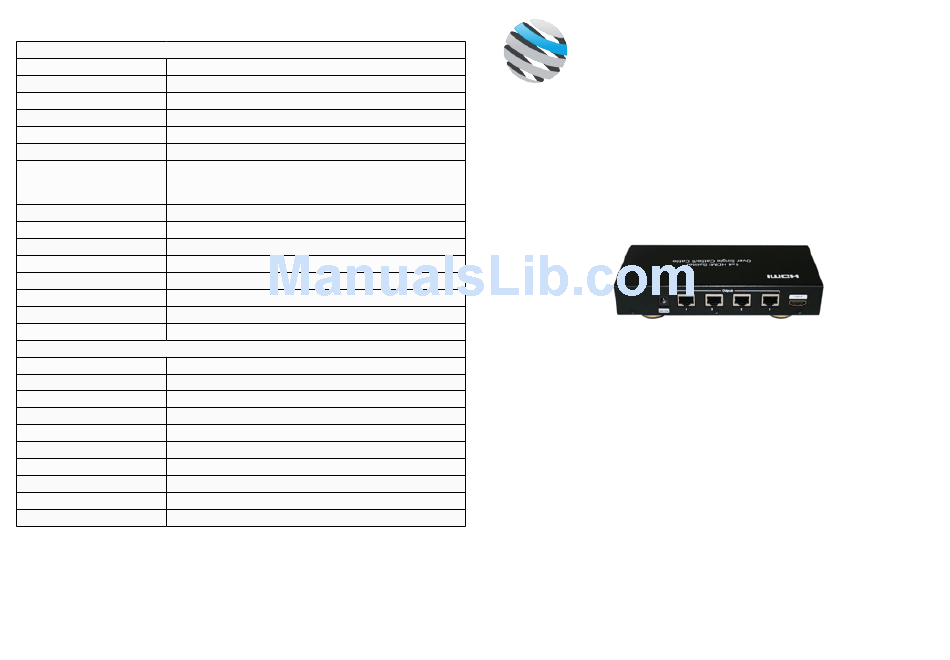

Scion-Tech SC02.0104 Operating Instructions

SC02.0104 - 4-Port HDMI Splitter over CAT5
Operating Temperature -5 to +35°C (+23 to +95°F)
Operating Humidity 5 to 90% RH (No Condensation)
Video Amplifier Bandwidth 140MHz
Input Video Signal 0.5 - 1.0 Volts p-p
Input DDC Signal 5 Violts p-p (TTL)
Data Transfer Rate 6.75 Gbps (max)
VGA: 640x480, 800x600, 1024x768,1080x1024
Video Format DTV/HDTV: 480i/576i/480p/576p/720p/1080i/1080p
Supports 3D
Vertical Frequency 60Hz
Video Colour Format Xv-YCC/Deep Colour 36bit
Audio Format DTS-HD/True-HD/LPCM 7.1/AC3/DTS/DSD
Transmission Distances 1080p 8-bit 50m using CAT5e or CAT6 (24AWG/Solid)
Power Consumption 12 Watts (Max)
Dimensions (L) 300 x (W) 155 x (D) 65mm
Net Weight 490g
SC02.0110 - Receiver
Operating Temperature -5 to +35°C (+23 to +95°F)
Operating Humidity 5 to 90% RH (No Condensation)
Video Iinput Signal HDMI 1.4 + 3D
Signal Input Connector 1 x RJ45 Modular Jack
Video Output Resolutions 480i, 576i, 480p, 576p, 720p, 1080i, 1080p @ 60Hz
Video Bandwidth 140MHz / 6.75Gbps
Video Input Signal 0.5 - 1.0 volt p-p
Input DDC Signal 5.0 volt p-p (TTL)
Supported Audio Format LPCM 5.1, 7.1, Dolby True HD, DTS-HD Master Audio
Power Consumption 1.25 Watts (250mA) Maximum
Scion-Tech
The Grove, Thatcham, Berks, RG18 4NL, United Kingdom
Tel: +44 (0) 1635 862484
Ltd
www.scion-tech.co.uk
Scion-Tech
Digital Video Distribution
SC02.0104
4-Port HDMI Splitter over CAT5

Features

Ÿ Distributes 1 x HDMI signal to 4 x CAT5 (RJ45)
Ÿ Transmission distance up to 50m @ 1080p/60Hz over a single CAT5e/6
Ÿ HD Audio: Dolby TrueHD, Digital Plus, DTS-HD Master Audio
Ÿ Supports 30/36bit Deep Colour Display
Ÿ Supports 3D
Ÿ Powered by 5V external mains adaptor
Thank you for purchasing this product. For optimum performance and safety,
please read these instructions carefully before connecting, operating or adjusting
this product. Please keep this manual for future reference.
Operating Instructions
Ltd
