C22HD & C22HDS B
ASSEMBLY and OPERATING INSTRUCTIONS
PLEASE CALL IF YOU ARE MISSING ANY PARTS, HAVE ANY DIFFICULTY IN ASSEMBLY, OR HAVE ANY QUESTIONS
REGARDING THE SAFE OPERATION OF THIS SPREADER. THIS MODEL INCLUDES LIFETIME TECHNICAL SUPPORT
SUPPORT HOT LINE: 574-848-7491 or 800-294-0671, email: techsupport@earthway.com
HELPFUL HINTS:
; If your spreader does not spread evenly, be sure the FRONT on the gear box points to the front of the spreader. The impeller must
turn clockwise. Reversing the gearbox will cause the impeller to turn counter clockwise. Clean the impeller after each use as some
fertilizer may become stuck on the impeller blades and will cause uneven spreading.
; Your spreader is designed to be pushed at three miles per hour, which is a brisk walking speed. Slower or faster speeds will change
the spread patterns. Wet fertilizer will also change the spread pattern and flow rate. Clean and dry your spreader thoroughly after each
use. To prevent rust, please coat all metal surfaces, also inside tubes where possible, with a light oil or WD-40. Wash between the shut
off plate and bottom of the hopper.
; Gears are permanently lubricated at the factory. Do not open the gearbox or dirt may enter.
; If you must use Rock Salt remove the agitator to prevent damage to the gearbox and remove salt from the hopper daily. Rock Salt
will reconstitute back into a solid block over night with humidity and will damage your spreader.
Upper Handle
Handle
Shaft
Frame
Brace
Impeller
Frame
Gearbox

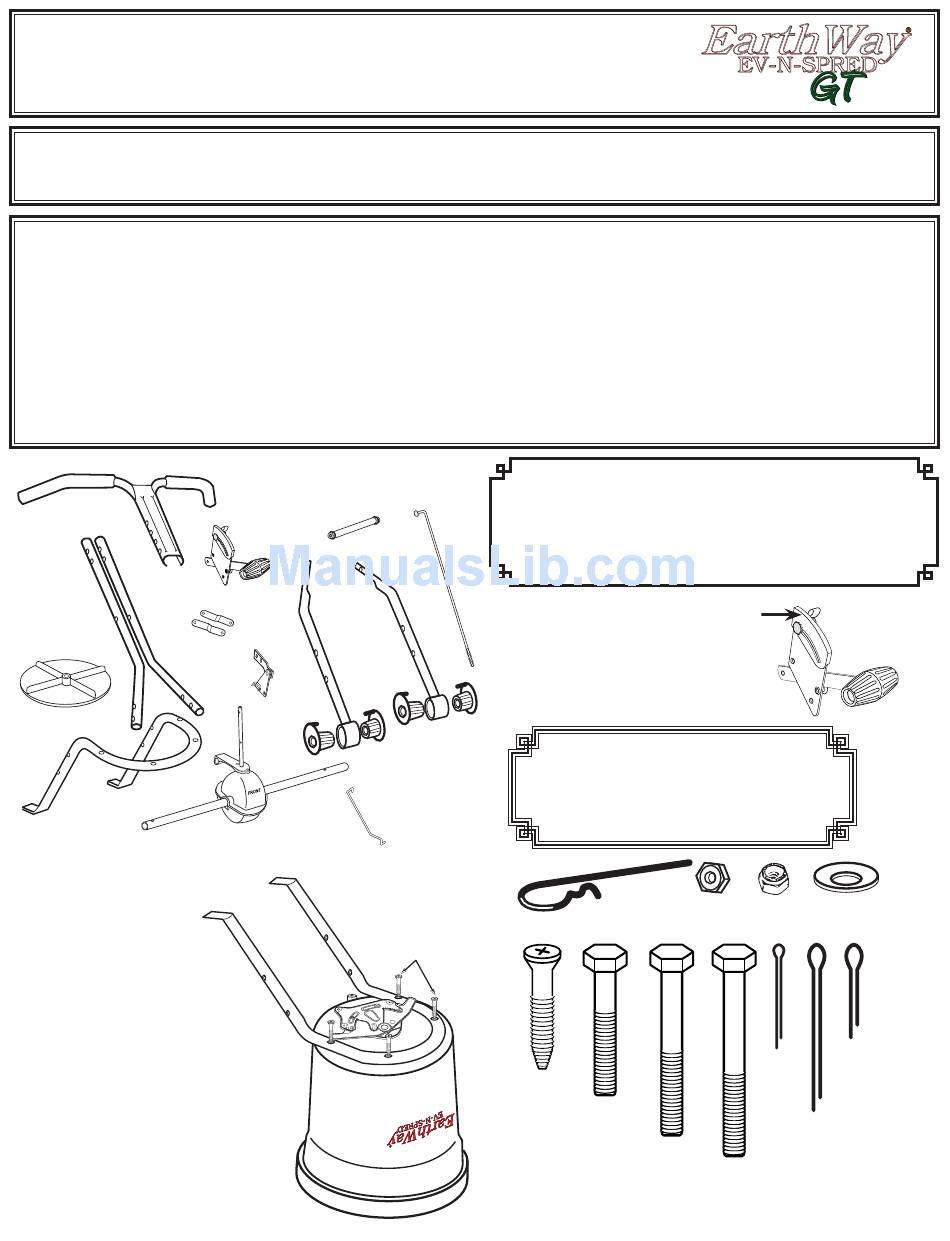

1. Remove and identify all of the loose parts from carton.
2. Position hopper on side. Install
frame using (4) #14 x 1-1/2" Flat
Head Phillips screws. TIGHTEN
THESE NOW.
roadcast
Cross
Brace
Gauge & Lever
Lower
Handles
Pivot
Pivot
Rod
(Qty 4) #31104
#14 X 1-1/2"
Flat Head Screw
s
preader
D
o not use air tools to assemble
,
seizing
Control
Rod
polish or wax
Gauge Overlay is snapped over the
metal gauge. Replace the stop bolt
assembly to secure overlay on the
gauge.
31104
Qty 4
EarthWay
EarthWay
EV-N-SPRED
EV-N-SPRED
Rev 3.10
WARNING
&
spray all nuts
bolts with oil
,
or other lubricant
ROCK SALT IS NOT
RECOMMENDED FOR USE IN
THIS SPREADER.
REMOVE AGITATOR
WHEN USING ICE MELT.
33117
36305
Qty 1
Qty 2
36200
Qty 8
36205
Qty 3
36207
Qty 2
®
®
GT
GT
. t
o prevent
,
furniture
.
36300
36404
Qty 18
Qty 17
36105
36104
Qty 1
Qty 1
36103
Qty 1
Pt# 52153
PAGE 1
Advertisement
Summary of Contents for Earth Way C22HD
- Page 1 EarthWay EarthWay C22HD & C22HDS B ® ® roadcast preader EV-N-SPRED EV-N-SPRED ASSEMBLY and OPERATING INSTRUCTIONS Rev 3.10 PLEASE CALL IF YOU ARE MISSING ANY PARTS, HAVE ANY DIFFICULTY IN ASSEMBLY, OR HAVE ANY QUESTIONS REGARDING THE SAFE OPERATION OF THIS SPREADER. THIS MODEL INCLUDES LIFETIME TECHNICAL SUPPORT SUPPORT HOT LINE: 574-848-7491 or 800-294-0671, email: techsupport@earthway.com...
- Page 2 Pinion Shaft 1/8 x 1-1/4” Impeller Cotter Pin (#36105) Gearbox FRONT DRIVE WHEEL Cross Brace HOLE Gearbox Brace COAST WHEEL HOLE Gearbox & Axle Assembly 3. Install impeller onto pinion shaft. Insert 1/8” x 1-1/4” cotter pin through impeller then through pinion shaft. Use hole nearest gear box. Spread cotter pin to prevent from falling out.
- Page 3 2” Cotter Pin 6. Install drive wheel to axle using pin hole nearest to lower handles as shown. Insert 2” cotter pin through wheel and through axle. Bend with pliers to prevent pin from falling 1” Cotter Pin out. NEXT Install coast wheel to axle, and then using outside pin hole on the axle (as shown on the left), insert 1”...
-
Page 4: Calibration Point
10. Install handle shaft to lower handles and pivot & bracket assembly as shown. Using (4) 1 ½” bolts with cupped washers and (4) locknuts (2) cupped washers. [TIP: Attach right side first with cupped washers on both nuts and bolts, then attach left (Pivot Bracket) side with washers only on the bolt side] TIGHTEN BOLTS AND NUTS NOW. -
Page 5: Year Limited Warranty
16. For normal operation both doors should be fully opened. To reduce flow to the left side, partially or completely close the door over the rear (LARGE) hole. To reduce flow to the right side, partially or completely close the door over the front (SMALL) hole. Close both doors for a narrow center spread pattern. - Page 6 60043R OPTIONAL Heavy-Duty Rain Cover & Side Deflector Kit Standard Settings Gauge Overlay #12196 and OPTIONAL Lesco Settings Gauge Overlay #12195 C22HD & C22HDS p rofessioNal roadcast preader Key # Part # Description Key # Part # Description Key #...
