MEDIATECHNOLOGYSYSTEMS INC.






















766 LAKEFIELD ROAD, WESTLAKE VILLAGE, CALIFORNIA 91361 U.S.A. www.mediatechnologysystems.com

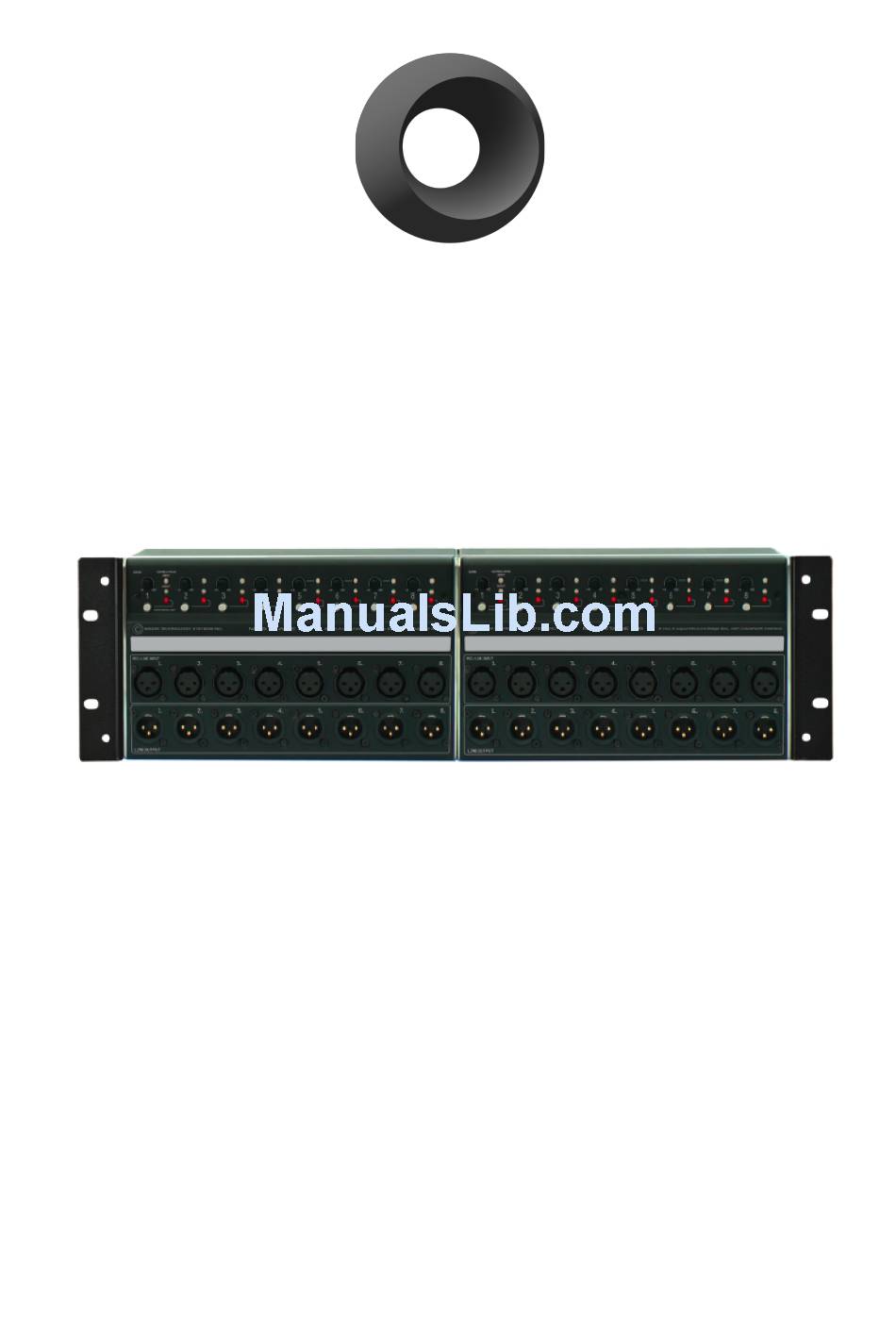

MANUAL

STAGE8.8
CobraNet™ Interface
Part # MAN-0308-MCA-RevB
Page
1
of
22
































Oct‐12



Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STAGE8.8 and is the answer not in the manual?

Questions and answers

Summary of Contents for MediaTechnologySystems STAGE8.8

  • Page 1












 MANUAL




 STAGE8.8

 CobraNet™ Interface


 766 LAKEFIELD ROAD, WESTLAKE VILLAGE, CALIFORNIA 91361 U.S.A. www.mediatechnologysystems.com Part # MAN-0308-MCA-RevB Page
1
of
22
 Oct‐12
...
  • Page 2
 FCC
Compliance
Notice
&
Interference
Statement.


 THIS
DEVICE
COMPLIES
WITH
PART
15
OF
THE
FCC
RULES.
OPERATION
IS
SUBJECT
TO
THE
FOLLOWING
 CONDITIONS.

 THIS
 DEVICE
 MAY
 CAUSE
 HARMFUL
 INTERFERENCE.
 THIS
 DEVICE
 IS
 DESIGNED
 TO
 ACCCEPT
 AND
 OPERATE
 WITH
 ANY
 INTERFERENCE
 RECEIVED.

 THIS
 INCLUDES
 INTERFERENCE
 THAT
 MIGHT
CAUSE
UNDESIRED
OPERATION.


 CAUTION:
 ANY
 CHANGES
 OR
 MODIFICATIONS
 MADE
 WITHOUT
 THE
 EXPRESS
 APPROVAL
 AND
 PERMISSION
OF
MANUFACTURER,
VOID
RESPONSIBILITY
OF
MANUFACTURER
FOR
COMPLAINCE.
...
  • Page 3 Explanation
of
Symbols



 TO
PREVENT
ELECTRIC
SHOCK
DO
NOT
REMOVE
COVER.
 NO
USER
SERVICABLE
PARTS
INSIDE.

REFER
TO
QUALIFIED

 AND
CERTIFIED
SERVICE
PERSONNEL.

 CAUTION

 RISK
OF
ELECTRIC
SHOCK
 DO
NOT
OPEN



 The
exclamation
mark
in
a
triangle
is
intended
to
alert
the
use
to
the
user
to
the
 presence
of
important
operating
and
maintenance/service
instructions
in
this
manual.

 The
lightning
flash
in
a
triangle
is
intended
to
alert
the
user
to
the
presence
of
un‐ insulated
“dangerous”
voltages
within
a
product’s
chassis
that
may
be
sufficient
to
 create
a
risk
of
electric
shock
to
humans.
 Page
3
of
22
 Oct‐12
...

  • Page 4: Table Of Contents



 Table
of
Contents


 WELCOME



 MPORTANT
 AFETY
 NSTRUCTIONS

 :
 ECLARATION
OF
 ONFORMITY

 .
 OW
TO
USE
THIS
MANUAL

 SPECIFICATIONS


 FUNCTIONAL
DESCRIPTION



 IGNAL



 NALOG
 ECTION


 IGITAL
SECTION
...

  • Page 5: Welcome


 1 Welcome
 1.1 Important
Safety
Instructions







  Important
Safety
Instructions:
  Read
these
instructions.
  Keep
these
instructions.
  Heed
all
warnings.
  Follow
all
instructions.
  Do
not
use
this
apparatus
near
water.
  Clean
only
with
dry
cloth.
  Do
not
block
any
ventilation
openings.
Install
in
accordance
with
the
 manufacturer's
instructions.
  Do
not
install
near
any
heat
sources
such
as
radiators,
heat
registers,
stoves,
or
 other
apparatus
(including
amplifiers)
that
produce
heat.
  Only
use
attachments/accessories
specified
by
the
manufacturer.
  Refer
all
servicing
to
qualified
service
personnel.
Servicing
is
required
when
the
 apparatus
has
been
damaged
in
any
way,
such
as
liquid
has
been
spilled
or
 objects
have
fallen
into
the
apparatus,
the
apparatus
has
been
exposed
to
rain
or
 moisture,
does
not
operate
normally,
or
has
been
dropped.
 1.2 Declaration
of
Conformity:


...

  • Page 6: Specifications


 2 Specifications








 Page
6
of
22
 Oct‐12
...

  • Page 7: Functional Description

    3 Functional
Description
 3.1 Signal
Path
 + - G + - G
 3.2 Analog
Section

 Each
analog
input
circuit
employs
a
fully
balanced
true
differential
topology
designed
to
 maximize
CMRR
across
all
possible
input
connection
methods,
where
the
input
and
 output
connectivity
has
been
designed
to
meet
AES48
standards
for
immunity
to
hum,
 buzz
and
SCIN.


 Each
input
stage
has
a
10kohm
input
impedance
and
can
accommodate
signals
of
up
to
 +24dBu
peak,
where
the
input
channel
gain
is
adjustable
from
0dB
to
+60dB,
ie
–from
 56dBu
(nominal)/+36dbu
(peak)
to
+4dBu
(nominal)+24dbu
(peak)
via
a
front
panel
 mounted
rotary
potentiometer.
Each
input
channel
has
an
individual
front
panel
 mounted
switch
that
form
phantom
power
(+24volts
DC).


 Both
input
and
output
channels
have
front
panel
mounted
signal
(‐20dB
threshold)
and
 peak
(‐3dB
threshold)
LED’s.

 Each
output
channel
is
600ohm
impedance
and
drives
signals
of
up
to
+24dBu
peak.
 3.3 Digital
section

 The
STAGE8.8
is
a
CobraNet™
interface
with
8
analog
Mic/line
input
channels
and
8
line
 level
output
channels.


 Page
7
of
22
 Oct‐12
...
  • Page 8 The
CobraNet™
port
uses
the
Cirrus
Logic
CS181xxx/CS496xxx
chipset
(similar
to
the
 commonly
used
CM2
card).
This
allows
for
up
to
8
audio
input
channels
from
the
 network
and
up
to
16
audio
output
channels
to
the
network,
8
local
analog
mic/line
 input
channels
to
the
network
and
8
local
analog
line
level
output
channels
from
the
 network.


 See
Figure 3-1
for
details
of
the
internal
block
diagram
for
the
Digital
Section
I/O.


 Figure 3-1: Block diagram showing the Cobranet routing of the STAGE8.8
 In
addition
to
audio
transport,
the
CobraNet™
port
provides
control
and
monitoring
 capability
via
SNMP.
MTS
provides
an
OEM
version
of
Stardraw
control
with
embedded
 MTS
SNMP
drivers
for
custom
GUI
rendering.

This
is
downloadable
from
the
MTS
 Page
8
of
22
 Oct‐12
...

  • Page 9: Network Connections







 The
 STAGE8.8
 interface
 products
 use
 an
 internationally
 approved
 “world
 voltage”,
 external
power
supply
unit,
model
number:


 This
 supply
 takes
 100‐240VAC
 50/60Hz
 and
 provides
 24VDC
 at
 1.5
 Amps
 to
 the
 internal
supply
board.

Regulation
and
supply
rails
are
generated
internally
by
a
Switch
 Mode
 Power
 Supply
 (SMPS)
 board
 that
 derives
 plus
 12
 and
 minus
 12
 Volt,
 5
 Volt
 and

...

  • Page 10: Connections

    3.6 Connections

 For
standalone
crossover
connection
between
two
STAGE8.8’s
(ie
no
Ethernet
switch),
 use
the
two
Data
in
connections
to
separate
the
DC
supplies.
For
a
typical
stage
box,
the
 two
injectors
would
be
at
the
control
room/mixing
console
and
just
the
long
cable
with
 Data
and
power
to
the
stage.
See
below…


 The
Cobranet
network
port
also
carries
the
24
volt
power
on
the
unused
4
wires
of
the
 100BaseTx
connection.
The
STAGE8.8
ships
with
a
24volt
PSU
and
PoE
injector
(note
 the
Stage8.8
is
a
custom
PoE
and
not
IEEE802.3af).
The
injector
connects
as
follows…


 3.7 Wall/Floor
mount
kit

 The
shallow
depth
(3.5”)
of
the
STAGE8.8
allows
installation
in
a
standard
drywall
 construction.
This
option
would
provide
8
inputs
and
8
outputs
(off
one
UTP
cable)
at
 various
wall
and
floor
positions
in
an
Auditorium,
Banquet
Hall
or
Conference
Room.

 Page
10
of
22
 Oct‐12
...
  • Page 11 The
STAGE8.8
ships
with
a
wall/floor
mount
accessory
(see
below)
that
attaches
to
the
 main
STAGE8.8

chassis
and
provides
a
decorative
cover.




 Page
11
of
22
 Oct‐12
...

  • Page 12: Simple Configuration (No Dsp)

    4 Simple
Configuration
(No
DSP)

 The
STAGE8.8
ships
with
the
8
analog
inputs
linked
to
CobraNet®
Transmitter
sub
 channels
1‐8
and
CobraNet®
Receiver
sub
channels
33‐40
are
linked
to
the
8
analog
 outputs.
This
allows
the
STAGE8.8
to
be
used
‘out
of
the
box’
by
merely
setting
up
 Transmitter
and
Receiver
(‘Bundle’)
network
addresses.

 However,
the
STAGE8.8
has
the
capability
of
transmitting
16
CobraNet®
channels
and
 receiving
16
CobraNet®
channels,
so
a
more
sophisticated
routing
can
be
configured
 using
the
free
utility
Cobranet
Discovery
(CNDISCO)
from
Cirrus
Logic.
 4.1 CNDISCO
‐
Setup

 To
use
CNDISCO,
the
host
PC
or
laptop
must
be
set
to
the
default
IP
subnet
in
order
to
 talk
to
the
STAGE8.8.
Figure 4-1
below
shows
the
method
of
setting
up
a
Windows
 computer.
NOTE:
The
default
IP
address
of
the
STAGE8.8
IS
192.168.192.50.


 Figure 4-1: Setting
up
the
IP
address
and
subnet
mask.
 • Go
to
Control
Panel
and
then
open
“Network
connections”.
 • Click
on
the
General
tab
and
open
“Properties”.
 • Select
“Internet
Protocol
(TCP/IP)”
and
click
on
properties.
 Page
12
of
22
 Oct‐12
...

  • Page 13: Advanced Settings

    • Finally,
change
the
selection
from
“Obtain
an
IP
address
automatically”
to
“Use
 the
following
IP
address”
and
set
to
your
desired
IP
domain,
eg:‐
 • IP
address:
192.168.192.50
 • Subnet
mask:
255.255.255.0
 • After
finishing
using
the
CNDISCO
application,
return
to
the
Control
Panel
and
 reset
the
selection
back
to
“Obtain
an
IP
address
automatically”.

 If
an
intelligent
or
managed
switch/router
is
in
use,
then
the
switch
address
will
need
to
 be
set
to
the
same
subnet,
usually
192.168.1.1
or
192.168.1.254
are
the
most
common
 default
addresses.
 4.2 Advanced
settings

 In
order
to
use
CNDISCO
effectively,
it
will
be
necessary
to
enable
the
configuration
and
 advanced
features.
This
will
also
allows
you
to
put
any
version
of
firmware
on
any
 hardware‐compatible
CobraNet™
module.
CNDISCO
needs
to
have
the
particular
 firmware
version
of
a
device
in
its
firmware
directory
in
order
to
properly
identify
the
 device
for
compatible
firmware
upgrades.
Should
the
situation
arise
where
you
know
 the
device
is
a
specific
model
but
CNDISCO
says
there
are
no
compatible
firmware
 upgrades,
using
the
advanced
feature,
you'll
be
able
to
update
the
firmware
anyway.


 How
to
enable
the
advanced
feature:

 Open
cndisco.ini
(WinXP)
or
the
config
file
(WinVista/Win7)
the
in
Notepad

 Its
usually
in
a
directory
like
this:
C:\Program
Files\Peak
Audio\CobraNet™
Discovery.


 Find
the
Configuration
section.
It
usually
looks
something
like
this:

 [Configuration]
 Adapter
Index=[10]
[10]
Broadcom
NetXtreme
57xx
Gigabit
Controller
 Firmware
Location=C:\Program
Files\Peak
Audio\CobraNet™
Discovery\firmware

 Start
a
new
line
after
one
of
the
lines
in
that
section
and
type
in
Advanced
Feature=1.
 Add
CC_Enable=1
under
Advanced
Feature=1

 It
should
look
something
like
this
when
you're
done:
...

  • Page 14: Configuration


 <add
key
"Advanced
Feature"
value="1"
/>

 Save
the
changed
.ini/config
file
and
exit
Notepad.
The
advanced
features
are
now
 enabled.

 Now
when
you
update
the
firmware
you'll
see
a
check
box
in
the
"Select
Firmware
 Version"
dialog
box
marked
"Show
All
Firmware
Versions".
Check
the
box
and
you'll
be
 able
to
choose
from
all
the
firmware
versions
stored
in
the
firmware
directory.
 4.3 Configuration

 The
CNDISCO
manual
(found
in
the
C:\Program
Files\Cirrus
Logic\CobraNet™
 Discovery
folder)
will
explain
in
detail
most
of
the
configuration
processes,
so
these
 have
not
been
repeated
here.
However,
there
are
some
useful
features
of
the
CobraNet™
 protocol
that
are
not
covered
explicitly,
ie…

 One
of
the
key
features
of
the
STAGE8.8
product
is
the
ability
to
set
up
to
4
CobraNet™
 audio
transmitters
and
8
CobraNet™
receivers.
In
addition,
MTS
has
provided
the
ability
 to
set
each
bundle
subchannel
configuration.

 The
settings
are:‐

 • Transmitter
setup:
This
section
covers
the
CobraNet™
transmitters
(see
Figure 4-2).
The
CS496112
chipset
allows
for
up
to
4
transmitters,
each
of
up
to
8
 channels,
subject
to
an
overall
channel
count
of
2
analog
input
channels
and
8
 network
audio
streaming
channels.
The
settings
are:‐
 o Bundle
number:
This
sets
the
bundle
address
of
each
transmitter.
The
 bundle
numbers
are
0
(off,
ie
no
transmission),
1‐255
are
multicast,
256‐ 65279
are
unicast
and
65280‐65535
are
private.
 o Unicast
mode:
If
the
transmitter
bundle
address
is
normally
unicast
 (>255),
but
more
than
one
receiver
is
available
for
that
bundle
address,
 then
the
bundle
can
be
transmitted
either
multicast
or
multi‐unicast.
 o Max
Unicast:
Depending
on
unicast
mode,
the
maximum
number
of
multi‐ unicast
bundles
can
be
set
between
1
and
4.
 o Transmitter1…Transmiter4:
This
lists
the
four
transmitters
associated
...
  • Page 15  Multicast
over
1
–
If
more
than
one
receiver
is
set
to
receive
this

 bundle,
it
will
be
multicast,
else
it
will
be
Unicast
  Multicast
over
2
–
If
more
than
two
receivers
are
set
to
receive
this

 bundle,
then
it
will
be
multicast,
else
it
will
be
unicast
or
multi‐unicast  Multicast
over
3
–
If
more
than
three
receivers
are
set
to
receive
this

 bundle,
then
it
will
be
multicast,
else
it
will
be
unicast
or
multi‐unicast  Multicast
over
4
–
If
more
than
four
receivers
are
set
to
receive
this

 bundle,
then
it
will
be
multicast,
else
it
will
be
unicast
or
multi‐unicast

  Never
Multicast
–
Only
a
single
bundle
will
be
sent
unicast


 Figure 4-2: CobraNet™
Transmitter
settings
page
 • Receiver
setup:
This
section
covers
the
CobraNet™
receivers
(see
Figure 4-3).
The
 CS496112
chipset
allows
for
up
to
8
receivers,
each
of
up
to
8
channels,
subject
 to
an
overall
channel
count
of
2
analog
output
channels
and
8
network
audio
 streaming
channels..
The
settings
are:‐
 Page
15
of
22
 Oct‐12
...
  • Page 16 Receiver
active:
This
LED
only
lights
if
there
is
a
valid
transmitter
sending
 audio
on
that
bundle
address
and
channel.
 o RX1…RX8:
Same
process
and
limitations
as
described
in
the
transmitter
 section


 Figure 4-3: CobraNet™ Receiver settings page
 • Main
Interface
settings:
This
section
covers
the
more
advanced
variables
not
 usually
associated
with
bundle
management
and
which
apply
to
the
CobraNet™
 device
globally
(see
 Figure 4-4 ).
These
are
explained
in
detail
in
the
CNDISCO

 manual,
but
2
are
of
particular
importance
to
the
ION
series
interfaces,
ie… Persistance:
The
STAGE8.8
is
a
very
simple
interface
product
and
does
not
 have
a
preset
memory,
so
“persistence”
is
used
to
store
the
last
settings
in

 case
of
power
down.
Please
note… ll
CobraNet™
settings
need
up
to
1
minute
to
establish
  persistence,
as
they
are
stored
in
the
CobraNet™
flash.
If
the
ION
 power
is
cycled
before
the
settings
are
stored
to
flash,
then
the
 settings
will
be
lost.

  If
the
persistence
tick
box
is
off,
then
no
settings
will
be
saved.
 o Mode
Rate
Control:
The
options
are
1.33mS,
2.66mS
or
5.33mS
latency.
 Note:
there
are
significant
trade‐offs
if
changes
are
made
to
the
5.33mS
 default
settings
(see
PM25),
particularly
in
terms
of
the
number
of
switch
 hops
that
can
be
used.
If
the
STAGE8.8
interface
is
being
used
with
a
 Page
16
of
22
...

  • Page 17: Presets

    The
“Location”
is
a
useful
way
of
uniquely
naming
the
STAGE8.8
interface.
 Up
to
60
characters,
eg
“Ballroom
3:
Stage
left,
Mics
7/8”.
For
more
 detailed
naming
information
in
a
large
project,
both
the
“Location”
and
 “Contact”
fields
can
be
used.



 Figure 4-4: Global Interface settings
 4.4 Presets

 The
STAGE
8.8
is
a
simple
device
and
does
not
contain
a
host
processor
and
no
access
to
 multiple
preset
functionality.
However,
the
Cobranet
flash
can
be
used
to
save
Cobranet
 interface
settings
via
“persistence”
(see
previous
section
and
Figure 4-4).
If
the
 persistence
option
is
enabled,
then
the
last
set
of
values/settings
can
be
stored
into
the
 Cobranet
flash
and
will
be
restored
on
power
up.
Note
that
these
settings
can
take
up
to
 Page
17
of
22
 Oct‐12
...

  • Page 18: Setting A Static Ip Address

    1
minute
to
save,
as
they
are
stored
in
between
other
processes.
Also
note
that
DSP
 settings
are
not
stored‐only
Cobranet
interface
settings.
 4.5 Setting
a
static
IP
address

 First
set
persistence
on
(see
Section
5).
Then
double
click
on
the
device
in
the
main
 CNDISCO
window
to
open
the
configuration
menu
(see
below).
In
the
configuration
 menu
select
the
“SNMP”
button.
An
SNMP
window
will
open
and
select
the
“Monitor”
 Group
and
the
“ipMonStaticIP”
variable.


 In
the
value
section,
type
the
desired
IP
address
in
AAA.BBB.CCC.DDD
format
and
then
 press
“PUT”.
Confirm
the
setting
by
pressing
“GET”
See
below
for
an
example.

 Page
18
of
22
 Oct‐12
...

  • Page 19: Firmware

    5 Firmware
 The
Cobranet
firmware
is
updated
using
the
free
utility
(Cobranet
Discovery)
from
 Cirrus
Logic
–
see
Figure 5-1
below.
 Figure 5-1: Cobranet Discovery showing 2.11.9 firmware After
loading
the
CNDISCO
application,
Advanced
features
will
need
to
be
enabled.
 Enabling
advanced
features
in
CNDISCO
allows
you
to
put
any
version
of
firmware
on
 any
hardware‐compatible
Cobranet
module
you
wish.
CNDISCO
needs
to
have
the
 particular
firmware
version
of
a
device
in
its
firmware
directory
in
order
to
properly
 identify
the
device
for
compatible
firmware
upgrades.
Should
the
situation
arise
where
 you
know
the
device
is
a
specific
model
but
CNDISCO
says
there
are
no
compatible
 firmware
upgrades,
using
the
advanced
feature,
you'll
be
able
to
update
the
firmware
 anyway.


 How
to
enable
the
advanced
feature:
Firstly,
open
cndisco.ini
in
Notepad.

Its
usually
in
 a
directory
like
this:
C:\Program
Files\Peak
Audio\CobraNet
Discovery.
Then
find
the
 Configuration
section.
It
usually
looks
something
like
this:

 [Configuration]
 Adapter
Index=[10]
[10]
Broadcom
NetXtreme
57xx
Gigabit
Controller
 Firmware
Location=C:\Program
Files\Peak
Audio\CobraNet
Discovery\firmware

 Start
a
new
line
after
one
of
the
lines
in
that
section
and
type
in
Advanced
Feature=1.
It
 should
look
something
like
this
when
you're
done:

 [Configuration]
 Adapter
Index=[10]
[10]
Broadcom
NetXtreme
57xx
Gigabit
Controller
 Firmware
Location=C:\Program
Files\Peak
Audio\CobraNet
Discovery\firmware
 Advanced
Feature=1

 Save
the
file
and
exit
Notepad.
The
advanced
feature
is
now
enabled.

 Now
save
the
MTS
cobranet
binary
file
“MTS_2_11_xx.bin”
to
the
Firmware
folder
and
 use
CNDISCO
to
upload
the
firmware.
Please
ensure
that
you
ONLY
use
the
MTS
binary,

...
  • Page 20 First
Click
on
Cobranet
and
then
choose
Upload
firmare…



 Now
when
you
update
the
firmware
you'll
see
a
check
box
in
the
"Select
Firmware
 Version"
dialog
box
marked
"Show
All
Firmware
Versions".
Check
the
box
and
you'll
be
 able
to
choose
from
all
the
firmware
versions
stored
in
the
firmware
directory.



 Then
choose
all
“Unconditionally”
and
select
the
“MTS_2_11_xx.bin”…
binary
and
hit
 Update.
You
will
get
a
warning,
so
accept
and
then
see
the
updating
dialog
box
below.
 Once
completed,
power
cycle
the
product.

 Page
20
of
22
 Oct‐12
...
  • Page 21

 Page
21
of
22
 Oct‐12
...

  • Page 22: Index

    6 INDEX
 A
 P
 Advanced
Feature=1,
13
 Persistance,
16
 persistence,
16,
17
 PM25,
16
 B
 Power
Supply,
9
 Presets,
17
 Bundle
number,
14,
16
 R
 C
 Receiver
active,
16
 CC_Enable=1,
13
 Receiver
setup,
15
 CNDISCO,
12,
13,
14,
16
 Cobranet
firmware
update,
19
 S
 Cobranet
flash,
17
 CobraNet™
Discovery,
13,
14
 Contact,
17
 Safety,
5
 CS496112,
14,
15
 Signal
Path,
7
 Specifications,
6
 Subformat
Resolution,
14
 L
 T
 LED,
7
 Location,
17
 Transmitter
setup,
14
 M
 U
 Max
Unicast,
14
 Mode
Rate
Control,
16
 Unicast
mode,
14
 UnicastMode,
14
 N
 Network
connections,
9
...

Table of Contents
