Summary of Contents for Cordex TOUGHPIX II

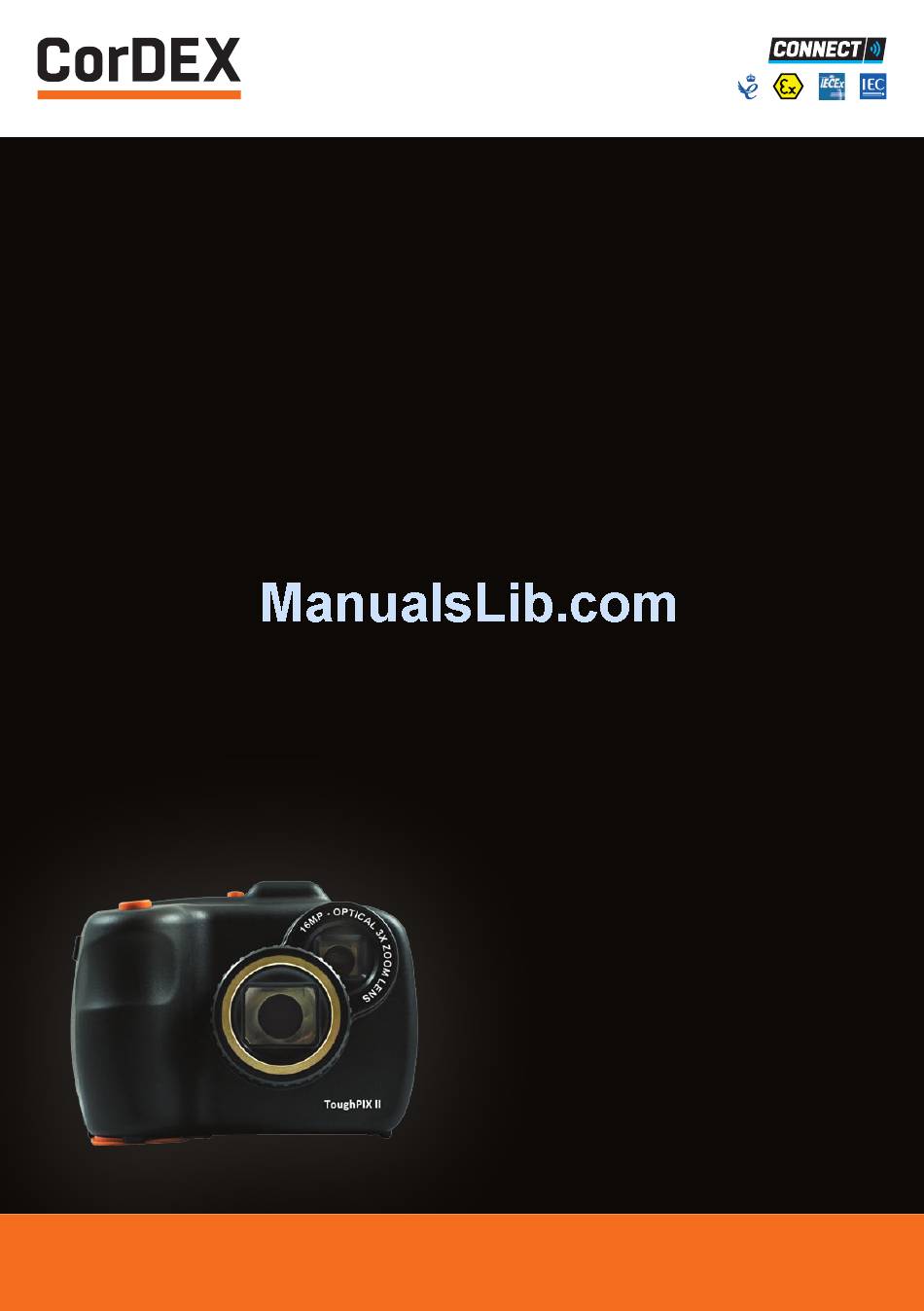

- Page 1 USER MANUAL TOUGHPIX II EXPLOSION PROOF DIGITAL CAMERA RUGGED AUTHORITY www.cord-ex.com...
- Page 2 Anti shake • Macro • Setup • Taking Videos ToughPIX II is certified ATEX/IECEx as follows: Downloading Files Technical Information Ex d IIB+H2 T6 Gb / II2G Gb T6 • Please ensure that the Whilst in a hazardous area, do...
-
Page 3: Getting To Know Your Tc7000
ToughPix II – Explosion Proof Digital Camera GETTING TO KNOW YOUR TC7000 Shutter Button Flash Light LCD Screen Mode Up/Delete Power Button Lens Left/Scene Menu Button Right/Flash Playback Down/Self Time W/T (Zoom in/Zoom out) Focus Ring 135˚ Swivel Lens RUGGED... -
Page 4: Camera Charging /Docking Station
ToughPix II – Explosion Proof Digital Camera CAMERA CHARGING OVERVIEW /DOCKING STATION The SLR style ToughPIX II incorporates a 16 Megapixel sensor with 16GB memory and High Definition video capability. Close up and wide area photography is simple with crisp and clear images using the built-in macro feature, anti- shake technology, 3x optical and 4x digital zoom. -
Page 5: Battery Charging
ToughPix II – Explosion Proof Digital Camera BATTERY CHARGING GETTING STARTED The battery is charged using the docking Turning the Power On/Off station supplied (See Page 6). Use the power button on the top of the • Open the battery compartment of the camera camera to turn the camera on and off. -
Page 6: Taking Pictures
ToughPix II – Explosion Proof Digital Camera TAKING PICTURES Optical Zoom Scene Anti-Shake You can magnify your subject up to 3 times Scene is selected using the left button and This function prevents blurring of the photo as using the optical zoom by pressing the T and toggles through several setting options: a result of hand shake. -
Page 7: Taking Videos
ToughPix II – Explosion Proof Digital Camera TAKING VIDEOS DOWNLOADING FILES Mac Users Press the MODE button to select video mode Photo and video file can only be downloaded Press and release the shutter button using the docking/charging station supplied. - Page 8 ToughPix II – Explosion Proof Digital Camera Certificate Information ATEX / IECEx Certificate No TRAC13ATEX0046X / IECEx TRC 13.0016x ATEX / IECEx Certificate Type Ex d IIB+H2 T6 Gb / II2G Gb T6 Ambient temperature Tamb -20C to +50C General Information...
- Page 9 Copyright © 2014, CorDEX Instruments Limited. All other brand and product names are trademarks of CorDEX Instruments Limited. Ref.ID 2341-MAN, Rev.C...
