Summary of Contents for ZTK Professional Audio SP-122APM

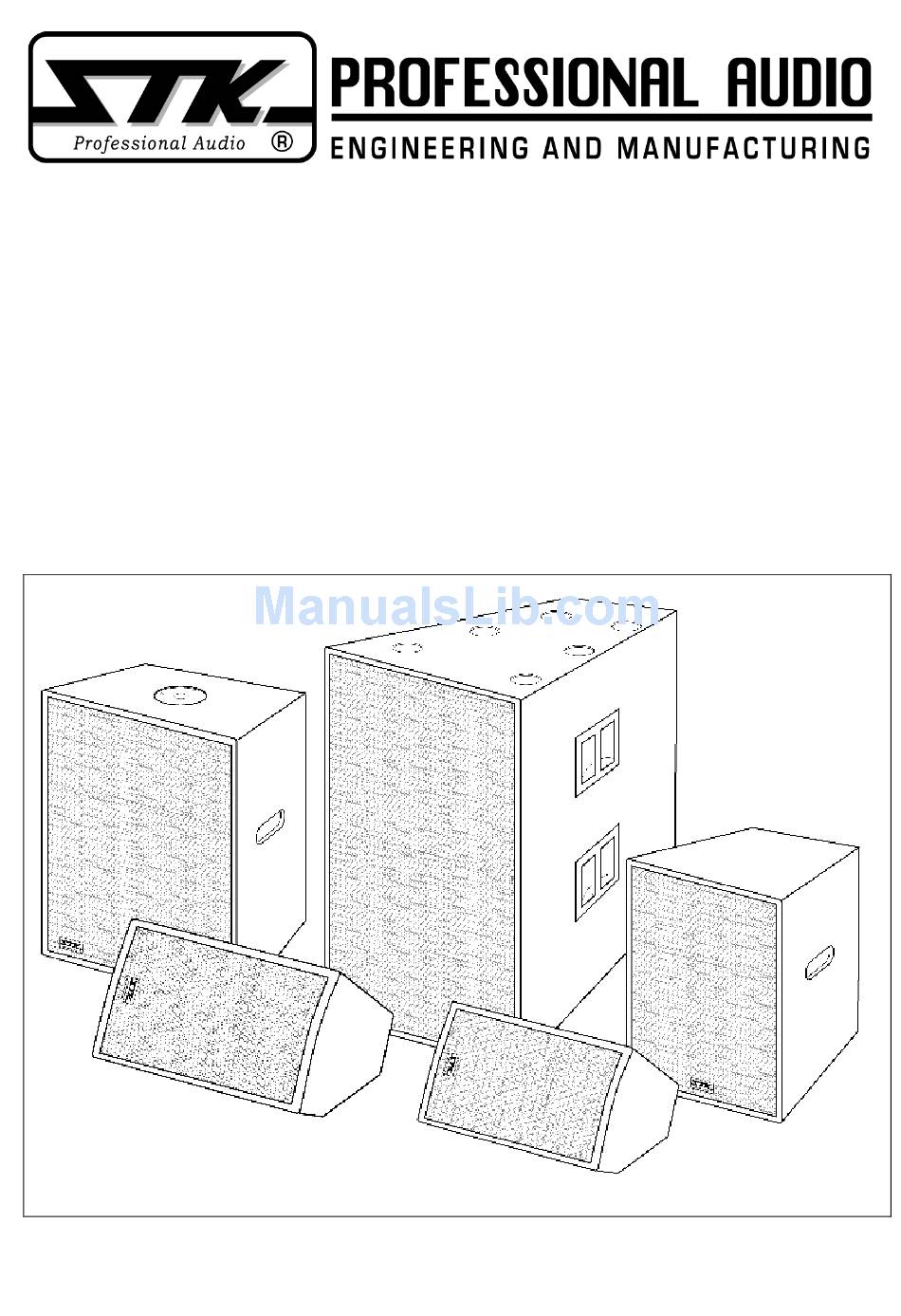

  • Page 1 Active. SPEAKER SYSTEMS SP-122APM/115APM OWNER'S MANUAL ENGLISH...

  • Page 2: Important Safety Instructions

    1. Important Safety Instruction 1. Read Instructions- All the safety and operating UNPACKING instructions should be read before the appliance is As a part of our system of quality control, operated. every STK product is carefully inspected before 2. Retain Instructions- The safety and operating instructions should be leaving the factory to insure flawless appearance.

  • Page 3: Table Of Contents

    SP-112APM/115APM Table Of Contents 1 Important Safety Instructions..........2 2 Introduction................3 3 Panel Description..............4 4 Placement Tips & Hum............5 5 Block Diagram................. 6 6 Specifications................. 7 Introduction Thank you for choosing STK sound reinforcement speaker systems. STK active speakers are constituted two passive system and two active systems. Each model is designed for capable of extremely high sound pressure levels, and to give you the best performance of any loud speaker in its class and price range.

  • Page 4: Panel Description

    Panel Description SP-112APM/115APM 1. Mic Input.(-50dBu) This is female XLR-type connector that accept microphone. Easy Start For Active Speakers 2. Line In.(-10dBu) 1/4" unbalanced phone input connector that accept Start with the following setting on the back of the active line input signal.

  • Page 5: Placement Tips & Hum

    Placement Tips & Hum Placement Tips *Turn the LEVEL control all the way down. *Avoid placing loudspeaker into the corners of a room. If the noise disappears, it's coming from the signal This increases the low-frequency output and can cause source.

  • Page 6: Block Diagram

    Block Diagram SP-112APM/115APM...

  • Page 7: Specifications

    General Specifications SP-112APM/115APM ※ INPUT SECTION INPUT INPUT LEVEL CONNECTOR Sensitivity MIC IN(CH1) -50dBu XLR JACK CD/TAPE 0dBu STEREO RCA LINE IN / OUT -10dBu 1/4" TRS PHONE JACK,XLR BALANCED LINE OUT -0dBu(Bal),-10dBu(Unbal) XLR BALANCED,1/4” TS PHONE JACK 3 BAND EQUALIZER HIGH : 10 kHz +/-12dB boost cut MID : 2.5 kHz...
  • Page 8 Owner's Manual For The STK Active Speaker Systems Printed In Korea STK-Professional Audio 11/07 - 8 -...
