FEB-9455 Main Board, 15 inch LCD's

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H700B and is the answer not in the manual?

Questions and answers

Summary of Contents for One Touch H700B

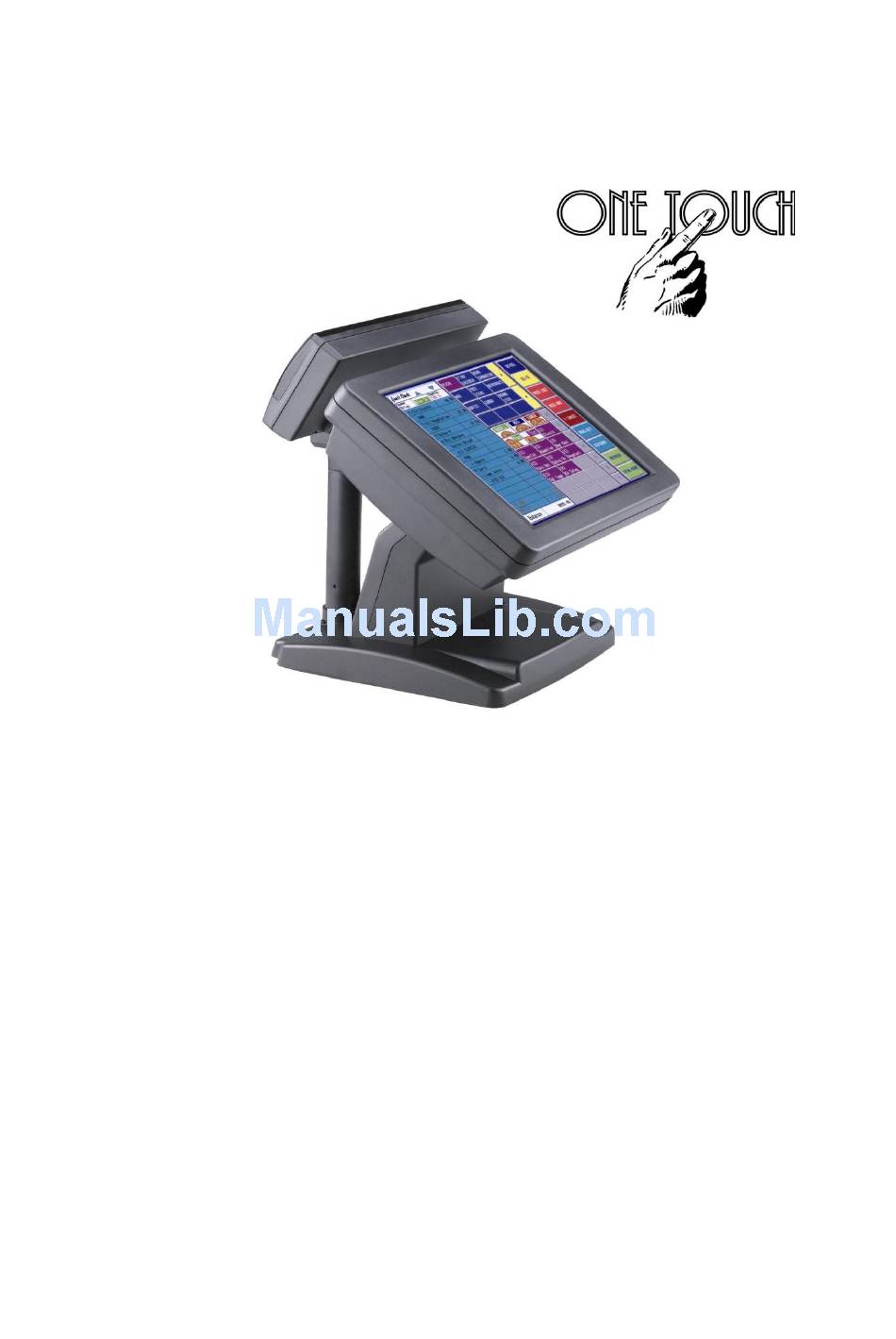

  • Page 1 FEB-9455 Main Board, 15 inch LCD’s...
  • Page 2 Federal Communications Commission (FCC) This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 3 Important Safety Information SAFETY INSTRUCTIONS Please read these safety instructions carefully. Keep this User‟s Manual for later reference. Disconnect this equipment from the AC outlet before cleaning. Don‟t use liquid or spray detergent for cleaning. Use only a moistened sheet or cloth. For pluggable equipment, the socket-outlet should be installed near the equipment and should be easily accessible.
  • Page 4 Copyright The information in this guide is subject to change without prior notice. The manufacturer shall not be liable for technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing, performance, or use of this material. This manual contains information protected by copyright.

  • Page 5: Table Of Contents

    Introduction Model H700B Characteristics ....................1 How to Use This Manual ...................... 2 A Visual Tour of Model H700B ..................... 3 What comes with Model H700B ..................4 Dimensions15” ......................6 Connector Panels ........................ 7 Hardware Setup Model H700B Assembly ....................... 8 Hard Disk Drive Installation ...................
  • Page 6 ELO Touch Panel Cannot Calibrate Correctly ............. 50 Second LCD Panel is Not Functioning Properly ............51 PS/2 Keyboard is not functioning normally ..............51 MCR is not Functioning Properly................. 51 VFD Display is not functioning Properly ..............52 LAN is not functioning Properly ................... 52 COM1, COM2 and COM3 are not functioning properly ..........

  • Page 7: Introduction

    9455 Main Board Model H700B Characteristics  Model H700B uses a high speed processor capable of handling a high capacity of data efficiently.  Model H700B‟s solid quality Aluminum housing distinguishes it from ordinary plastic housings.  The Model H700B touch terminal all-in-one design combines a powerful PC, multiple LCD and touch screens, which are suitable for any market.

  • Page 8: How To Use This Manual

    9455 Main Board How to Use This Manual This manual contains all the information you need to set up and use Model H700B. In addition, you can also consult the manuals for the operating system and added hardware. Chapter 1 Provides an introduction to Model H700B and this manual.

  • Page 9: A Visual Tour Of Model H700B

    9455 Main Board A Visual Tour of Model H700B Before you start, take a few moments to become familiar with Model H700B. USBX1...

  • Page 10: What Comes With Model H700B

    9455 Main Board What comes with Model H700B The following items are standard with Model H700B:  Main system with LCD panel  ATX power supply  One DVD contains driver, utilities and user‟s guide  AC power cord Model H700B and power adapter...
  • Page 11 9455 Main Board The following items are optional:  Magnetic card reader (MCR) and bracket  VFD customer display...

  • Page 12: Dimensions15

    9455 Main Board Dimensions15” Model H700B Dimensions Model H700B and MCR Dimensions Model H700B and VFD customer display...

  • Page 13: Connector Panels

    COM3 COM2 COM1 Speaker POWER LPT 1 2w+2w Note: This configuration is for Model H700B units that have been supplied with an integral second LCD panel. I/O Port Connector Type Description Power DC Power Connector Connects Model H700B to the power supply.

  • Page 14: Hardware Setup

    Model H700B Assembly Please make sure that the system power is turned off and the power supply is disconnected when making any hardware changes to Model H700B. Remove the rear neck plate I/O ports locate on the back of the neck. The rear neck plate must therefore be removed before alterations can be made to the hardware.

  • Page 15: Hard Disk Drive Installation

    FEB-9455 Main Board Hard Disk Drive Installation Model H700B comes with an empty hard disk drive (HDD), unless a special request has been made. Installing a HDD 1. Turn off power and remove power cable from main unit. 2. Remove the Base/HDD Plate from the base (4 screws).

  • Page 16: Compact Flash Installation

    FEB-9455 Main Board Compact Flash Installation Model H700B will configure Compact Flash in IDE mode as secondary master after it is installed. The next available drive letter will be automatically assigned to Compact Flash. Installing Compact Flash 1. Turn off power and remove power cable from Model H700B.

  • Page 17: Magnetic Card Reader Installation

    FEB-9455 Main Board Magnetic Card Reader Installation An optional Magnetic Card Reader (MCR) can be installed on the right side of Model H700B. Magnetic Card Reader (MCR) Installing an MCR 1. Turn off system power. 2. Unplug the loopback from the MCR socket. The MCR socket is found on the right side on the back of the main Unit.
  • Page 18 FEB-9455 Main Board 5. Turn on system power. Note: If the MCR does not work normally, please refer to troubleshooting Attention: The loopback or the MCR cable must be inserted in the socket for an external keyboard to function with Model H700B.

  • Page 19: Mcr Parameter Modification

    FEB-9455 Main Board MCR Parameter Modification This option is for users who need to customize the MCR parameters for a particular task. Some of the useful parameters include: The selection of country code, other than the default English. The choice of track combinations. The preamble/postamble codes.

  • Page 20: Vfd Customer Display Installation

    FEB-9455 Main Board VFD Customer Display Installation An optional VFD customer display can be installed on the back of Model H700B. Rear view with VFD attached. Installing a VFD 1. Turn off system power. 2. Important, make sure that the jumpers on the I/O board are set correctly. It's important to note that the supply voltage for the VFD customer display(COM4 usually) is set to +12V.

  • Page 21: Cash Drawer Installation

    FEB-9455 Main Board COM4 6. Connect the VFD RJ45 cable in the VFD/COM4 port on the I/O panel which located under the base. 7. Turn on VFD power switch, and then turn on system power. Note: If the VFD does not display correctly after an application is loaded, please refer to troubleshooting. Cash Drawer Installation Before the cash drawer has been connected to Model H800B, please make sure the drive voltage and cable pin assignment of the cash drawer is matched to the definition of...
  • Page 22 FEB-9455 Main Board Cash Drawer RJ11 Connector Note: If the cash drawer cannot be detected by the system, please refer to troubleshooting...
  • Page 23 FEB-9455 Main Board Cash Drawer Activation Two cash drawers may be driven from this port. Driving voltage of the solenoid is DC+12V. Unlike previous models, the 9455 motherboard does not use a direct I/O port but instead is accessed via a super I/O chip. A test program and source code is supplied and can be found on the DVD in \Utility\Cashdrawer.

  • Page 24: Optional Second Lcd Panel Display

    Note. CMOS BIOS settings should be altered to make COM5 use IRQ11, and boot Display „CRT+LVDS‟ should be enabled. Dependent upon which operating system is used, drivers will have to be installed, therefore please refer to the DVD that came with your Model H700B, or visit our website http://www.firich.com.tw/tech_drivers.htm...

  • Page 25: Osd Settings For Second Lcd Panel

    FEB-9455 Main Board OSD Settings for Second LCD Panel Model H700B secondary LCD panel has built-in OSD (on screen display) controls to adjust various display parameters. The control buttons are located on the right side of the back cover. OSD Settings There are four buttons on the OSD panel: Select, Down, Up, and Enter.

  • Page 26: Cmos Setup

    ON/OFF Training DOS/GFX ON/OFF NVRAM init Power Down Revert Save CMOS Setup Model H700B systems have adopted the motherboards 9455, using AWARD BIOS. Please refer to the 9455 M/B User's Manual for a detailed description of the BIOS CMOS setup.

  • Page 27: Software Setup

    Model H700B comes with a variety of drivers for different operating systems. You will find 1 DVD with Model H700B. The DVD has all the necessary drivers to setup Model H700B. Please insert the DVD into DVD-ROM. Installation will start automatically through detecting your terminal‟s BIOS;...
  • Page 28 FEB-9455 Main Board 2. Choose which driver you want to install, but please read the installation sequence carefully.
  • Page 29 3. Use the path and follow it to find the driver you want. Please follow this installation sequence accordingly. Model H700B Driver installation sequence: Chipset Driver -> VGA Driver -> LAN Driver -> Audio Driver The reason to follow our sequence is that IRQ settings will be changed by Windows XP to non supported values, and you may encounter unnecessary problems later.

  • Page 30: Intel Chip Set Driver Installation For Windows Xp

    FEB-9455 Main Board Note: Under Windows 7, the chipset driver is not necessary since the OS has already included the driver as default. Intel Chip Set Driver Installation for Windows XP Find the setup file through index Step 1. Click “Next” to continue Step 2.
  • Page 31 FEB-9455 Main Board Step 4. Click “Next” to continue Step 5. Click “Finish” to complete setup...

  • Page 32: Graphic Media Accelerator Driver Installation

    FEB-9455 Main Board Graphic Media Accelerator Driver Installation Find the setup file through index Step 1. Click “Next” to continue Step 2. Read the License Agreement and click “Yes” to continue Step 3. Click “Next” to continue...
  • Page 33 FEB-9455 Main Board Step 4. Click “Next” to continue Step 5. Click “Finish” to complete setup...

  • Page 34: Lan Driver

    FEB-9455 Main Board Lan Driver Find the setup file through index Step 1. Click “Next” to continue Step 2. Click “Install” to continue Step 3. Click “Finish” to complete setup...

  • Page 35: Audio Driver

    FEB-9455 Main Board Audio Driver Find the setup file through index Step 1. Click “Next” Step 2. Click “Finish” to complete setup ELO Touch Tools Installation ELO Touch Tools Installation for Windows XP & Vista Find the setup file through index (Tools) 2.
  • Page 36 FEB-9455 Main Board 3. Click OK to continue. 4. Click Unzip to continue the installation. 5. Click OK to continue.
  • Page 37 FEB-9455 Main Board 6. Pick the default language for the Elo Touchscreen and click Next to continue. 7. Check “Install serial Touchscreen Drivers” And click Next. 8. Read the “License Agreement” and click Yes if you accept it.
  • Page 38 FEB-9455 Main Board 9. Select “Auto-detect Elo touchscreens” and click Next. 10. Select the COM port for the touch monitor. It is recommended that you select COM5 for the touch screen, as this port is internally configured for touch operation. And click Next to continue.
  • Page 39 FEB-9455 Main Board 12. Wait until the ELO Touch Tools installation finished. 13. Select “Calibrate ELO Touchscreen monitors” and click Finish. 14. Start calibrating the touchscreen by touch the targets showed on the screen.
  • Page 40 FEB-9455 Main Board 15. If the cursor is working fine, click to finish the setting; if not, click to calibrate the screen again. IT MAY BE NECESSARY TO RESTART YOUR COMPUTER TO UTILIZE YOUR TOUCHSCREEN FEATURES. 16. Click Restart to reboot your computer again.

  • Page 41: Elo Control Panel

    FEB-9455 Main Board ELO Control Panel This section explains the different options in the ELO control Panel. General tab The general tab allows you to:  Change the COM port your touch screen is set to.  Calibrate the touch screen with the Align button. Mode tab The Buttons tab allows you to: ...
  • Page 42 FEB-9455 Main Board Sound tab The Sound tab allows you to:  To change sound properties for ELO touch tools. Properties tab The Diagnostics tab allows you to:  View Controller Information.

  • Page 43: Wireless Lan Driver Installation

    FEB-9455 Main Board About tab The About tab displays Information about ELO Touch systems Wireless LAN Driver Installation Find the setup file through index (Tools) 2. Open WiFi-118E.exe 3. Click “Next” and start the installation 4. Select “Install driver and Ralink WLAN Utility”...
  • Page 44 FEB-9455 Main Board 5. Select “Ralink Configuration Tool”Select “Optimize for WiFi mode” 6. Select “Install”...
  • Page 45 FEB-9455 Main Board 7. Click “Finish”...

  • Page 46: Specifications

    FEB-9455 Main Board System Configuration Intel Pentium Dual core E5300 2.6GHz CPU (LGA775) Chipset Intel 945G + ICH7 DRAM DDR2 400/533/667 MHz SDRAM. Up to 2GB 1 x 240 DDR2 DIMM Primary LCD Panel 15” , LED/CCFL LCD Panel , 1024x768. Primary Touch 15”...
  • Page 47 FEB-9455 Main Board Optional 12”/15” ELO 5-wire resistive touch panel. Second Touch Panel Operating 0°C~ 40°C (32°F ~ 104°F) temperature...

  • Page 48: Jumper Setting

    FEB-9455 Main Board Jumper setting To Change the settings of COM, please adjust the jumpers on 2640 I/O board COM1 5V : JP1_2 ( 5-6 short ) 12V : JP1_2 ( 1-2 short ) RI : JP1_2 ( 3-4 short ) (Default) COM2 5V : JP1_2 ( 11-12 short )

  • Page 49: Connector Pin Define

    FEB-9455 Main Board CPUFAN1 CPUFAN 4-pin Connector COM5,COM6 Serial port Connector with Box-header DIMM1 DDR2 240 Pin Slot DIO1 Digital I/O with Pin-header IDE1 HDD IDE Connector (Supply +5V) INV1 LCD inverter Connector IrDA Connector MIO1 Multi IO Connector MCR1 MSR Connector with Box-header LAN Connector with Pin-header LPT1...
  • Page 50 FEB-9455 Main Board Ground Fan Power (+12V) Speed Sense Power Button with Pin-Header (2.54mm) PIN No. Signal PSIN# Ground CPUFAN1 4Pin FAN Connector PIN No. Description Ground Fan Power (+12V) Speed Sense Control COM5, COM6 Serial Port with Box-header (2.0 mm) PIN No.
  • Page 51 FEB-9455 Main Board Data2 Data13 Data1 Data14 Data0 Data15 Ground DMA REQ Ground IOW# Ground IOR# Ground IOCHRDY Pull-down DMA ACK# Ground INT REQ P66DETECT HDC CS1# HDC CS3# HDD Active# Ground Ground INV1 Inverter Connector with Box header (2.50 mm) PIN No.
  • Page 52 FEB-9455 Main Board LED1# LED0# 2nd LCD/VGA connector PIN No Signal PIN No Signal Strobe# Data0 Data 1 Data 2 Data 3 Data 4 Data 5 Data 6 Data 7 Acknowledge# Busy Paper Empty Printer Select Auto Form Feed# Error# Initialization# Printer Select IN# Ground...
  • Page 53 FEB-9455 Main Board RXD#4 RTS#4 TXD#4 CTS#4 DTR#4 RI#4 DCD#3 DSR#3 RXD#3 RTS#3 TXD#3 CTS#3 DTR#3 RI#3 DCD#2/DT- DSR#2 RXD#2/DT- RTS#2 TXD#2/422R+ CTS#2 DTR#2/422R- RI#2 DCD#1 DSR#1 RXD#1 RTS#1 TXD#1 CTS#1 DTR#1 RI#1 F_KCLK F_KDAT L_MCLK L_MDAT DIO_OUT0# DIO_IN0 L_TX- L_TX+ L_P4&P5C L_RX-...
  • Page 54 FEB-9455 Main Board 5VSB +12V PS_ON- Ground Ground Ground PWR2 ATX 12V 4-pin Connector PIN No. Signal PIN No. Signal Ground Ground +12V +12V SATA PWR1 SATA 6pin Power Connector with Box-header (2.5 mm) PIN No. Signal Ground Ground +12V +12V USB1 USB0 Port Connector with Pin-header (2.0mm)
  • Page 55 FEB-9455 Main Board USB DATA3- USB DATA5- USB DATA3+ USB DATA5+ USB4 USB6, USB7 Port Connector with Pin-header (2.0mm) PIN No. DESCRIPTION USB DATA6- USB DATA6+ Ground USB DATA7-...

  • Page 56: Troubleshooting

    FEB-9455 Main Board Please note that the following troubleshooting guide is designed for people with strong computer hardware knowledge such as System Administrators and Engineers. Power is on, but there is no Panel Display A) Enter BIOS setup program and then get into the Boot Display option. Check if the default setting is [ Auto ];...

  • Page 57: Second Lcd Panel Is Not Functioning Properly

    FEB-9455 Main Board original ELO controller, and re-calibrate. B) If the ELO touch panel still cannot calibrate correctly after changing to a new ELO controller, the touch panel may be not installed properly or it could be defective. Second LCD Panel is Not Functioning Properly Check that the VGA driver is installed properly (Please refer to the VGA driver installation section).

  • Page 58: Vfd Display Is Not Functioning Properly

    FEB-9455 Main Board For an MCR to work under Windows2000, the keyboard must be connected prior to booting the system. VFD Display is not functioning Properly Ensure that COM4 is enabled in the CMOS setup, and data is written to COM4 in the application.
