Battery Installation
7. Using the positive battery cable located at the top
of the enclosure, wire the cable to the rightmost
positive battery terminal on the top of the shelf of
the enclosure.
8. Apply corrosion inhibitor to the terminals and
connections.
9. Re-install the securing bar using the 8 screws
removed in step 2.
10. Repeat steps 2-7 for the middle and bottom shelf,
respectively.
11. Feed the load cables through the bottom of the
enclosure's rubber grommet. An LB with a 2" (5.1 cm)
conduit may be connected to any of the knockouts
on the riser if required.
12. Connect the positive load cable to the busbar on
the right of the enclosure wall and the negative load
cable to the busbar on the left of the enclosure wall
(See Figure 12).
13. Installation is complete. Activate the breakers per
installation needs.
3/4" x 1/4-20 Bolt
Split Washer
Flat Washer
Battery Cable
Battery Terminal
Battery Cable Wiring

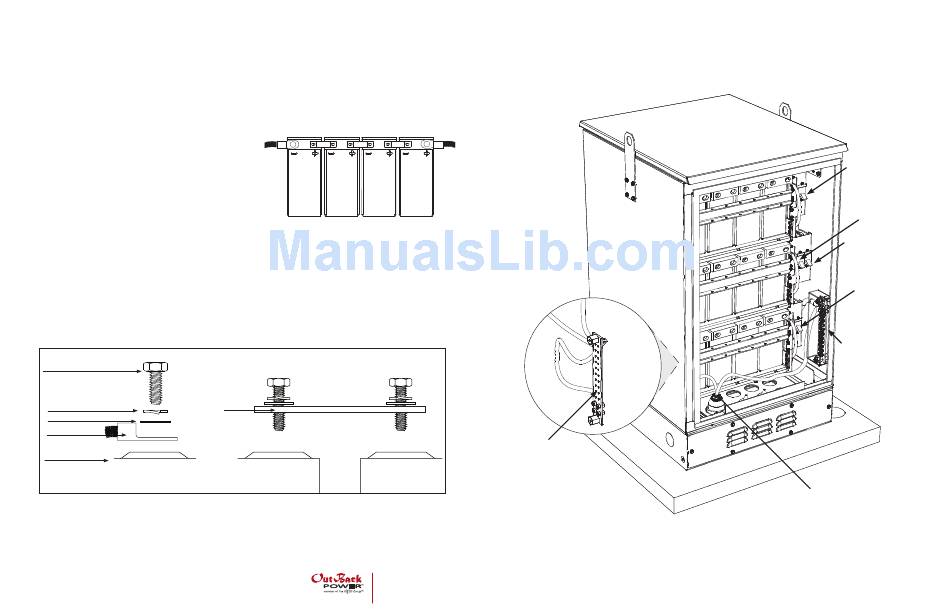

Figure 11, Battery Wiring / Bus Connections Stackup
Figure 10, Battery Positive and
Negative Positioning/Wiring
Top-Down View
Busbar
Battery Interconnect
Worldwide Corporate Offices
North America
Tel: +1 360.435.6030
p/n 044-026-B0-001, Rev. A (03/2015)
Fax: +1 360.435.6019
Battery Installation
Negative Busbar
Figure 12, Breaker and Busbar Locations
Latin America
Europe
Asia Pacific
Tel: +1 561.792.9651
Tel: +49 9122.79889.0
Tel: +852 2736.8663
Fax: +1 561.792.7157
Fax: +49 9122.79889.21
Fax: +852 2199.7988
String 1 Breaker
String 2 Breaker
Main Breaker
String 3 Breaker
Positive Busbar with
Transparent Cover
Load Cables
