Summary of Contents for Miracall Technology IP PBX MC-IP8008

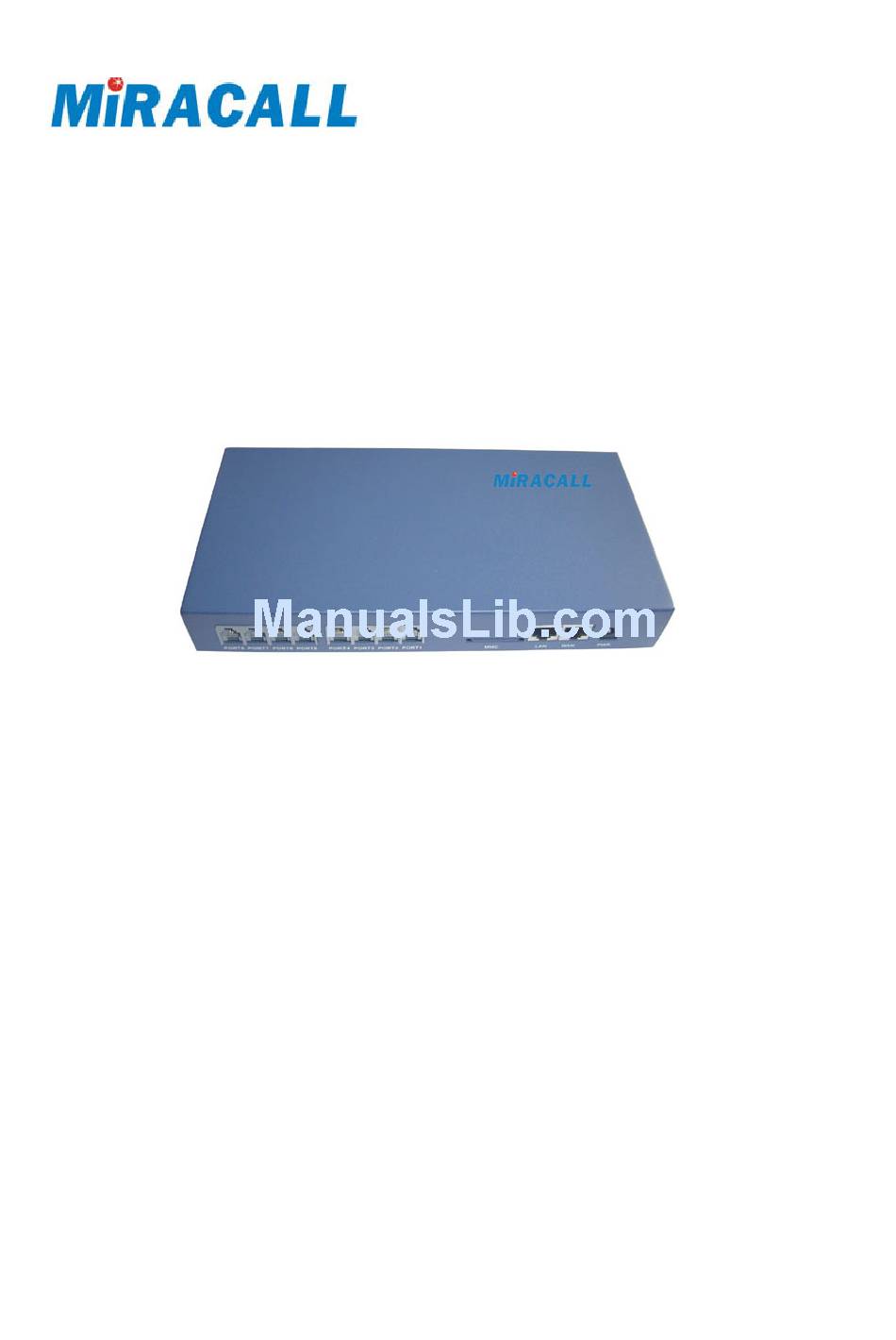

- Page 1 Miracall Technologies IP PBX MC-IP8008 User Manual Please read this manual carefully before operation...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Chapter1 Brief Introduction & Features ................ 2 1.1. System Features ....................2 1.2. Specifications ...................... 3 1.3. Default configuration ................... 4 Chapter2 Basic Configuration..................5 2.1. Log on to the system................... 5 2.2. Configure User Extensions ................. 6 2.3. -
Page 3: Chapter1 Brief Introduction & Features

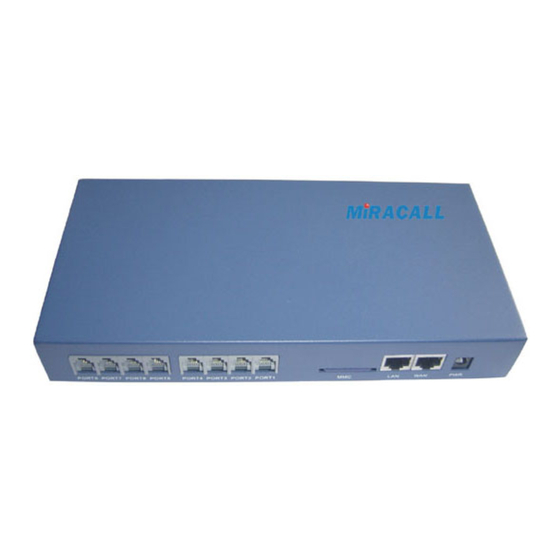

Chapter 1 Brief introduction & Function MiraCALL04/08 is an embedded ippbx based on standard asterisk for SMEs, which is not only a PBX, but also as a voice mail Server, IVR server, conferencing server. With 4 or 8 analog interface which can be configured as FXS or FXO ports (made in factory), and 1Wan and 1Lan with router function. -
Page 4: Specifications
1.2 Specifications 1) Interface 4or 8 * Analog Ports (RJ11) 1 * USB Interface(for Wifi moudule, unavailable) 1 * SD MMC Interface (2GB,to install voicemail) 2 * Network Interface (RJ45,1 for WAN, 1 for LAN) 1 * Power port（DC 12V 2A） 1 * Re-set Button (beside PWR button,black) 2) Panel Mark... -
Page 5: Default Configuration
3) Hardware 32bit embedded RISC DSP 256M Onboard Nand Flash 2M Onboard Nor Flash 64M Onboard SDRAM 2G MMC/SD Storage 4) environmental requirements: temperature: -10 °C -48 °C Storage temperature: -30 °C -68 °C humidity: 10-80% no dew Power: 90~260VAC 5) Packing List MC-IP4008,8008 1 Unit Power Adapter... -
Page 6: Chapter2 Basic Configuration
Chapter2 Basic Configuration 2.1. Log into the system After connecting the ippbx to the local area network. Launch the web browser on a computer that is in this local area network. Enter the IP address for the system (Wan port IP address 192.168.1.100:9999, Lan port IP address 192.168.10.100:9999) . -
Page 7: Configure User Extensions
The home page is used for login out, Reboot or return to Factory default status. The home page is used for login out, Reboot or return to Factory default status. Logout: Logout: To log out the MiraCALL GUI. To log out the MiraCALL GUI. Restart Asterisk Restart Asterisk Restarted the Asterisk system. -
Page 8: Trunk
There are also several advanced extension options available. The advanced options establish the connections from the listed extension to other systems within the IPPBX system server. These advanced options include the following: Voicemail The extension support voicemail or not. Can reinvite Can send call again In SIP protocol The extension support SIP protocol The extension support IAX protocol... - Page 9 need to complete the following: Comment The name of the SIP Trunk Protocol You can select a SIP or IAX protocol Register Enable/Disable register. Host The IP address provided by your IP carrier provider Username The user name provided by your IP carrier provider Password The password provided by your IP carrier provider Once you have added a VoIP Trunk it will appear on the list of Trunk on the Trunk...
- Page 10 Codecs Codecs provide the ability for your voice to be converted to a digital signal and transmitted across the internet. Advanced The following advanced options are available to further refine your trunk. Trunkname Specify a trunk name if you want to refer to the service provider definition as something other than specified in Comment Insecure This option specifies how connections to a service provider (host)
-
Page 11: Outbound Routes
2.4. Outgoing Call (Dial Rules) The Dial Rules tab on the left toolbar allows you to use basic pattern matching to differentiate outgoing calls and route them accordingly (create different DialPlan). Click on Add a Dial Rule to define a new DialPlan. The following dialog will be displayed. A DialPlan is comprised of the following items: Rule Name Set a rule name (can be any) -
Page 12: Inbound Routes
that probably didn’t require a long distance charge. Instead of adding a rule for every that probably didn’t require a long distance charge. Instead of adding a rule for every extension or phone number you call, specify the pattern in this rule similar to the extension or phone number you call, specify the pattern in this rule similar to the example. -
Page 13: Ivr (Interactive Voice Response)
2.6. Auto-attendant Setting (IVR) Through the web page, you can create Interactive Voice Response (IVR). IVR are designed to allow for more efficient routing of calls from incoming callers. Voice menus are constructed depending on your needs. Just like your business you need to create the solution best suited to your customers. -
Page 14: Record
2.7. Record OGM In the event that one wants to record custom menu prompts for the IP PBX, which can be used in a IVR, the Record may be used. A list of previously recorded menus is displayed. Here, the user may modify several options Record Again To record a new voice message by phones... -
Page 15: Voicemail
The Voicemail Configuration page displays all the extensions to the left, including voice mail. Standard configuration information is also present, allowing you to confirm the extension used to check messages as well as general parameters such as the following: Extension for Checking Messages Dial this number to access personal extension Voicemail box. -
Page 16: Conferencing
Including WAV (GSM), WAV(16-bits),Raw GSM Message Format The format of the voicemail which saved in the IP-PBX Maximum Messages Set the max. messages to leave for each extension user. The maximum duration of each message . Maximum Message Time Minimum Message Time The minimum duration of each message . -
Page 17: Music On Hold
Action Explain Default Room Extension Dial this extension to entry to conference group. Pin Code Input this password before login in conference 1234 Admin Pin Code Administer can use this code to manage the conference 1234 room. Conference Optional Play hold music for The first joiner hear the waiting music first participant Enable participant Menu... -
Page 18: Ring Groups
Call park allow you to place the incoming caller on hold. Any extension can talk to this parked caller. The parked party will hear the music. Extension to Dial for Parking Calls: Set a Call Parking number. To park the call, the incoming Caller should be transfer to this Parked number. -
Page 19: Time Based Rules
When there’s no answer ,you can choose to route the call to Voicemail, IVR or hand-up. Number to dial to access ringing group The access code to ringing group. Ring time for each/all extension The duration ringing for each extension in the group, after duration finished , call will ring to another circle or another extension. -
Page 20: Call Logs
Chapter 3 IP-PBX Status 3.1. Call List To show calling history, starting time, duration, answered or un-answered status . 3.2. Register Status If there’s IP address displayed then it mean the extension is registered successfully. -
Page 21: System Info
3.3. System Info To display the IP-PBX system data and information , version, Asterisk version etc. Chapter4 System Management 4.1. Network and Country... -
Page 22: Ddns Setting
On this page you can set WAN, LAN interface information and country. IP Assign: you can select STATIC, DHCP and PPPoE three mode NTP: Set NTP server address. Country: Set your Country, and use the Country Zone 4.2. DDNS On this page, you can set DDNS reference. Notice: Now, it only support 3322.org server. -
Page 23: Upgrade
On this page, clicking the “Take a Backup” button, you can backup nonce configuration 4.5. Upgrade In this page you can upgrade system package and music file Upgrade System Package Enter The Package Name Set system package name TFTP Server IP address Set TFTP server IP Upgrade Music File... -
Page 24: Chapter5 Operating Instruction
Enter The Music File Name Set you want upgrade music file name TFTP Server IP address Set the TFTP server IP Select Music directory Select directory that you want saved music file. Chapter 5 Operating Instruction 5.1. How to make a internal call Add a New User Users->... -
Page 25: How To Make A Outbound Call
Use a SIP/IAX IP Phone registered with the user. Then you can use 801 call 802 successful. 5.2. How to make a outbound call To make an outbound call, we need to add a trunk first. There are two types of Trunk: Analog Ports: FXO ports of MC-IP8008, connect to local PSTN VoIP Trunk:... - Page 26 Add Dial Rule In a Dial Rule -> add a Dial rule as below Dial Rules We have now added a Dial rule “Dial_PSTN” in the “DialPlan2”. As we can see from the dialing rule of “Dial_PSTN”, all numbers start with 9 will be cut the first digit (‘9’) .
-
Page 27: Make Call Via Voip Trunk
Add Dial Rule In Dial Rules -> add a new calling rule as below Dial Rules Now we have added a new calling rule “Dail_Out_to_SIP” in the “DialPlan1”. As we can see from the dialing rule of “Out_VoIP”, all numbers start with 0 will be cut the first one digits (‘0’) and sent to my sip service provide voip. - Page 28 Select Route “All Unmatched incoming calls” From provider “Port 1,2” To extension “8018 – IP Phone” (here, you can select a extension, a IVR or others) Then, if there is incoming call from Port1,2 channel the extension 8018 will ring...
