Nexersys NXS-P Owner's Manual

Pro/commercial
Hide thumbs
Table of Contents

Advertisement

Quick Links

Nexersys - Pro/Commercial
NXS-P/NXS-C Owner's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NXS-P and is the answer not in the manual?

Questions and answers

Related Manuals for Nexersys NXS-P

Summary of Contents for Nexersys NXS-P

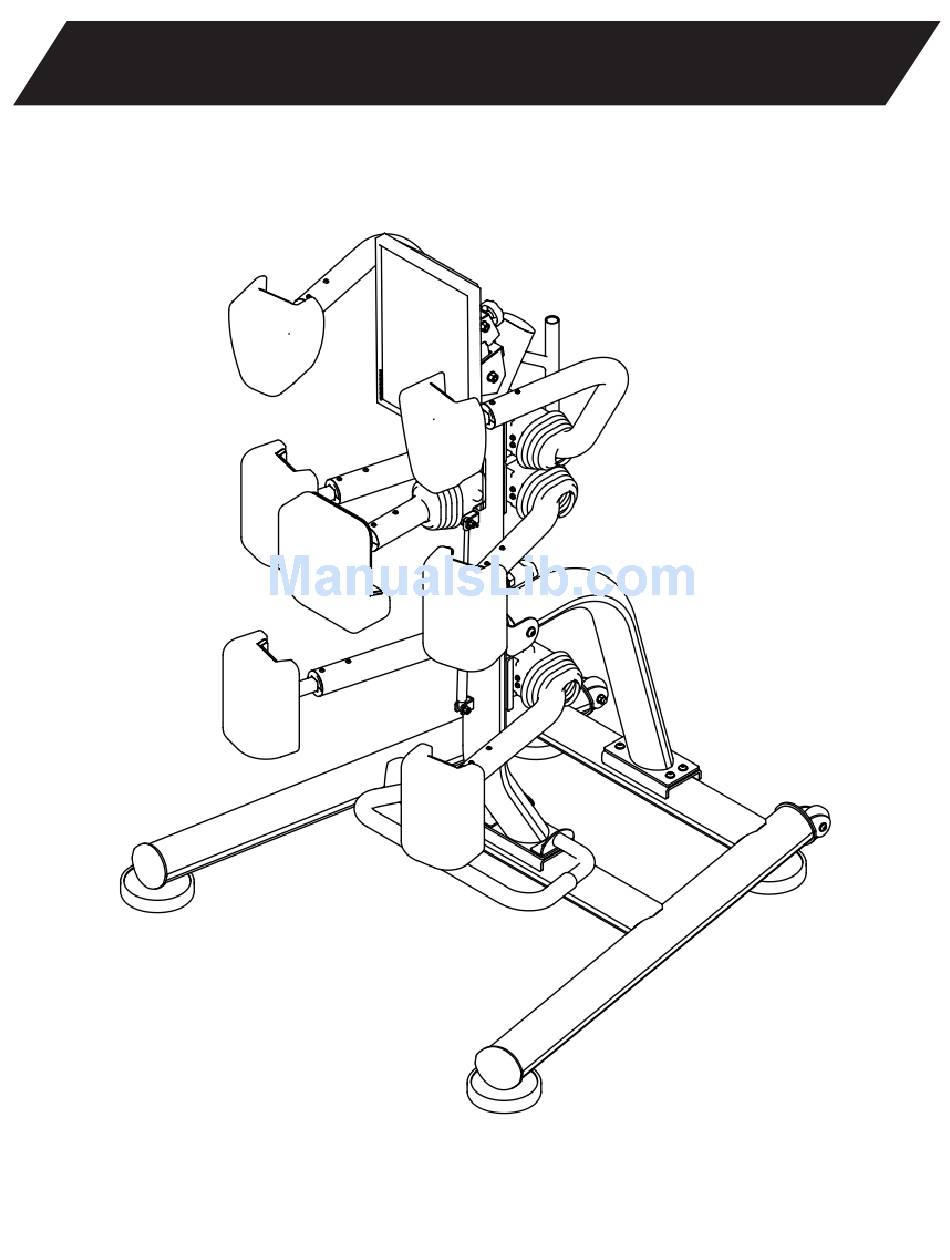

  • Page 1 Nexersys - Pro/Commercial NXS-P/NXS-C Owner’s Manual...

  • Page 2: Table Of Contents

    Parts & Reference Guide ........................6 Step 1: Spine Support Assembly ......................12 Step 2: Spine Assembly ........................13 Step 3: Mount CPU and Monitor to Nexersys .................. 15 Step 4: Connect Accelerometer Cables ..................... 16 Step 5: Connect Audio and Video Cables ..................17 Step 6: Connect AC Power Supply ....................

  • Page 3: Introduction

    Introduction Nexersys is high intensity interval cross training that delivers an Effective and Total Body workout to all users – those with no striking experience, to those trained in Boxing or MMA. With 5 different workout programs, 3 difficulty levels, over 100 instructional videos, and thousands of workout possibilities, Nexersys Training adapts to your fitness needs.

  • Page 4: Before Assembly

    For best results, assemble the Nexersys in the location where you intend to use it. Allow a workout area of at least 10ft by 6ft of free space for safe operation of the Nexersys. Below are a few basic tips that will make your assembly of the Nexersys quick and easy.

  • Page 5: Important Safety Instructions

    Failure to use genuine replacement parts can cause a risk to users, keep the Nexersys from operating correctly or void the warranty. • Do not attempt to service the Nexersys yourself other than the assembly and in a manner found in the maintenance instructions of this manual. •...
  • Page 6 • Do not rock the unit. • Turn OFF and unplug the Nexersys when adjusting cables, frame, and monitor. • To prevent shock, keep all electrical components, such as the monitor, power cable etc., away from water or other liquids. Never place liquids on any part of the unit.

  • Page 7: Product Specifications

    Carton Size: 25” x 6” x 17” • Custom built computer utilizing TI OMAP Processor • Custom Nexersys software running on Linux Operating System • 3-axis accelerometer on PCB mounted in each pad to capture strike data NXS-P/NXS-C Owner’s Manual...

  • Page 8: Parts & Reference Guide

    Parts & Reference Guide NXS-P/NXS-C Owner’s Manual...
  • Page 9 M8 20mm Bolt (Fastened to each pad) M8 Flat Washer (Fastened to each pad) M8 Lock Washer (Fastened to each pad) M6 Nylon Lock Nut M3.5 Flat Washer Hex Key, size = 5/32” Hex Key, size = 5 Hex Key, size = 6 NXS-P/NXS-C Owner’s Manual...
  • Page 10 Parts & Reference Guide NXS-P/NXS-C Owner’s Manual...
  • Page 11 Rubber Gasket Base Spine Left Head Pad Right Head Pad Left Body Pad (Kidney Pad) Center Body Pad Right Body Pad (Kidney Pad) Left Kick Pad Right Kick Pad Accelerometer Cables DC Power Cable Sit Up Bar NXS-P/NXS-C Owner’s Manual...
  • Page 12 Parts & Reference Guide NXS-P/NXS-C Owner’s Manual...
  • Page 13 Parts & Reference Guide Item Quantity Description 22” LCD Monitor HDMI to DVI Cable Audio Cable AC Cable AC Power Brick USB Cable NXS-P/NXS-C Owner’s Manual...

  • Page 14: Step 1: Spine Support Assembly

    Assembly Step 1: Spine Support Assembly Parts Needed: Base, Spine Support, Rubber Gasket Hardware Needed: M10 25mm Bolt (4); M10 Flat Washer (4) NXS-P/NXS-C Owner’s Manual...

  • Page 15: Step 2: Spine Assembly

    Step 2: Spine Assembly Additional Parts Needed: Spine; Rubber Gasket; Spine Handle Hardware Needed: M10 25mm Bolt (4); M10 Flat Washer (4); M12 Nylock Nut, M12 Flat Washer (2); M12 160mm Bolt; M8 20mm Bolt (2); M8 Flat Washer (2) NXS-P/NXS-C Owner’s Manual...
  • Page 16 To adjust the height of your unit, turn the back side knobs to the left to loosen, pull back knob out to disengage pin-lock, move the spine to your preferred height, and then turn the knobs right to tighten and secure. Back Knob Side Knob NXS-P/NXS-C Owner’s Manual...

  • Page 17: Step 3: Mount Cpu And Monitor To Nexersys

    Assembly Step 3 - Mount CPU and Monitor to Nexersys Note: Both the lock washer and flat washer are required for proper assembly. Warning: Be sure to install washers per instructions to avoid potential damage to the CPU. NXS-P/NXS-C Owner’s Manual...

  • Page 18: Step 4: Connect Accelerometer Cables

    Assembly Step 4 - Connect Accelerometer Cables Note: Plug-in left to right (1-7) when facing back of monitor. Make sure the clip on the acceleromater cable faces the monitor when insterted. NXS-P/NXS-C Owner’s Manual...

  • Page 19: Step 5: Connect Audio And Video Cables

    Assembly Step 5 - Connect Audio, Video & USB Cables VGA Port (Not Used) NXS-P/NXS-C Owner’s Manual...

  • Page 20: Step 6: Connect Ac Power Supply

    Assembly Step 6 - Connect AC Power Supply Note: Connect DC Cable from AC power supply to DC cable at base of Nexersys. NXS-P/NXS-C Owner’s Manual...

  • Page 21: Step 7: Connect Dc Power Cables To Cpu And Monitor

    Assembly Step 7 - Connect DC Power Cables to CPU and Monitor Note: The DC cable is routed through the spine of the Nexersys iPower Trainer. NXS-P/NXS-C Owner’s Manual...

  • Page 22: Step 8: Insert Sd Card

    Assembly Step 8 - Insert SD Card Note: Insert SD card into slot fully until spring mechanism locks SD card into place. NXS-P/NXS-C Owner’s Manual...

  • Page 23: Step 9: Turn On Power

    Assembly Step 9 - Turn On Power Note: Please wait at least 20 seconds for software license screen. Monitor Power Switch CPU Power Switch NXS-P/NXS-C Owner’s Manual...
  • Page 24 Assembly Final Inspection Inspect your Nexersys to ensure that all fasteners are tight and components are properly assembled. Failure to visually check and test assembly before use can cause damage to the equipment. It can also cause serious injury to users and bystanders.

  • Page 25: Features And Use

    Features and Use Nexersys will alert you when you are hitting the machine too hard with a warning buzz. If you continue to hit too hard, the machine will automatically pause and warn you to adjust your stance and your power. Hitting too hard does not help improve the effectiveness of your workout.
  • Page 26 Lead Knee Power Knee Lead Sweep Power Sweep Lead Elbow Power Elbow Lead Hook Power Hook Lead Uppercut Power Uppercut Figure 2. Rotational Strike Icons NXS-P/NXS-C Owner’s Manual...
  • Page 27 (Figure 3 left) and a detail page with the round wrap-up stats from each round (Figure 3 right). These workout wrap-ups will be stored in the Historical Data folder found under Profiles & Settings / View Historical Data. Figure 3. Round Wrap-up NXS-P/NXS-C Owner’s Manual...

  • Page 28: Intensity

    Advanced combos like a pro. Training videos measure accuracy, power, and the number of strikes per round. Based on the measurements captured over time, Nexersys will show where a user can focus to improve performance and results in the round and workout wrap-ups.

  • Page 29: Strike Technique

    Power leg kicks front of same side kick pad. With balance, pull power leg knee up, extend leg with slight push into kick pad – no more than 1-2 inches compression, bend leg again and replace foot back into stance. NXS-P/NXS-C Owner’s Manual...
  • Page 30 Lead leg sweeps around, as body pivots with it. Lead leg strikes the inside of the opposite leg pad. • Power Sweep Power leg sweeps around, as body pivots with it. Power leg strikes the inside of the opposite leg pad. NXS-P/NXS-C Owner’s Manual...

  • Page 31: Maintenance

    IMPORTANT NOTE: Never hang a pad from a cable. Make sure the pads are always securely attached to the pad arms. Wear gloves made for striking – MMA or Boxing gloves – every time you use your Nexersys. If you want additional protection for your hands, wrap them first and then put on gloves.

  • Page 32: Troubleshooting

    Check that the green light on the left side of the monitor is lit to indicate the monitor is ON. Ensure that the card is inserted into the CPU properly. After turning your Nexersys on, it will need at least 20 seconds to boot up before you will see activity on the screen.
  • Page 33 The aspect ratio on the monitor may be set wrong. The SCALE will toggle the display from 4:3 aspect ratio to 16:10. I cannot hear any sound coming from my Nexersys OR Music or voice volume is too loud Check that audio cable is inserted all the way on both the monitor and CPU side.

  • Page 34: Long Term Storage

    Troubleshooting If you removed your USB stick or turned off your Nexersys during a “Do not unplug USB or turn off the machine” screen, you may have corrupted your USB stick. To fix this, insert the USB stick into a PC computer and run a disk repair.

  • Page 35: Limited Warranty

    1 year How Nexersys Corporation Will Support the Warranty Throughout and as set forth under the terms of the Warranty, Nexersys Corporation will provide a replacement for any component or part that proves to be defective in materials or workmanship. Nexersys Corporation reserves the right to substitute material of equal or better quality if identical materials are not available under this warranty.
  • Page 36 Call Nexersys Customer Service at 877-785-3823 or email support@nexersys.com Exclusions The preceding warranties are the sole and exclusive express warranties made by Nexersys Corporation. They supersede any prior, contrary or additional representations, whether oral or written. No agent, representative, dealer, person or employee has the authority to alter or increase the obligations or limitations of this warranty.
  • Page 37 30 days of receiving your Nexersys. If you fail to register your product within the time frame listed above, your warranty will be voided.

  • Page 38: Contacts

    Contacts TECHNICAL / CUSTOMER SERVICE E-mail: support@nexersys.com Phone: 877-785-3823 Website: www.nexersys.com CORPORATE HEADQUARTERS Nexersys Corporation 1021 E 7th St. Suite 100 Austin, Texas 78702 Phone: 877-209-0320 E-mail: info@nexersys.com Website: www.nexersys.com Serial Number Date of Purchase NXS-P/NXS-C Owner’s Manual...
