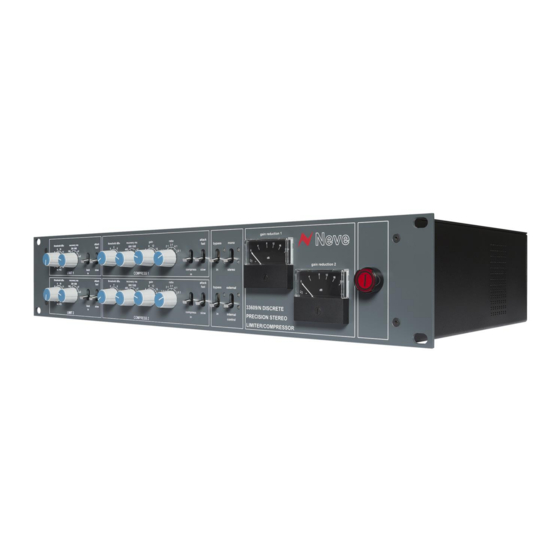

Neve 33609/N User Manual

Dual compressor / limiter
Hide thumbs
Table of Contents

Advertisement

Quick Links

33609/N
Dual Compressor / Limiter
User Manual
527-409
Issue 1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 33609/N and is the answer not in the manual?

Questions and answers

Summary of Contents for Neve 33609/N

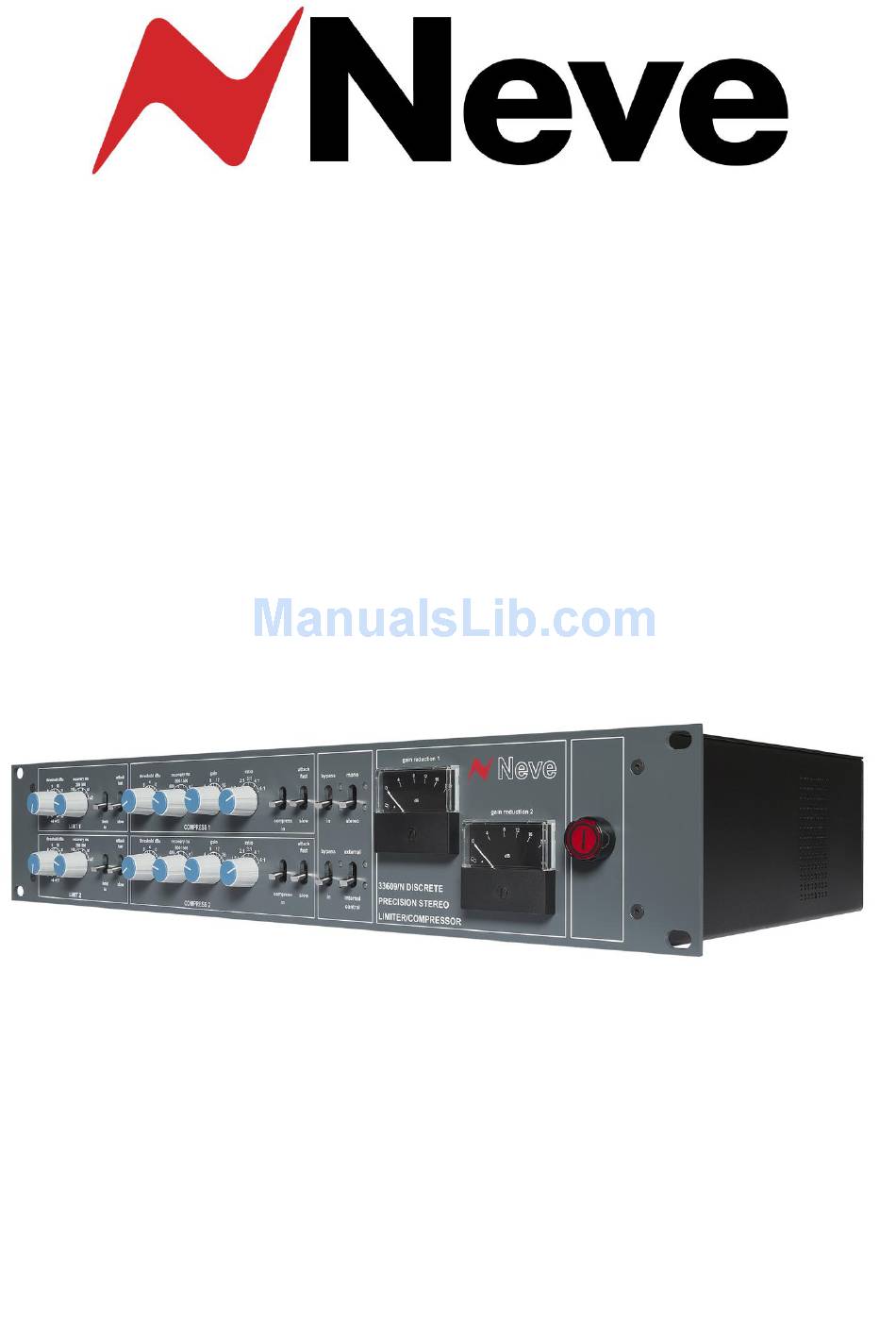

  • Page 1 33609/N Dual Compressor / Limiter User Manual 527-409 Issue 1.1...

  • Page 2: Important Safety Instructions

    © 2015 AMS Neve Ltd own the copyright of all information and drawings contained in this manual which are not to be copied or reproduced by any means or disclosed in part or whole to any third party without written permission.

  • Page 3: Table Of Contents

    Table of Contents Important Safety Instructions ................2 Table of Contents ................... 3 33609/N Dual Compressor / Limiter Introduction ..........4 Configuring the 33609/N ................. 4 Front Panel Description ................... 5 Rear Panel Description ..................7 Rack Mount Instructions .................. 8 Troubleshooting ....................

  • Page 4: 33609/N Dual Compressor / Limiter Introduction

    2U rack-mount unit. The two channels are suitable for mono, stereo or independent operation, with the option to link to other units for multi-channel use. At its core, the 33609/N retains the same basic circuitry as earlier discrete models, now with extra control options and a classic appearance.

  • Page 5: Front Panel Description

    Front Panel Description power switch: Switches the unit on or off. The switch is illuminated when the unit is ON gain reduction meters: Show the amount of gain reduction occurring on each channel, in decibels external / internal: In internal mode all front panel toggle switches operate normally and the adjacent LEDs light red.
  • Page 6 (COMPRESS) recovery ms: Sets how slowly the gain reduction subsides after a loud passage has ended. In the a1 and a2 positions the recovery time is self- adjusting; recovery is rapid for transient peaks but slower for persistent high levels, so the impression of normal dynamic range is better preserved (COMPRESS) gain: Sets the amount of make-up gain applied to the compressed audio.

  • Page 7: Rear Panel Description

    *Note: EITHER a “L+R bypass” switch (Pin#2 as in older 33609s) OR the separate left and right bypass switches (Pins#10 & #11 -33609/N only) should be implemented, but not all three at once which will lead to confusion because of the way the latching logic works.

  • Page 8: Rack Mount Instructions

     Rack Mount Instructions  Elevated Operating Ambient- If installed in a closed or multi-unit rack assembly, the operating ambient temperature of the rack environment may be greater than room ambient. Therefore, consideration should be given to installing the equipment in an environment compatible with the maximum ambient temperature (50°C) specified by the manufacturer.

  • Page 9: Dimensions

    Dimensions Stand-alone Width Height Depth Approx. Weight Modules mm (inches) mm (inches) mm (inches) kg (lbs) 33609/N Module 480 (19) 88 (3.5) 255 (10) 5 (11) Module Power 33609/N 100 – 230Vrms, 50/60Hz, 28W Specifications Input Input Impedance 10k (internally switchable to 600, refer to vendor).
