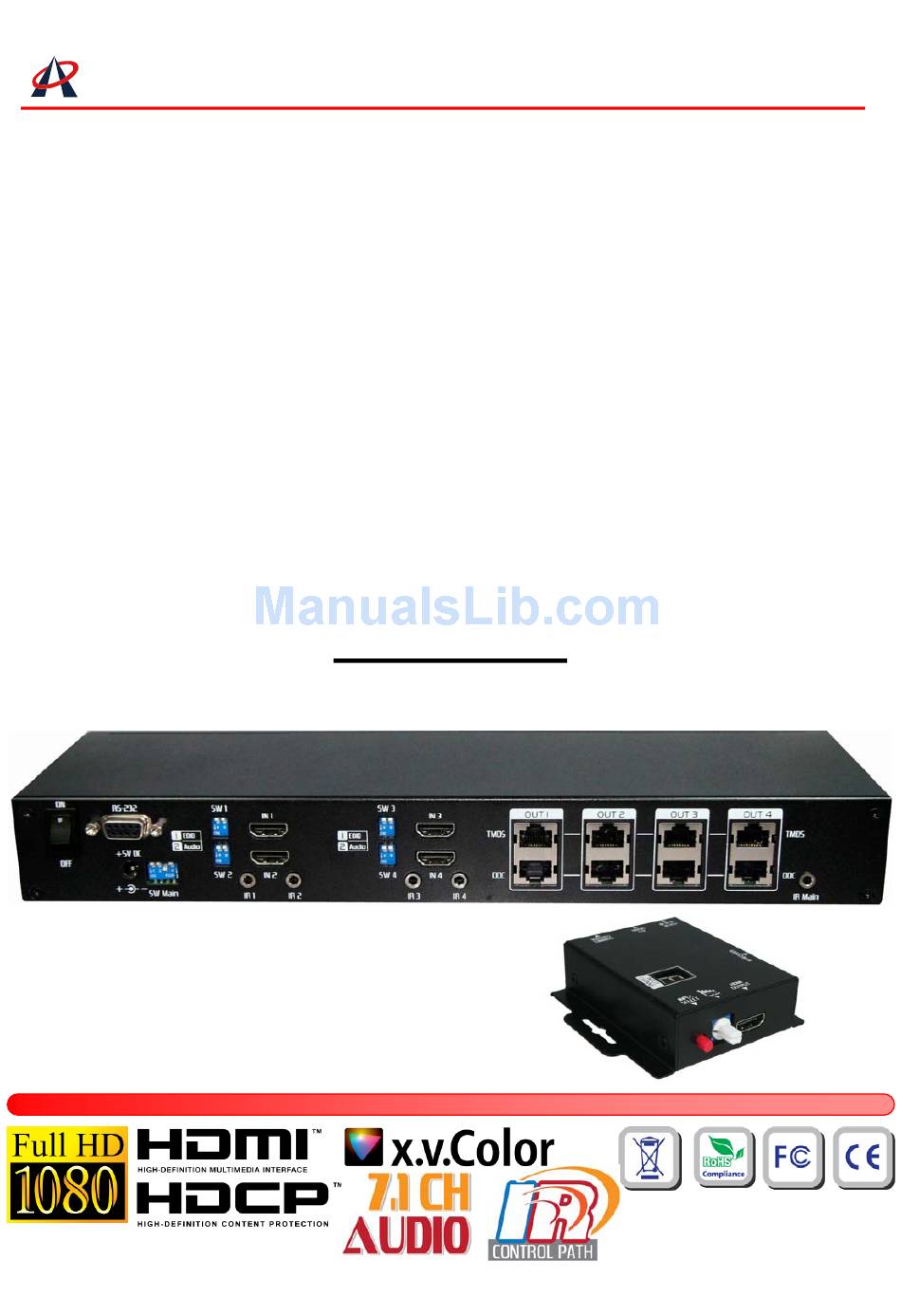

- Page 1 ACE PLUS CORP. EX-G011 v1.3 4x4 HDMI over CAT5 Matrix with IR Pass-through User Manual Made in Taiwan...
-
Page 2: Safety And Notice
However, like all electronic equipments, the EX-G011 v1.3 should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit. - Page 3 ACE PLUS CORP. Introduction The EX-G011 v1.3 4x4 HDMI over CAT5 Matrix with IR Pass-through provides the most flexible and cost effective solution in the market to route high definition video sources plus multi-channel (up to 7.1-channel) digital audio from any of the four HDMI sources to the remote displays at the same time.
- Page 4 Transmitter [TX] HDMI compliance HDMI 1.3c HDCP compliance Video bandwidth [EX-G011 v1.3] – Single-link 225MHz [6.75Gbps] Video support 480i / 480p / 720p / 1080i / 1080p60 36-bit color Audio support Surround sound (up to 7.1ch) or stereo digital audio...
- Page 5 The EX-G011 RX has been tested extensively and found that it doesn’t require external power supply. If in rare situation you find it cannot work with the EX-G011, please use any +5V power adapter to plug in the power jack and see if it can work. If not, please contact your technical support for further service.
-
Page 6: Panel Descriptions
ACE PLUS CORP. Panel Descriptions EX-G011 1. Power: Power indicator LED 2. IR: IR receiver 3. Input: Input source indicator LED 4. HP1–HP4: Connection status indicator LED for each output channel 5. Port1–Port4: Input source channels mapping LED for each output channel 6. - Page 7 The EX-G011 RX has been tested extensively and found that it doesn’t require external power supply. If in rare situation you find it cannot work with the EX-G011, please use any +5V power adapter to plug in the power jack and see if it can work. If not, please contact your technical support for further service.
-
Page 8: Dip Switch
ACE PLUS CORP. DIP Switch for EDID/Audio SW1-SW4 DIP Switch Position Video Audio Description Pin#1 Pin#2 Up to Surround Default Mode – Up to 1080p video & surround sound OFF [ ] 1080p audio output up to 7.1ch (DTS-HD & Dolby TrueHD) Safe Mode –... - Page 9 WARNING! [Firmware update only can be done via RS-232 port and connection to PC set at COM1) 1. Power off the EX-G011. Execute the firmware update program on your PC via COM1 port connection to the RS-232 port of the EX-G011.
-
Page 10: Ir Pass-Through
1 to 4. EX-G011RX IR RECEIVER: IR receiver connected here can receive all IR command signals from the IR remote controls of EX-G011 and all other HDMI source devices. Definition of IR Earphone Jack IR Blaster... - Page 11 ACE PLUS CORP. Supported IR Data Format Data Format Suitable Recommended TOSHIBA MICOM CODE GRUNDIG CODE SONY 12 BIT CODE SONY 15 BIT CODE SONY 20 BIT CODE RCA CODE RCM CODE MATSUSHITA CODE MITSUBISHI CODE ZENITH CODE JVC CODE...
-
Page 12: Hardware Installation
3. Connect each TMDS output on the EX-G011 to respective TMDS input on the remote receiver EX-G011RX 4. Connect IR blaster to the EX-G011 and direct the IR blaster to point towards the built-in IR receiver of the HDMI source devices 5. -
Page 13: Operation And Ir Control
ACE PLUS CORP. Operation and IR Control Source Side Method A: Push-in Button Push the red switch button on output port to select which port to be changed. Method B: IR Remote Control Choose the output port you want to make channel switch from OUT1 to OUT4 then press 1-4 channel button to choose the HDMI input source shown on the chosen output display. -
Page 14: Channel Control
Channel Control ACE PLUS CORP. Method C: Software Control through RS-232 or USB port HDMI Input Source Selection Mapping Area HDMI Output Port Selection Mapping Area Software Control Menu Status Indicator 1. Setting button: Click Get button to read back device ID. - Page 15 ACE PLUS CORP. Click Save String Table to save the caption setting (turn effective after program restart). Click Set Default to pop up the confirmation message below to erase the captions and reset the string table back to default setting (turn effective after program restart).
- Page 16 ACE PLUS CORP. 3. Linkage button: Click Linkage button to read back all status. 4. Open/Close button: Click this button to close or open COM port. 5. Mapping button: Select All Output Select “set all output”, and then select the source on main menu. You can quickly set all output to the same source.
- Page 17 ACE PLUS CORP. 6. Fast Select button: Click Fast select button. Quick setting. Input one > Output Port one Input two > Output Port two ….. Click Fast select pull down menu. Select Input Num-Output Num Input source #1 > Output port #1 Input source #2 >...
- Page 18 ACE PLUS CORP. One by one setting On main menu screen First select input source. Then select the output ports which you want to send the video and audio from this source. When you select the input source, the source will change to gray. When you select the output port one by one, the selected output port will change to gray.
- Page 19 ACE PLUS CORP. Display Side Method A: Push button for switching input channels Press the INPUT SELECT push button to switch the input source on the respective output port connected to the matrix receiver in sequential order. The selected input source will be displayed on the seven segment display of INPUT CHANNEL.
- Page 20 ACE PLUS CORP. IR Discrete Code Default Custom Code — IR2 Code: 00 FF Function POWER — 0x17 0x02 0x0C 0x0A SOURCE SEL. 1 SOURCE SEL. 2 SOURCE SEL 3 SOURCE SEL. 4 0x54 0x55 0x56 0x01 0x57 0x58 0x59...
- Page 21 ACE PLUS CORP. Custom Code — IR4 Code: 0x13 0x31 Output 1 Output 2 Output 3 Output 4 Source 1 0xAE 0xBE 0xCE 0xDE Source 2 0xAD 0xBD 0xCD 0xDD Source 3 0xAC 0xBC 0xCC 0xDC Source 4 0xAB 0xBB...
-
Page 22: Edid Learning
ACE PLUS CORP. EDID Learning The EDID learning function is only necessary whenever you encounter any display on the HDMI output port that cannot play audio and video properly. Because the HDMI source devices and displays may have various level of capability in playing audio and video, the general principle is that the source device will output the lowest standards in audio format and video resolutions to be commonly acceptable among all HDMI displays. - Page 23 8. The EX-G011RX has been tested extensively and found that it doesn’t require external power supply. If in rare situation you find it cannot work with the EX-G011, please use any +5V power adapter to plug in the power jack and see if it can work. If not, please contact your technical support for further service.
- Page 24 ACE PLUS CORP. 1. The quality of output video is not good enough, how can I do? Please adjust the 8-level equalization on the receiver units. The HDMI signal level varies from 0 (strongest) to 7 (weakest) for respective transmission length from longest possible range to short distance.
- Page 25 ACE PLUS CORP. cannot support 7.1ch audio. Please change the DIP switch of the chosen input from Default Mode to Safe Mode. 7. When I set an audio amplifier (AV receiver) between TV and the matrix to extract 7.1ch audio, but why there is still no audio? Basically, the default DIP switch setting of the chosen input can support 7.1ch audio, but the...
-
Page 26: Limited Warranty
ACE PLUS CORP. Limited Warranty The SELLER warrants the EX-G011 v1.3 4x4 HDMI over CAT5 Matrix with IR Pass-through to be free from defects in the material and workmanship for 1 year from the date of purchase from the SELLER or an authorized dealer. Should this product fail to be in good working order within 1 year...
