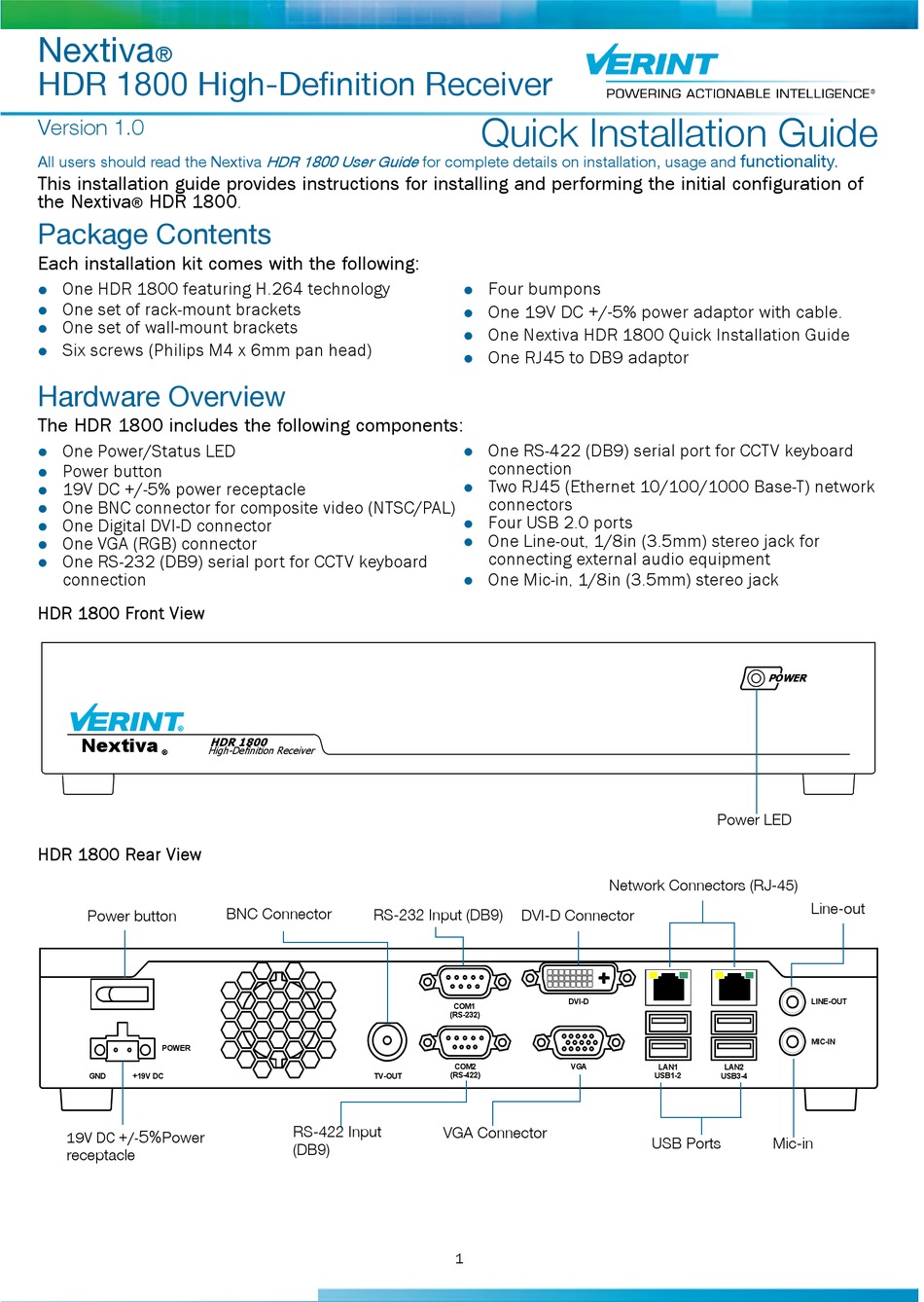

Nextiva HDR 1800 Quick Installation Manual

Nextiva
®
HDR 1800 High-Definition Receiver
Version 1.0
All users should read the Nextiva
This installation guide provides instructions for installing and performing the initial configuration of
the Nextiva HDR 1800
®

Package Contents

Each installation kit comes with the following:
One HDR 1800 featuring H.264 technology

One set of rack-mount brackets

One set of wall-mount brackets

Six screws ( Philips M4 x 6mm pan head)


Hardware Overview

The HDR 1800 includes the following components:
One Power/Status LED

Power button

19V DC +/-5% power receptacle

One BNC connector for composite video (NTSC/PAL)

One Digital DVI-D connector

One VGA (RGB) connector

One RS-232 (DB9) serial port for CCTV keyboard

connection
HDR 1800 Front View

Nextiva
HDR 1800
High-Definition Receiver

HDR 1800 Rear View
Power button
POWER
GND
+19V DC
5%
19V DC +/-
Power
receptacle
HDR 1800 User Guide
.
BNC Connector
RS-232 Input (DB9)
TV-OUT
RS-422 Input
(DB9)
Quick Installation Guide
for complete details on installation, usage and
Four bumpons

One 19V DC +/-5% power adaptor with cable.

One Nextiva HDR 1800 Quick Installation Guide

One RJ45 to DB9 adaptor

One RS-422 (DB9) serial port for CCTV keyboard

connection
Two RJ45 (Ethernet 10/100/1000 Base-T) network

connectors
Four USB 2.0 ports

One Line-out, 1/8in (3.5mm) stereo jack for

connecting external audio equipment
One Mic-in, 1/8in (3.5mm) stereo jack

DVI-D Connector
DVI-D
COM1
(RS-232)
COM2 VGA
(RS-422)
VGA Connector
1
functionality.
POWER
Power LED
Network Connectors (RJ-45)
LAN1 LAN2
USB1-2 USB3-4
USB Ports Mic-in
Line-out
LINE-OUT
MIC-IN
