Summary of Contents for Fiber Tronix FT-FOTR-16VD-ST-S

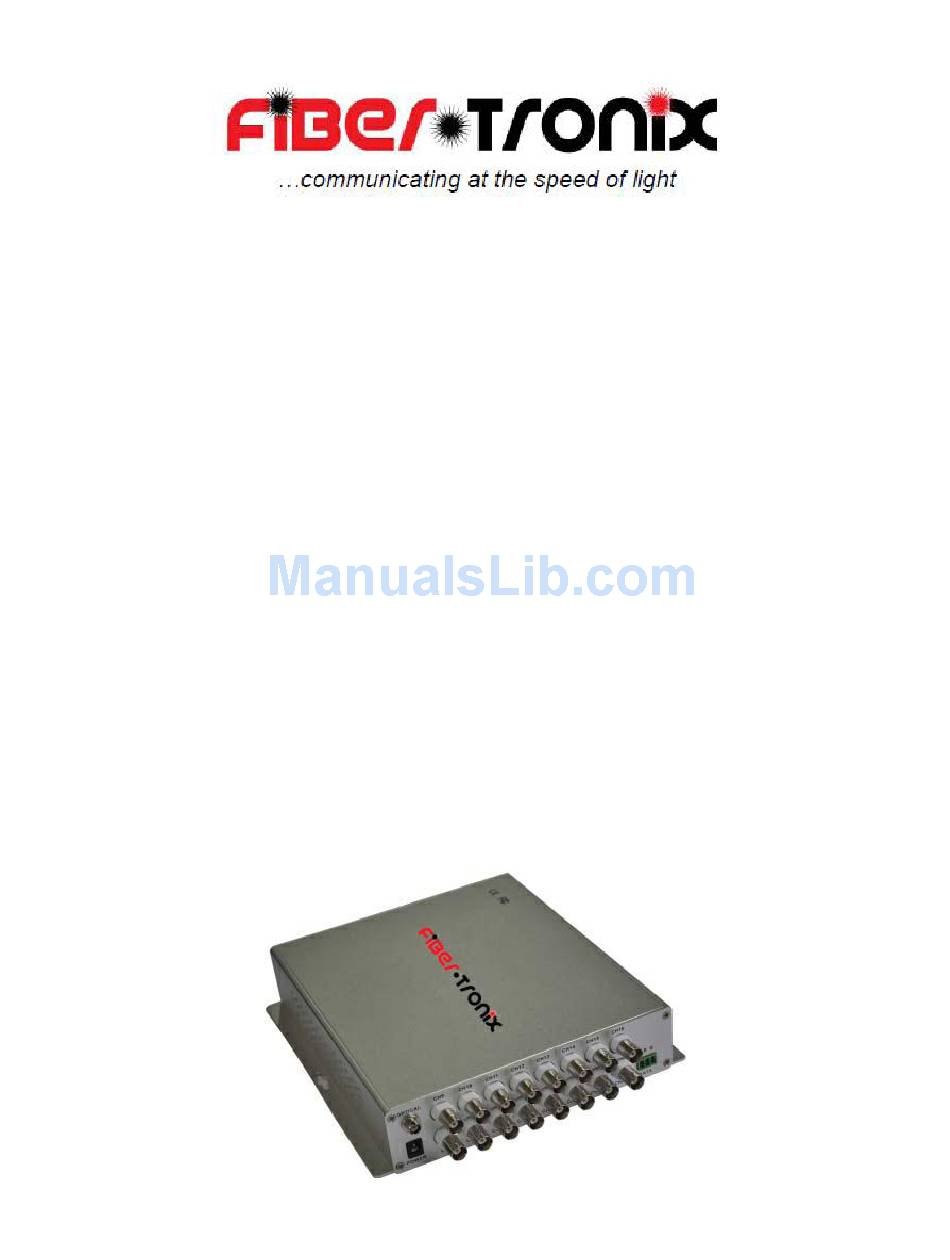

- Page 1 INSTALLATION MANUAL FT-FOTR-16VD-ST-S 16-Channel Digital Duplex Baseband Video Transmitter and Receiver With Reverse Data Transmission for PTZ Cameras v1.0 4/5/11...
-
Page 2: Package Contents
One installation manual PRODUCT DESCRIPTION The FT-FOTR-16VD-ST-S fiber optic transmitter/receiver supports the transmission of sixteen baseband video channels and a single reverse data signal over one strand of single-mode fiber optic cable. This product is compatible with all NTSC and PAL video signals. Power, optical signal, video signal and data signal are easily inspected through LED indicators directly on the units. -
Page 3: Unpacking And Handling
INSTALLATION AND OPERATION This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions. This symbol is intended to alert the user to the presence of “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electrical shock. - Page 4 Receiver Front and Rear Panels Data connector Optical port (Terminal Block) （ST/PC） CH10 CH11 CH12 CH13 CH14 CH15 CH16 OPTICAL Data POWER Digital Video Optical System Video Signal Indicators Power Data Tx Power Input Optical Data Rx Video Output 1-16 ch （DC5V）...
- Page 5 4. SPECIAL ATTENTION a. Only use the power supplies included with these units. The use of other power supplies may damage the transmitter and/or receiver and void the warranty. b. The loss of optical fiber should be less than 18 dB. Any loss greater than 18 dB will compromise the receiver’s ability to get the optical signals from the transmitter.
