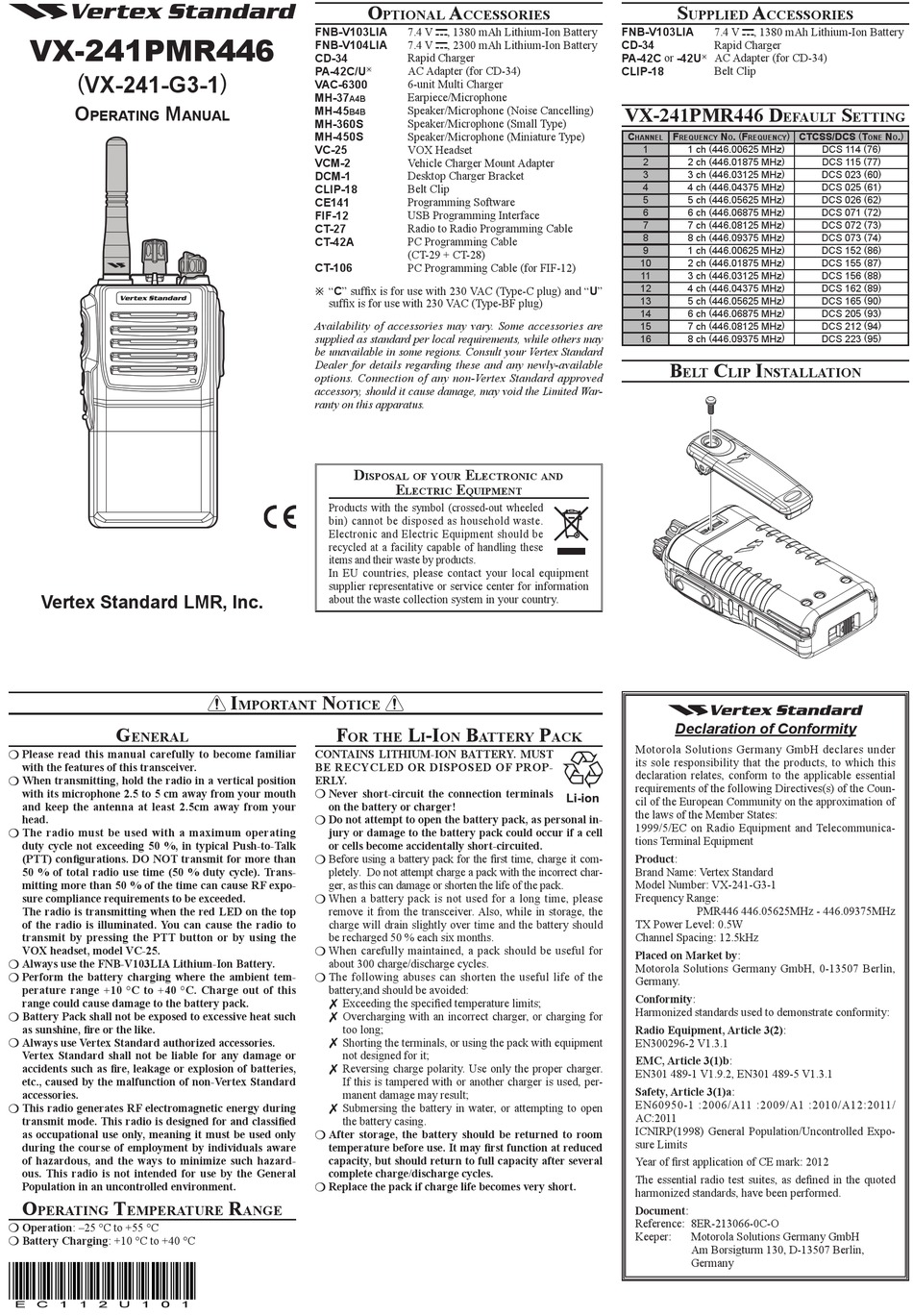

Vertex Standard VX-241PMR446 Operating Instructions

VX-241PMR446
( VX-241-G3-1 )
O M
peratinG
Vertex Standard LMR, Inc.
g
enerAl
 Please read this manual carefully to become familiar
with the features of this transceiver.
 When transmitting, hold the radio in a vertical position
with its microphone 2.5 to 5 cm away from your mouth
and keep the antenna at least 2.5cm away from your
head.
 The radio must be used with a maximum operating
duty cycle not exceeding 50 %, in typical Push-to-Talk
(PTT) configurations. DO NOT transmit for more than
50 % of total radio use time (50 % duty cycle). Trans-
mitting more than 50 % of the time can cause RF expo-
sure compliance requirements to be exceeded.
The radio is transmitting when the red LED on the top
of the radio is illuminated. You can cause the radio to
transmit by pressing the PTT button or by using the
VOX headset, model VC-25.
 Always use the FNB-V103LIA Lithium-Ion Battery.
 Perform the battery charging where the ambient tem-
perature range +10 °C to +40 °C. Charge out of this
range could cause damage to the battery pack.
 Battery Pack shall not be exposed to excessive heat such
as sunshine, fire or the like.
 Always use Vertex Standard authorized accessories.
Vertex Standard shall not be liable for any damage or
accidents such as fire, leakage or explosion of batteries,
etc., caused by the malfunction of non-Vertex Standard
accessories.
 This radio generates RF electromagnetic energy during
transmit mode. This radio is designed for and classified
as occupational use only, meaning it must be used only
during the course of employment by individuals aware
of hazardous, and the ways to minimize such hazard-
ous. This radio is not intended for use by the General
Population in an uncontrolled environment.
o t
perAting eMperAture
 Operation: –25 °C to +55 °C
 Battery Charging: +10 °C to +40 °C
FNB-V103LIA
FNB-V104LIA
CD-34
PA-42C/U
VAC-6300
MH-37
A4B
MH-45
B4B
anual
MH-360S
MH-450S
VC-25
VCM-2
DCM-1
CLIP-18
CE141
FIF-12
CT-27
CT-42A
CT-106
"C" suffix is for use with 230 VAC (Type-C plug) and "U"
ø
suffix is for use with 230 VAC (Type-BF plug)
Availability of accessories may vary. Some accessories are
supplied as standard per local requirements, while others may
be unavailable in some regions. Consult your Vertex Standard
Dealer for details regarding these and any newly-available
options. Connection of any non-Vertex Standard approved
accessory, should it cause damage, may void the Limited War-
ranty on this apparatus.
d
Products with the symbol (crossed-out wheeled
bin) cannot be disposed as household waste.
Electronic and Electric Equipment should be
recycled at a facility capable of handling these
items and their waste by products.
In EU countries, please contact your local equipment
supplier representative or service center for information
about the waste collection system in your country.
i n
MportAnt otice
f
or the
CONTAINS LITHIUM-ION BATTERY. MUST
BE RECYCLED OR DISPOSED OF PROP-
ERLY.
 Never short-circuit the connection terminals
on the battery or charger!
 Do not attempt to open the battery pack, as personal in-
jury or damage to the battery pack could occur if a cell
or cells become accidentally short-circuited.
 Before using a battery pack for the first time, charge it com-
pletely. Do not attempt charge a pack with the incorrect char-
ger, as this can damage or shorten the life of the pack.
 When a battery pack is not used for a long time, please
remove it from the transceiver. Also, while in storage, the
charge will drain slightly over time and the battery should
be recharged 50 % each six months.
 When carefully maintained, a pack should be useful for
about 300 charge/discharge cycles.
 The following abuses can shorten the useful life of the
battery,and should be avoided:
 Exceeding the specified temperature limits;
 Overcharging with an incorrect charger, or charging for
too long;
 Shorting the terminals, or using the pack with equipment
not designed for it;
 Reversing charge polarity. Use only the proper charger.
If this is tampered with or another charger is used, per-
manent damage may result;
 Submersing the battery in water, or attempting to open
the battery casing.
 After storage, the battery should be returned to room
temperature before use. It may first function at reduced
capacity, but should return to full capacity after several
complete charge/discharge cycles.
 Replace the pack if charge life becomes very short.
r
Ange
o A
ptionAl cceSSorieS
7.4 V , 1380 mAh Lithium-Ion Battery
7.4 V , 2300 mAh Lithium-Ion Battery
Rapid Charger
AC Adapter (for CD-34)
ø
6-unit Multi Charger
Earpiece/Microphone
Speaker/Microphone (Noise Cancelling)
Speaker/Microphone (Small Type)
Speaker/Microphone (Miniature Type)
VOX Headset
Vehicle Charger Mount Adapter
Desktop Charger Bracket
Belt Clip
Programming Software
USB Programming Interface
Radio to Radio Programming Cable
PC Programming Cable
(CT-29 + CT-28)
PC Programming Cable (for FIF-12)
e
iSpoSAl of your lectronic And
e e
lectric quipMent
l -i B
i on Attery
S
upplied
FNB-V103LIA
CD-34
PA-42C or -42U AC Adapter (for CD-34)
ø
CLIP-18
VX-241pMr446 d
C F
hannel requenCy
1 ch ( 446.00625 MHz )
1
2 ch ( 446.01875 MHz )
2
3 ch ( 446.03125 MHz )
3
4 ch ( 446.04375 MHz )
4
5 ch ( 446.05625 MHz )
5
6 ch ( 446.06875 MHz )
6
7 ch ( 446.08125 MHz )
7
8 ch ( 446.09375 MHz )
8
1 ch ( 446.00625 MHz )
9
2 ch ( 446.01875 MHz )
10
3 ch ( 446.03125 MHz )
11
4 ch ( 446.04375 MHz )
12
5 ch ( 446.05625 MHz )
13
6 ch ( 446.06875 MHz )
14
7 ch ( 446.08125 MHz )
15
8 ch ( 446.09375 MHz )
16
B
elt

Declaration of Conformity

p
Ack
Motorola Solutions Germany GmbH declares under
its sole responsibility that the products, to which this
declaration relates, conform to the applicable essential
requirements of the following Directives(s) of the Coun-
cil of the European Community on the approximation of
the laws of the Member States:
1999/5/EC on Radio Equipment and Telecommunica-
tions Terminal Equipment
Product:
Brand Name: Vertex Standard
Model Number: VX-241-G3-1
Frequency Range:
PMR446 446.05625MHz - 446.09375MHz
TX Power Level: 0.5W
Channel Spacing: 12.5kHz
Placed on Market by:
Motorola Solutions Germany GmbH, 0-13507 Berlin,
Germany.
Conformity:
Harmonized standards used to demonstrate conformity:
Radio Equipment, Article 3(2):
EN300296-2 V1.3.1
EMC, Article 3(1)b:
EN301 489-1 V1.9.2, EN301 489-5 V1.3.1
Safety, Article 3(1)a:
EN60950-1 :2006/A11 :2009/A1 :2010/A12:2011/
AC:2011
ICNIRP(1998) General Population/Uncontrolled Expo-
sure Limits
Year of first application of CE mark: 2012
The essential radio test suites, as defined in the quoted
harmonized standards, have been performed.
Document:
Reference: 8ER-213066-0C-O
Keeper: Motorola Solutions Germany GmbH
Am Borsigturm 130, D-13507 Berlin,
Germany
A
cceSSorieS
7.4 V , 1380 mAh Lithium-Ion Battery
Rapid Charger
Belt Clip
S
efAult etting
. ( F ) CtCSS/DCS ( t
n n
O requenCy One
DCS 114 ( 76 )
DCS 115 ( 77 )
DCS 023 ( 60 )
DCS 025 ( 61 )
DCS 026 ( 62 )
DCS 071 ( 72 )
DCS 072 ( 73 )
DCS 073 ( 74 )
DCS 152 ( 86 )
DCS 155 ( 87 )
DCS 156 ( 88 )
DCS 162 ( 89 )
DCS 165 ( 90 )
DCS 205 ( 93 )
DCS 212 ( 94 )
DCS 223 ( 95 )
c i
lip nStAllAtion
. )
O
